RAB IC Rated 2x2 LED Troffer Retrofit – Selectable Color & Wattage
Lumens:
Watts:
Color Temp:
5 Year Warranty
11578 in stockEasy, Fast, Affordable Way to Convert 2x4 Fluorescent Troffers
- Installs in 3 Minutes or Less with 1 Person
- Field-Selectable: Adjust wattage & CCT during install.
- Compatible with Insulated & Non-Insulated Flat T-grid Ceilings.
Great Looks & Performance for Drop Ceilings
- Attractive Center Basket Design
- Light Diffusing Lens
- Natural Color Rendering
Provides excellent lighting for offices, classrooms, retail establishments, commercial locations, and more.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Easy, Fast, Affordable Way to Convert 2x4 Fluorescent Troffers
- Installs in 3 Minutes or Less with 1 Person
- Field-Selectable: Adjust wattage & CCT during install.
- Compatible with Insulated & Non-Insulated Flat T-grid Ceilings.
Great Looks & Performance for Drop Ceilings
- Attractive Center Basket Design
- Light Diffusing Lens
- Natural Color Rendering
Provides excellent lighting for offices, classrooms, retail establishments, commercial locations, and more.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
11578 in stock
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
11578 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 35W/30W/25W |
| Light Output |
At 3500K: 4,726/4,075/3,435 lumens At 4000K: 4,955/4,300/3,658 lumens At 5000K: 4,909/4,267/3,601 lumens |
| Luminous Efficacy (lm/W) | 133.2 to 149.8 |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K selectable |
| CRI (Color Accuracy) | >84 |
| Dimming | 0-10V |
| Dimming Range | Dims down to 10% |
| Installation | Recessed into T-grid ceiling. |
| Working Environment | Indoors |
| Input Voltage | 120-277V, 50/60Hz |

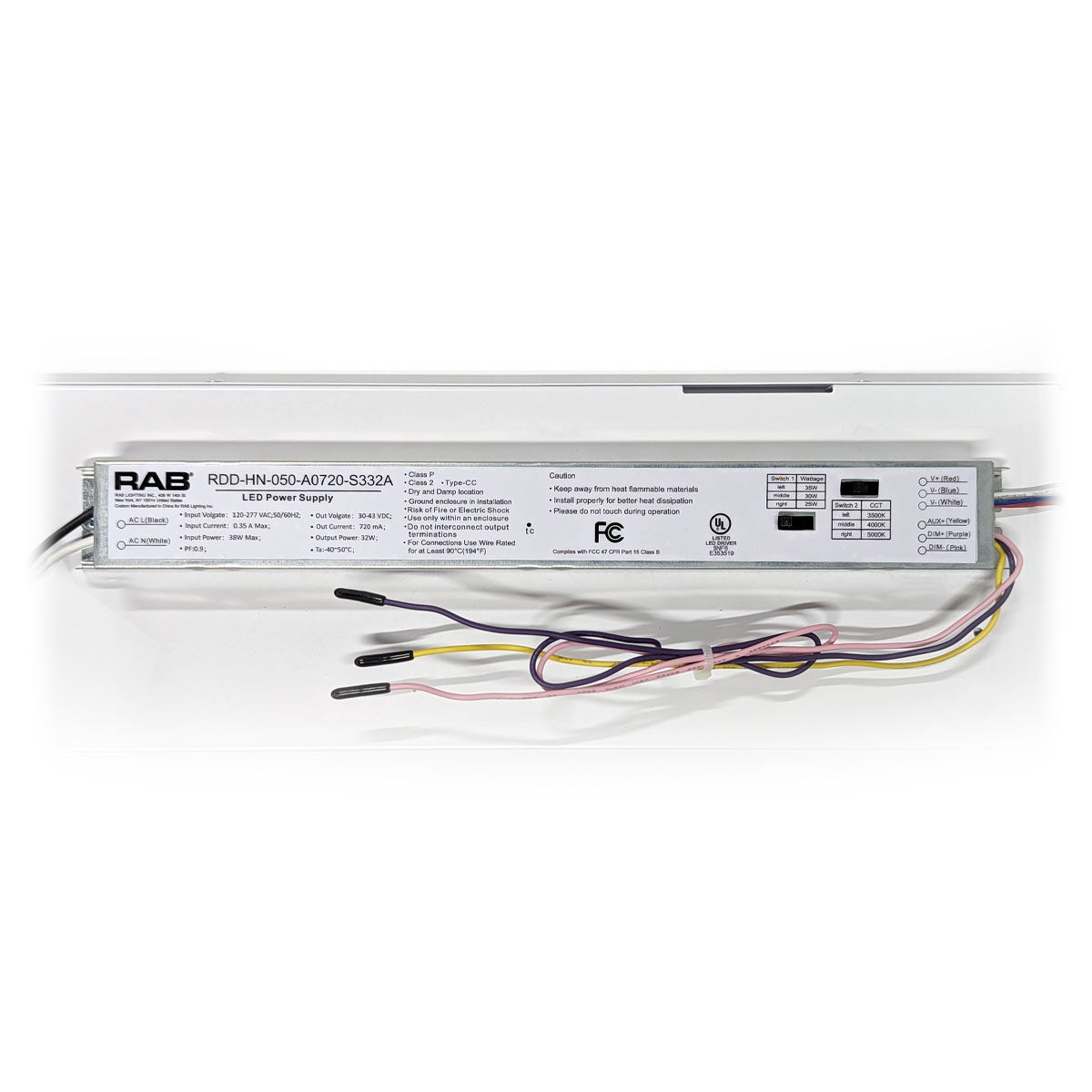

| Driver Type | Constant Current, Class 2 |
| Power Factor | @35W, 4000K: 99.7% at 120V, 94.3% at 277V |
| THD (Total Harmonic Distortion) | @35W, 4000K: 2.87% at 120V, 3.07% at 277V |
| Surge Protection | 2.5kV |
| Temperature Rating | -4°F-104°F |
| Housing Material | Steel sheet metal with polycarbonate lens |

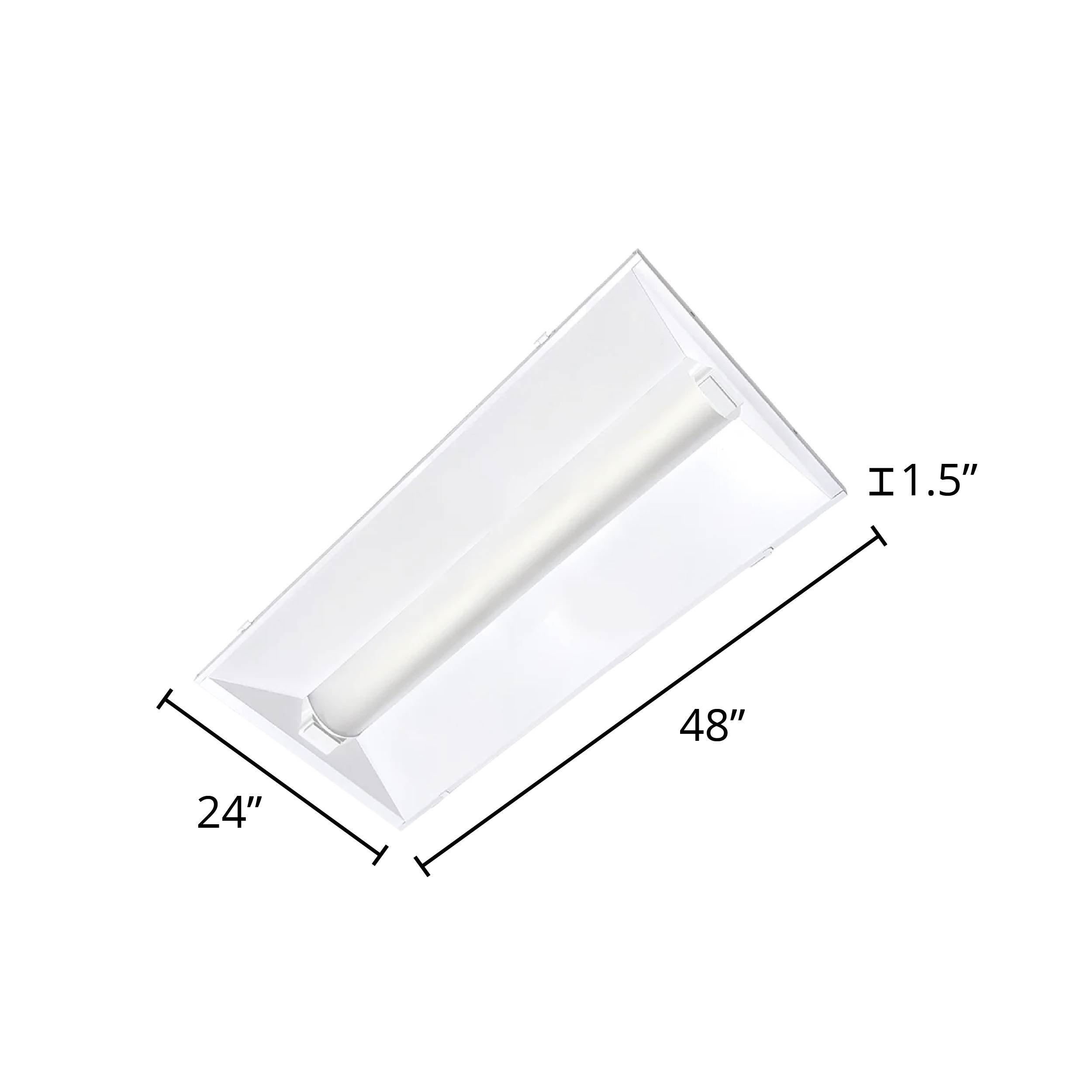

| Dimensions | 48" x 24" x 1.5" |
| Weight | 13.1 lbs |
| Certification | DLC Premium, UL |
| DLC ID(s) | S-QOHE9L |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
Key Features
Quick & Easy Install
Selectable Wattage & CCT
Built-In Dimmability
Easy, Fast, Affordable Way to Convert 2x4 Fluorescent Troffers
- Installs in 3 Minutes or Less with 1 Person
- Field-Selectable: Adjust wattage & CCT during install.
- Compatible with Insulated & Non-Insulated Flat T-grid Ceilings.
Great Looks & Performance for Drop Ceilings
- Attractive Center Basket Design
- Light Diffusing Lens
- Natural Color Rendering
Provides excellent lighting for offices, classrooms, retail establishments, commercial locations, and more.
Light Output
This light is wattage and color selectable. Click a wattage to see the light output for that setting.
