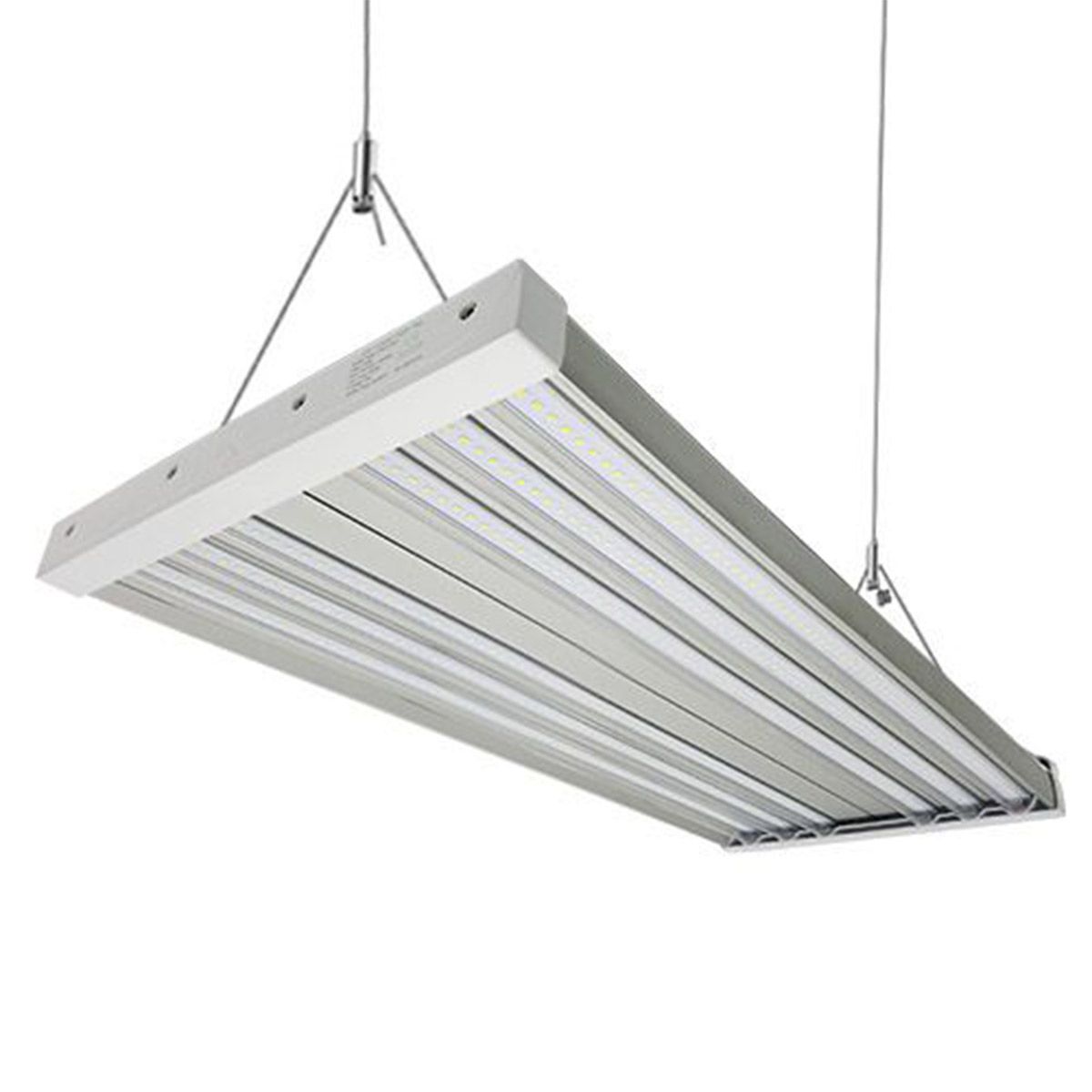

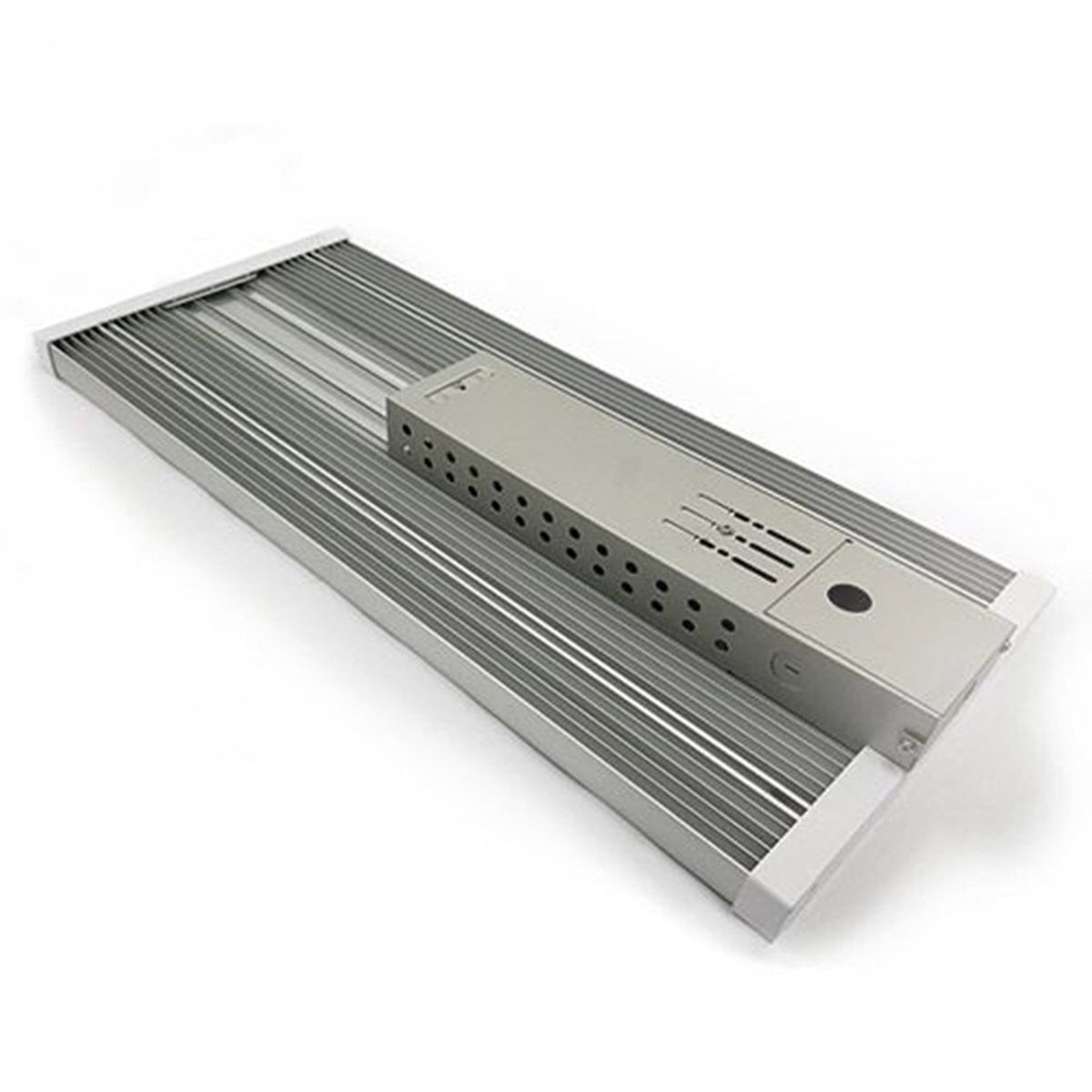

Linear LED High Bay - 120W / 17,400 lm
Linear LED High Bay - 120W / 17,400 lm
Linear LED High Bay - 120W / 17,400 lm
Linear LED High Bay - 120W / 17,400 lm
Only 13 Remaining
A 120W linear LED high bay for warehouses, manufacturing, supermarkets, and cafeterias, replacing 400W metal halide with a two-wire install that makes T5 fixture replacement faster than a ballast bypass.
- Replaces 400W metal halide (120W) with 17,400 lumens at 145 lm/W for 70% energy savings
- Easier than T5 ballast bypass: cut the old fixture wires, hang the new one, connect just two
- Industrial-grade build suited for warehouses and manufacturing as well as retail and cafeterias
Need More? Text/call (858) 650-9400
A 120W linear LED high bay for warehouses, manufacturing, supermarkets, and cafeterias, replacing 400W metal halide with a two-wire install that makes T5 fixture replacement faster than a ballast bypass.
- Replaces 400W metal halide (120W) with 17,400 lumens at 145 lm/W for 70% energy savings
- Easier than T5 ballast bypass: cut the old fixture wires, hang the new one, connect just two
- Industrial-grade build suited for warehouses and manufacturing as well as retail and cafeterias
Choose options
Only 13 Remaining
Need More? Text/call (858) 650-9400
Only 13 Remaining
Need More? Text/call (858) 650-9400
Details
Replace your T5 or metal halide high bay lights with a brighter, longer-life, more attractive LED alternative. These industrial-quality lights are durable enough for warehouses and manufacturing yet stylish enough to be used in supermarkets, cafeterias, and other customer-facing applications.
If you’ve been thinking of converting your existing T5 high bay fixtures to LED you may find it both more economical and more practical to replace the fixture altogether. Instead of having to by-pass the ballast in your existing fixture and direct-wire the tombstones for each lamp you can simply cut the wires to your old fixture take it down hang the new one up connect just two wires—and you’re done!
And if you’ve been using metal halide high bays you’ll see even more of a benefit in your monthly lighting bill in the form of a 70% cost reduction.
Specs
| Wattage(s) | 120W |
| Replaces Wattage(s) | 250W |
| Light Output | 17,400 lumens |
| Luminous Efficacy (lm/W) | 145 lm/W |
| Average Lamp Life | 50000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | >80 |
| Base Type | Fixture |
| Beam Angle | 120° |
| Recommended Installation Height | 15 to 35 feet |
| Working Environment | Indoor |
| Enclosure Rating | IP20 (For indoor use only) |
| Light Type | Wired Fixture |
| Input Voltage | 100-277 VAC |
| Temperature Rating | -30°C to +45°C |
| Housing Material | Aluminum alloy |
| Housing Color | Gray |
| Dimensions | 26.6" x 12" x 2.8" |
| Weight | 11 lbs |
| Package Dimensions | 29" x 14" x 4.9" |
| Certification | DLC 5.0, UL |
| Warranty | Warehouse clearance 1 year warranty with USA warranty support direct from ELEDLights |
