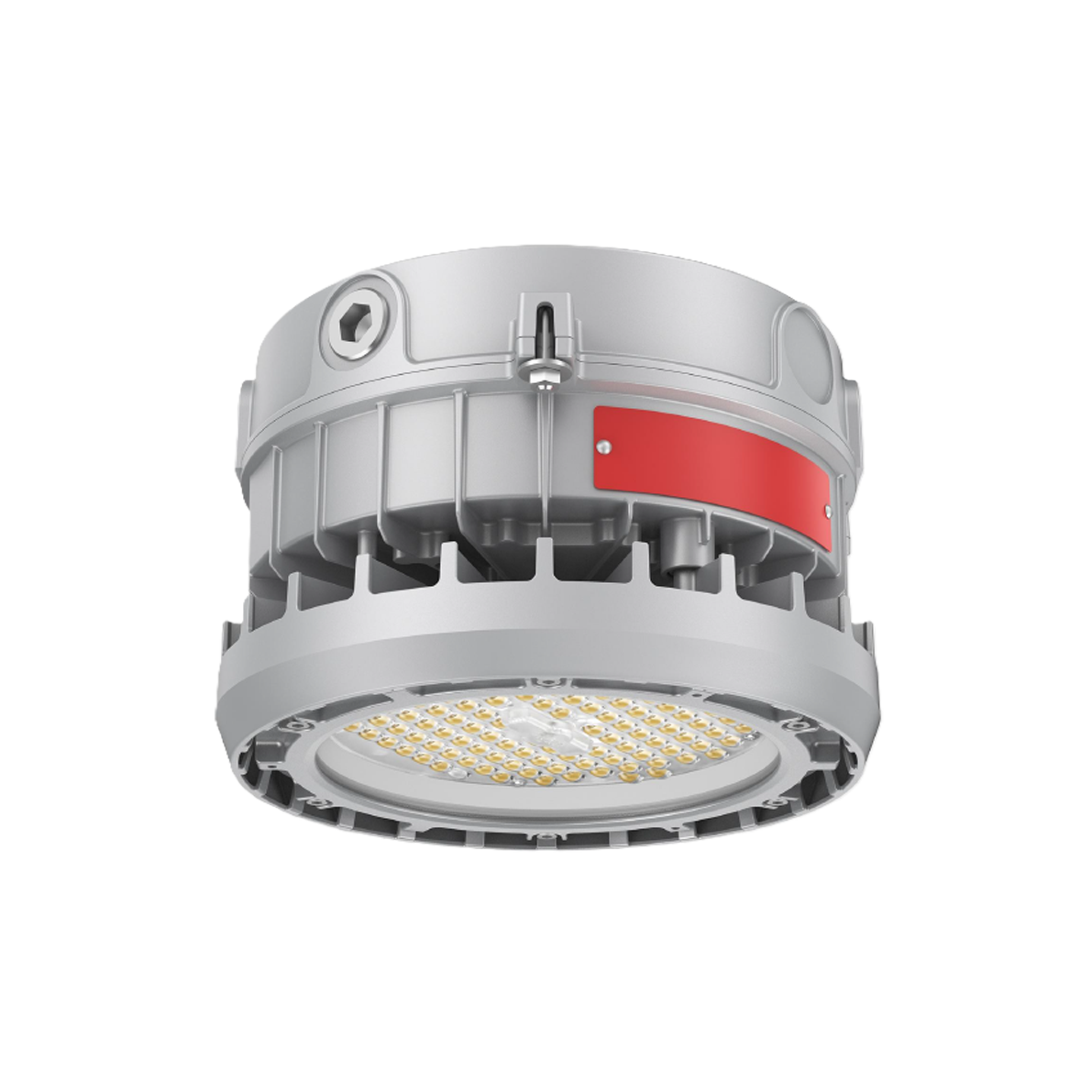

75W Selectable Hazardous Location & Marine Grade Low Bay Light
Regular price
Wattage-selectable Class I Div 2 round high bay — marine-grade, built for oil rigs and offshore.
- 3 wattages (30/53/75W) — Class I Div 2 and Class II Div 2 certified for gas and dust hazards.
- Marine-grade, corrosion-resistant — rated for 10+ years in harsh, wet, and salt-air environments.
- 5-year warranty for fuel storage, oil rigs, chemical plants, and Class I/II Div 2 locations.
Wattage-selectable Class I Div 2 round high bay — marine-grade, built for oil rigs and offshore.
- 3 wattages (30/53/75W) — Class I Div 2 and Class II Div 2 certified for gas and dust hazards.
- Marine-grade, corrosion-resistant — rated for 10+ years in harsh, wet, and salt-air environments.
- 5-year warranty for fuel storage, oil rigs, chemical plants, and Class I/II Div 2 locations.
Choose options
Regular price
Regular price
Specs
| Wattage(s) | 30W/53W/75W |
| Replaces Wattage(s) | 250W |
| Light Output | 3,300-11,250 lumens |
| Luminous Efficacy (lm/W) | 150 lm/W |
| Average Lamp Life |
L90: 48,000 hours L80: 102,300 hours L70: 164,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 0-10V |
| Beam Angle | Type V |
| Installation |

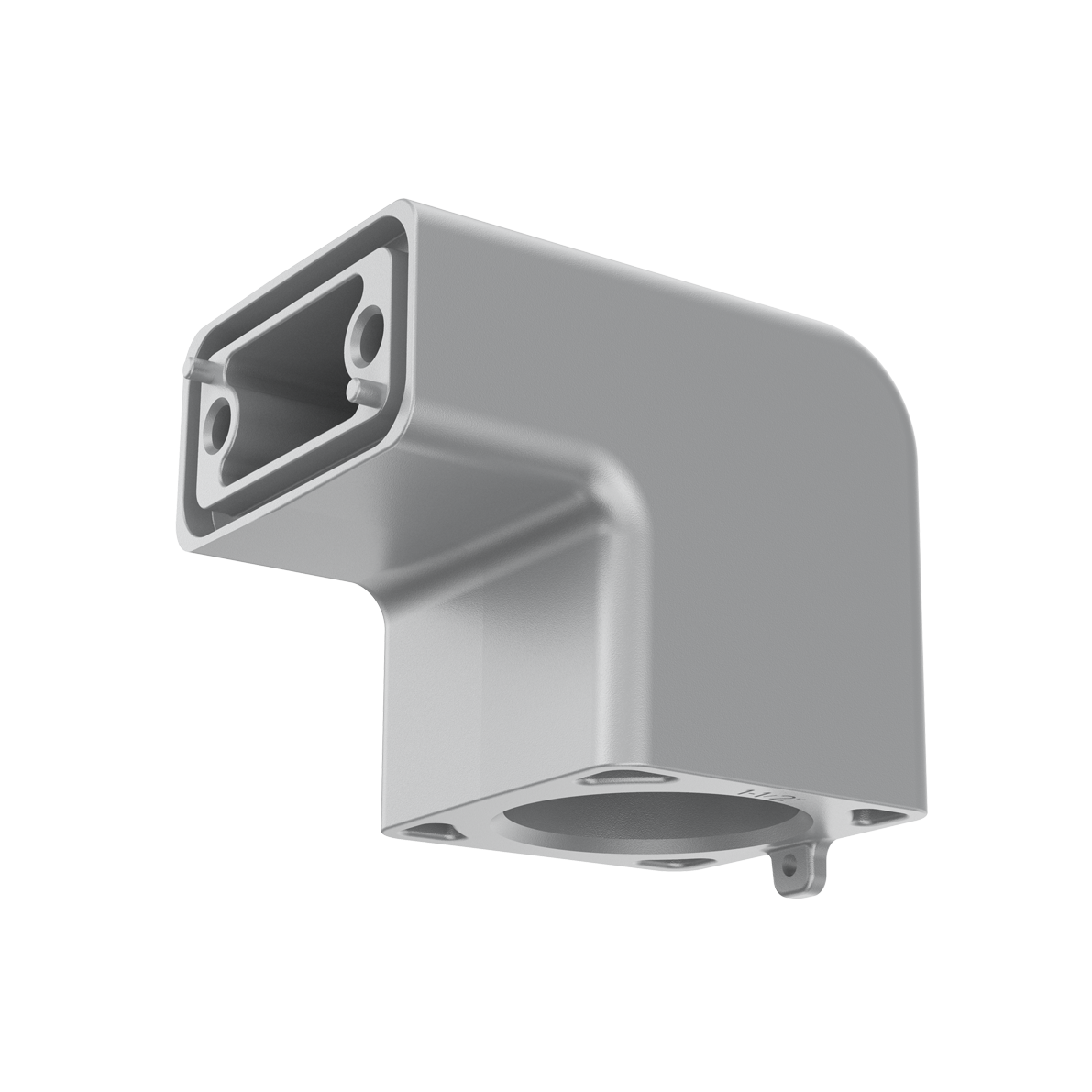

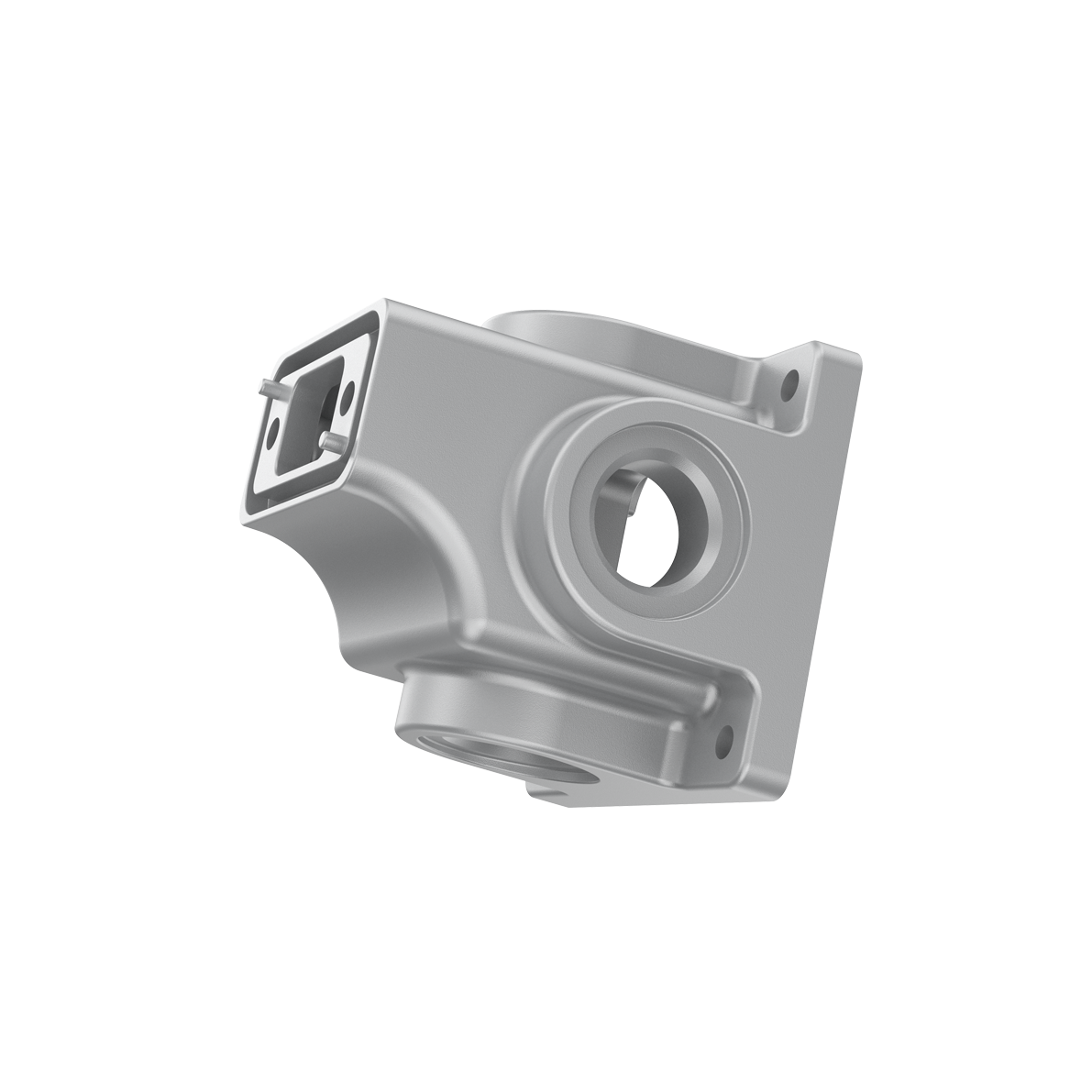

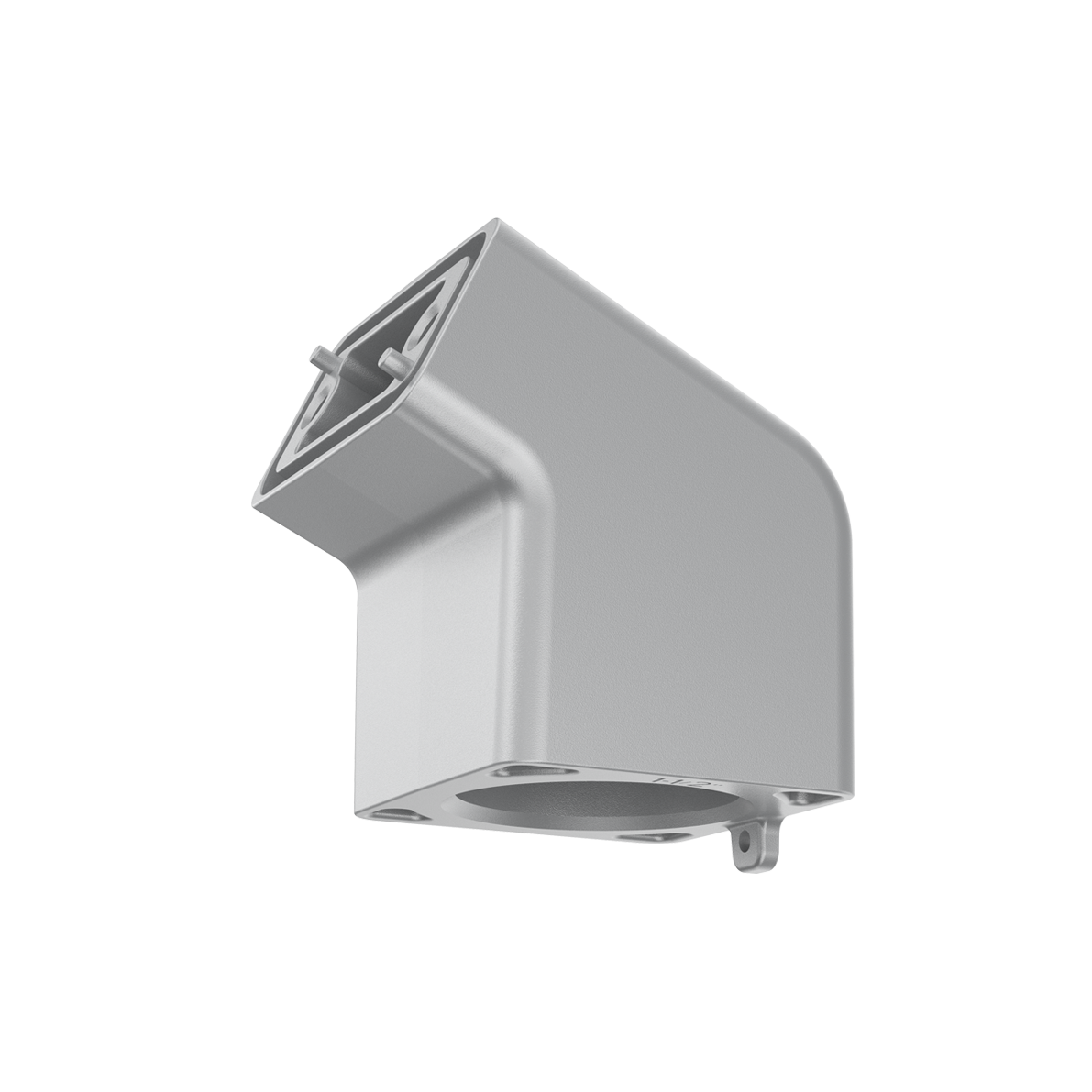

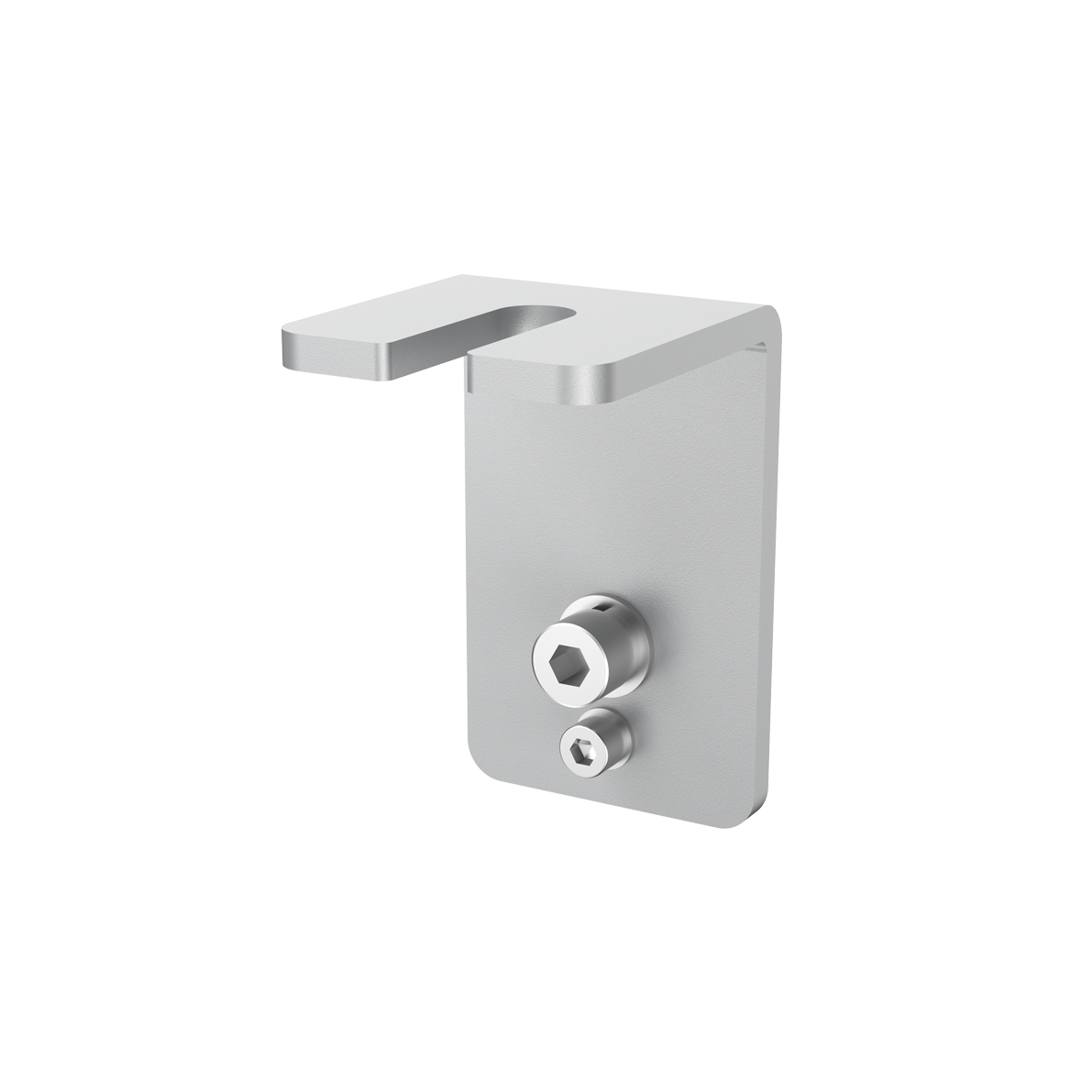

Trunnion & Pendant Mount Standard Accessories available for Wall Mount, Ceiling Mount, 25° Stanchion Mount, and 90° Stanchion Mount |
| Enclosure Rating | IP66, IK08 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | >0.95 |
| Surge Protection | 10kV line-line, 10kV line-earth |
| Temperature Rating | -40°C to +60°C (-40°F to +140°F) |
| Housing Material | Aluminum Alloy (less than 0.4% copper content), Tempered Glass |
| Housing Color | Gray |

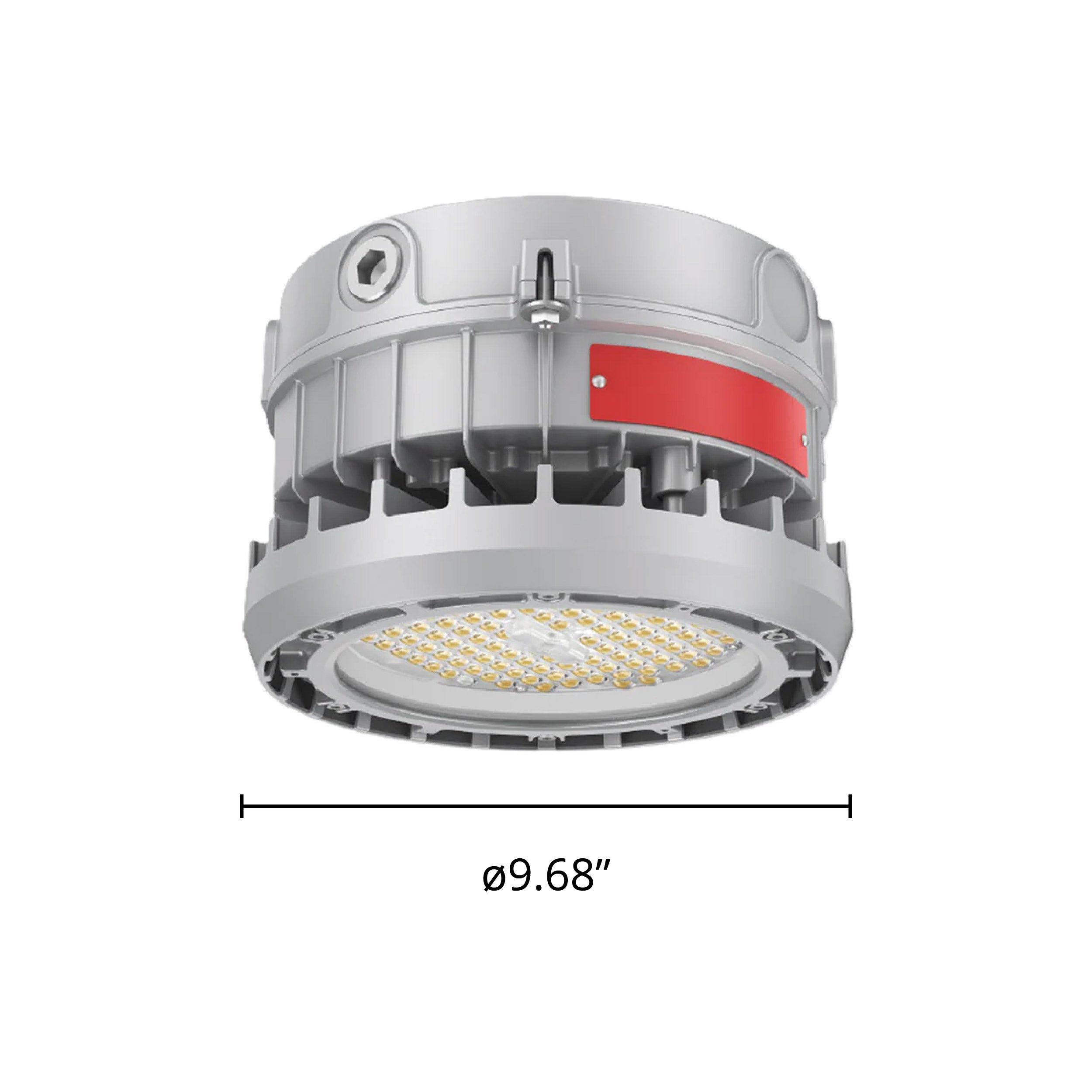

| Dimensions | 10.55" x ø9.68” x 11.77” |
| Weight | 9.7lbs |
| Certification | UL, CSA |
| Warranty | 5 Years |
| Additional Specifications |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 2, GR. F, G Class III Class I, Zone 2, Group IIC Zone 21, Group IIIC Zone 22 |
Data SheetDetails
Wattage-Selectable Hazardous Location Lighting with Mounting Accessories for Difficult Sites
Corrosion-resistant marine-grade build to deliver 10+ years of safe, high-efficiency LED lighting in hazardous locations.
-
Flexible installation options with trunnion/pendant mounting hardware standard. Wall, ceiling, and 25°/90° stanchion mounting accessories available for compatibility with oil rigs, drilling platforms, and other difficult locations.
-
Hazardous Location Rated (Class I Div 2) – For areas where explosive gases may be present during leaks, failures, or other abnormal conditions.
- Dust-ignition Proof (Class II Div 2) – Safe for use in environments where combustible dusts are present but not normally in explosive concentrations.
- Simultaneous Presence – This light can be used in environments with both flammable gases/vapors and combustible dust/fibers.
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray.
- Suited to Cold Environments with an operating temperature down to -40°F.
This light is a safe, long-lasting, and energy-saving choice for use in drilling rigs, petrochemical facilities & refineries, food & beverage plants, and other hazardous environments.
