Sanitation-Rated, Waterproof MaxLite UFO High Bay, 20 to 30 ft Ceilings
Lumens:
Watts:
Color Temp:
10 Year Warranty
Sleek Lighting for High-Ceiling Locations
NSF Certification: Approved for use in food processing locations.
Waterproof Housing: Made from die-cast aluminum and fully sealed.
Easy to Install: A 3-wire 6ft power cord and sturdy hook for hanging is included with every light.
Highly Flexible for a Range of Ceiling Heights & Needs
- Set your light output: Field-selectable options cover ceilings from low bay to 30ft heights.
- Set your color temperature: Choose from comfortable warm white to cool toned light for each space.
- Add controls: 0-10V dimming is included and a control-ready port allows for adding smart sensors (available as accessories).
Ideal for food processing plants, commercial kitchens, covered outdoor structures, commercial laundries, warehouses, retail and big box stores, ice rinks, and other industrial/commercial locations.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price & free shipping:
Sleek Lighting for High-Ceiling Locations
NSF Certification: Approved for use in food processing locations.
Waterproof Housing: Made from die-cast aluminum and fully sealed.
Easy to Install: A 3-wire 6ft power cord and sturdy hook for hanging is included with every light.
Highly Flexible for a Range of Ceiling Heights & Needs
- Set your light output: Field-selectable options cover ceilings from low bay to 30ft heights.
- Set your color temperature: Choose from comfortable warm white to cool toned light for each space.
- Add controls: 0-10V dimming is included and a control-ready port allows for adding smart sensors (available as accessories).
Ideal for food processing plants, commercial kitchens, covered outdoor structures, commercial laundries, warehouses, retail and big box stores, ice rinks, and other industrial/commercial locations.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
10 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
10 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 180/200/240W |
| Replaces Wattage(s) | 400W to 750W |
| Light Output |
180W/200W/240W at 3500K: 24,500/27,000/32,100 lumens 180W/200W/240W at 4000K: 27,000/30,000/35,100 lumens 180W/200W/240W at 5000K: 25,200/28,000/33,400 lumens |
| Luminous Efficacy (lm/W) | Up to 150 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V |
| Occupancy Sensor | C-Max Control Ready |
| Beam Angle | 90° |
| Working Environment | Indoors |
| Enclosure Rating | IP65, ETL Listed for Wet Locations |
| Input Voltage | 120-277VAC |
| Power Factor | ≥ 0.9 |
| Surge Protection | 6KV |
| Temperature Rating | -4°F to 122°F |
| Humidity | 10% to 80% RH Non-Condensing |
| Housing Material | Die cast aluminum with polycarbonate lens |
| Housing Color | White |

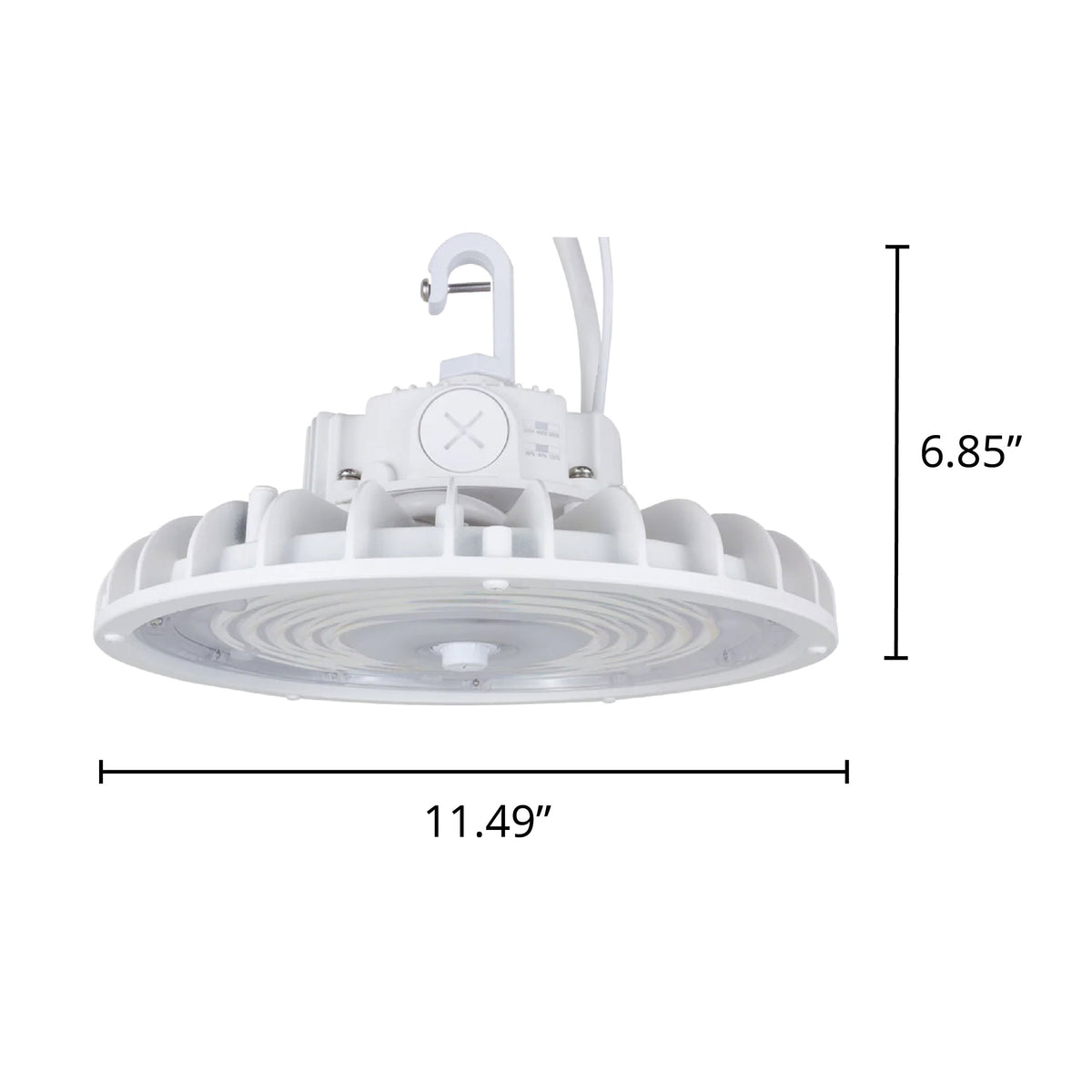

| Dimensions | ø11.49" x 4.29" (6.85" with hook) |
| Certification | DLC Premium, ETL, NSF |
| DLC ID(s) | S-QPWM03 |
| Warranty | 10 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
COMPARE KEY FEATURES
UFO LED High Bay – 3–CCT – 240/200/180W – MaxLite Eco Gen 3
|
Washdown LED High Bay – NSF – 150W
|
Washdown LED High Bay – NSF – 200W
|
|
|---|---|---|---|
| Wattage | 180/200/240W | 150W | 200W |
| Efficacy | Up to 150 lm/W | 140 lm/W | 140 lm/W |
| Color Temperature (CCT) | 3500K/4000K/5000K | 5000K | 5000K |
| Color Accuracy (CRI) | >80 | >80 | >80 |
| Temperature Rating | -4°F to 122°F | -30°C to 45°C (-22°F to 113°F) | -30°C to 45°C (-22°F to 113°F) |
| Warranty | 10 Years | 5 Years | 5 Years |
|
$147.95
|
$168.95
View Details
|
$210.95
View Details
|
Key Features
Great for Commercial Kitchens
Selectable Wattage & CCT
Smart Control Ready
Sleek Lighting for High-Ceiling Locations
NSF Certification: Approved for use in food processing locations.
Waterproof Housing: Made from die-cast aluminum and fully sealed.
Easy to Install: A 3-wire 6ft power cord and sturdy hook for hanging is included with every light.
Highly Flexible for a Range of Ceiling Heights & Needs
- Set your light output: Field-selectable options cover ceilings from low bay to 30ft heights.
- Set your color temperature: Choose from comfortable warm white to cool toned light for each space.
- Add controls: 0-10V dimming is included and a control-ready port allows for adding smart sensors (available as accessories).
Ideal for food processing plants, commercial kitchens, covered outdoor structures, commercial laundries, warehouses, retail and big box stores, ice rinks, and other industrial/commercial locations.
Light Output
This light is wattage and color selectable. Click a wattage to see the light output for that setting. Please check the specifications for the full list of light outputs based on power & CCT settings.
