30W Solar LED Area Light with Lens Tilt









30W Solar LED Area Light with Lens Tilt









30W Solar LED Area Light with Lens Tilt
30W Solar LED Area Light with Lens Tilt
Only 111 Remaining
This 30W solar LED area light typically covers 800+ sq ft* for small parking lots, drive lanes, and walkways, delivering security-grade illumination with zero ongoing electricity cost and no trenching, conduit, or utility connection required.
- Skip the trenching, eliminate a large share of installation cost upfront, and see your ROI grow with every month of zero electric bills
- Independently aimable Type III lens puts full brightness exactly where safety and security demand it, without forcing a compromise on charging capability
- Full brightness at dusk and whenever motion is detected, then dims to conserve battery during quiet overnight stretches — bright when it matters, efficient when it doesn't
*Estimated minimum coverage at full brightness, based on typical outdoor lighting planning assumptions. Actual coverage depends on mounting height, pole spacing, and site conditions — request a free custom layout from our team for a site-specific recommendation.
This 30W solar LED area light typically covers 800+ sq ft* for small parking lots, drive lanes, and walkways, delivering security-grade illumination with zero ongoing electricity cost and no trenching, conduit, or utility connection required.
- Skip the trenching, eliminate a large share of installation cost upfront, and see your ROI grow with every month of zero electric bills
- Independently aimable Type III lens puts full brightness exactly where safety and security demand it, without forcing a compromise on charging capability
- Full brightness at dusk and whenever motion is detected, then dims to conserve battery during quiet overnight stretches — bright when it matters, efficient when it doesn't
*Estimated minimum coverage at full brightness, based on typical outdoor lighting planning assumptions. Actual coverage depends on mounting height, pole spacing, and site conditions — request a free custom layout from our team for a site-specific recommendation.
Choose options
Only 111 Remaining
Only 111 Remaining
Specs
| Wattage(s) | 30W |
| Replaces Wattage(s) | 250W |
| Light Output | 6000 lumens |
| Luminous Efficacy (lm/W) | 200 lm/W |
| Battery | LiFePO4, 230.4Wh |
| Solar Panel Type | Mono-Crystalline Solar Panel |
| Solar Panel Wattage | 30W |
| Solar Charge Controller | PWM |
| Solar Panel Tilt Range | ±15° |
| Run Time |
Full power>8 hours* Intelligent mode 3-4 days* |
| Operation Method |
Default intelligent mode: First 30min after dusk - 100% brightness Next 4hrs - 50% when motion detected, 10% when vacant Next 4hrs - 20% when motion detected, 10% when vacant Next 3hrs (until sunrise) - 10% brightness Optional remote controller allows programmable five-stage night mode with motion sensing in stages 3 & 4. |
| Average Lamp Life |
L90: 31,000 hours L80: 64,000 hours L70: 101,000 hours |
| Color Temperature(s) | 4000K. Call for 2700K or Turtle Friendly Amber. |
| Dimming | Yes |
| Occupancy Sensor | PIR |
| Charge Time | > 9 hours* |
| Base Type | Fixture |
| Light Distribution Pattern |
Type III. Call for Type II or Type V.
Learn More
×
Light Distribution OptionsType II Beam ![]() Throws a wide beam with significant side spread. Well suited for places like paths, walkways, or narrow side-streets. Type III Beam ![]() Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type V Beam ![]() Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Installation | Mounts on 60mm diameter vertical pole or side arm. Included mounting adapter is ±15° tilt adjustable. |
| Recommended Installation Height | 10 ft to 23 ft |
| EPA (Effective Projected Area) | 0.23m2/2.56ft2 |
| Working Environment | Outdoor |
| Enclosure Rating | IP65 |
| Light Type | Solar |
| LED Type | LED 2835 |
| Temperature Rating | 0°C to +50°C (+32°F to +122°F) |

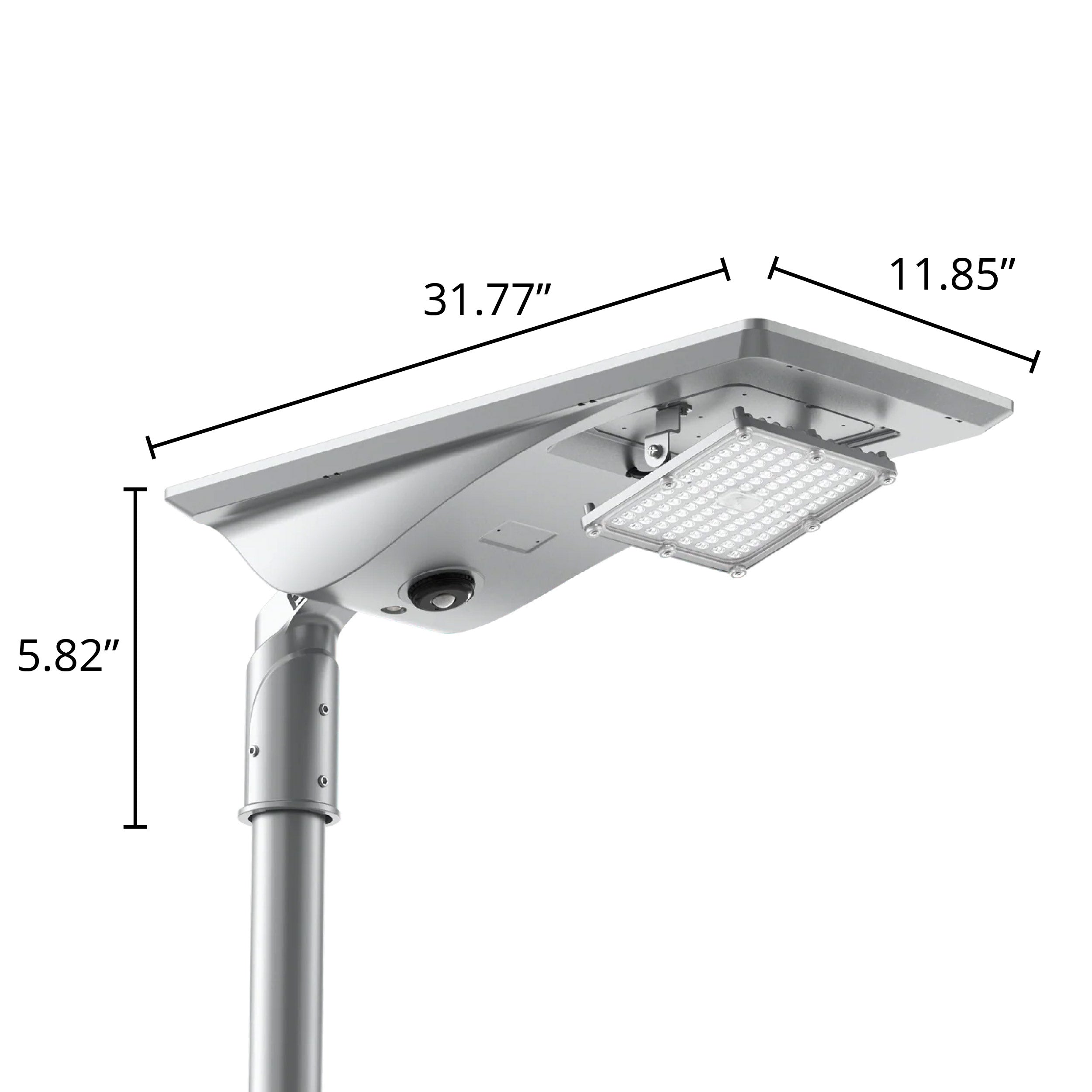

| Dimensions | 31.77” L x 11.85” W x 5.82” H |
| Weight | 13.9±0.6lbs |
| Warranty | 5 Years |
| Additional Specifications | *Performance based on ideal conditions - solar lights are heavily affected by sunlight levels, temperatures, snow, dirt, and other conditions |
Details
Off-Grid Illumination Built for Safety and Savings
This solar LED area light delivers the brightness small parking lots, driveways, walkways, and narrow streets need for safety and security, without the cost of trenching, conduit, or a utility connection to get there. Typically covering 800+ sq ft at full brightness, it combines an independently aimable lens, intelligent programming that blends timed dimming with motion-sensing activation, and a 230.4Wh LiFePO4 battery in the most compact, easiest-to-mount fixture in the lineup.
- No Compromise Between Charging and Coverage: The solar panel tilts ±15° to capture peak sun regardless of pole orientation, while the lens aims independently to put light exactly on the driveway, walkway, or lot that needs it. Unlike all-in-one fixtures with a fixed panel and lens, aiming the light here never means the panel tilts to a poor charging angle.
- Light When It's Needed, Not a Watt Wasted: An intelligent 5-stage night mode with motion sensing steps brightness down through the night — 100% for the first 30 minutes, tapering down by early morning — but brightens automatically when someone approaches, holding brightness until they've passed. Get the full safety benefit without wasting battery when no one is around.
- Pays for Itself Before It's Even on the Pole: For small lots, driveways, and walkway projects where extending grid power would mean trenching, conduit, and utility coordination, this fixture skips all of it. The avoided installation costs alone often cover a large share of the purchase price, and every month afterward runs on sunlight instead of a utility bill.
- Skip the Pole Too, Not Just the Trench: Mount directly to a wall or corner using the optional bracket, and you eliminate the pole entirely — no pole purchase, no footing, no separate pole installation. For building perimeter lighting, that makes this fixture a solar-powered alternative to a grid-tied wall pack, with the independent lens tilt aiming light down and out just as a wall pack would.
- Programmable to Fit Your Site: If you want constant illumination rather than motion-sensing operation, that's no problem. An optional remote lets you custom-program this fixture to suit your needs, including steady output for entrances, driveways, or any site where constant light levels are preferred.
- Right-Sized Components for Reliable Runtime: A 230.4Wh LiFePO4 battery matched to a 30W solar panel — rated for 2,000+ charge cycles, roughly 5 to 7+ years of nightly use — delivers up to 3–4 days of autonomy in intelligent mode. The components are sized to the fixture's output, so the battery isn't working harder than it needs to just to keep the light running through a cloudy stretch.
- Built to Run Outdoors, Year-Round: IP65 sealing keeps dust and water out permanently, so the fixture performs the same in a downpour in year three as it did on day one.
Ideal Applications
- Small Parking Lots & Driveways
- Walkways & Narrow Paths
- Narrow Residential Streets & Paths
- Building Perimeters & Wall-Mounted Applications: Wall or corner mounting eliminates the cost of a pole entirely, making this a solar-powered alternative to a grid-tied wall pack for building perimeters, loading areas, and property edges where a wall-mounted fixture is preferred over a pole.
- Small Business & Property Entrances: A single fixture at the entrance to a small business, church, or residential property provides reliable evening security lighting without a utility connection.
- Remote & Rural Sites: Farms, rural driveways, and remote structures where extending grid power is cost-prohibitive or impossible — and where reliable lighting still matters for safety.
Why Buy Commercial Grade?
Cheap solar area lights often advertise inflated equivalency numbers that don't reflect real output, and they claim "commercial grade" seals while failing to disclose battery chemistry. A solar light is a system made up of many components, and each of them must be commercial grade to stand up to long-term service. Here's what separates our truly commercial grade fixtures from cheap marketplace alternatives.
| This Fixture | Typical Marketplace Import | |
|---|---|---|
| Published Specs | Real, tested wattage and lumen output | Often inflated "equivalency" wattage claims — actual output is a fraction of the advertised number |
| Battery Chemistry | LiFePO4 — 2,000+ charge cycles, roughly 5 to 7+ years of nightly use, stable in extreme temps | Often undisclosed — commonly a lower-grade lithium-ion cell that degrades after 300–500 cycles, about 1–2 years, forcing a full fixture replacement |
| Lens & Panel Aim | Independently aimable lens — panel captures peak sun regardless of how the light is aimed | Often a fixed lens locked to the panel angle — charging and coverage compete against each other |
| Weight & Footprint | 13.9 lbs, 2.56 sq ft EPA — lightweight and easy to install | Often unpublished — weight and footprint rarely disclosed, so difficult to identify proper pole size |
| Lamp Life | L70: 101,000 hours | Often unspecified or under 50,000 hours |
| Distribution Choice | Type II, III, or V — ordered to match your site | Fixed distribution — one option only |
| Color Temperature | 4000K neutral white — meets commercial and municipal lighting standards, lower perceived glare | Often a stark 6000K–6700K bluish white common in budget fixtures, with higher perceived glare |
| Warranty | 5-year manufacturer warranty — a true commercial-grade fixture backed by our US-based team | Often 1–2 years, with limited support and a difficult or unclear claims process |
A solar fixture is a system — panel, battery, controller, and LED all have to perform together. A waterproof housing doesn't mean much if the battery inside it degrades within two years. This fixture discloses every component because every one of them was built to last.
Frequently Asked Questions
Will the battery charge on cloudy or overcast days?
Charging naturally slows on overcast days, but the 230.4Wh LiFePO4 battery holds up to 3–4 days of reserve in intelligent mode, giving the light enough of a buffer to carry through a stretch of cloudy weather without going dark.
How does this light perform in cold weather?
The battery is rated to charge between 32°F and 122°F. In colder conditions, the battery can still discharge and run the light using its stored charge, but recharging slows or pauses until daytime temperatures rise back above freezing. The 3–4 day battery reserve is built with this in mind, giving the fixture a buffer through short cold spells.
What happens if snow covers the solar panel?
Heavy snow blocking direct sunlight will reduce charging until it clears. Because the panel sits at an angle rather than lying flat, snow tends to slide off more easily as the panel warms in daytime sun, and any leftover dust or light snow is typically rinsed away by the next rain.
