100W Solar LED Area Light with Lens Tilt

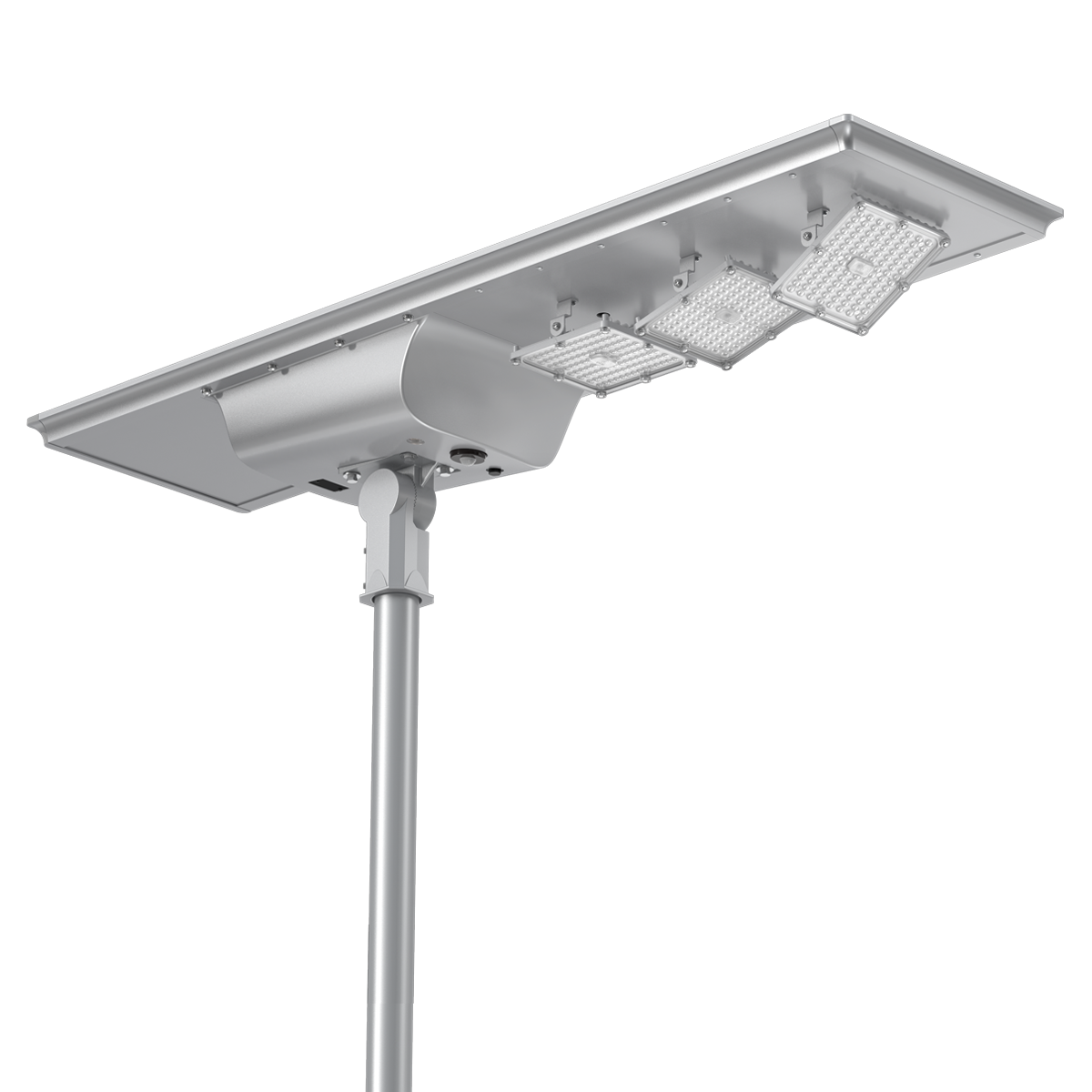

Solar LED Area Light with Tiltable Lenses - 100W mounted on pole with adjustable lenses and solar panel for efficient lighting.

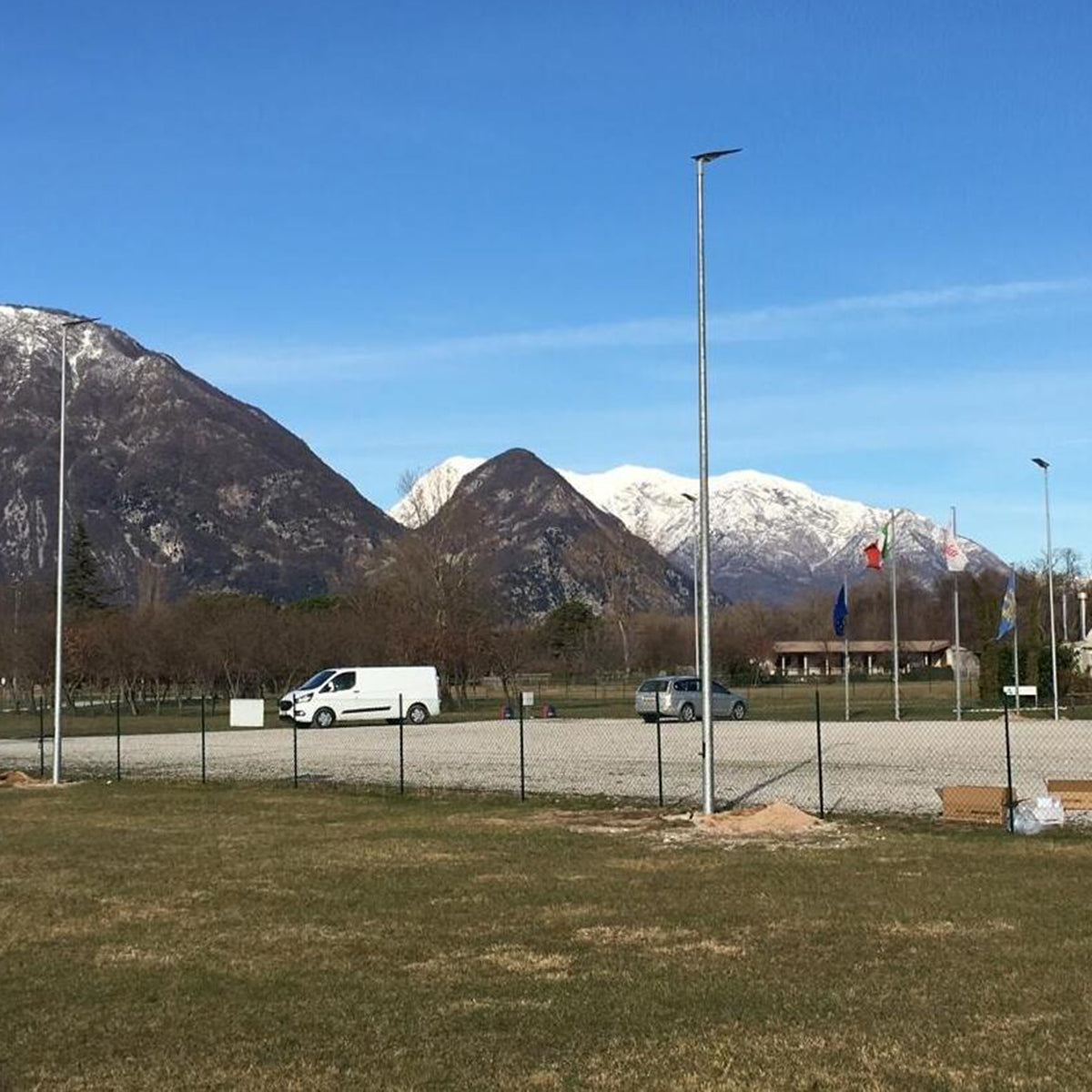

Outdoor installation of Solar LED Area Light with Tiltable Lenses - 100W on tall poles in a mountainous area

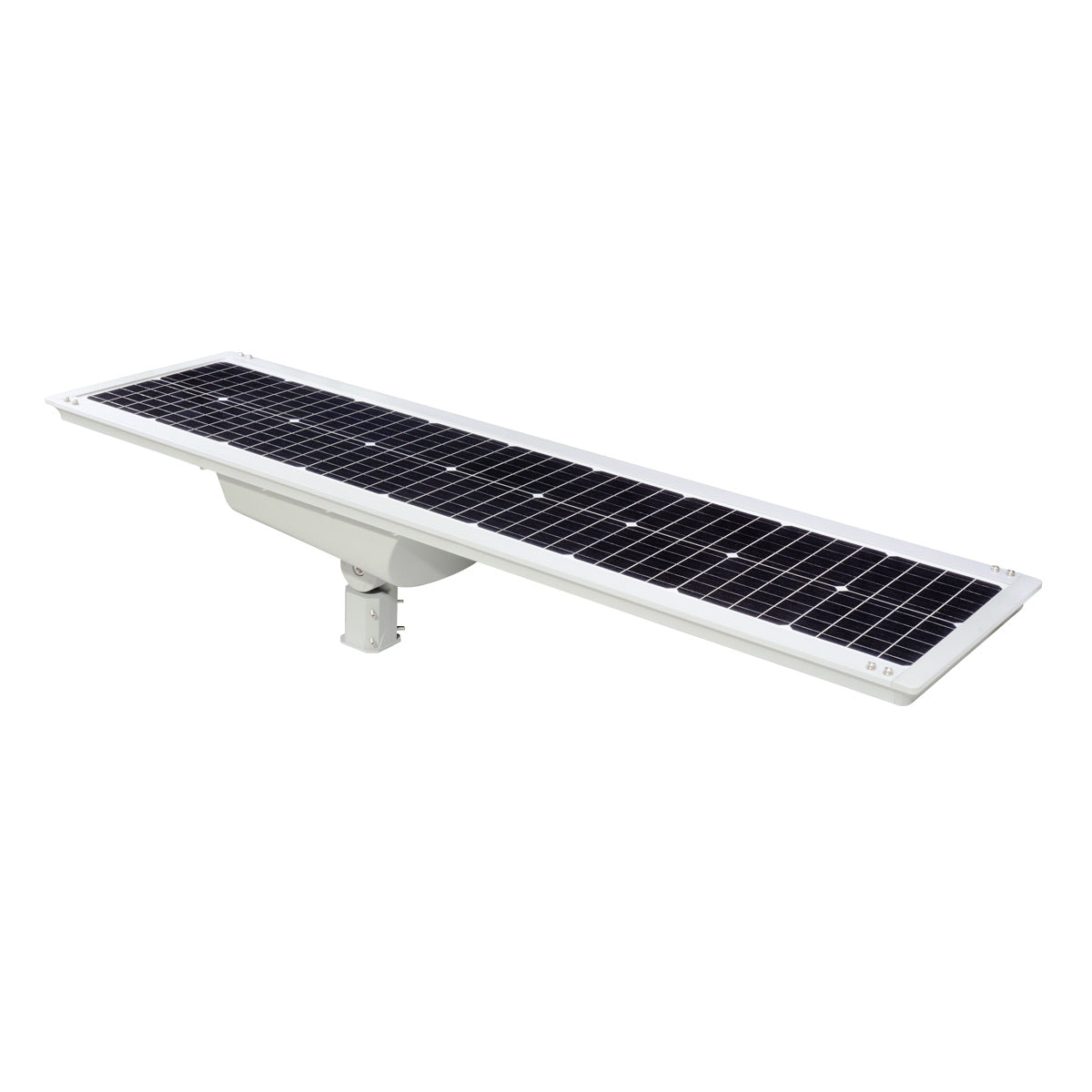

Solar LED Area Light with Tiltable Lenses - 100W shown from side angle with integrated solar panel and mounting bracket

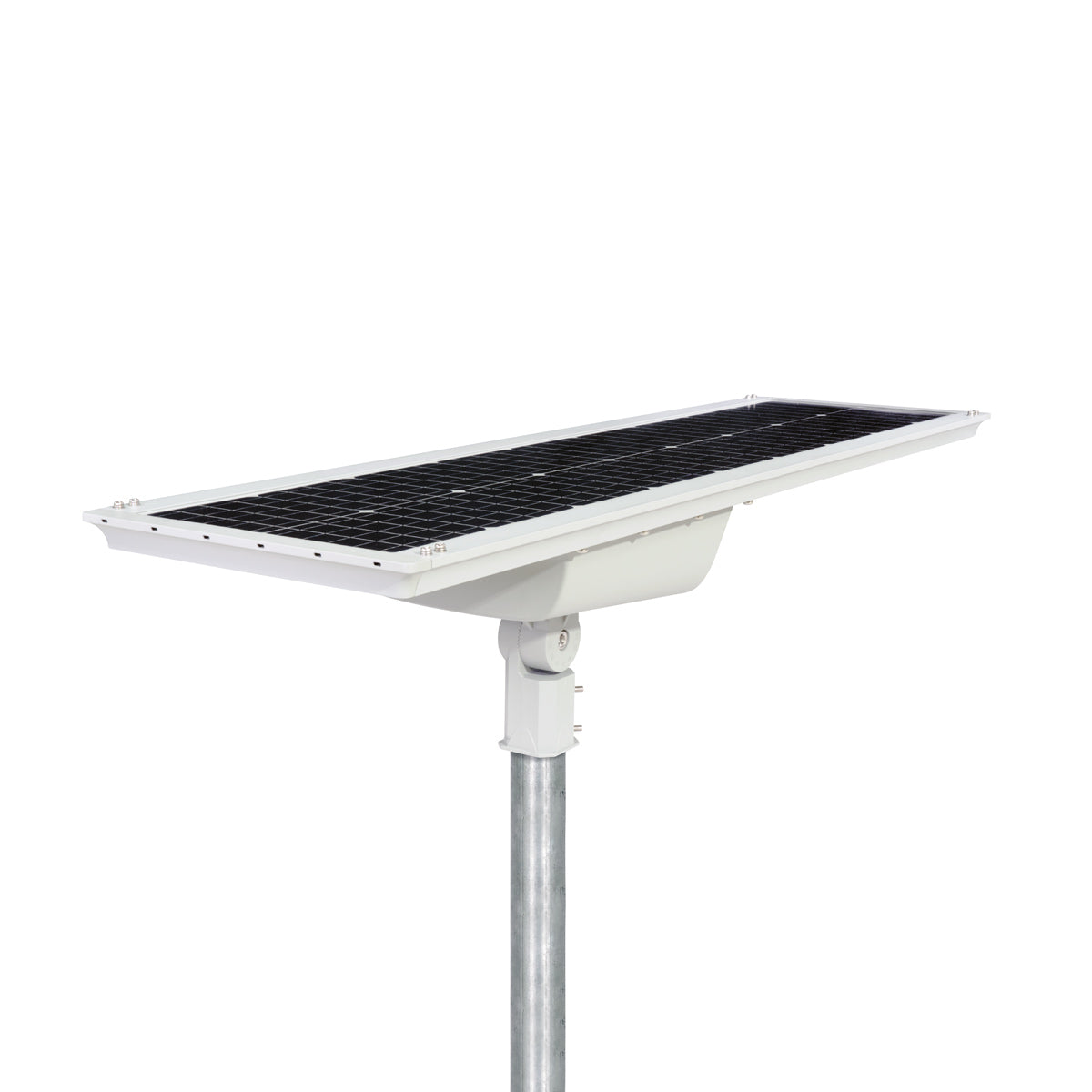

Solar LED Area Light with Tiltable Lenses - 100W mounted on pole with adjustable solar panel for optimal sunlight exposure

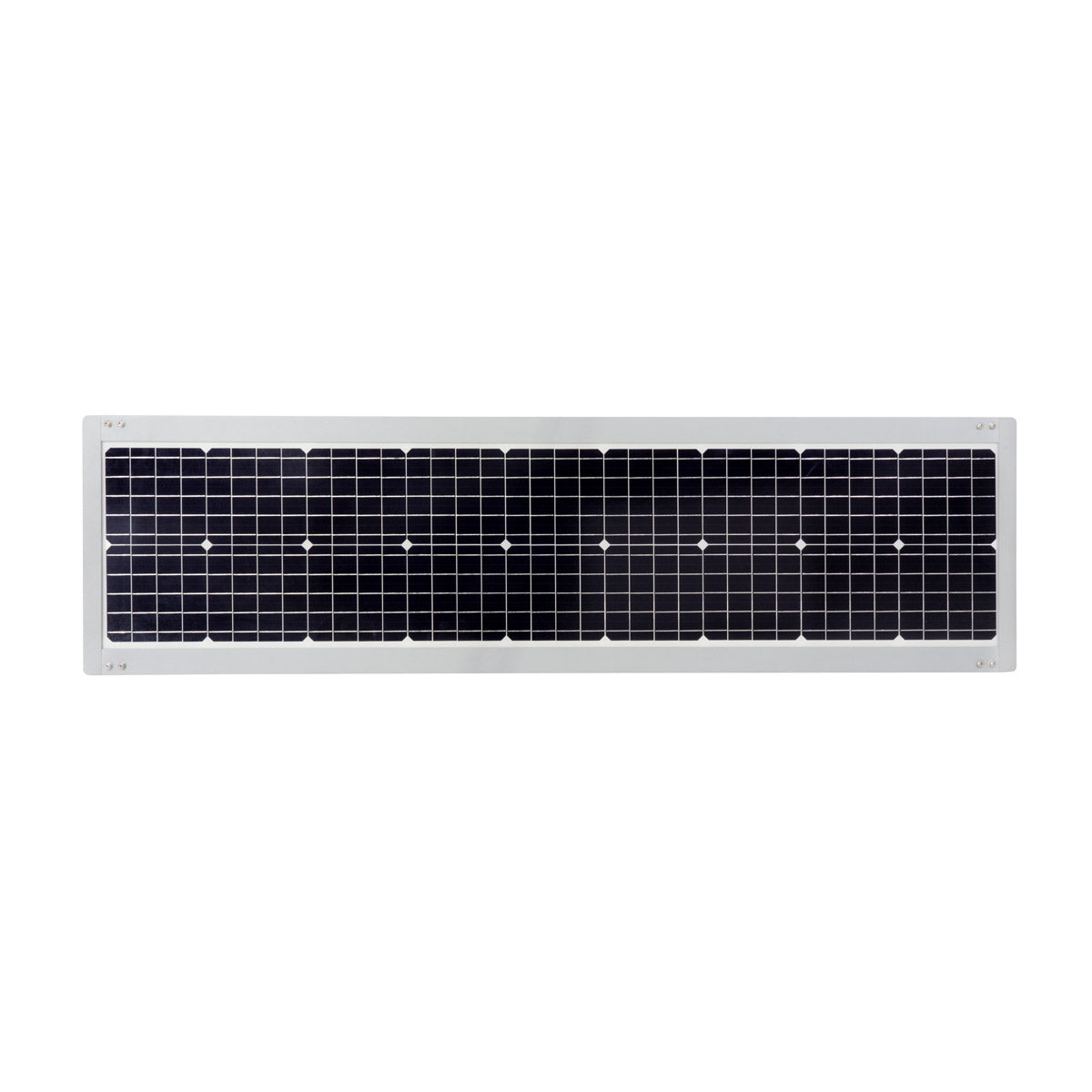

Solar panel for Solar LED Area Light with Tiltable Lenses 100W designed for optimal sunlight capture.

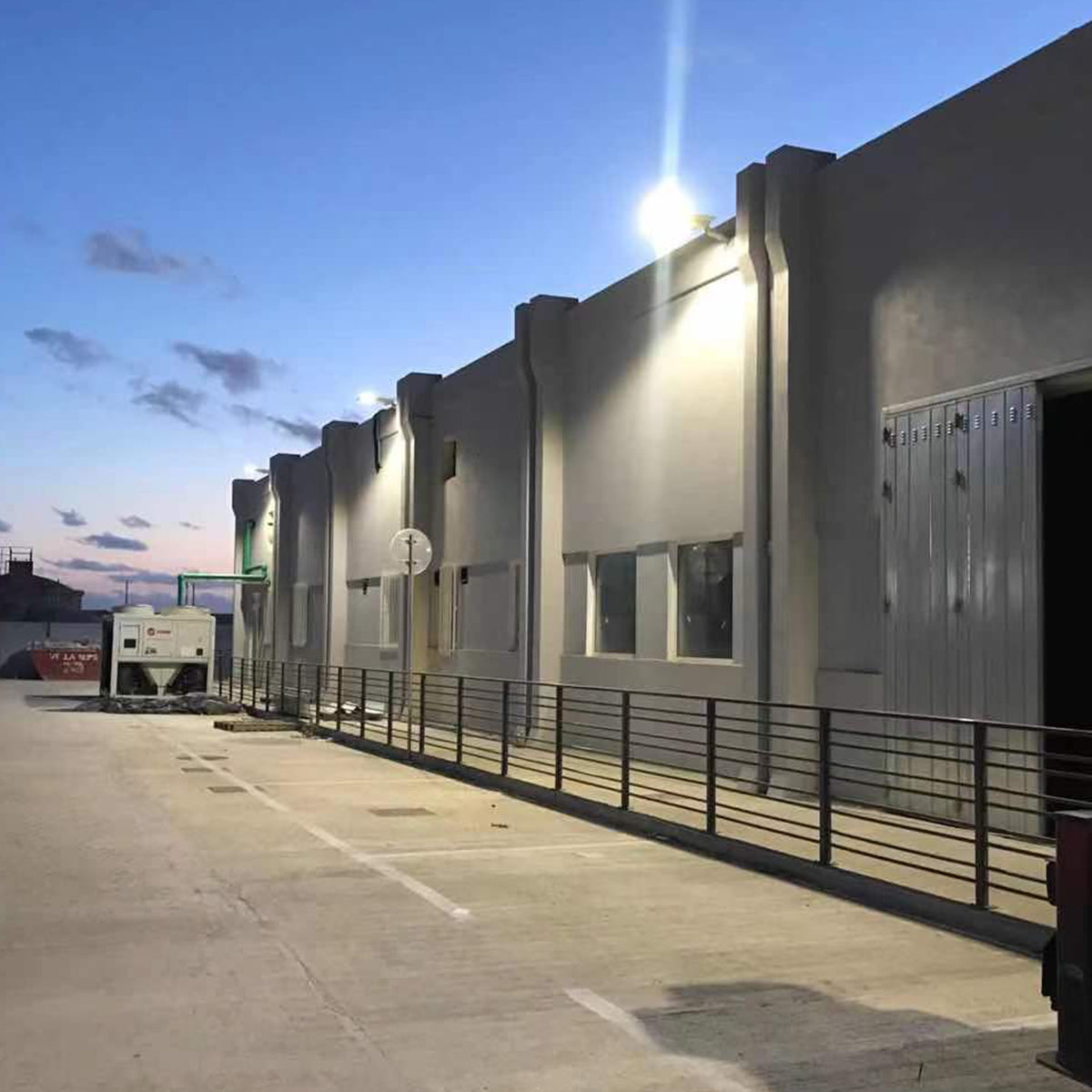

Solar LED Area Light with Tiltable Lenses - 100W mounted on building illuminating parking area at dusk
LED Living

100W Solar LED Area Light with Lens Tilt

Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(1)
Outline Star
Outline Star
Outline Star
Outline Star
Outline Star
Filled Star
Filled Star
Filled Star
Filled Star
Filled Star
0 Reviews
SKU: LLTVSL-100X-40-T3A
Sale price$1,249.95
Regular price$2,230.95
Save $981.00 (44%)

Only 57 Remaining

Available while supplies last. Lights are new & unused. All sales final. Closeout lights are covered by a 1-year warranty through ELEDLights. Warranty claims may receive a like but not identical replacement product.

Three tiltable lenses give you precise control over how 20,000 lumens are aimed, completely independent of where the solar panel is positioned for best charging performance.

  • 922Wh LiFePO4 battery powers 3–4 days in intelligent mode — survives multi-day cloudy stretches
  • Intelligent 5-stage night mode with built-in PIR sensor conserves battery while brightening on motion
  • T2, T3, and T5 distributions available to cover various site requirements
Distribution
57 in stock -
Free Shipping Over $300

Three tiltable lenses give you precise control over how 20,000 lumens are aimed, completely independent of where the solar panel is positioned for best charging performance.

  • 922Wh LiFePO4 battery powers 3–4 days in intelligent mode — survives multi-day cloudy stretches
  • Intelligent 5-stage night mode with built-in PIR sensor conserves battery while brightening on motion
  • T2, T3, and T5 distributions available to cover various site requirements

Details

This solar LED area light eliminates the need for trenching, conduit, and utility connections at parking lots, roadways, and remote site perimeters. With three independently aimable lenses, intelligent programming that combines timed dimming and motion-sensing activation, and a 922Wh LiFePO4 battery, it delivers smart, precise off-grid illumination that holds up through cloudy stretches and adapts to virtually any pole-mount application.

  • Tiltable Lenses, Independent of Panel Angle: The solar panel tilts ±15° to capture peak sun regardless of pole orientation; the lenses tilt separately to aim light precisely at the target area. You never have to choose between optimal charging and optimal coverage.
  • Three Distribution Types: Choose Type II for narrow roads and pathways, Type III for wider roads and parking lot perimeters, or Type V for even 360° coverage on interior poles — ordered at purchase to match your site layout.
  • Intelligent 5-Stage Night Mode: Automatically steps brightness through the night — 100% for the first 30 minutes, stepping down in stages to 10% by early morning — with motion detection that brightens the light when someone approaches. Use the factory default or let us custom-program the lights before shipment.
  • Built-In PIR Motion Sensor: Integrated motion detection boosts brightness when foot or vehicle traffic is detected, improving safety and extending battery life during quiet hours.
  • Premium LiFePO4 Battery: 922Wh LiFePO4 battery is rated for 2,000+ charge cycles and provides up to 4 days of battery autonomy, easily handling cloudy stretches.
  • MPPT Charging Controller: Maximum Power Point Tracking optimizes energy harvest from the 90W mono-crystalline panel in all conditions — continues charging on overcast days when standard PWM controllers fall short.
  • Versatile Mounting for Any Configuration: Included slip-fitter bracket suits most 60mm round poles and side arms — optional adapters (sold separately) extend compatibility to wall mounts, corner mounts, L-shape and T-shape configurations, and 100x100mm square poles.
  • IP65 Rated: Fully sealed against dust and water ingress for permanent outdoor installation in rain, snow, and harsh environments.



What Makes It Commercial Grade

Spec Value Why It Matters
Battery Chemistry LiFePO4 2,000+ charge cycles — 4x standard Li-Ion
Battery Capacity 922Wh Powers 3–4 days in intelligent mode to handle extended cloudy weather
Charging Controller MPPT Maximizes harvest in all conditions, including clouds
Solar Panel 90W mono-crystalline Sized for the battery and output — charges battery fully (4-day autonomy) in roughly one day of good sun
Light Output 20,000 lm at 200 lm/W High-efficacy output — less battery drain per lumen delivered
Lens Tilt Independent of panel tilt Aim panel for peak sun, aim lenses for target coverage — no compromise
Night Mode 5-stage dimming with motion sensing Maximizes runtime without sacrificing safety or visibility — custom programming optional
Enclosure IP65 Weatherproof for permanent outdoor installation



Ideal Applications

  1. Parking Lots & Commercial Properties: Type III distribution covers wider lots and perimeter edges from pole-mounted fixtures, delivering even coverage without trenching across paved surfaces.
  2. Roadways & Pathways: Type II distribution suits narrow roads, access drives, and pedestrian pathways where focused forward throw is needed without excessive backspill.
  3. Interior Pole Locations & Campus Plazas: Type V distribution creates an even 360° umbrella pattern ideal for poles surrounded by pedestrian traffic on all sides.
  4. Remote & Rural Sites: Farms, construction sites, rural commercial properties, and campgrounds where extending grid power to every pole location is cost-prohibitive or impossible.
  5. New Development & Expanding Sites: Add area lighting to a growing parking lot or facility perimeter without opening trenches or pulling new circuits — relocate poles as the site evolves.
  6. Municipalities & Public Spaces: Roadside and pathway lighting for municipalities where grid infrastructure is limited, aging, or absent — no electrician required for installation.



How It Compares

Not every 100W solar area light is equal. Here's how this fixture stacks up against a typical, cheaper alternative.

This Fixture Typical Commercial Solar Area Light
Light Output 20,000 lm at 200 lm/W Varies — some as low as 10,000lm at 100 lm/W
Battery Chemistry LiFePO4 — 2,000+ cycles, stable in extreme temps Varies — some still use Li-ion with just 500 cycle rating
Battery Capacity 922Wh — published and verified Sometimes unpublished or incomplete— harder to evaluate real runtime
Solar Panel 90W — sized for the battery and output Varies — some as low as 44W, resulting in extended battery depletion as the panel cannot recover from cloudy stretches
Distribution Choice Type II, III, or V — ordered to match your site Fixed distribution — one option only
Night Mode 5-stage intelligent mode with timed dimming & motion sensing Basic timer or motion modes — less sophisticated energy management

LED Living's 100W solar area light is engineered with right-sized components, efficient output, independent lens control, and intelligent night programming — everything a reliable, well-aimed area light actually requires, and everything that separates a well-designed fixture from one that just carries the 100W label.



ELEDLights Stands Behind It

  • US-based support Monday–Friday, 8am–8pm EST — call, text, or email a real person
  • In stock, ships fast straight from our U.S. warehouses

Specs

Wattage(s) 100W
Replaces Wattage(s) 600W
Light Output 20,000 lumens
Luminous Efficacy (lm/W) 200 lm/W
Battery LiFePO4, 922Wh
Solar Panel Type Mono-Crystalline Solar Panel
Solar Panel Wattage 90W
Solar Charge Controller MPPT
Solar Panel Tilt Range ±15°
Run Time Full power>8 hours*
Intelligent mode 3-4 days*
Operation Method Default intelligent mode:
First 30min after dusk - 100% brightness
Next 4hrs - 50% when motion detected, 10% when vacant
Next 4hrs - 20% when motion detected, 10% when vacant
Next 3hrs (until sunrise) - 10% brightness

Optional remote controller allows programmable five-stage night mode with motion sensing in stages 3 & 4.
Average Lamp Life L90: 31,000 hours
L80: 64,000 hours
L70: 101,000 hours
Color Temperature(s) 4000K
CRI (Color Accuracy) 70
Dimming Timer Dimming
Occupancy Sensor PIR
Charge Time > 9 hours*
Base Type Fixture
Light Distribution Pattern Type II, Type III, or Type V Learn More
×

Light Distribution Options

Type III Beam

Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles.

Type IV Beam

Provides forward directed light with minimal backlighting - great for perimeter installations.

Type V Beam

Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.

Installation Mounts on 60mm diameter vertical pole or side arm. Included mounting adapter is ±15° tilt adjustable.
EPA (Effective Projected Area) 0.776m2/8.35ft2
Working Environment Outdoor
Enclosure Rating IP65
Light Type Solar
LED Type LED 2835
Temperature Rating 0°C to +50°C (+32°F to +122°F)

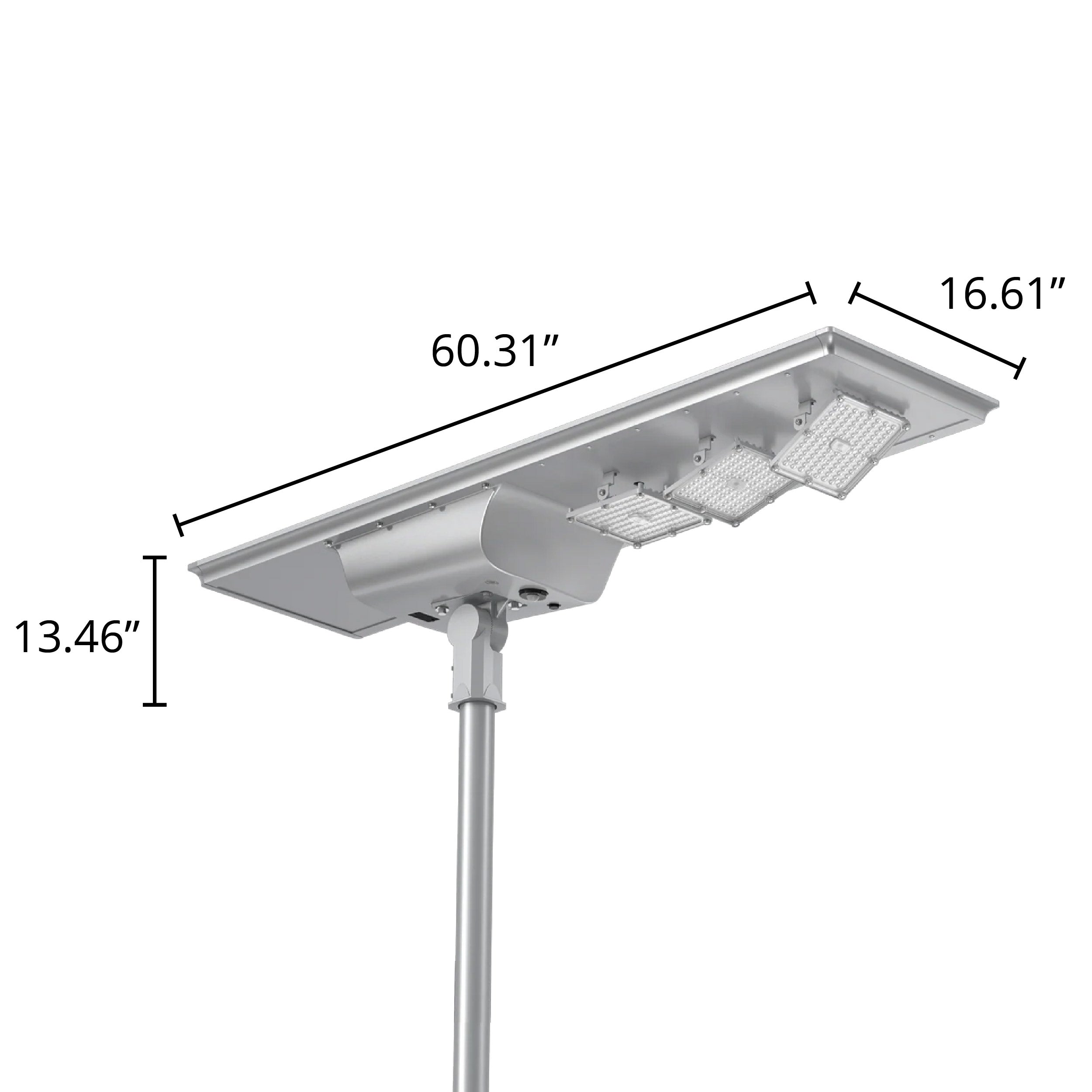

Dimensions 60.31” L x 16.61” W x 13.46” H
Warranty 5 Years
Additional Specifications *Performance based on ideal conditions - solar lights are heavily affected by sunlight levels, temperatures, snow, dirt, and other conditions

Compare Key Features

Compare

100W Solar LED Area Light with Lens Tilt
Light Output 20,000 lumens
Color Temperature (CCT) 4000K
Charging Time > 9 hours*
Run Time Full power>8 hours*
Intelligent mode 3-4 days*
Temperature Rating 0°C to +50°C (+32°F to +122°F)
Warranty 5 Years
$1,249.95
