RAB Lighting

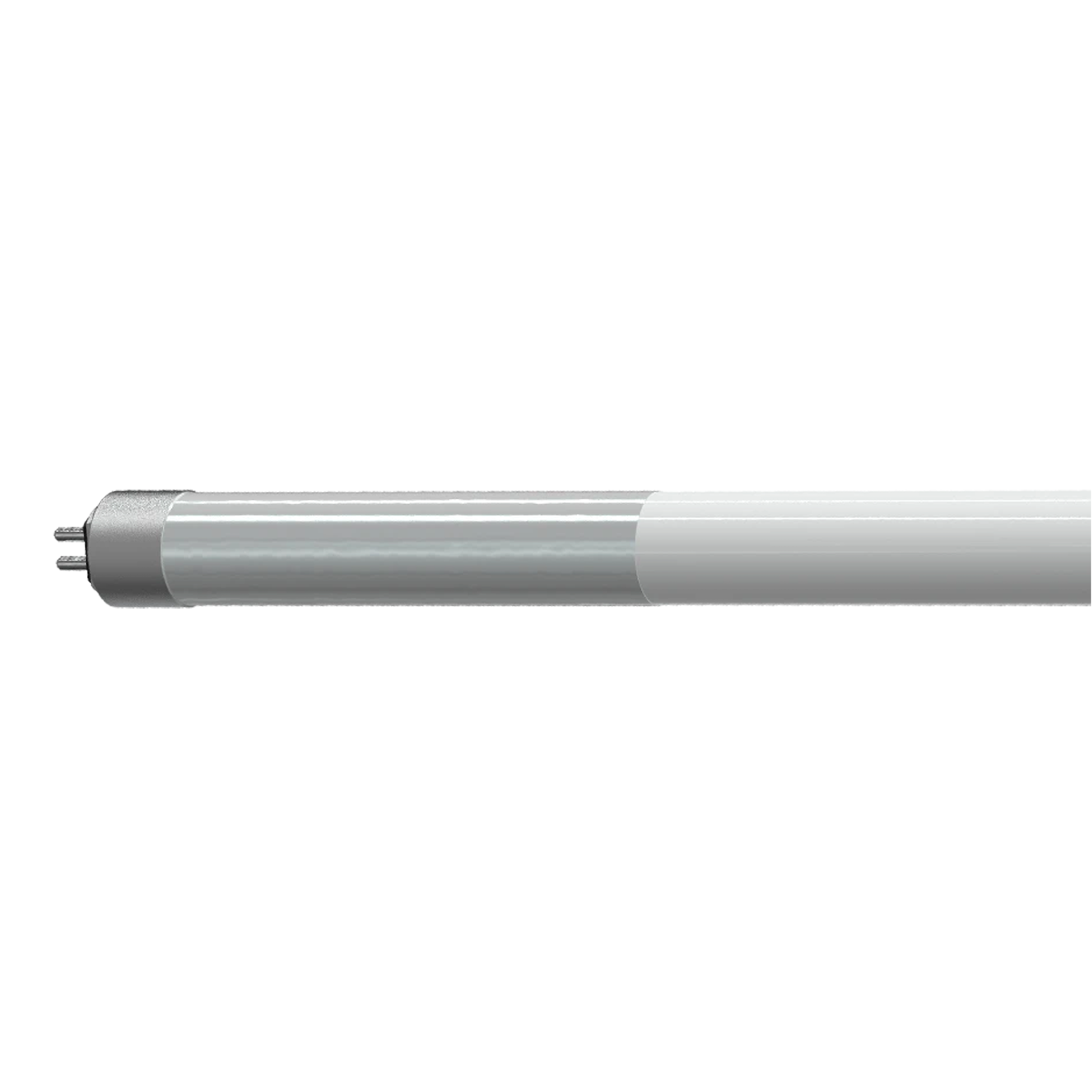

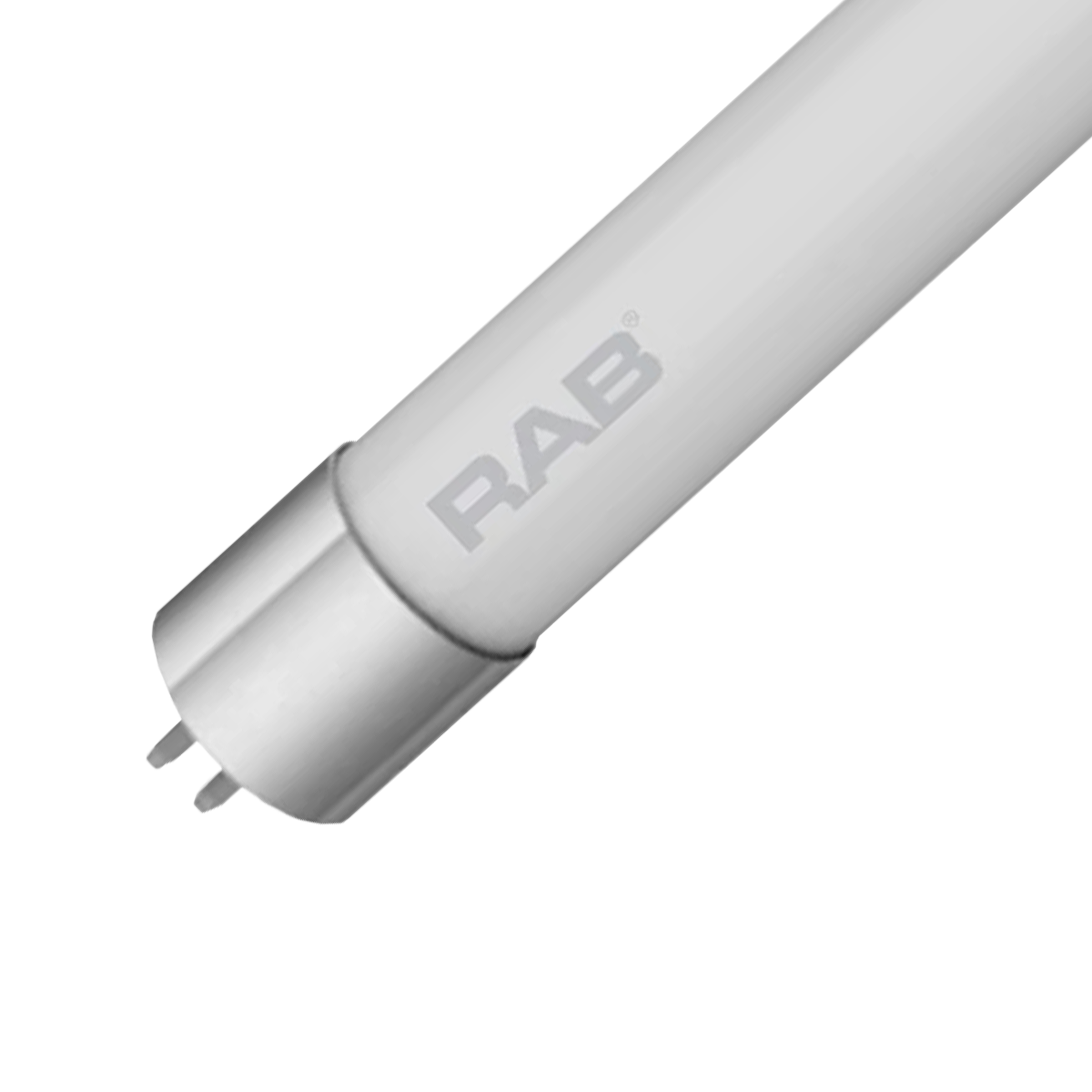

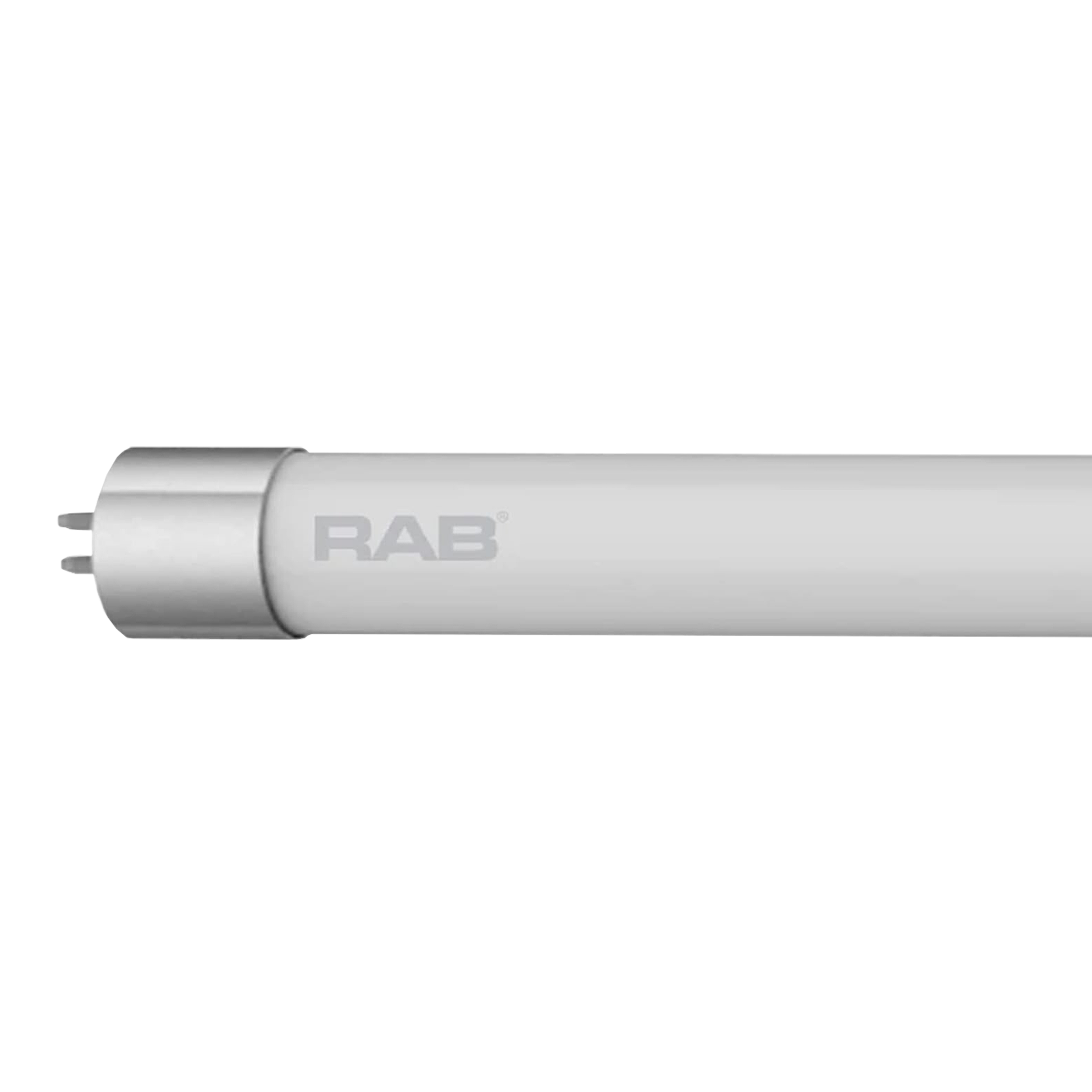

3ft 16W RAB T5HO LED Tube
3ft 16W RAB T5HO LED Tube
3ft 16W RAB T5HO LED Tube
RAB Lighting
0 Reviews
3ft 16W RAB T5HO LED Tube
Regular price
Replace 39W T5HO fluorescents with a 16W RAB LED — half the energy, up to 2,100 lumens.
- 16W delivers up to 2,100 lumens in your choice of 3500K, 4000K, or 5000K.
- Single or double-ended ballast-bypass works with shunted and non-shunted sockets.
- NSF listed for food-safe environments, glass construction, backed by RAB's 5-year warranty.
Color Temperature
Bulk Pricing: Text (858) 650-9400 or Request Quote
Replace 39W T5HO fluorescents with a 16W RAB LED — half the energy, up to 2,100 lumens.
- 16W delivers up to 2,100 lumens in your choice of 3500K, 4000K, or 5000K.
- Single or double-ended ballast-bypass works with shunted and non-shunted sockets.
- NSF listed for food-safe environments, glass construction, backed by RAB's 5-year warranty.
Choose options
Details
High-Output 3ft T5HO LED Tube for Long-Lasting, Energy-Efficient Retrofits
- Replace 39W T5HO fluorescents with a powerful 16W LED tube delivering up to 2,100 lumens of bright, uniform light—available in 3500K, 4000K, and 5000K to match any facility’s lighting standards.
- Integral driver supports both single- and double-ended wiring, enabling direct line-voltage installation (120–277V) with shunted or non-shunted sockets, for faster, simpler installation.
- Improve reliability with a 50,000-hour rated lifespan, NSF splash-zone compliance, enclosed-fixture compatibility, and mercury-free construction ideal for commercial and industrial environments.
Use cases: Food prep areas, commercial kitchens, warehouse aisles, schools, laboratories, manufacturing lines, retail back rooms, and any facility upgrading from 3ft T5HO fluorescent tubes to a safer, more efficient LED solution.
Specs
| Wattage(s) | 16W |
| Replaces Wattage(s) | 39W T5HO Fluorescent |
| Light Output | 2,100 lumens |
| Luminous Efficacy (lm/W) | 131 lm/W |
| Average Lamp Life | 50,000 hours (L70) |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 82 |
| Base Type | G5 |
| Lens Cover | Frosted |
| Installation | UL Type B ballast bypass |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | <25% |
| Temperature Rating | –4°F to 113°F (-20°C to 45°C) |
| Housing Material | Frosted glass with metal endcaps |
| Certification | UL Listed, NSF Food Equipment Splash Zone |
| Warranty | 5-Year No Compromise |
