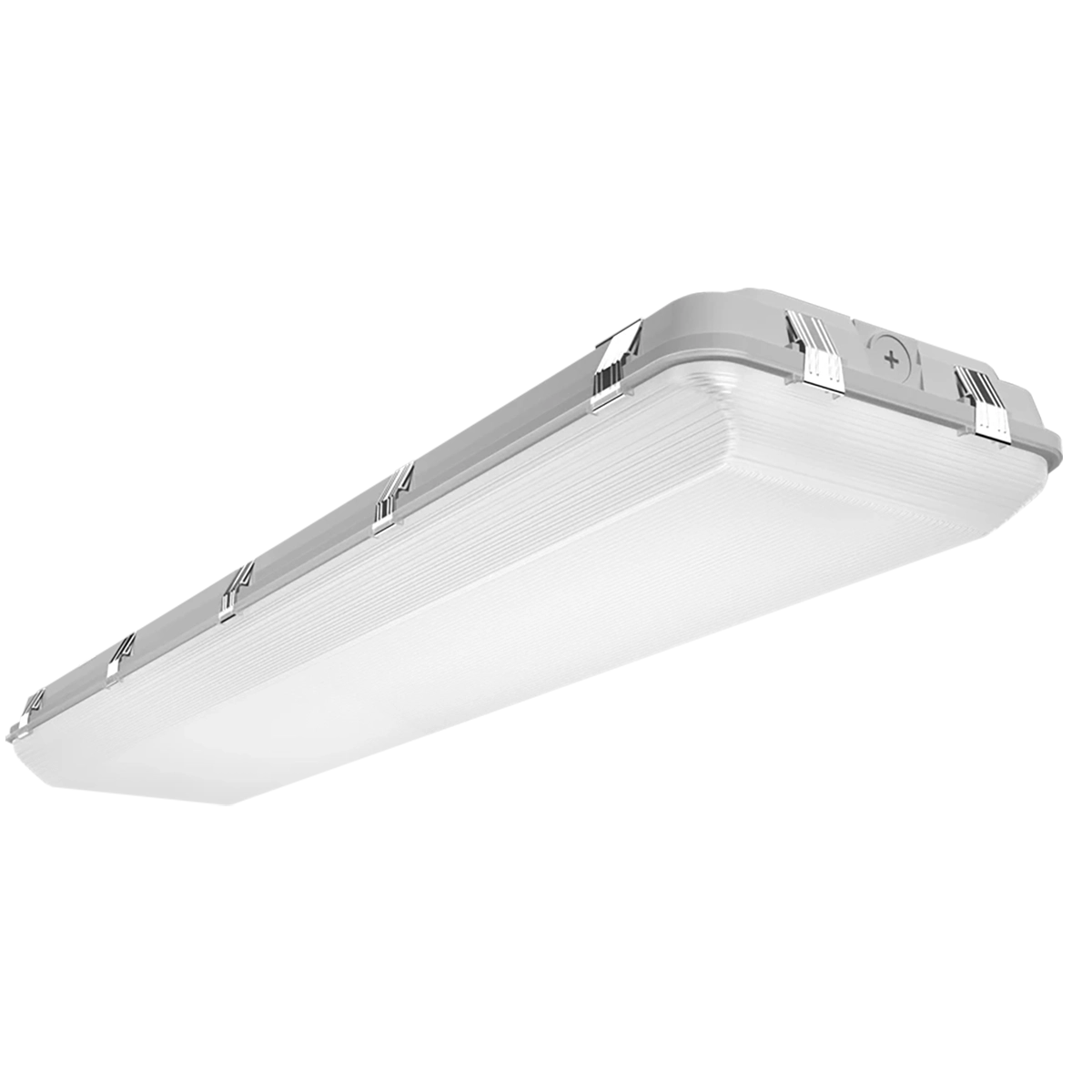

4ft 265W Selectable RAB High Bay LED Vapor Tight

RAB 4ft LED High Bay Vapor Tight Light with durable housing and vapor tight design for industrial environments
RAB 4ft LED High Bay Vapor Tight Light with durable casing and mounting brackets for industrial and food facility use
RAB 4ft LED High Bay Vapor Tight Light with durable housing and mounting brackets for industrial use
RAB Lighting

4ft 265W Selectable RAB High Bay LED Vapor Tight

Outline Star
Outline Star
Outline Star
Outline Star
Outline Star
Filled Star
Filled Star
Filled Star
Filled Star
Filled Star
0 Reviews
SKU: WHALE4H
$464.95
$0.00

RAB's WHALE4H delivers higher output — up to 38,081 lumens with the same IP67/IK09/NEMA 4X build.

  • IP67/IK09/NEMA 4X rated — NSF certified, 5A fire protection, up to 38,081 lumens at 163 lm/W.
  • 3 wattages (145/225/265W) and 3 CCTs — 0-10V dimming, 100,000-hour life, DLC Premium efficacy.
  • Surface mount and V-hook included — 5-year warranty for food plants and cold storage.
Free Shipping Over $350

Bulk Pricing: Text (858) 650-9400 or Request Quote

RAB's WHALE4H delivers higher output — up to 38,081 lumens with the same IP67/IK09/NEMA 4X build.

  • IP67/IK09/NEMA 4X rated — NSF certified, 5A fire protection, up to 38,081 lumens at 163 lm/W.
  • 3 wattages (145/225/265W) and 3 CCTs — 0-10V dimming, 100,000-hour life, DLC Premium efficacy.
  • Surface mount and V-hook included — 5-year warranty for food plants and cold storage.

Details

Industrial Grade Lighting—Built Tough

  • Excels in Tough Conditions: IP67/IK09 protection against water, dust and impact, 5A protection against fire, and ambient temps of up to 140°F
  • Performs and Adapts: Delivers up to 38,081 lumens at up to 164 lm/W efficacy, with three field-adjustable color temperatures & 0-10V dimming
  • Meets Strict Health and Safety Standards: Safe to use in food-preparation facilities
  • Installs Your Way: WHALE4 includes both surface mount brackets and V-hooks for maximum installation flexibility and simplicity

Great for food processing facilities, industrial kitchens, manufacturing areas, cold storage, and more.

Specs

Wattage(s) 145W/225W/265W
Replaces Wattage(s) 400W to 750W
Light Output 21,860/33,135/36,983 lumens @ 4000K
Luminous Efficacy (lm/W) Up to 163 lm/W
Average Lamp Life 100,000 hours
Color Temperature(s) 3500K/4000K/5000K
CRI (Color Accuracy) 85
Dimming 0-10V
Installation Suspension mount with included v-hooks or surface mount with included stainless steel brackets
Enclosure Rating IP67, IK09
Input Voltage 120-277V, 50/60Hz
Driver Type Control circuit class 2, None insulation
Power Factor @265W, 4000K: 99.9% at 120V, 97.0% at 277V
THD (Total Harmonic Distortion) @265W, 4000K: 4.8% at 120V, 9.8% at 277V
Surge Protection Ringwave LN4kV/LN-GND 6kV
Temperature Rating -40°F to 140°F
Housing Material Polycarbonate

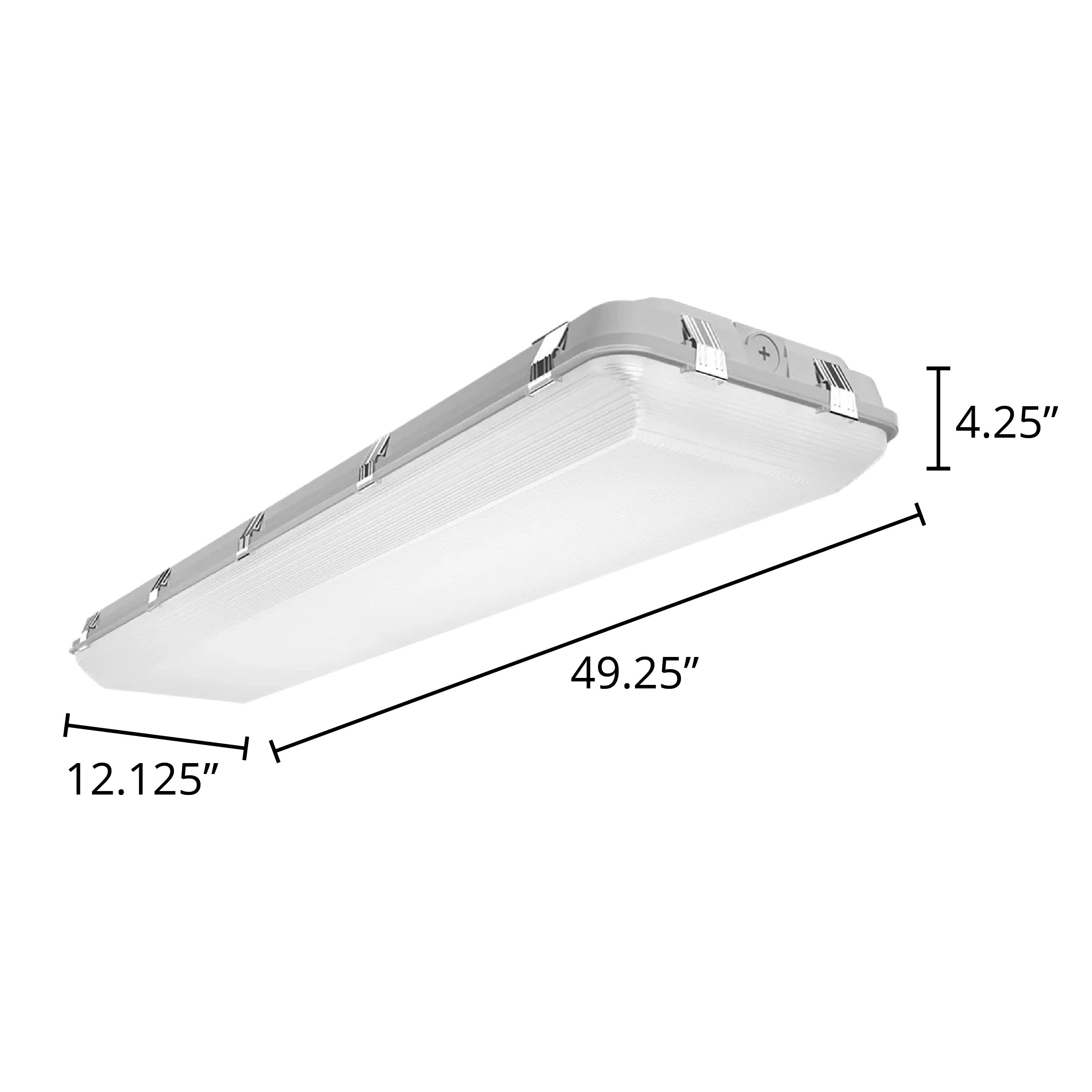

Dimensions 49.25" x 12.125" x 4.25"
Weight 23.37 lbs
Certification DLC Premium, UL
DLC ID(s) S-LQ560N, S-3M6RH4
Warranty 5 Years
