RAB 4ft LED High Bay Vapor Tight Light - NSF - Color & Wattage Selectable Up to 160W
Lumens:
Watts:
Color Temp:
5 Year Warranty
454 in stockIndustrial Grade Lighting—Built Tough
- Excels in Tough Conditions: IP67/IK09 protection against water, dust and impact, 5A protection against fire, and ambient temps of up to 140°F
- Performs and Adapts: Delivers up to 24,462 lumens at up to 164 lm/W efficacy, with three field-adjustable color temperatures & 0-10V dimming
- Meets Strict Health and Safety Standards: Safe to use in food-preparation facilities
- Installs Your Way: WHALE4 includes both surface mount brackets and V-hooks for maximum installation flexibility and simplicity

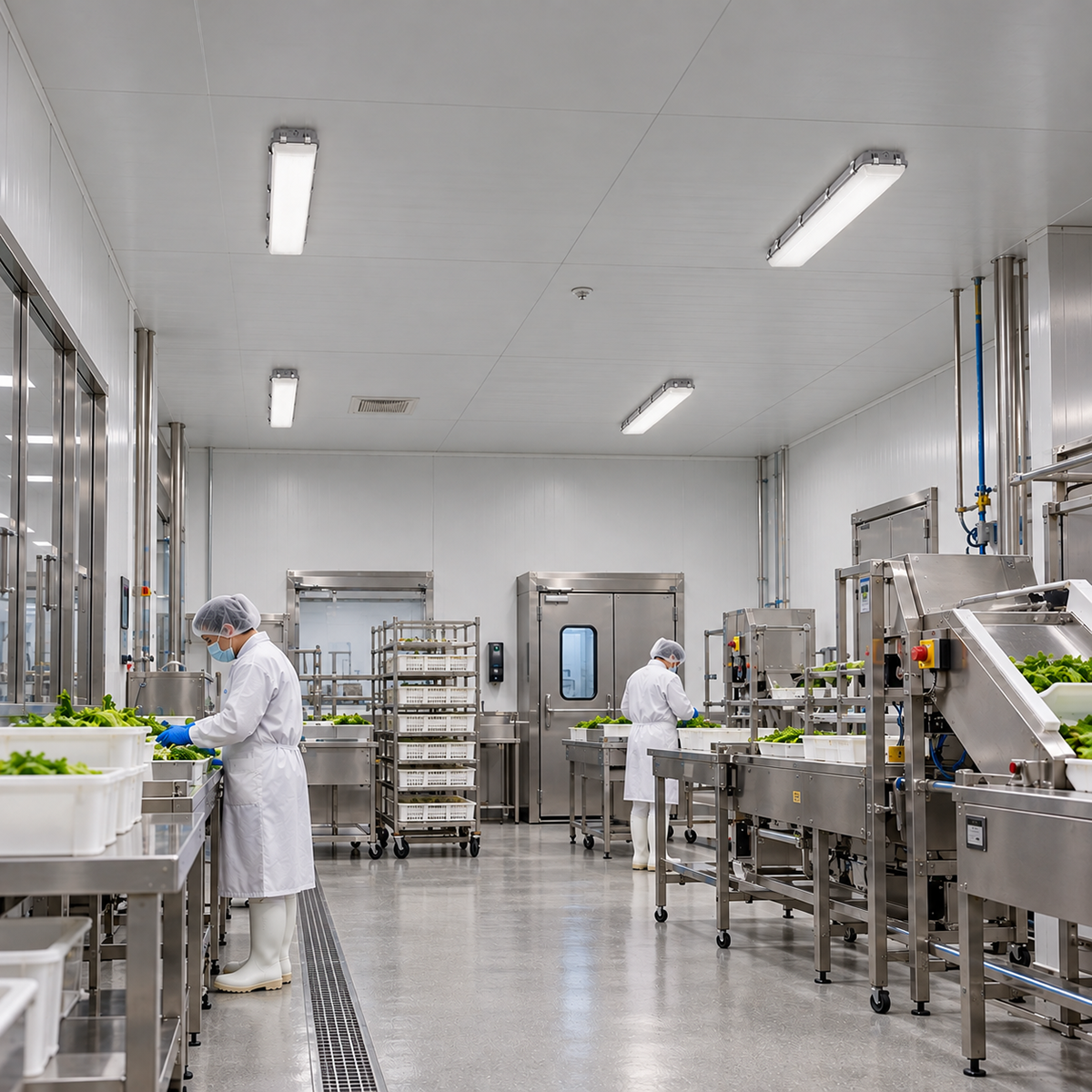

Great for food processing facilities, industrial kitchens, manufacturing areas, cold storage, and more.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Industrial Grade Lighting—Built Tough
- Excels in Tough Conditions: IP67/IK09 protection against water, dust and impact, 5A protection against fire, and ambient temps of up to 140°F
- Performs and Adapts: Delivers up to 24,462 lumens at up to 164 lm/W efficacy, with three field-adjustable color temperatures & 0-10V dimming
- Meets Strict Health and Safety Standards: Safe to use in food-preparation facilities
- Installs Your Way: WHALE4 includes both surface mount brackets and V-hooks for maximum installation flexibility and simplicity
Great for food processing facilities, industrial kitchens, manufacturing areas, cold storage, and more.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
454 in stock
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
454 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 120W/140W/160W |
| Replaces Wattage(s) | 320W to 500W |
| Light Output | 18,434/21,313/24,462 lumens @ 4000K |
| Luminous Efficacy (lm/W) | Up to 164 lm/W |
| Average Lamp Life | 100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | 85 |
| Dimming | 0-10V |
| Installation | Suspension mount with included v-hooks or surface mount with included stainless steel brackets |
| Enclosure Rating | IP67, IK09 |
| Input Voltage | 120-277V, 50/60Hz |
| Driver Type | Control circuit class 2, None insulation |
| Power Factor | @160W, 4000K: 99.8% at 120V, 97.4% at 277V |
| THD (Total Harmonic Distortion) | @160W, 4000K: 3.9% at 120V, 10.2% at 277V |
| Surge Protection | Ringwave LN4kV/LN-GND 6kV |
| Temperature Rating | -40°F to 140°F |
| Housing Material | Polycarbonate |
| Dimensions | 49.25" x 12.125" x 4.25" |
| Weight | 23.37 lbs |
| Certification | DLC Premium, UL |
| DLC ID(s) | S-WX78XF, S-P3YF6D |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
COMPARE KEY FEATURES
RAB 4ft LED High Bay Vapor Tight Light - 2 CCT - 120/140/160W
|
RAB 4ft LED High Bay Vapor Tight Light - 2 CCT - 145/225/265W
|
|
|---|---|---|
| Light Output | 18,434/21,313/24,462 lumens @ 4000K | 21,860/33,135/36,983 lumens @ 4000K |
| Replaces Wattage(s) | 320W to 500W | 400W to 750W |
| Color Temperature (CCT) | 3500K/4000K/5000K | 3500K/4000K/5000K |
| Enclosure Rating | IP67, IK09 | IP67, IK09 |
| Temperature Rating | -40°F to 140°F | -40°F to 140°F |
| Warranty | 5 Years | 5 Years |
|
$387.95
|
$464.95
View Details
|
