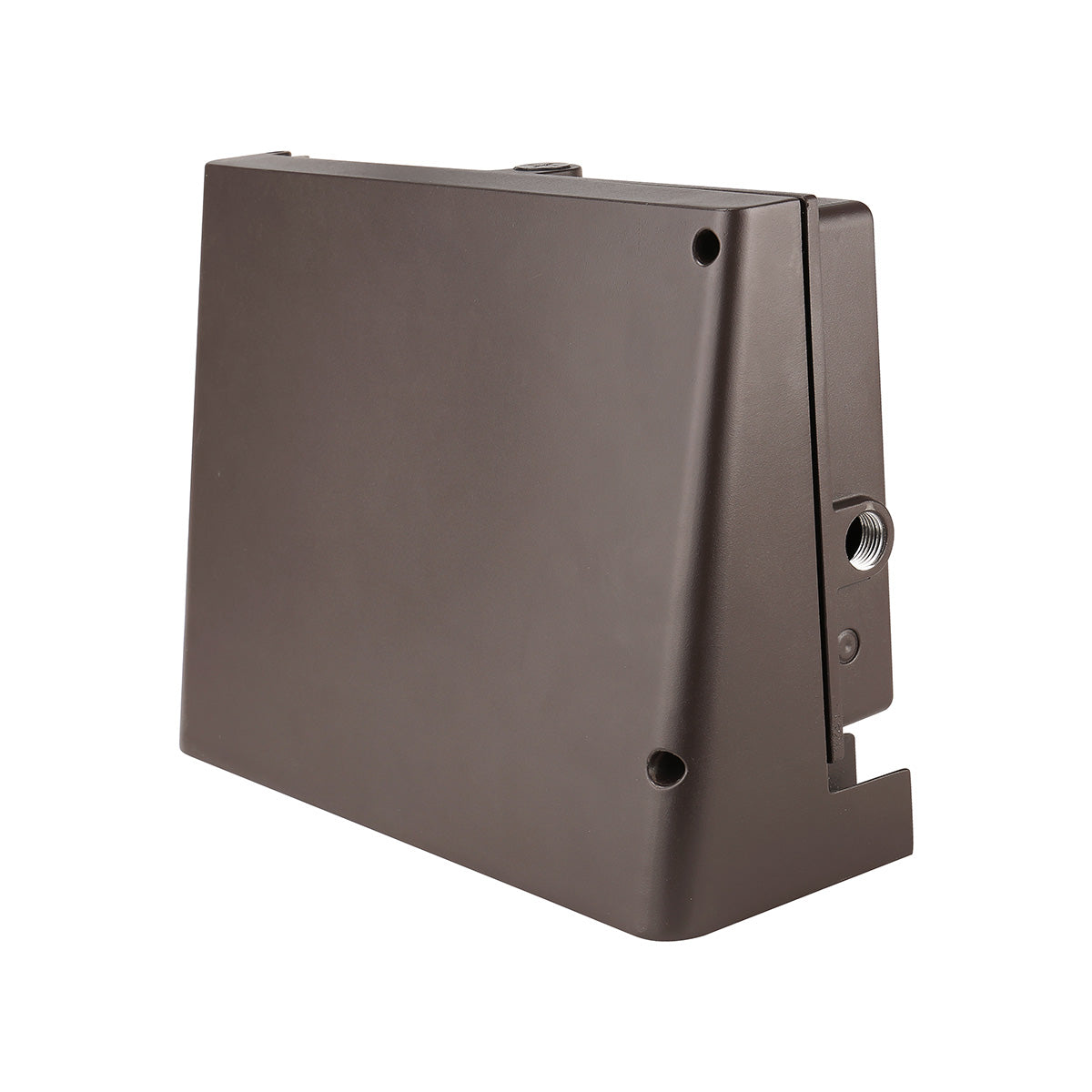

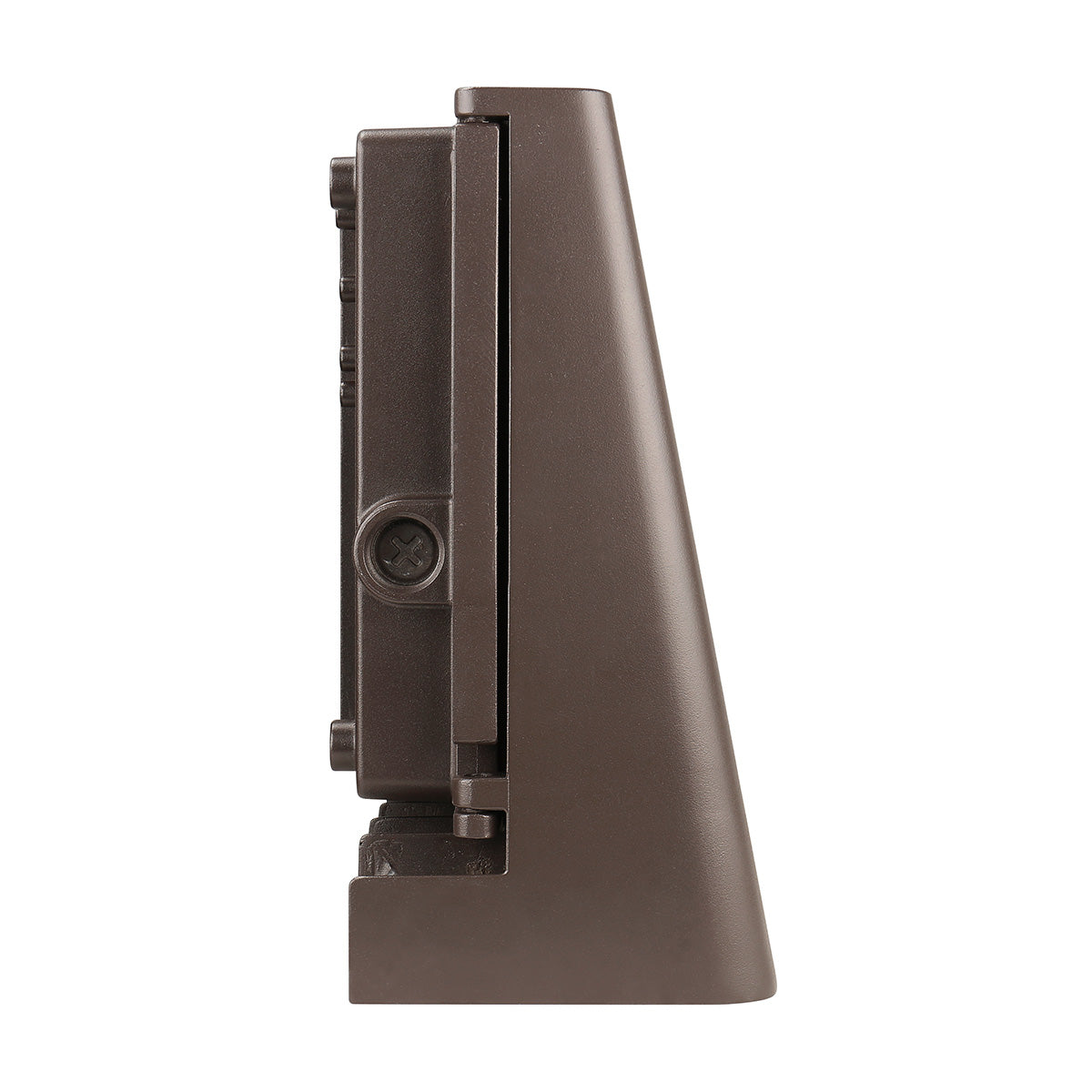

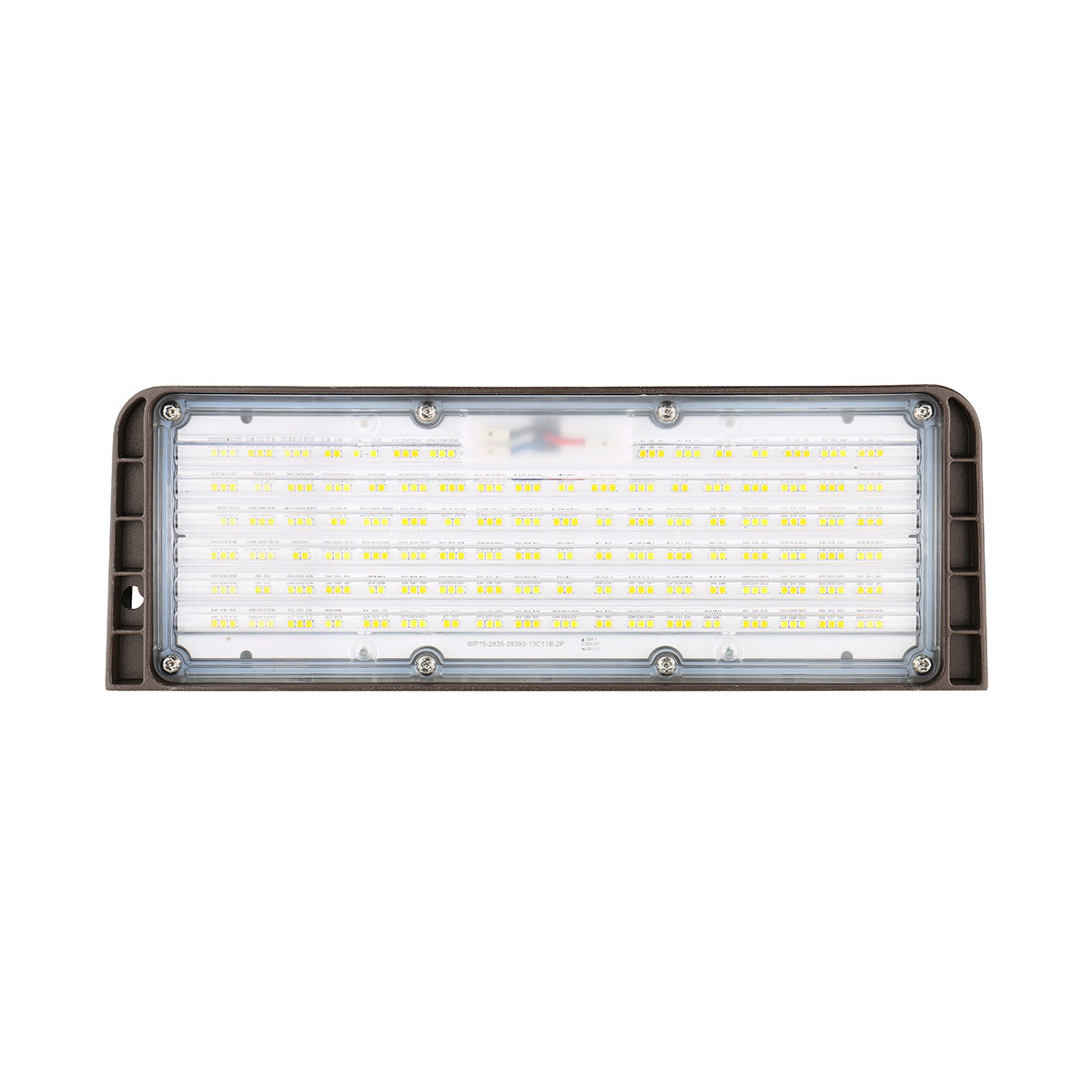

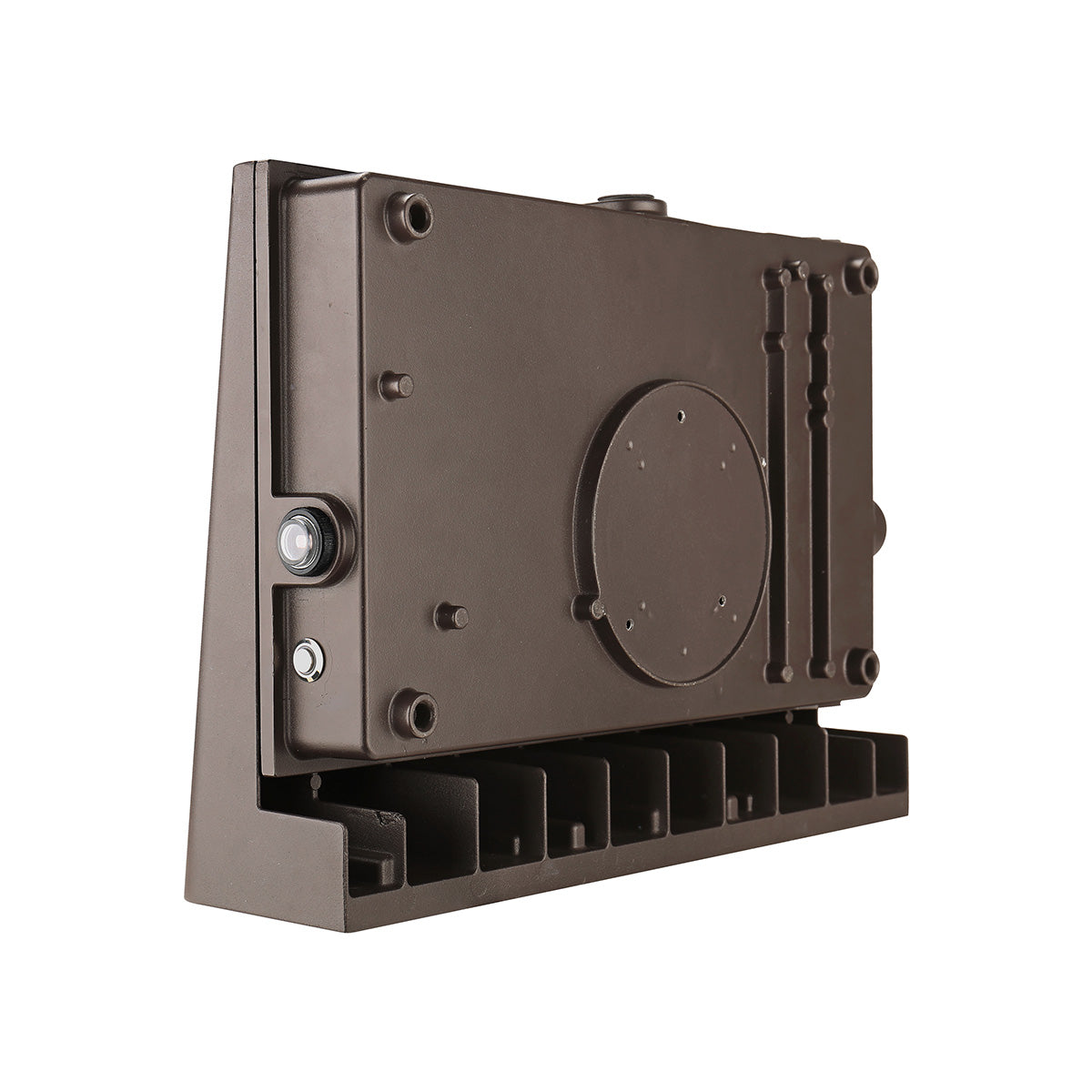

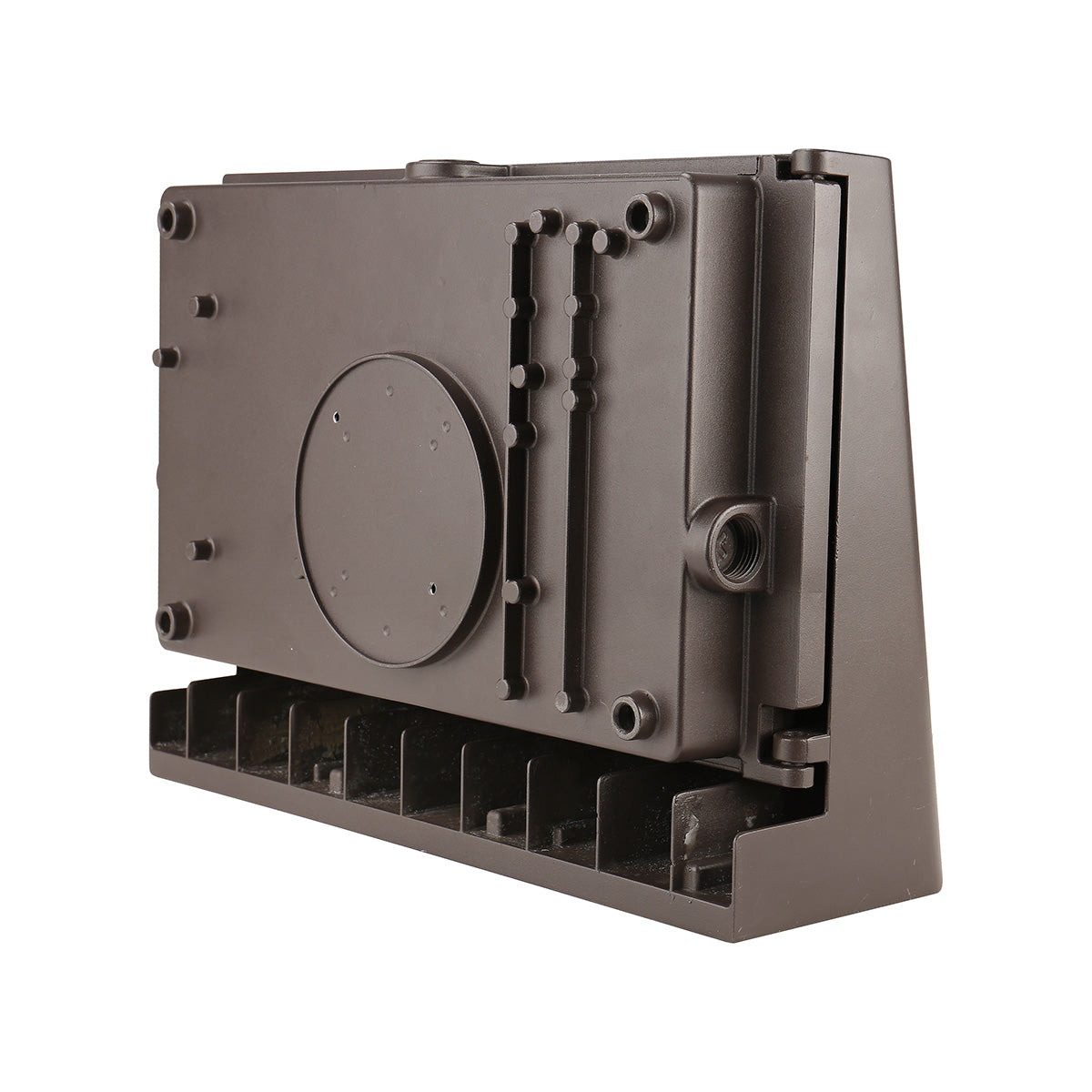

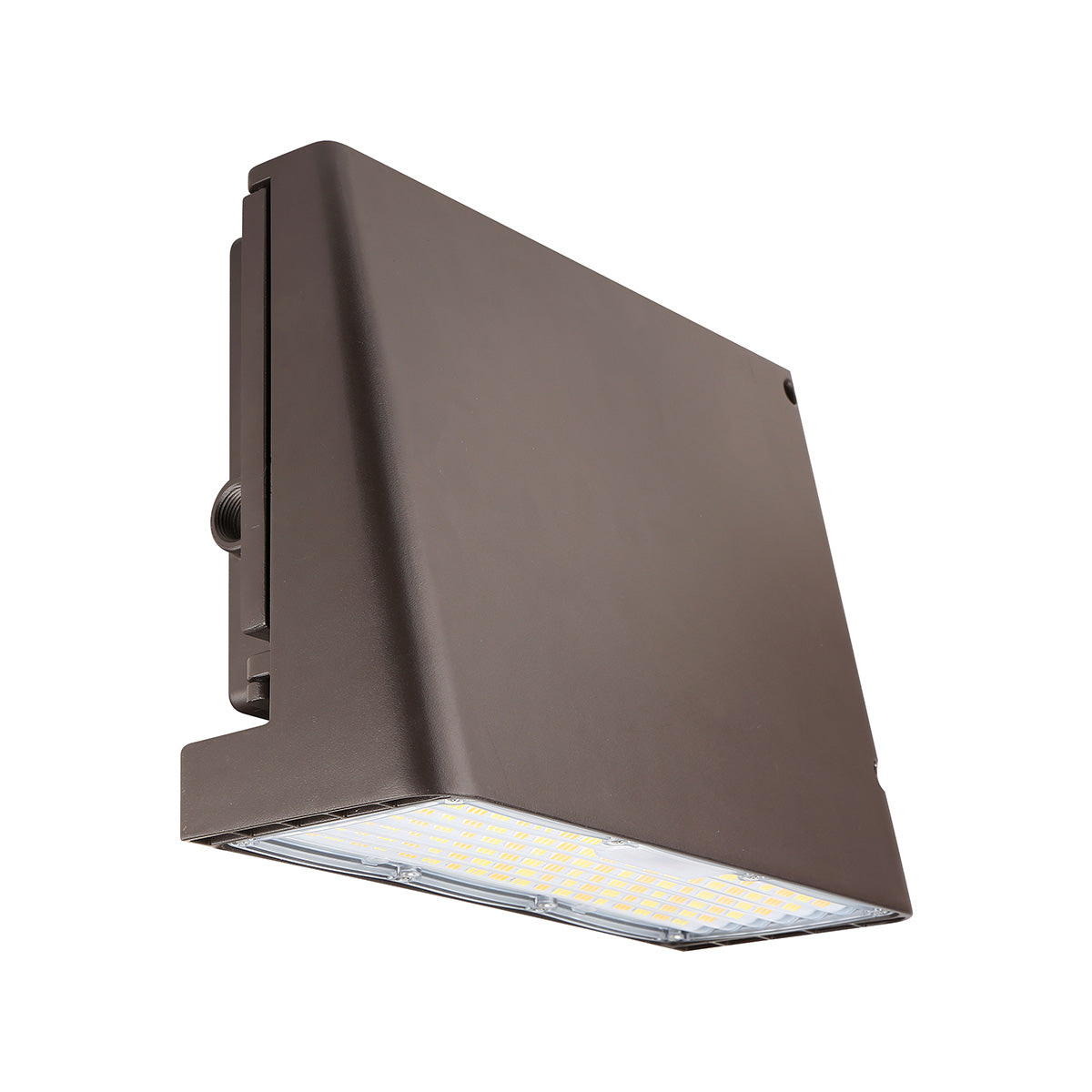

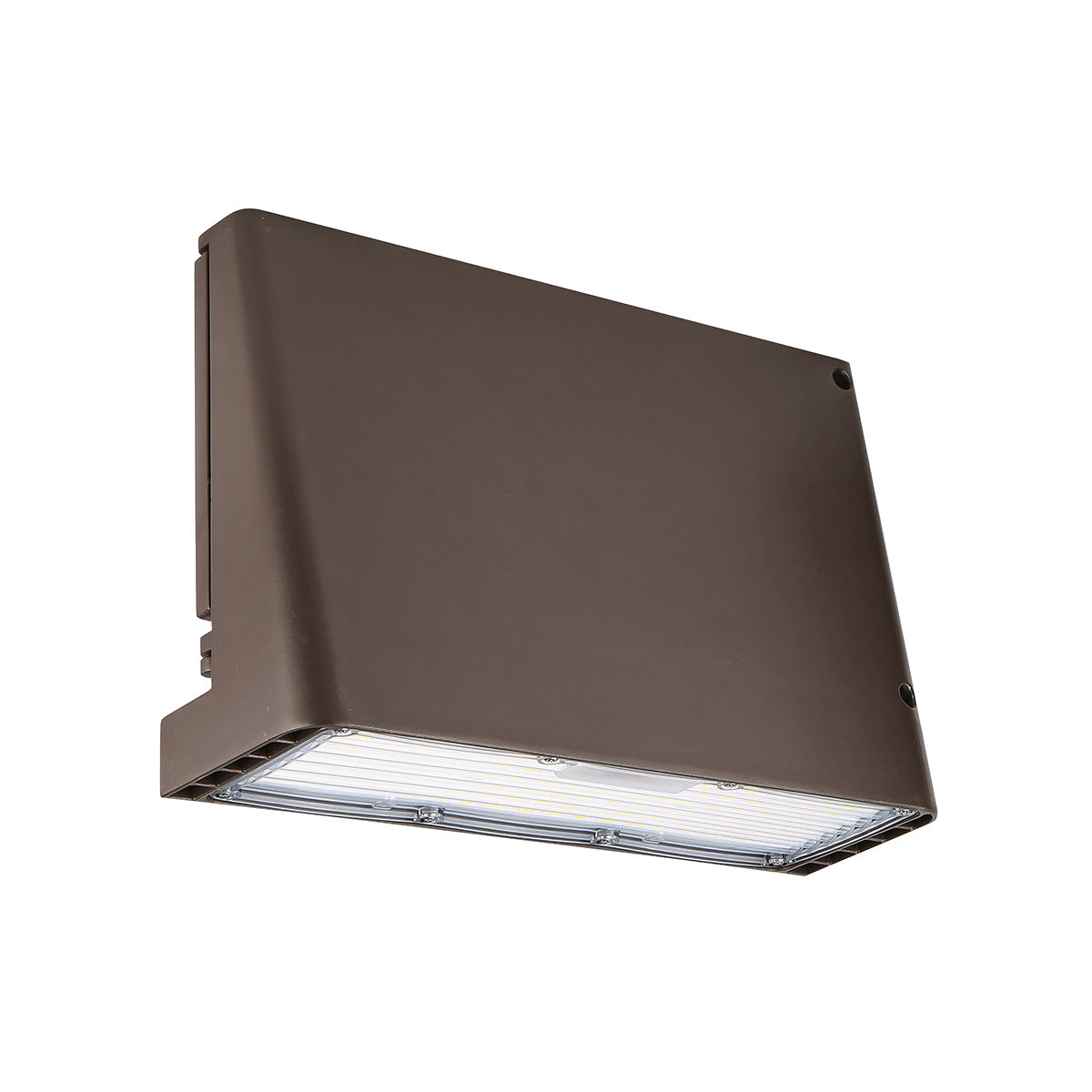

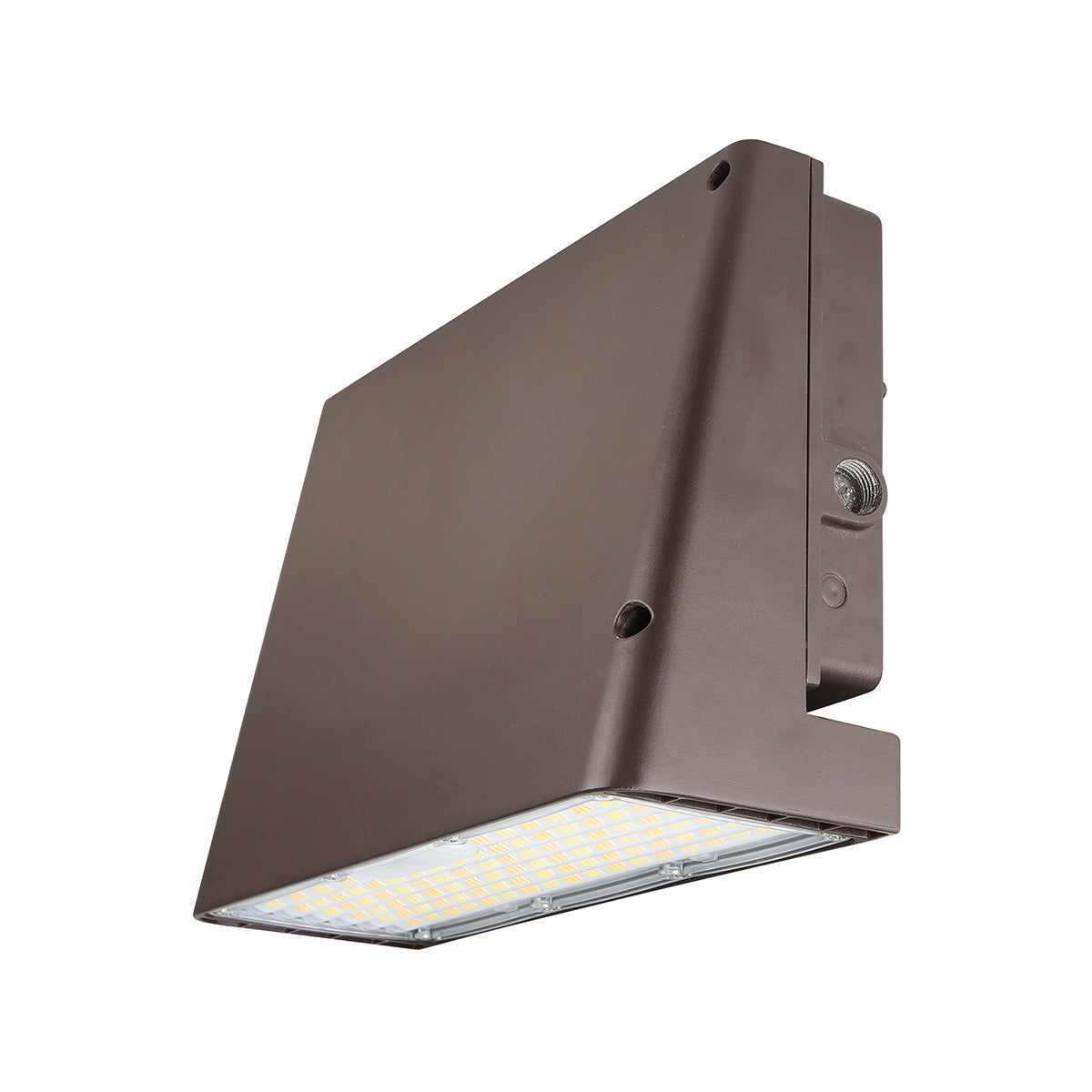

100W Full Cutoff LED Wall Pack - Color & Power Selectable - 155 lm/W
SKU:
| 388 in stock
Risk-Free
ELEDLights Offers Risk-Free Returns! If you're not satisfied with your lights for any reason, you can return them within 30 days Returns Policy
Risk-Free
ELEDLights Offers Risk-Free Returns! If you're not satisfied with your lights for any reason, you can return them within 30 days Returns Policy
Quantity:
Annual energy savings (est)1: $157/light
|
|
Looking for more? Price Match or Check Energy Savings
Customers Also Purchase

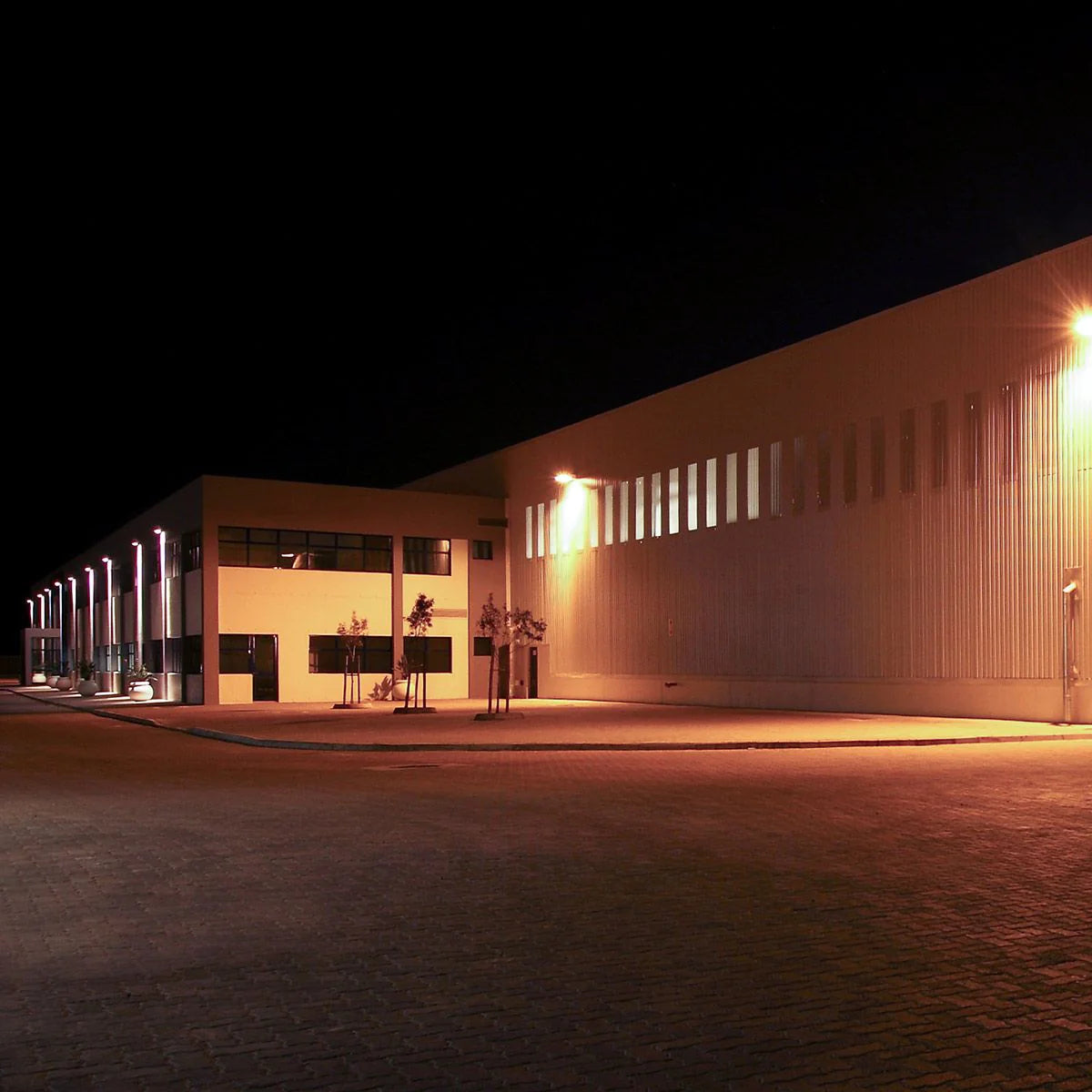

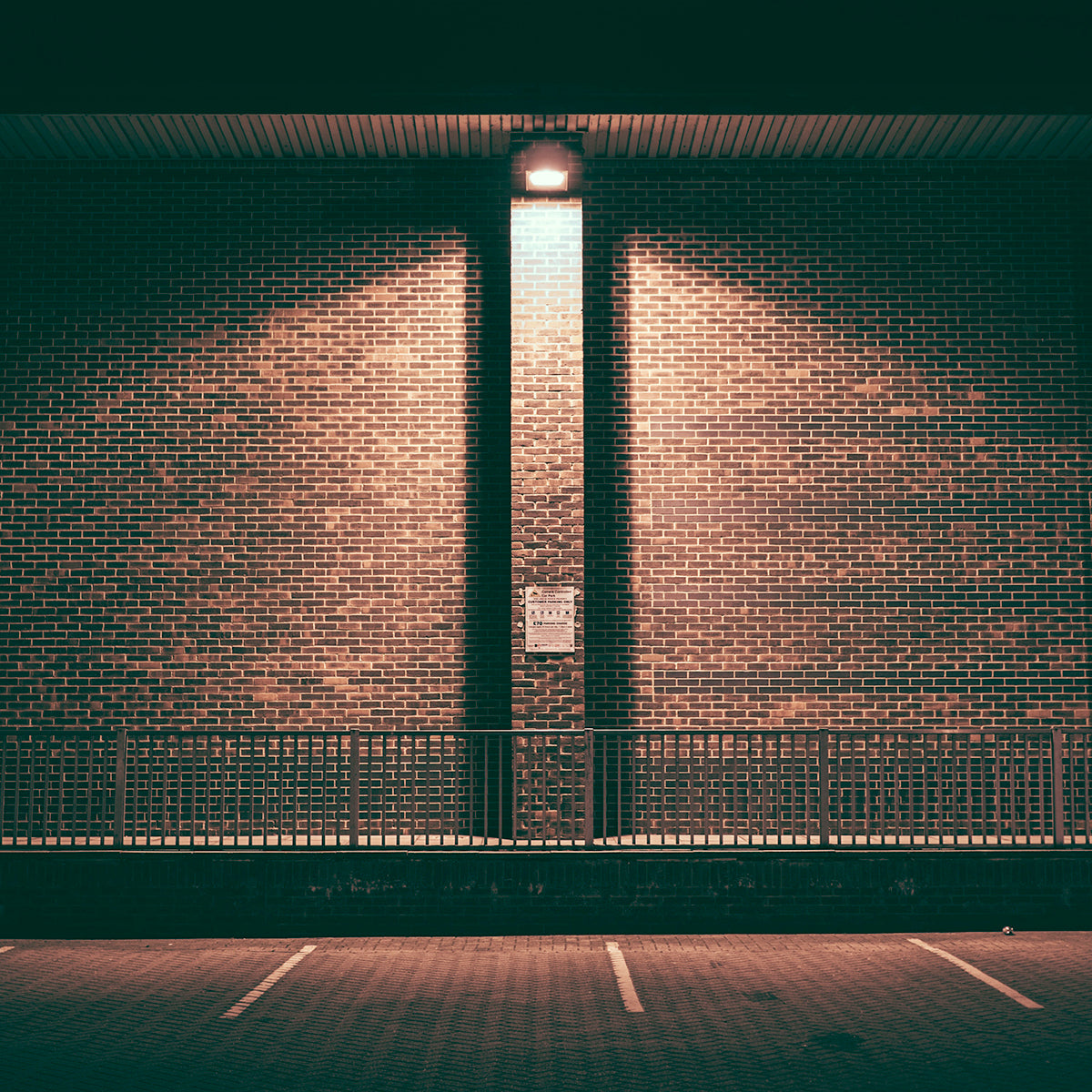

Brighten your walkways, egresses, and other outdoor areas around your commercial building with field-selectable LED wall pack lighting.

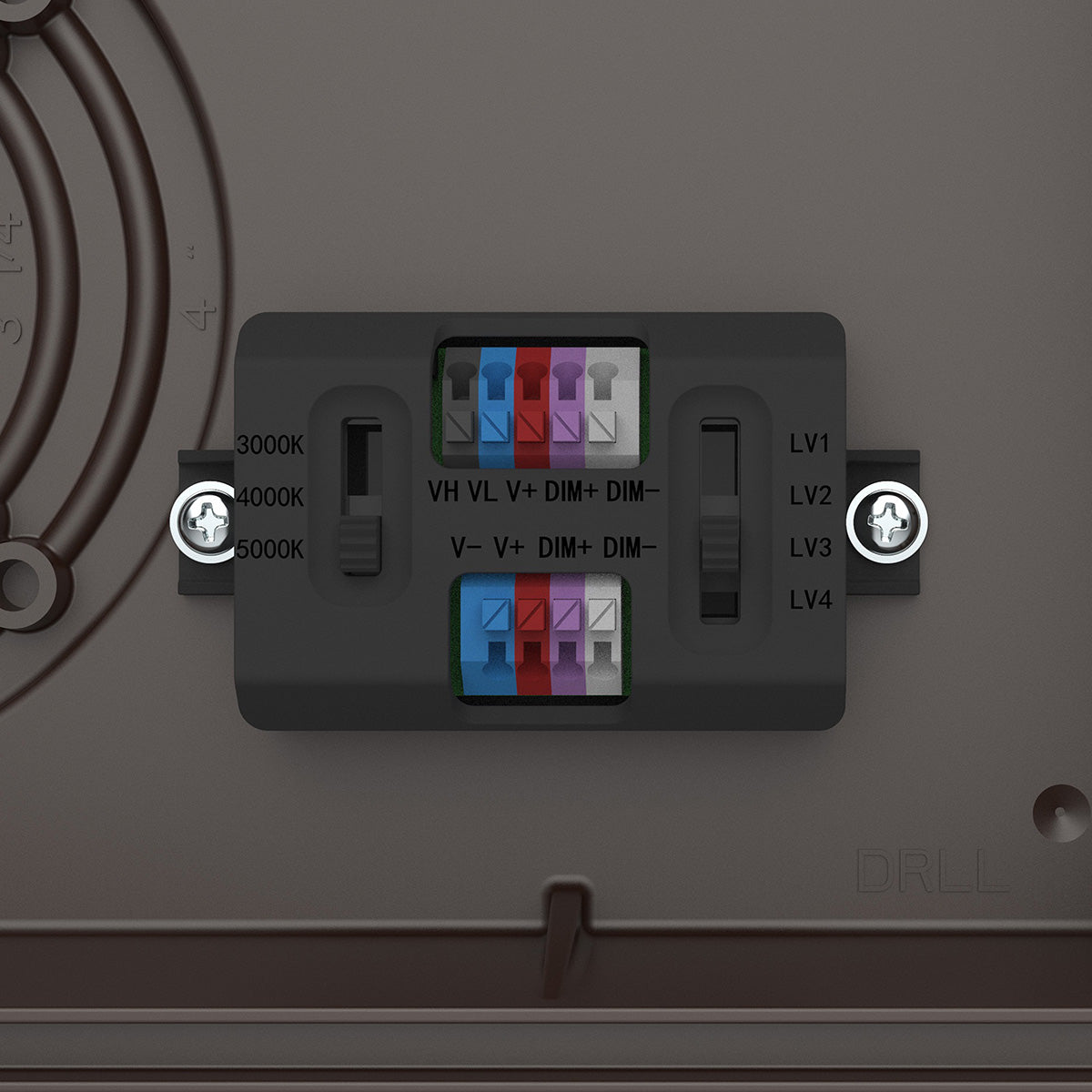

12 Wall Packs in 1
With four power settings and three color temperatures built in, this single model can be configured 12 different ways during installation, allowing you to meet your wall pack lighting needs across your property.
Choose to set your lumen output to 100%, 80%, 60%, or 40%, depending on how much light is needed in each space on your property. Also, select between three color temperature options (3000K, 4000K, or 5000K) to get a warm, neutral, or cool white lighting effect.
The color and power selectability of this LED wall pack allows for utilizing less/more energy where needed, creating a custom lighting environment. It also provides bulk-buying opportunities since it can be used in a variety of applications!
High-Quality Outdoor LED Lighting, Built-to-Last

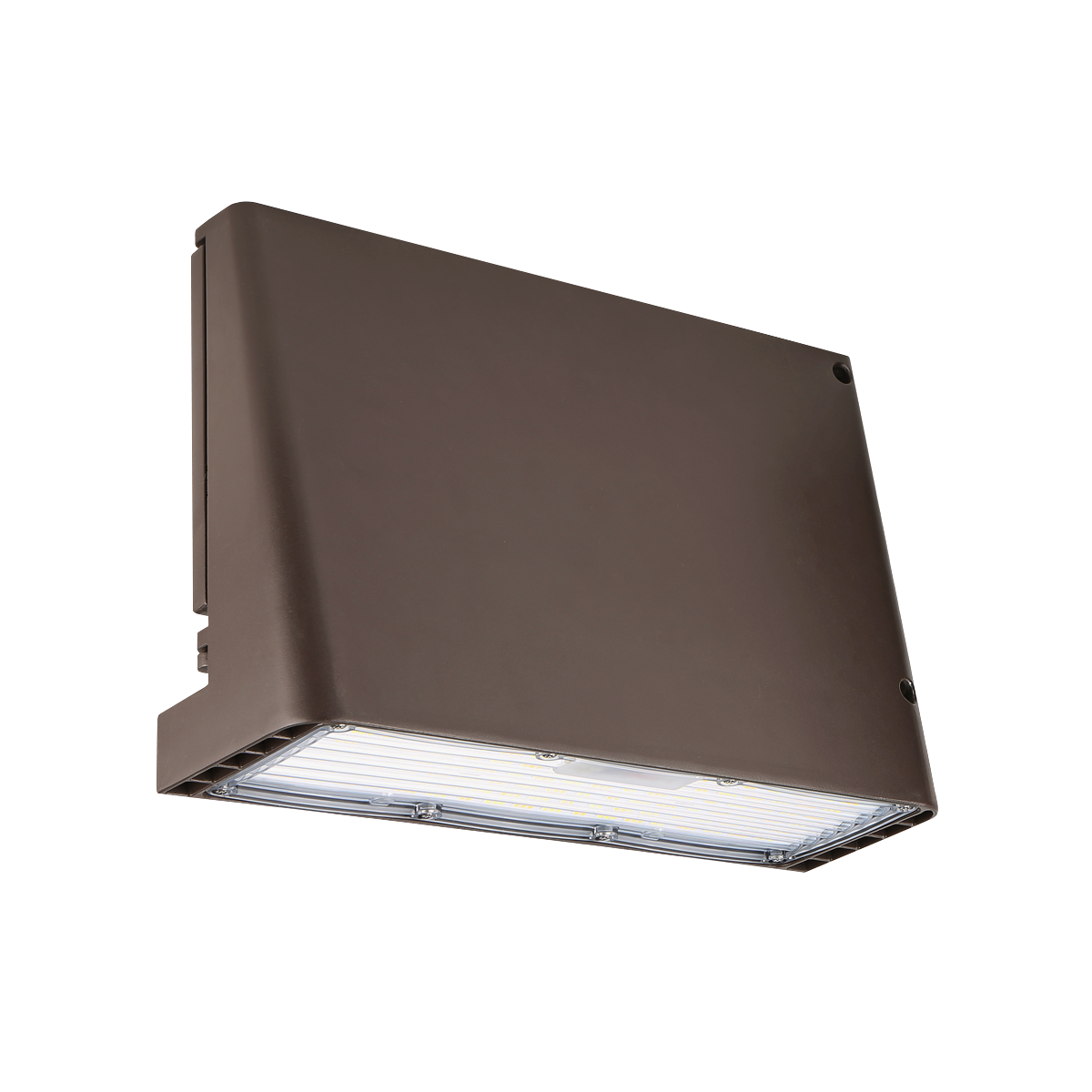

Our die-cast aluminum, full-cutoff wall pack provides:
- Dark Sky Compliance
- Low Glare
- 1-10V Dimming Capability
- Wet Location Operation
- Average of 50,000 Working Hours
- Replaces 125W to 400W HID at 1/3rd of the Energy Use
- DLC 5.1 Listing for Energy Rebates & Incentives

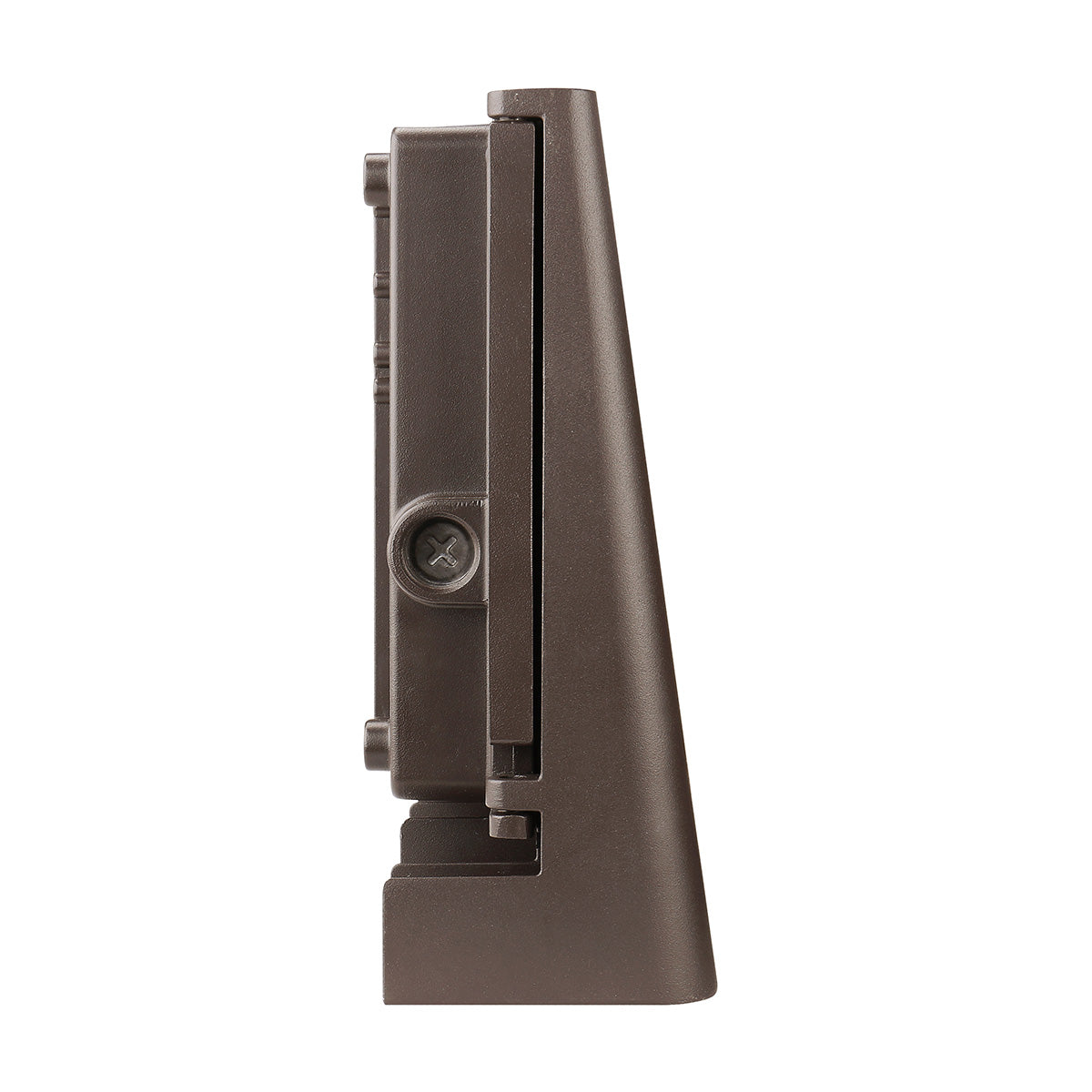

- Sleek, Thin Design

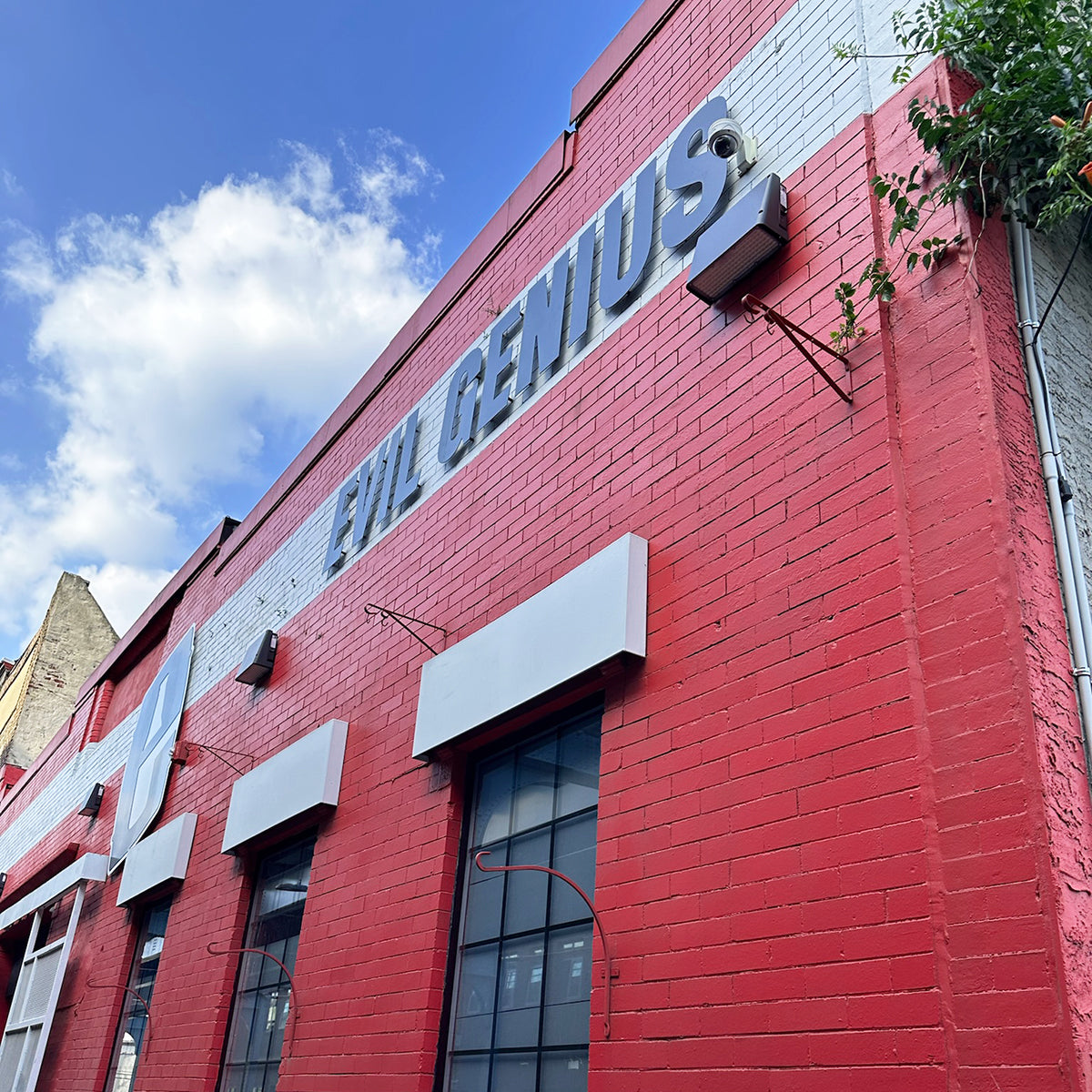

This flexible wall pack is suited for a wide range of commercial applications, including building entrances, loading docks, parking garages, tunnels, stairways, schools, parks & rec buildings, and more.
Light Output Options
| LIGHT OUTPUT PER COLOR TEMPERATURE SETTING | |||
| POWER SETTING | 3000K | 4000K | 5000K |
| 100% | ~ 15,270 lumens | ~ 15,995 lumens | ~ 14,950 lumens |
| 80% | ~ 12,460 lumens | ~ 13,050 lumens | ~ 12,725 lumens |
| 60% | ~ 9160 lumens | ~ 9,595 lumens | ~ 9,540 lumens |
| 40% | ~ 6335 lumens | ~ 6,635 lumens | ~ 6,660 lumens |
| Wattage(s) | 100W - Adjustable to 100%, 80%, 60%, or 40% output during install |
| Replaces Wattage(s) | 125W to 400W |
| Light Output | Up to 15,500 lumens |
| Luminous Efficacy (lm/W) | 148 lm/W (3000K), 155 lm/W (4000K), or 150 lm/W (5000K) |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K, 4000K, 5000K - User selectable during install |
| CRI | 70 |
| Dimming | 1-10V |
| Base Type | Fixture |
| Working Environment | Outdoor |
| Light Type | Wired Fixture |
| Input Voltage | 120-277 VAC |
| Temperature Rating | -40°F – |
