40W Full Cutoff Angle Adjustable LED Wall Pack
40W Full Cutoff Angle Adjustable LED Wall Pack
40W Full Cutoff Angle Adjustable LED Wall Pack
40W Full Cutoff Angle Adjustable LED Wall Pack
Ideal for lower mounting heights along school exteriors, stair towers, loading doors, and security perimeters, this 40W full-cutoff wall pack delivers 5,200 lumens with an angle-adjustable head.
- 5,200 lumens at 130 lm/W
- Crisp 5000K for high contrast and visibility
- Aimable to adjust forward throw
Ideal for lower mounting heights along school exteriors, stair towers, loading doors, and security perimeters, this 40W full-cutoff wall pack delivers 5,200 lumens with an angle-adjustable head.
- 5,200 lumens at 130 lm/W
- Crisp 5000K for high contrast and visibility
- Aimable to adjust forward throw
Choose options
Specs
| Wattage(s) | 40W, |
| Replaces Wattage(s) | 100W |
| Light Output | 5,200 lumens |
| Luminous Efficacy (lm/W) | 130 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 0-10V |
| Beam Angle | T3 (pushes light forward) |
| Lens Cover | Clear |
| Working Environment | Outdoor |
| Enclosure Rating | IP65 (Protected against dust and low-pressure jets of water) |
| Input Voltage | 120-277VAC |
| Temperature Rating | -40°F to 104°F |
| Housing Material | Aluminum Alloy & Tempered Glass |
| Housing Color | Dark bronze |

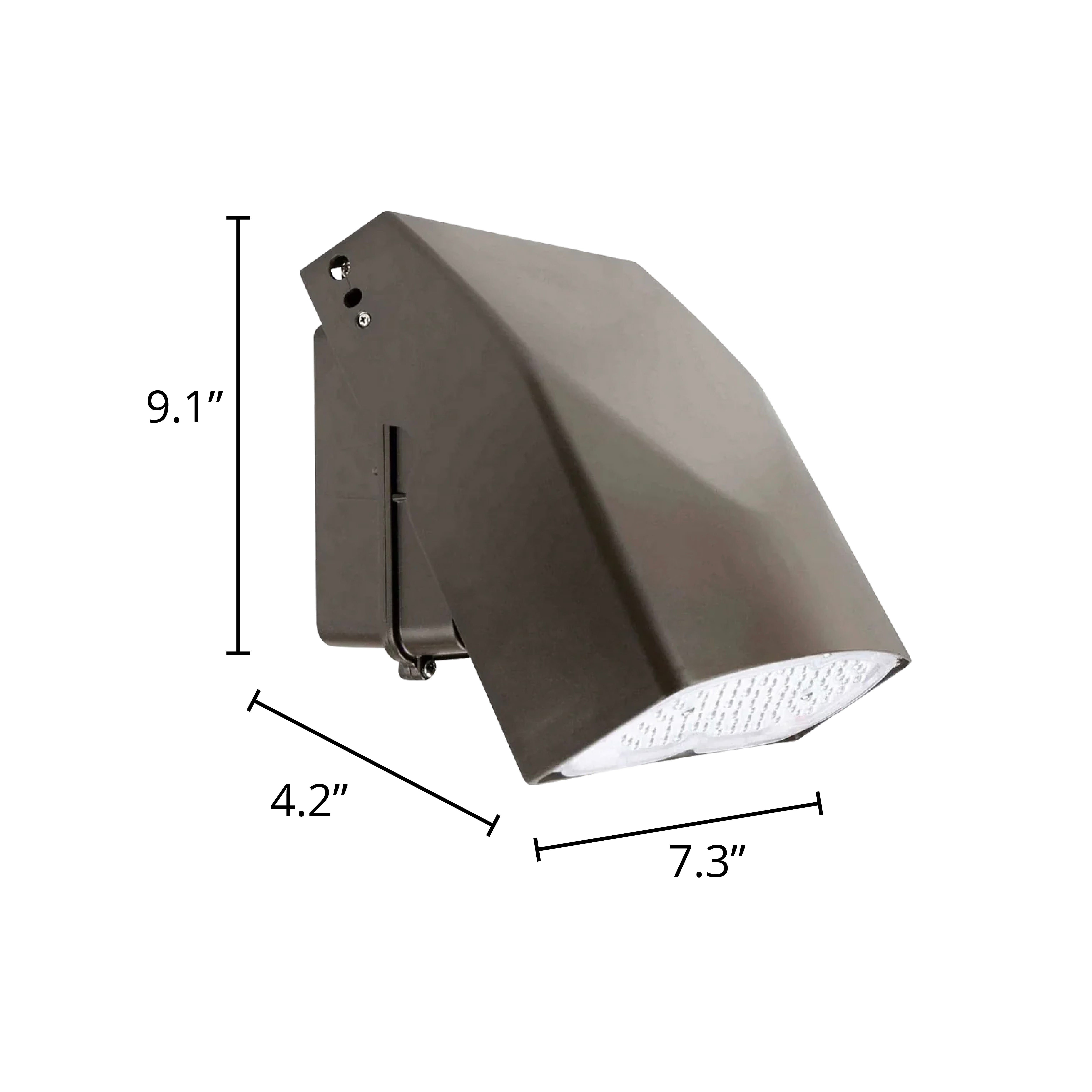

| Dimensions | 9.12” x 7.30” |
| Weight | 3.96 lbs |
| Certification | DLC 5.1, UL |
| Warranty | 5 Years |
Data SheetDetails
Improve Indoor Safety & Outdoor Security at Your Commercial Property
Angle-Adjustable Fixture Head: Tilt to point the light exactly where it is needed.
Strong & Completely Sealed: Built to withstand all types of weather.
Modern, Low-Profile Style: Lighting without bulk that blends nicely into architecture.
Dimming Capable: Enjoy additional control over energy usage to boost savings.
Dark Sky Compliant: Full cutoff design ensures zero up-light escapes into neighboring spaces.
Suitable for J-Box or surface mounting; tough enough for outdoor use while being stylish enough for indoor settings.
