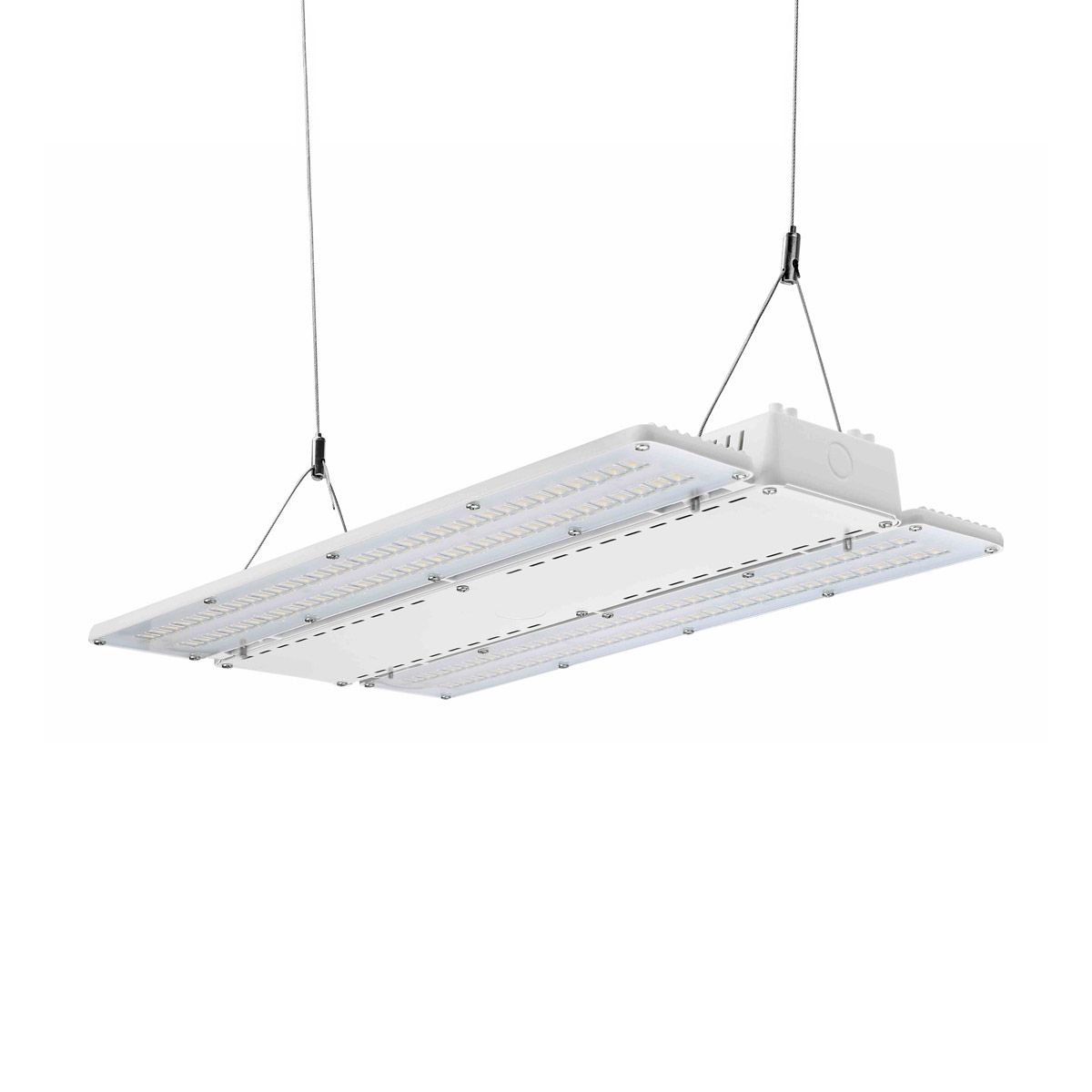

80-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft
80-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft
80-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft
80-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft
This high bay scales from low bay to high bay duty on ceilings 10–30 ft, with tool-free lens swaps to accommodate open areas and aisles.
- Up to 162 lm/W for lower energy bills
- IK10-rated and cold-capable to -13°F
- 102,000 hour lamp life and 5-year U.S.-supported warranty
This high bay scales from low bay to high bay duty on ceilings 10–30 ft, with tool-free lens swaps to accommodate open areas and aisles.
- Up to 162 lm/W for lower energy bills
- IK10-rated and cold-capable to -13°F
- 102,000 hour lamp life and 5-year U.S.-supported warranty
Choose options
Specs
| Wattage(s) | 50/80/110/160W Selectable |
| Replaces Wattage(s) | 500W |
| Light Output |
@4000K: 8,100/12,960/17,820/25,920 lumens @5000K: 8,000/12,800/17,600/25,600 lumens |
| Luminous Efficacy (lm/W) |
@4000K: 162 lm/W @5000K: 160 lm/W |
| Average Lamp Life |
L90: 43,000 hours L80: 91,000 hours L70: 102,000 hours |
| Color Temperature(s) | 4000/5000K Selectable (Call for 4000K or 5000K fixed) |
| CRI (Color Accuracy) | 80 |
| UGR (Unified Glare Rating) | <28 |
| Dimming | 0-10V Dimming |
| Occupancy Sensor | Integral Sensor Receptacle |
| Beam Angle | 95° (Standard) changeable to 60°x110° for Aisle Application with field-swappable lens |
| Lens Cover | Polycarbonate Optical Lens |

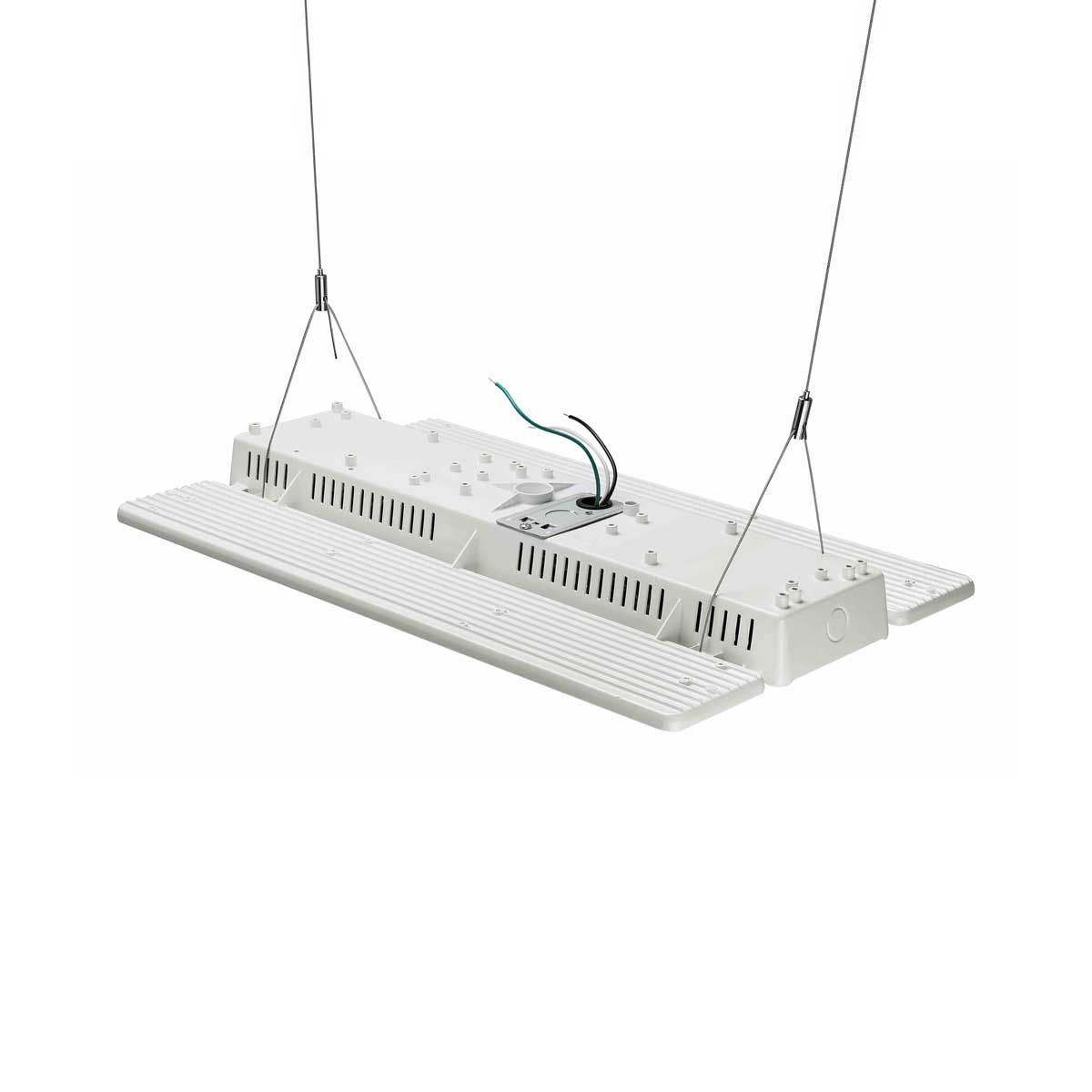

| Installation | Suspension Mount (Standard), Surface Mount |
| Enclosure Rating | IP20, IK10 |
| LED Type | 2835 |
| Input Voltage | 120-277VAC / 120-347VAC / 277-480VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | Sosen |
| Power Factor | >0.9 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Operating Temperature | -25°C to +50°C (-13°F to +122°F) |
| Housing Material | Die Cast Aluminum |
| Housing Color | White |
| Dimensions | 14.4” x 11.5” x 2.0” (366 x 292 x 51 mm) |
| Weight | 7.1lbs (3.2kg) |
| Certification | DLC Premium, UL |
| DLC ID(s) | S-1LQ84J |
| Warranty | 5 Years |
Data SheetDetails
The Most Adaptable Linear High Bay for Ceilings 10–30 ft
One Fixture, Every Wattage — selectable from 50W to 160W without changing SKUs.
Outfit an Entire Facility with a single model number, even as ceiling heights and room types change.
Dial-In the Exact Lighting Performance You Need:
- Selectable Wattage: Choose 50W, 80W, 110W, or 160W to match ceiling height and light-level needs.
- Selectable CCT: Switch between 4000K and 5000K to fit the space.
- Tool-Free Lens Swap: Use the included 95° lens for open floors, or add the 60°x110° lens to focus light down aisles.
- Frosted Diffuser Option: Reduces glare and evens out light distribution for visual comfort.
- 0-10V Dimming: Compatible with standard dimming controls for added energy savings.
- Motion Sensor Ready: Integral sensor receptacle accepts a plug-in occupancy sensor.
Built to Perform in Demanding Environments
- Up to 162 lm/W: High efficacy keeps energy costs down at every wattage setting.
- IK10 Impact Rating: Withstands impacts in gyms, sport courts, and busy warehouse floors.
- Cold-Capable to -13°F: Performs reliably in cold storage environments.
- 102,000-Hour Rated Life: Fewer replacements and lower maintenance costs over time.
- Built-In Surge Protection: 6kV line-line / 10kV line-earth protects against power spikes.

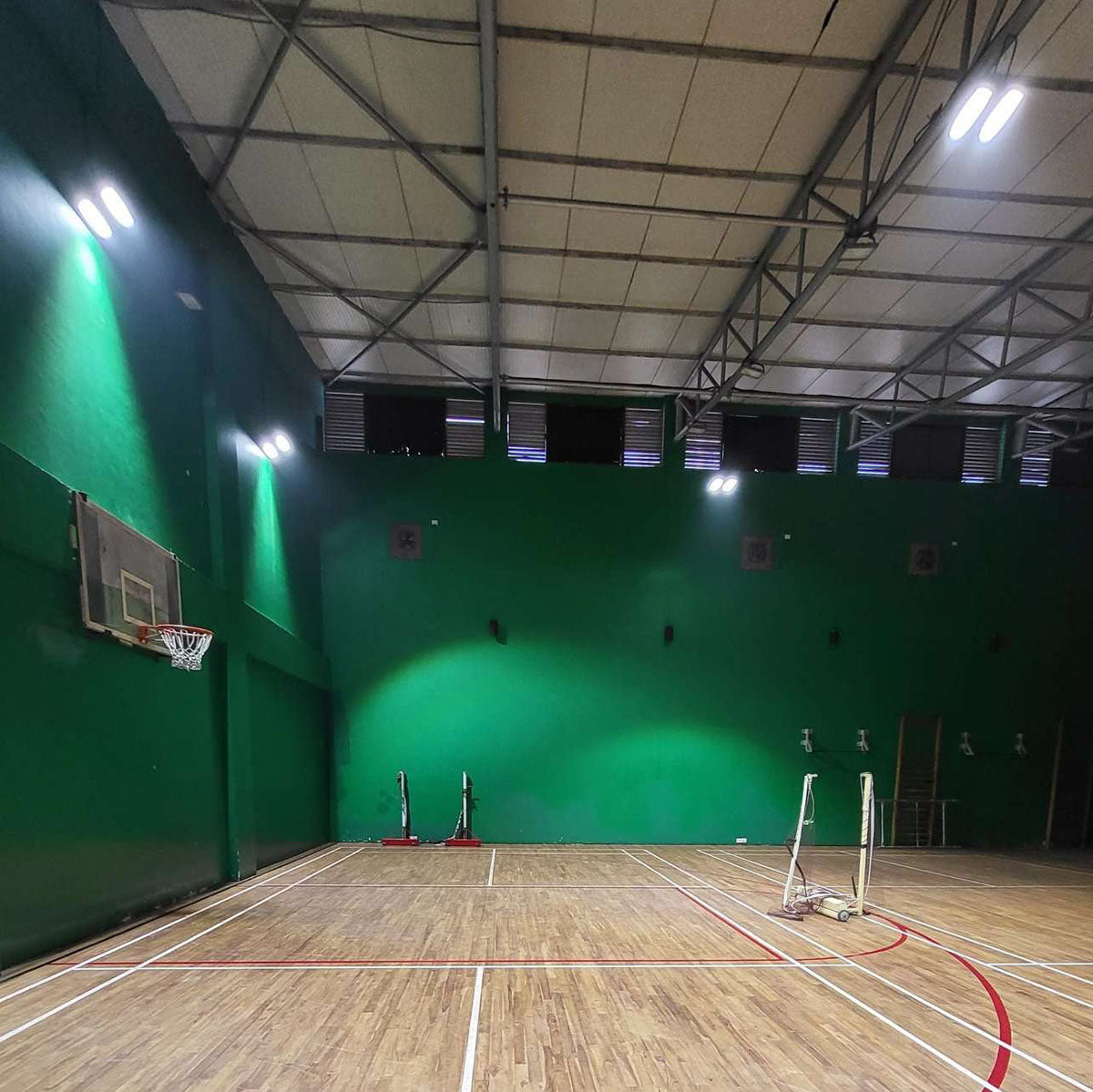

Ideal for a wide range of applications, from warehouses to cold storage, gymnasiums to supermarkets, and big box retail to exhibition halls.
Step Up to Smart Controls with Lightcloud Blue
Integrate this fixture with RAB's Lightcloud Blue wireless controls system for phone-based switching, dimming, and scheduling, and add a compatible sensor for occupancy sensing and daylight harvesting too. Maximize your savings and control.
Shown above are our most common recommendations for this fixture's 10–30 ft mounting height. Explore the full Lightcloud Blue Lighting Controls by RAB collection for other configurations, or contact us if you're not sure what fits your space.
Instant Rebates
Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:
