A 150W Class I Div 2 round high bay rated for simultaneous gas and dust hazards — marine-grade.
- Class I Div 2 & Zone 2; Class II Div 1 & Zone 20/21 — Type 4X, IP66, marine-rated, to -40°F.
- Waterproof, dustproof, corrosion-resistant housing — trunnion and pendant mounting included.
- 5-year warranty for refineries, pipelines, aircraft hangars, and offshore platforms.
Bulk Pricing: Text (858) 650-9400 or Request Quote
A 150W Class I Div 2 round high bay rated for simultaneous gas and dust hazards — marine-grade.
- Class I Div 2 & Zone 2; Class II Div 1 & Zone 20/21 — Type 4X, IP66, marine-rated, to -40°F.
- Waterproof, dustproof, corrosion-resistant housing — trunnion and pendant mounting included.
- 5-year warranty for refineries, pipelines, aircraft hangars, and offshore platforms.
Choose options
Details
Safety, Durability, and Performance
Waterproof, dustproof, corrosion-resistant, impact-resistant, and certified explosion proof, the HRHB02 provides reliable operation in tough and hazardous conditions.
-

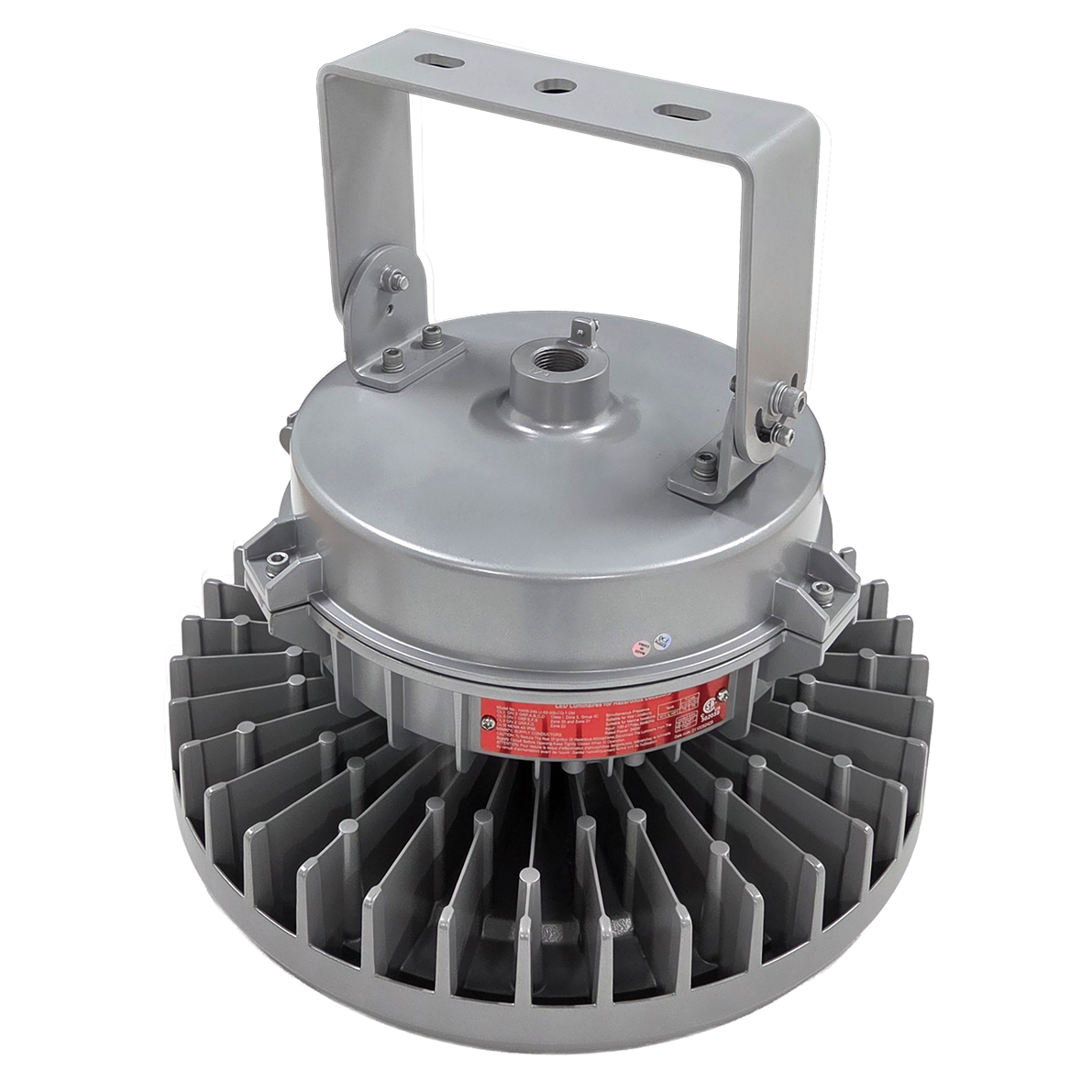

Easy Installation with self-locking terminals and both a trunnion and a pendant (3/4" NPT conduit) mount included in the box. (Wall & ceiling mount accessories available.)
- Hazardous Location Rated (Class I Div 2 & Zone 2) – For areas where explosive gases may be present only under abnormal conditions, such as in the event of a leak or failure.
- Dust-ignition Proof (Class II Div 1 & Zone 20/21) – Safe for use in environments where there's a risk of combustible dust explosion.
- Simultaneous Presence – This light can be used in environments with both flammable gases/vapors and combustible dust/fibers.
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray.
- Suited to Cold Environments with an operating temperature down to -40°F.

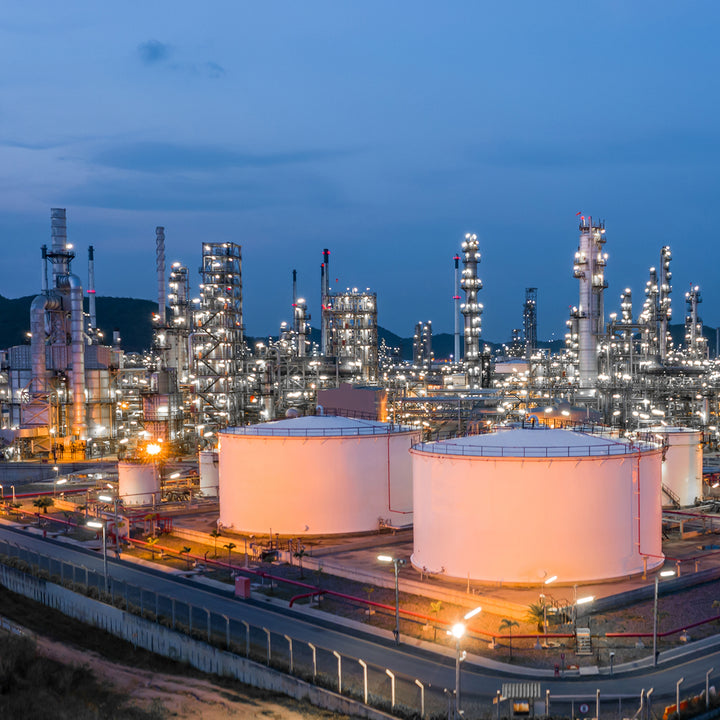

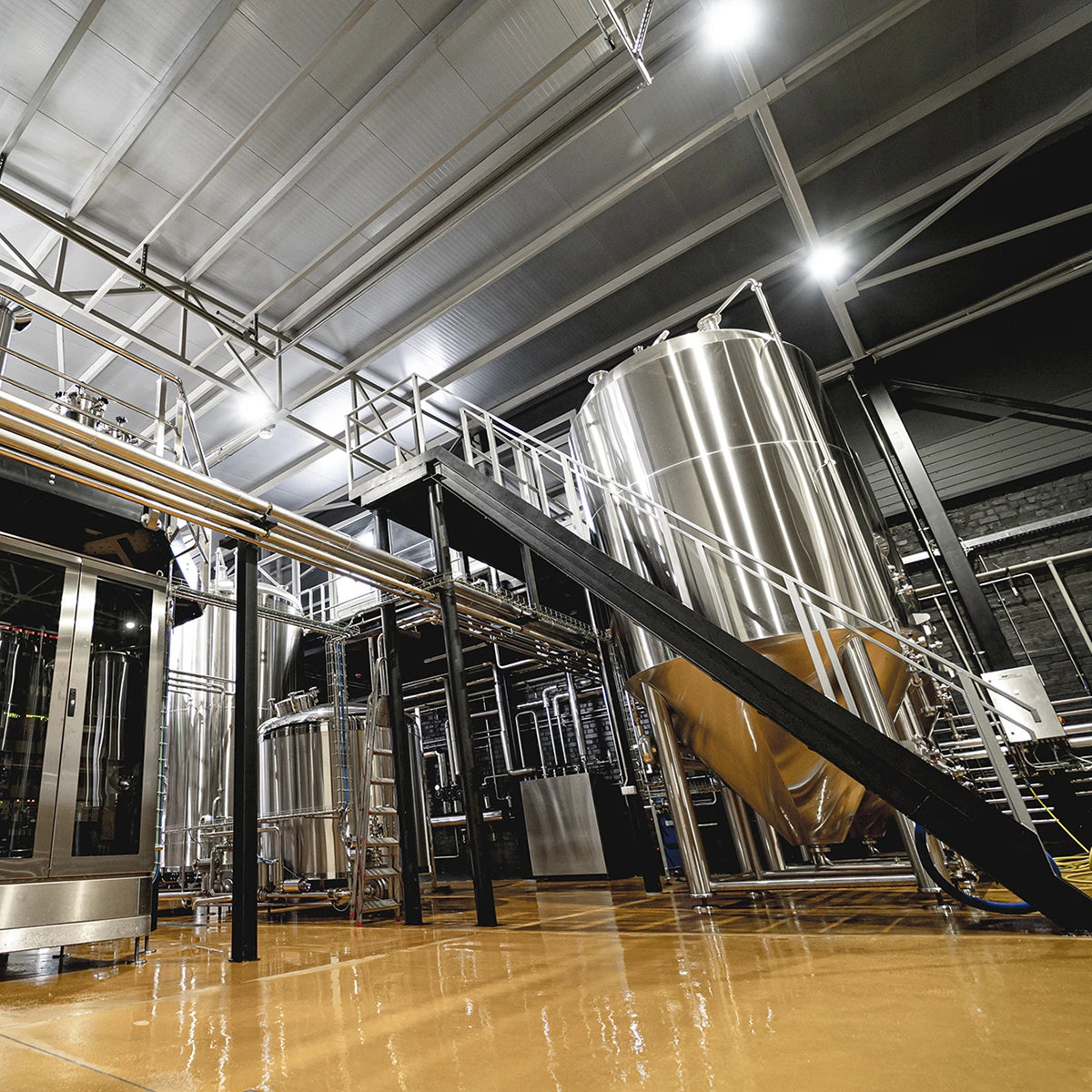

This light is safe to use in many challenging applications, including fuel storage areas, aircraft hangars, pipelines, chemical plants, pharmaceutical labs, grain and food processing, mining & coal handling, metal processing, woodworking and sawmills, textile mills, paper & pulp plants, and marine & offshore environments.
Specs
| Wattage(s) | 150W |
| Replaces Wattage(s) | 400W |
| Light Output | 21,000 lumens |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Average Lamp Life |
L80: 96,395 hours L70: 153,225 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Beam Angle | 120° |
| Enclosure Rating | IP66, IK08 |
| LED Type | LED 3030 |
| Input Voltage | 100-277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | INVENTRONICS |
| Power Factor | >0.9 |
| Surge Protection | 10kV line-line, 10kV line-earth |
| Temperature Rating | -40°F to +113°F |
| Housing Material | Aluminum Alloy (less than 0.4% copper content), Polycarbonate Optical Lens, Tempered Glass |
| Housing Color | Gray |
| Dimensions |
φ380x246mm (φ14.96” x 7.91.”) with pendant mount φ380x365mm (φ14.96” x 14.37”) with trunnion mount |
| Weight |
9.4±0.3kg (20.72±0.66lbs) with pendant mount 11.3±0.3kg (24.91±0.66lbs) with trunnion mount |
| Certification | UL, CSA |
| Warranty | 5 Years |
| Additional Specifications |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class l, Zone 2, Group IlC Zone 20 and Zone 21 Zone 22 |
Data SheetCompare Key Features
Compare
150W Hazardous Location & Marine Grade LED Living High Bay Light
|
150W Hazardous Location & Marine Grade LED Living Flood Light
|
200W Hazardous Location & Marine Grade LED Living High Bay Light
|
|
|---|---|---|---|
| Wattage | 150W | 150W | 200W |
| Efficacy | 140 lm/W | 150 lm/W | 140 lm/W |
| CCT | 5000K | 5000K | 5000K |
| Temperature Rating | -40°F to +113°F | -40°F to +104°F | -40°F to +113°F |
| Additional Info | Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class l, Zone 2, Group IlC Zone 20 and Zone 21 Zone 22 |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class I, Zone 2, Group IIC, IIB, IIA Zone 20, 21, or 22 |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class l, Zone 2, Group IlC Zone 20 and Zone 21 Zone 22 |
|
