LED Hazardous Location & Marine Grade Light - 100W - LED Living
258 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
Safety, Durability, and Performance

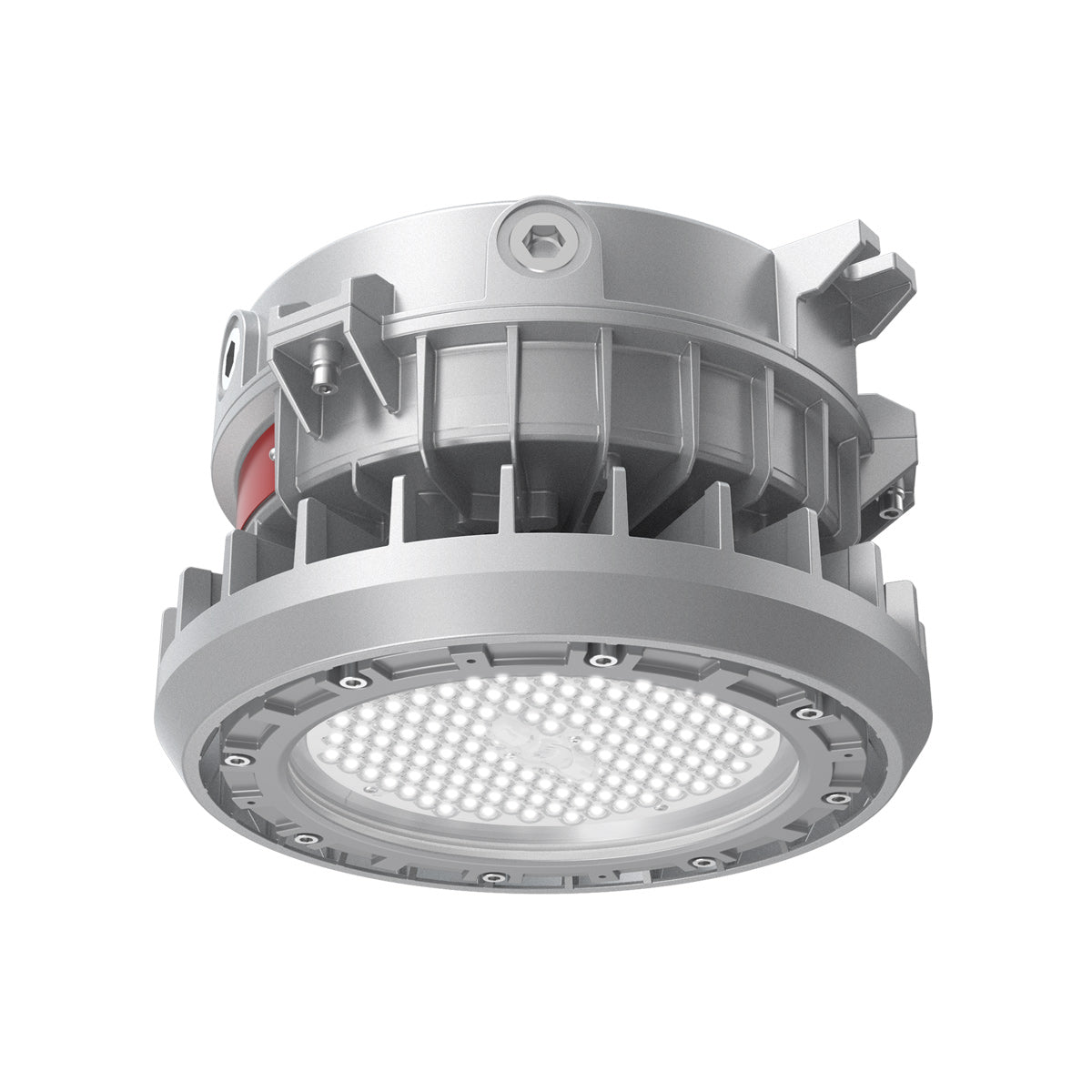

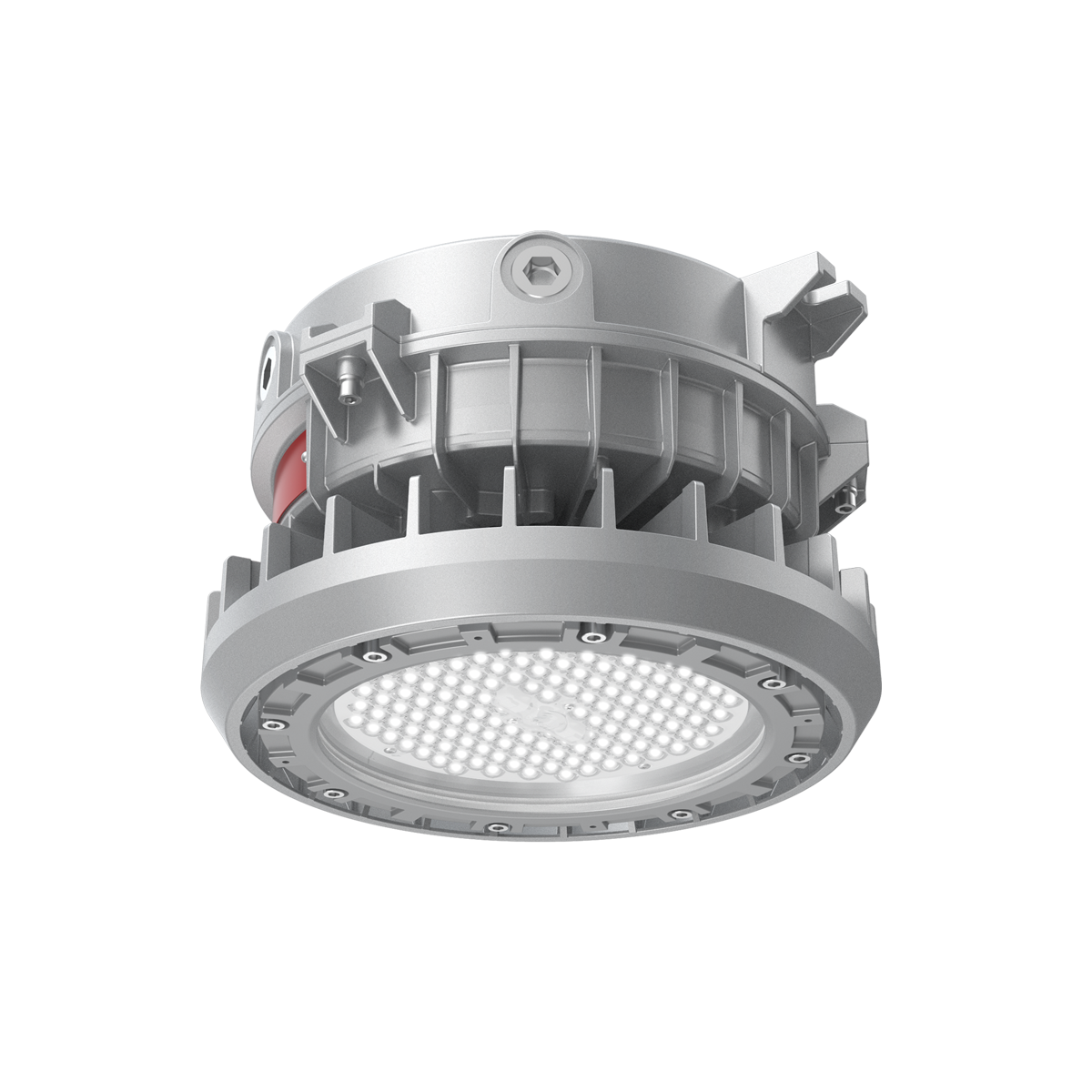

Waterproof, dustproof, corrosion-resistant, impact-resistant, and certified explosion proof, the HRHB02 provides reliable operation in tough and hazardous conditions.
-
Easy Installation with self-locking terminals and both a trunnion and a pendant (3/4" NPT conduit) mount included in the box
- Hazardous Location Rated (Class I Div 2 & Zone 2) – For areas where explosive gases may be present only under abnormal conditions, such as in the event of a leak or failure.
- Dust-ignition Proof (Class II Div 1 & Zone 20/21) – Safe for use in environments where there's a risk of combustible dust explosion
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray
- Suited to Cold Environments with an operating temperate down to -40°F

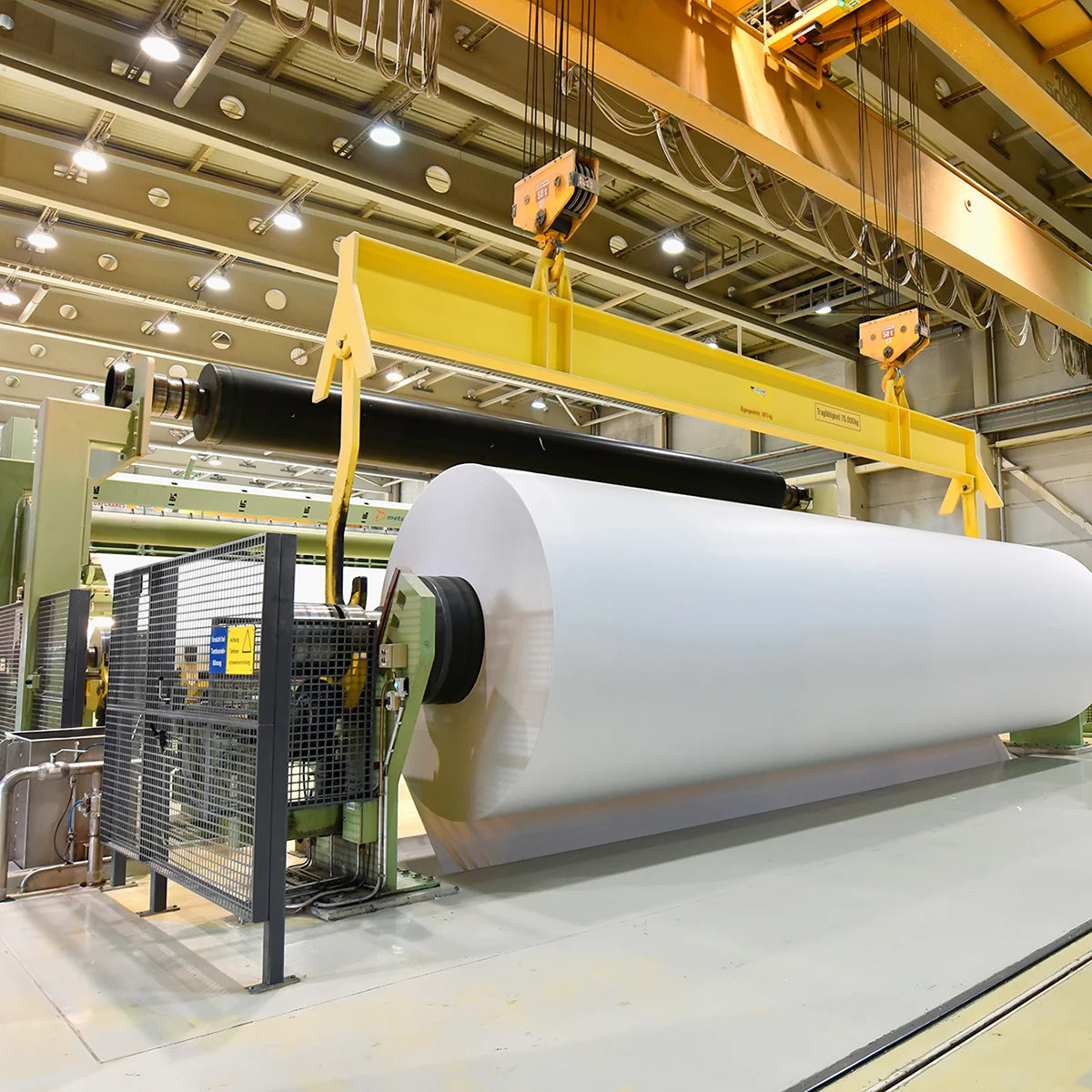

This light is safe to use in many challenging applications, including fuel storage areas, aircraft hangars, pipelines, chemical plants, pharmaceutical labs, grain and food processing, mining & coal handling, metal processing, woodworking and sawmills, textile mills, paper & pulp plants, and marine & offshore environments.
Saves $/year in energy costs*
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
Safety, Durability, and Performance
Waterproof, dustproof, corrosion-resistant, impact-resistant, and certified explosion proof, the HRHB02 provides reliable operation in tough and hazardous conditions.
-
Easy Installation with self-locking terminals and both a trunnion and a pendant (3/4" NPT conduit) mount included in the box
- Hazardous Location Rated (Class I Div 2 & Zone 2) – For areas where explosive gases may be present only under abnormal conditions, such as in the event of a leak or failure.
- Dust-ignition Proof (Class II Div 1 & Zone 20/21) – Safe for use in environments where there's a risk of combustible dust explosion
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray
- Suited to Cold Environments with an operating temperate down to -40°F
This light is safe to use in many challenging applications, including fuel storage areas, aircraft hangars, pipelines, chemical plants, pharmaceutical labs, grain and food processing, mining & coal handling, metal processing, woodworking and sawmills, textile mills, paper & pulp plants, and marine & offshore environments.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
258 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
258 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 100W |
| Replaces Wattage(s) | 320W |
| Light Output | 14,000 lumens |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Average Lamp Life |
L80: 96,395 hours L70: 153,225 hours |
| Color Temperature(s) | 5000K |
| CRI | 70 |
| Beam Angle | 120° |
| Enclosure Rating | IP66, IK08 |
| Input Voltage | 100-277VAC, 50/60Hz |
| Temperature Rating | -40°F to +113°F |
| Housing Material | Aluminum Alloy (less than 0.4% copper content), Polycarbonate Optical Lens, Tempered Glass |
| Housing Color | Gray |
| Dimensions |
φ300x230mm (φ11.81” x 9.05”) with pendant mount φ300x348mm (φ11.81” x 13.7”) with trunnion mount |
| Weight |
6.1±0.3kg (13.45±0.66lbs) with pendant mount 8.1±0.3kg (17.86±0.66lbs) with trunnion mount |
| Certification | UL, CSA |
| Warranty | 5 Years |
| Additional Specifications |
Surge Protection 10kV line-line, 10kV line-earth Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class l, Zone 2, Group IlC Zone 20 and Zone 21 Zone 22 |
