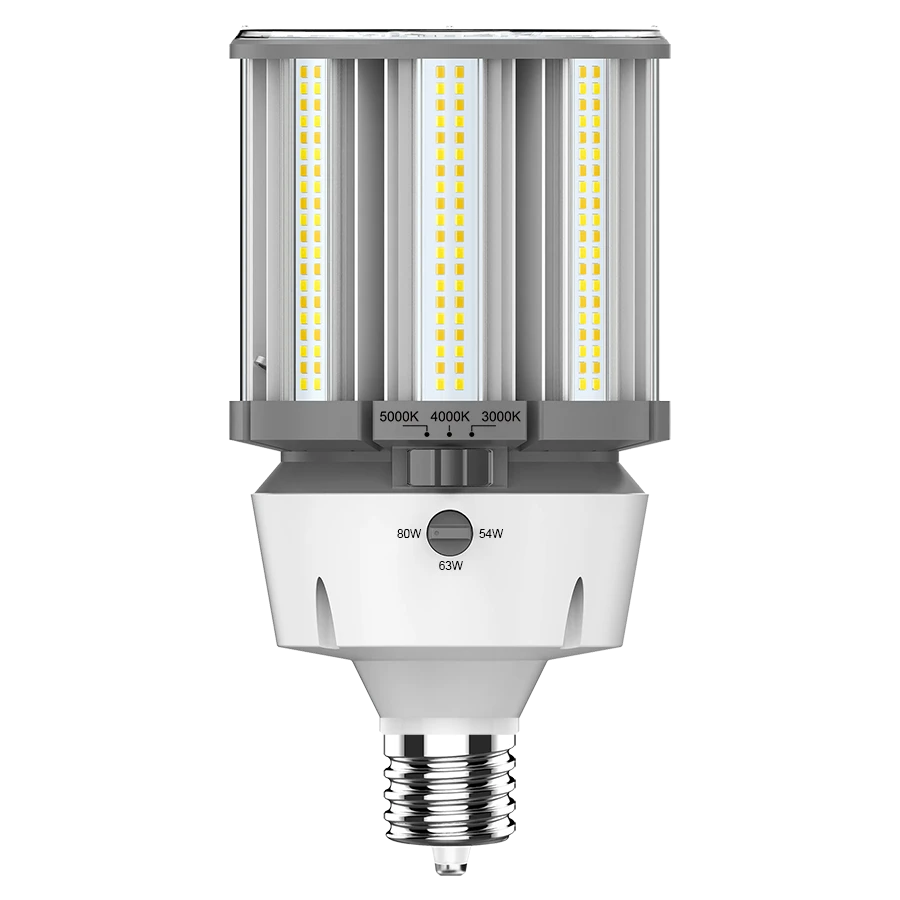

RAB LED Post Top Retrofit Lamp - 54W/63W/80W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 200W/250W/320W Metal Halide - EX39 Base
RAB LED Post Top Retrofit Lamp - 54W/63W/80W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 200W/250W/320W Metal Halide - EX39 Base
RAB LED Post Top Retrofit Lamp - 54W/63W/80W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 200W/250W/320W Metal Halide - EX39 Base
RAB Lighting
RAB LED Post Top Retrofit Lamp - 54W/63W/80W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 200W/250W/320W Metal Halide - EX39 Base
Choose options
Details
Replace 250W to 320W HID Lamps: Save on Energy & Maintenance
- Delivers up to 11,600 lumens of powerful output
- 5 selectable power levels allow you to fine-tune brightness and energy savings
- Selectable color temperature: 3000K, 4000K, or 5000K to fit any application
- EX39 mogul base makes retrofitting into existing HID fixtures fast and simple
- Bypass ballast design increases reliability and maximizes efficiency
- Rated for 50,000 hours, cutting down on maintenance and replacement costs
Perfect for warehouses, gymnasiums, post tops, and area lighting, this lamp delivers high-output, customizable LED performance while slashing energy use and extending fixture life.
Specs
| Wattage(s) | 54W/63W/80W |
| Replaces Wattage(s) | 200W/250W/320W Metal Halide or High Pressure Sodium |
| Light Output | 54W: 7,290-7,830lm | 63W: 8,505-9,135lm | 80W: 10,800-11,600lm |
| Luminous Efficacy (lm/W) | 54W/63W/80W: 3000K @ 135lm/W; 4000K @ 145lm/W; 5000K @ 140lm/W |
| Average Lamp Life | 50,000 hours (L70) |
| Color Temperature(s) | 3000K/4000K/5000K (Field Adjustable via dip switch) |
| CRI (Color Accuracy) | 80 CRI |
| Dimming | Yes, via Lightcloud Blue mobile app when a compatible plug-in controller is installed |
| Occupancy Sensor | Integrated AUX port for lamp-level sensor control |
| Bulb Shape | Post Top (sensor) |
| Base Type | EX39 |
| Ballast Compatibility | UL Type B, Ballast Bypass |
| Installation | Designed for vertical install in open or enclosed fixtures in damp or dry locations |
| Enclosure Rating | IP64 |
| Input Voltage | 100-277V |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Surge Protection | 4 kV |
| Temperature Rating | -22°F to 140°F (-30°C to 60°C) |
| Housing Material | Polycarbonate |
| Certification | UL Listed, DLC Listed (PDIHGBYQ), CEC Approved |
| DLC ID(s) | PDIHGBYQ |
| Warranty | 5 Years |
