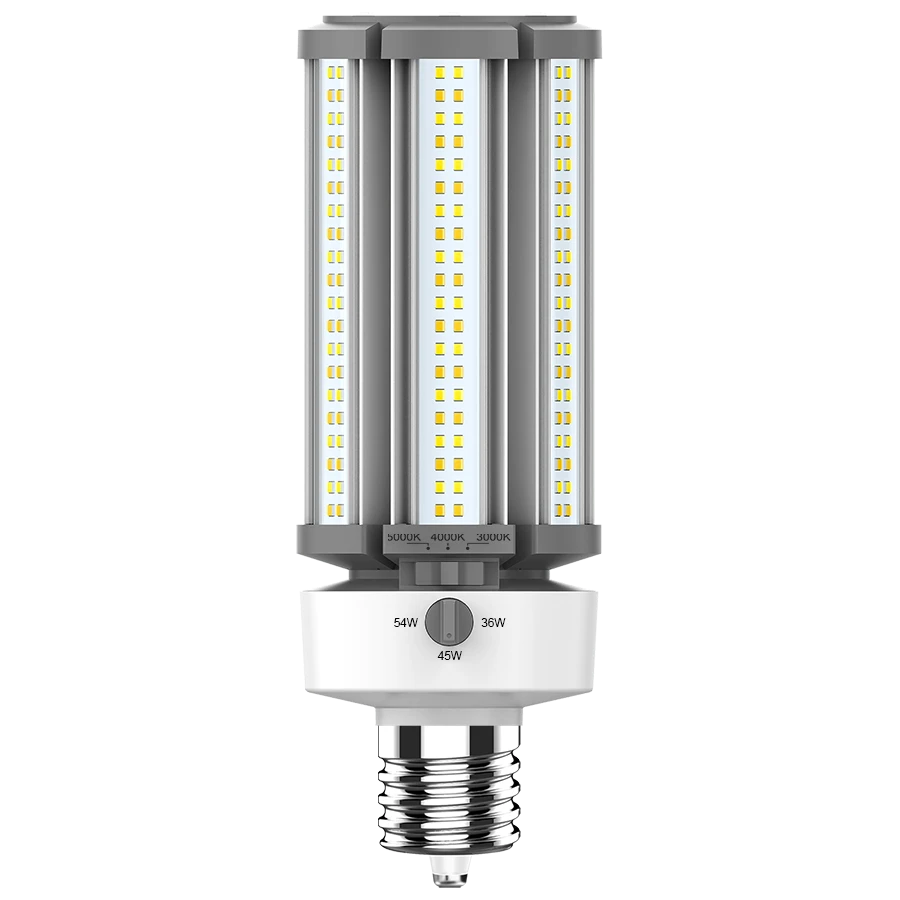

RAB LED Post Top Retrofit Lamp - 36W/45W/54W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 150W/175W/200W Metal Halide - EX39 Base
RAB LED Post Top Retrofit Lamp - 36W/45W/54W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 150W/175W/200W Metal Halide - EX39 Base
RAB LED Post Top Retrofit Lamp - 36W/45W/54W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 150W/175W/200W Metal Halide - EX39 Base
RAB Lighting
RAB LED Post Top Retrofit Lamp - 36W/45W/54W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 150W/175W/200W Metal Halide - EX39 Base
Choose options
Details
Replace 150W to 200W HID Lamps to Cut Energy Use by 60% Per Lamp
- Five selectable power levels for flexible brightness and energy savings
- Color selectable: 3000K, 4000K, or 5000K to match your application
- EX39 mogul base for direct retrofit into existing HID sockets
- Bypass ballast design ensures reliable performance and efficiency
- Rated 50,000-hour life to reduce maintenance and relamping costs
- Universal 120-277V input for broad installation compatibility
A smart retrofit choice for wall packs, post tops, and area lighting, this lamp combines adjustable wattage and CCT with long-life LED efficiency for tailored performance and dependable savings.
Specs
| Wattage(s) | 36W/45W/54W |
| Replaces Wattage(s) | 150W/175W/200W Metal Halide or High Pressure Sodium |
| Light Output | 36W: 4,860-5,220lm | 45W: 6,075-6,525lm | 54W: 7,290-7,830lm |
| Luminous Efficacy (lm/W) | 36W/45W/54W: 3000K @ 135lm/W; 4000K @ 145lm/W; 5000K @ 140lm/W |
| Average Lamp Life | 50,000 hours (L70) |
| Color Temperature(s) | 3000K/4000K/5000K (Field Adjustable via dip switch) |
| CRI (Color Accuracy) | 80 CRI |
| Dimming | Yes, via Lightcloud Blue mobile app when a compatible plug-in controller is installed |
| Occupancy Sensor | Integrated AUX port for lamp-level sensor control |
| Bulb Shape | Post Top (sensor) |
| Base Type | EX39 |
| Ballast Compatibility | UL Type B, Ballast Bypass |
| Installation | Designed for vertical install in open or enclosed fixtures in damp or dry locations |
| Enclosure Rating | IP64 |
| Input Voltage | 100-277V |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Surge Protection | 4 kV |
| Temperature Rating | -22°F to 140°F (-30°C to 60°C) |
| Housing Material | Polycarbonate |
| Certification | UL Listed, DLC Listed (PK1M7DYL), CEC Approved |
| DLC ID(s) | PK1M7DYL |
| Warranty | 5 Years |
