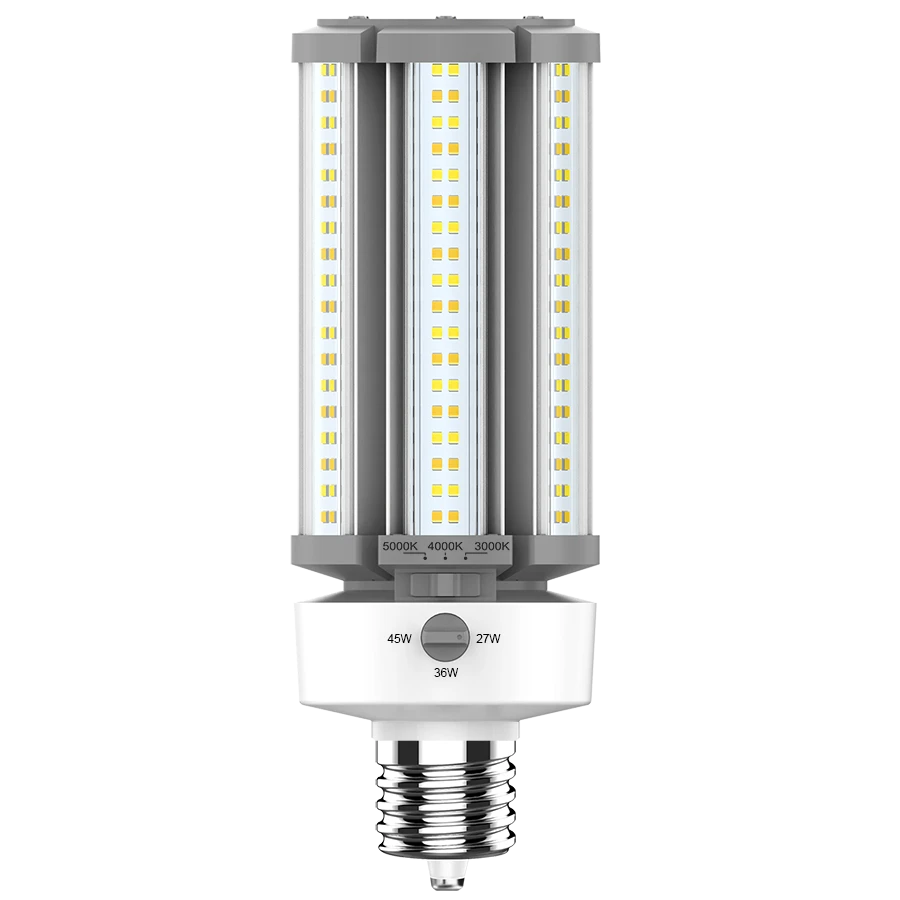

RAB LED Post Top Retrofit Lamp - 27W/36W/45W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 125W/150W/175W Metal Halide - EX39 Base
RAB LED Post Top Retrofit Lamp - 27W/36W/45W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 125W/150W/175W Metal Halide - EX39 Base
RAB LED Post Top Retrofit Lamp - 27W/36W/45W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 125W/150W/175W Metal Halide - EX39 Base
RAB Lighting
RAB LED Post Top Retrofit Lamp - 27W/36W/45W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 125W/150W/175W Metal Halide - EX39 Base
Choose options
Details
Replace up to 175W Metal Halide & High Pressure Sodium Lamps
- Cut energy consumption by up to 75%
- Selectable CCT: choose 3000K, 4000K, or 5000K for the perfect light quality
- Delivers 3,915–6,525 lumens of efficient, high-output lighting
- EX39 base installs directly into most existing HID sockets
- Rated for 50,000 hours to minimize maintenance and replacement costs
- Wide 120-277V input range for flexible installation
- 5 selectable power settings provide precise control of output and savings
Perfect for retrofitting wall packs, post tops, and area lights, this versatile LED lamp lets you fine-tune brightness and color temperature while delivering long-term energy and maintenance savings.
Specs
| Wattage(s) | 27W/36W/45W |
| Replaces Wattage(s) | 125W/150W/175W Metal Halide or High Pressure Sodium |
| Light Output | 27W: 3,645-3,915lm | 36W: 4,860-5,220lm | 45W: 6,075-6,525lm |
| Luminous Efficacy (lm/W) | 27W/36W/45W: 3000K @ 135lm/W; 4000K @ 145lm/W; 5000K @ 140lm/W |
| Average Lamp Life | 50,000 hours (L70) |
| Color Temperature(s) | 3000K/4000K/5000K (Field Adjustable via dip switch) |
| CRI (Color Accuracy) | 80 CRI |
| Dimming | Yes, via Lightcloud Blue mobile app when a compatible plug-in controller is installed |
| Occupancy Sensor | Integrated AUX port for lamp-level sensor control |
| Bulb Shape | Post Top (sensor) |
| Base Type | EX39 |
| Ballast Compatibility | UL Type B, Ballast Bypass |
| Installation | Designed for vertical install in open or enclosed fixtures in damp or dry locations |
| Enclosure Rating | IP64 |
| Input Voltage | 100-277V |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Surge Protection | 4 kV |
| Temperature Rating | -22°F to 140°F (-30°C to 60°C) |
| Housing Material | Polycarbonate |
| Certification | UL Listed, DLC Listed (PG98TFU5), CEC Approved |
| DLC ID(s) | PG98TFU5 |
| Warranty | 5 Years |
