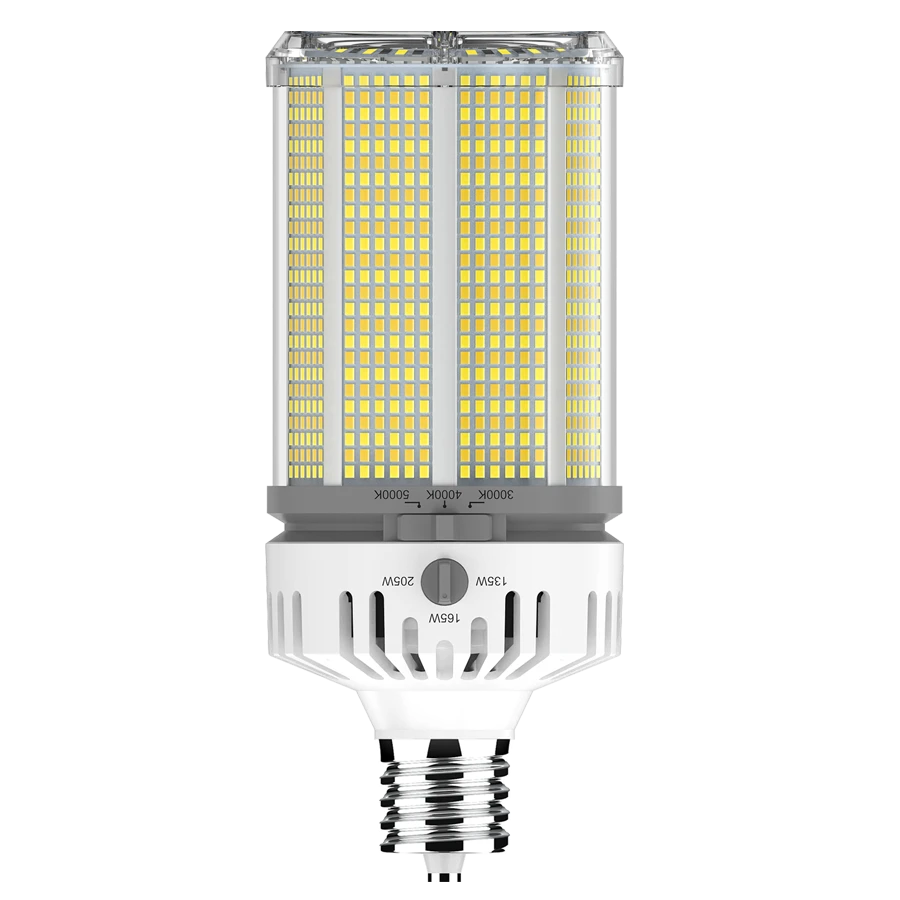

RAB LED HID Replacement Lamp - 135W/165W/205W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 400W/600W/750W Metal Halide - EX39 Base
RAB LED HID Replacement Lamp - 135W/165W/205W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 400W/600W/750W Metal Halide - EX39 Base
RAB LED HID Replacement Lamp - 135W/165W/205W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 400W/600W/750W Metal Halide - EX39 Base
RAB Lighting
RAB LED HID Replacement Lamp - 135W/165W/205W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 400W/600W/750W Metal Halide - EX39 Base
Choose options
Details
Replace 400W–750W Metal Halide Lamps at a 70% Energy Savings
- In-field customization with adjustable wattage (135W/165W/205W) and color temperature (3000K/4000K/5000K)
- Exceptional efficacy of 150 lm/W delivers up to 30,750 lumens
- Reduces maintenance and downtime with 50,000-hour rated operating life
- Reliable operation with UL Type B ballast bypass connection
- Versatile uses: rated for enclosed fixtures and suitable for dry or damp environments (IP64)
- Backed by RAB’s 5-year, no-compromise warranty for peace of mind
For warehouses, manufacturing facilities, parking areas, and large commercial properties, this retrofit lamp offers an easy, low-cost way to upgrade outdated HID lighting to efficient, long-lasting LED performance. Flexible in the field, it lets you set the perfect balance of brightness, color, and savings.
Specs
| Wattage(s) | 135W/165W/205W |
| Replaces Wattage(s) | 400W/600W/750W Metal Halide or High Pressure Sodium |
| Light Output | 135W: 20,250lm | 165W: 24,750lm | 205W: 30,750lm |
| Luminous Efficacy (lm/W) | 150 lm/W |
| Average Lamp Life | 50,000 hours (L70) |
| Color Temperature(s) | 3000K/4000K/5000K (Field Adjustable via dip switch) |
| CRI (Color Accuracy) | 80 CRI |
| Bulb Shape | Post Top |
| Base Type | EX39 |
| Ballast Compatibility | UL Type B, Ballast Bypass |
| Installation | Designed for vertical or horizontal install in open or enclosed fixtures in damp or dry locations |
| Enclosure Rating | IP64 |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | <20% |
| Surge Protection | 4 kV |
| Temperature Rating | -22°F to 140°F (-30°C to 60°C) |
| Housing Material | Polycarbonate |
| Certification | UL Listed |
| Warranty | 5 Years |
