RAB Lighting

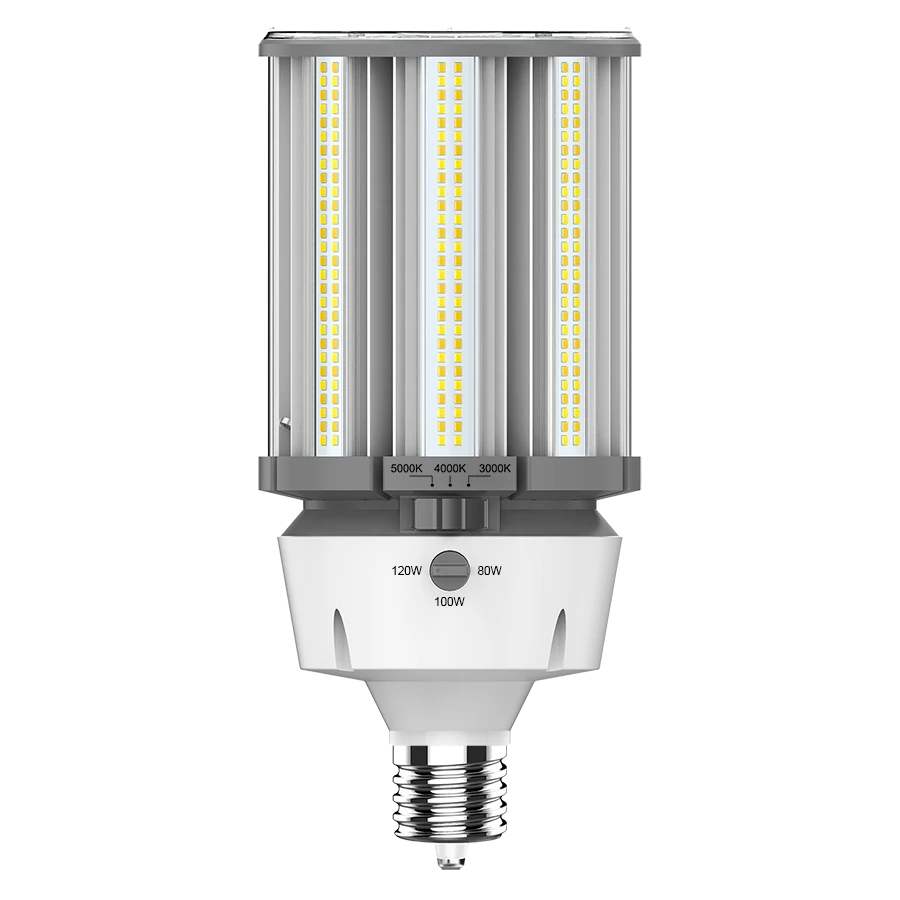

RAB LED HID Replacement Lamp - 80W/100W/120W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 320W/400W/600W Metal Halide - EX39 Base
RAB LED HID Replacement Lamp - 80W/100W/120W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 320W/400W/600W Metal Halide - EX39 Base
RAB LED HID Replacement Lamp - 80W/100W/120W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 320W/400W/600W Metal Halide - EX39 Base
RAB Lighting
RAB LED HID Replacement Lamp - 80W/100W/120W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 320W/400W/600W Metal Halide - EX39 Base
Choose options
Details
Replace 320W–600W HID Lamps & Save 70% on Energy Costs
- Adjustable wattage (80W/100W/120W) and CCT (3000K/4000K/5000K) for tailored light output
- Delivers 10,800–17,400 lumens with industry-leading efficacy of up to 145 lm/W
- Long 50,000-hour lifespan reduces maintenance downtime and labor costs
- UL Type B ballast bypass design ensures reliable, direct-to-line operation
- Suitable for enclosed fixtures and rated for dry or damp environments (IP64)
- DLC qualified for utility rebates to maximize ROI
- 5-year, no-compromise warranty from RAB for peace of mind
Ideal for facility managers and operations leaders looking to reduce operating expenses, this retrofit lamp makes it easy to upgrade outdated HID fixtures with efficient, reliable LED technology—without replacing the entire fixture.
Specs
| Wattage(s) | 80W/100W/120W |
| Replaces Wattage(s) | 320W/400W/600W Metal Halide or High Pressure Sodium |
| Light Output | 80W: 10,800-11,600lm | 100W: 13,500-14,500lm | 120W: 16,200-17,400lm |
| Luminous Efficacy (lm/W) | 80W/100W/120W: 3000K @ 135lm/W; 4000K @ 145lm/W; 5000K @ 140lm/W |
| Average Lamp Life | 50,000 hours (L70) |
| Color Temperature(s) | 3000K/4000K/5000K (Field Adjustable via dip switch) |
| CRI (Color Accuracy) | 80 CRI |
| Dimming | Yes, via Lightcloud Blue mobile app when a compatible plug-in controller is installed |
| Occupancy Sensor | Integrated AUX port for lamp-level sensor control |
| Bulb Shape | Post Top (sensor) |
| Base Type | EX39 |
| Ballast Compatibility | UL Type B, Ballast Bypass |
| Installation | Designed for vertical install in open or enclosed fixtures in damp or dry locations |
| Enclosure Rating | IP64 |
| Input Voltage | 100-277V |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Surge Protection | 4 kV |
| Temperature Rating | -22°F to 140°F (-30°C to 60°C) |
| Housing Material | Polycarbonate |
| Certification | UL Listed, DLC Listed (PZW8AHTW), CEC Approved |
| DLC ID(s) | PZW8AHTW |
| Warranty | 5 Years |
