RAB Lighting

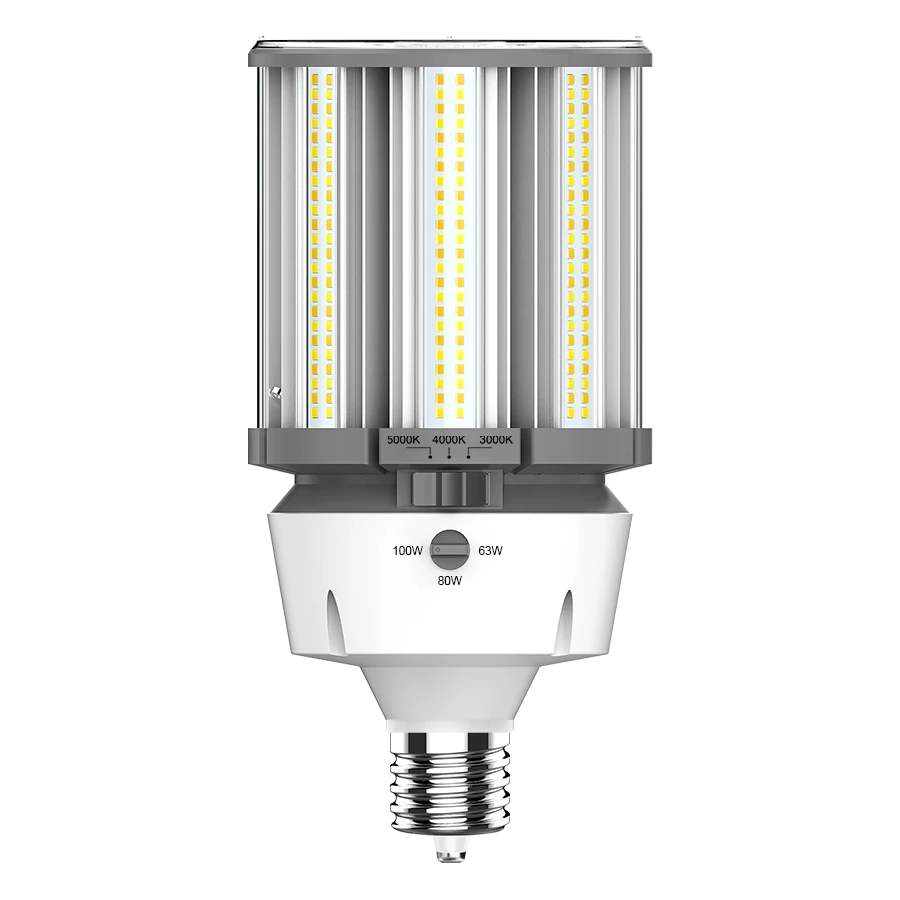

RAB LED HID Replacement Lamp - 63W/80W/100W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 250W/320W/400W Metal Halide - EX39 Base
RAB LED HID Replacement Lamp - 63W/80W/100W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 250W/320W/400W Metal Halide - EX39 Base
RAB LED HID Replacement Lamp - 63W/80W/100W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 250W/320W/400W Metal Halide - EX39 Base
RAB Lighting
RAB LED HID Replacement Lamp - 63W/80W/100W - Wattage Selectable - 3000K/4000K/5000K CCT Selectable - Replaces 250W/320W/400W Metal Halide - EX39 Base
Choose options
Details
Replace 250W-400W HID Lamps at a 70% Energy Savings
- Delivers up to 14,500 lumens of light
- Five selectable power levels let you match output to your facility’s exact needs
- Selectable CCT: choose 3000K, 4000K, or 5000K for warm, neutral, or daylight white
- EX39 mogul base fits most existing HID fixtures for fast, low-cost upgrades
- Bypass ballast design for improved reliability and fewer failure points
- Rated for 50,000 hours—minimizing downtime and replacement costs
- 120–277V universal input for use across commercial and industrial applications
For facility managers and business owners, this retrofit lamp provides a cost-effective way to replace outdated HID lighting with long-lasting LED efficiency. From warehouses and production floors to parking lots and outdoor areas, it ensures reliable, high-output lighting while reducing operating expenses.
Specs
| Wattage(s) | 63W/80W/100W |
| Replaces Wattage(s) | 250W/320W/400W Metal Halide or High Pressure Sodium |
| Light Output | 63W: 8,505-9,135lm | 80W: 10,800-11,600lm | 100W: 13,500-14,500lm |
| Luminous Efficacy (lm/W) | 63W/80W/100W: 3000K @ 135lm/W; 4000K @ 145lm/W; 5000K @ 140lm/W |
| Average Lamp Life | 50,000 hours (L70) |
| Color Temperature(s) | 3000K/4000K/5000K (Field Adjustable via dip switch) |
| CRI (Color Accuracy) | 80 CRI |
| Dimming | Yes, via Lightcloud Blue mobile app when a compatible plug-in controller is installed |
| Occupancy Sensor | Integrated AUX port for lamp-level sensor control |
| Bulb Shape | Post Top (sensor) |
| Base Type | EX39 |
| Ballast Compatibility | UL Type B, Ballast Bypass |
| Installation | Designed for vertical or horizontal install in open or enclosed fixtures in damp or dry locations |
| Enclosure Rating | IP64 |
| Input Voltage | 100-277V |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Surge Protection | 4 kV |
| Temperature Rating | -22°F to 140°F (-30°C to 60°C) |
| Housing Material | Polycarbonate |
| Certification | UL Listed, DLC Listed (PEXK7EN6), CEC Approved |
| DLC ID(s) | PEXK7EN6 |
| Warranty | 5 Years |
