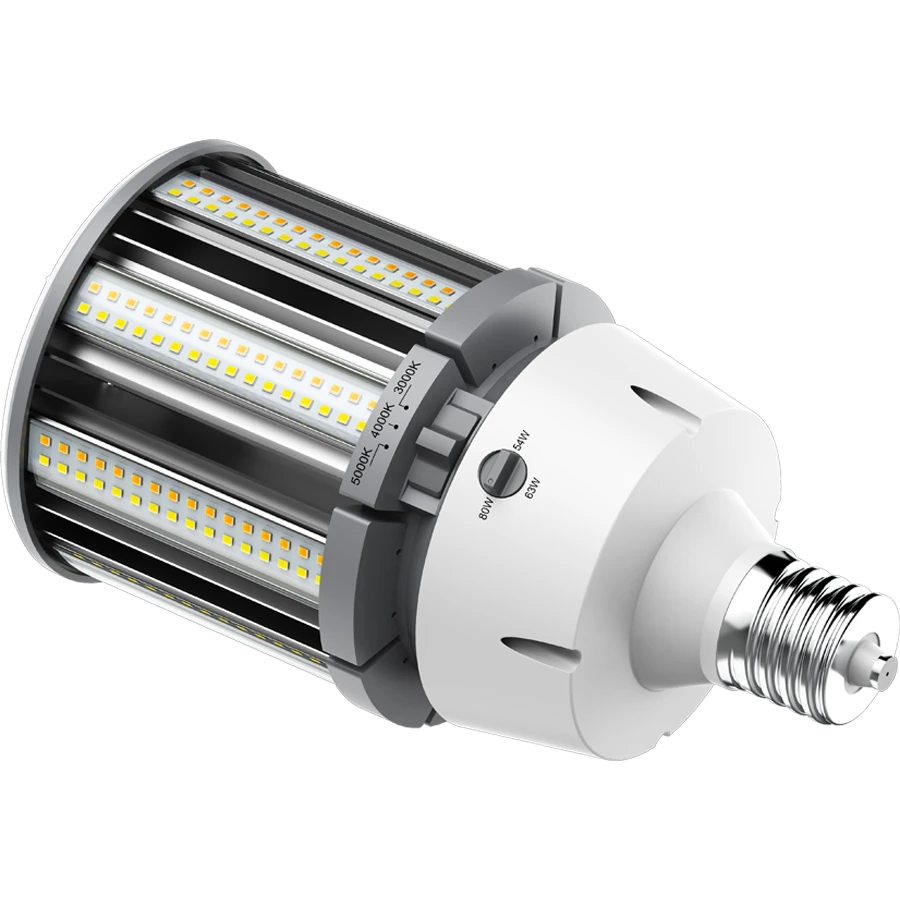

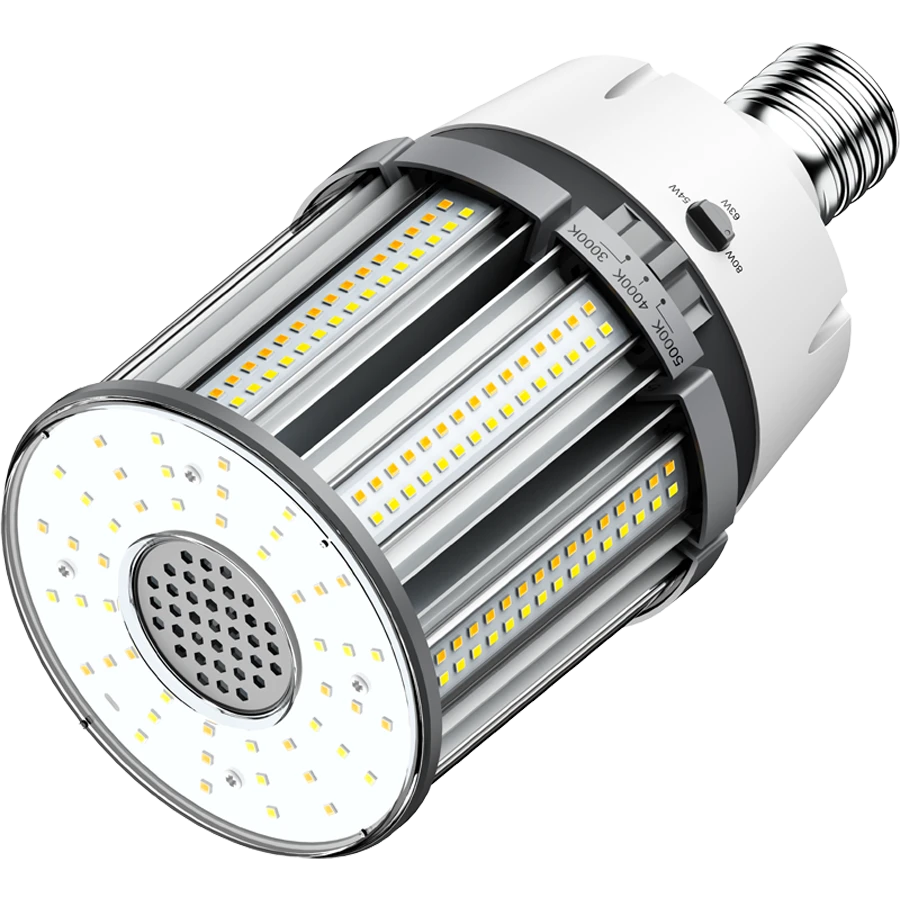

80W Selectable RAB LED Post Top Retrofit Lamp - EX39
80W Selectable RAB LED Post Top Retrofit Lamp - EX39
80W Selectable RAB LED Post Top Retrofit Lamp - EX39
80W Selectable RAB LED Post Top Retrofit Lamp - EX39
Replace traditional metal halide or high pressure sodium HID lamps with significantly less energy usage and significantly more lamp life.
- Adjustable wattage and CCT allows for in-field customization
- Rated for use in enclosed fixtures in dry or damp locations
- Universal 100-277V voltage for flexible installation
Replace traditional metal halide or high pressure sodium HID lamps with significantly less energy usage and significantly more lamp life.
- Adjustable wattage and CCT allows for in-field customization
- Rated for use in enclosed fixtures in dry or damp locations
- Universal 100-277V voltage for flexible installation
Choose options
Specs
| Wattage(s) | 54W/63W/80W |
| Replaces Wattage(s) | 200W/250W/320W Metal Halide or High Pressure Sodium |
| Light Output | 8,640/10,080/12,800 lumens |
| Luminous Efficacy (lm/W) | 160 lm/W |
| Average Lamp Life | 50,000 hours (L70) |
| Color Temperature(s) | 3000K/4000K/5000K (Field Adjustable via dip switch) |
| CRI (Color Accuracy) | 80 CRI |
| Dimming | Yes, by adjusting the wattage (light output) dipswitch located on the lamp. |
| Occupancy Sensor | Integrated AUX port for lamp-level sensor control |
| Bulb Shape | Post Top (sensor) |
| Base Type | EX39 |
| Ballast Compatibility | UL Type B, Ballast Bypass |
| Installation | Designed for vertical install only (±20°) in open or enclosed fixtures in damp or dry locations |
| Enclosure Rating | IP64 |
| Input Voltage | 100-277V |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Surge Protection | 4 kV |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Housing Material | Metal and polycarbonate |
| Housing Color | White + Gray |
| Certification | UL Listed, DLC Listed (S-NPJ7WG), CEC Approved |
| DLC ID(s) | S-NPJ7WG |
| Warranty | 5 Years |
Data SheetDetails
Replace 200W to 320W HID Lamps: Save on Energy & Maintenance
- Delivers up to 11,600 lumens of powerful output
- 5 selectable power levels allow you to fine-tune brightness and energy savings
- Selectable color temperature: 3000K, 4000K, or 5000K to fit any application
- EX39 mogul base makes retrofitting into existing HID fixtures fast and simple
- Bypass ballast design increases reliability and maximizes efficiency
- Rated for 50,000 hours, cutting down on maintenance and replacement costs
Perfect for warehouses, gymnasiums, post tops, and area lighting, this lamp delivers high-output, customizable LED performance while slashing energy use and extending fixture life.
