The most efficient vapor tight high bay at up to 166 lm/W — NSF certified and field-selectable.
- Up to 166 lm/W for maximum brightness at minimum energy — selectable wattage and CCT.
- NSF certified, fully sealed against dust, humidity, and water — cuts costs 60% vs. fluorescent.
- 5-year warranty for food processing, commercial kitchens, warehouses, and distribution centers.
The most efficient vapor tight high bay at up to 166 lm/W — NSF certified and field-selectable.
- Up to 166 lm/W for maximum brightness at minimum energy — selectable wattage and CCT.
- NSF certified, fully sealed against dust, humidity, and water — cuts costs 60% vs. fluorescent.
- 5-year warranty for food processing, commercial kitchens, warehouses, and distribution centers.
Choose options
Specs
| Wattage(s) | 105W/135W/165W |
| Replaces Wattage(s) | 250W to 500W |
| Light Output |
3500K: 15,750/20,250/24,750 lumens 4000K: 17,425/22,400/27,400 lumens 5000K: 16,200/20,800/25,350 lumens |
| Luminous Efficacy (lm/W) | Up to 166 lm/W |
| Average Lamp Life |
L90: 53,000 hours L70: 72,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | >80 |
| UGR (Unified Glare Rating) | <20 |
| Dimming | 0-10V |
| Occupancy Sensor | Call for availability. |
| Beam Angle | 110° |
| Lens Cover | Polycarbonate lens |

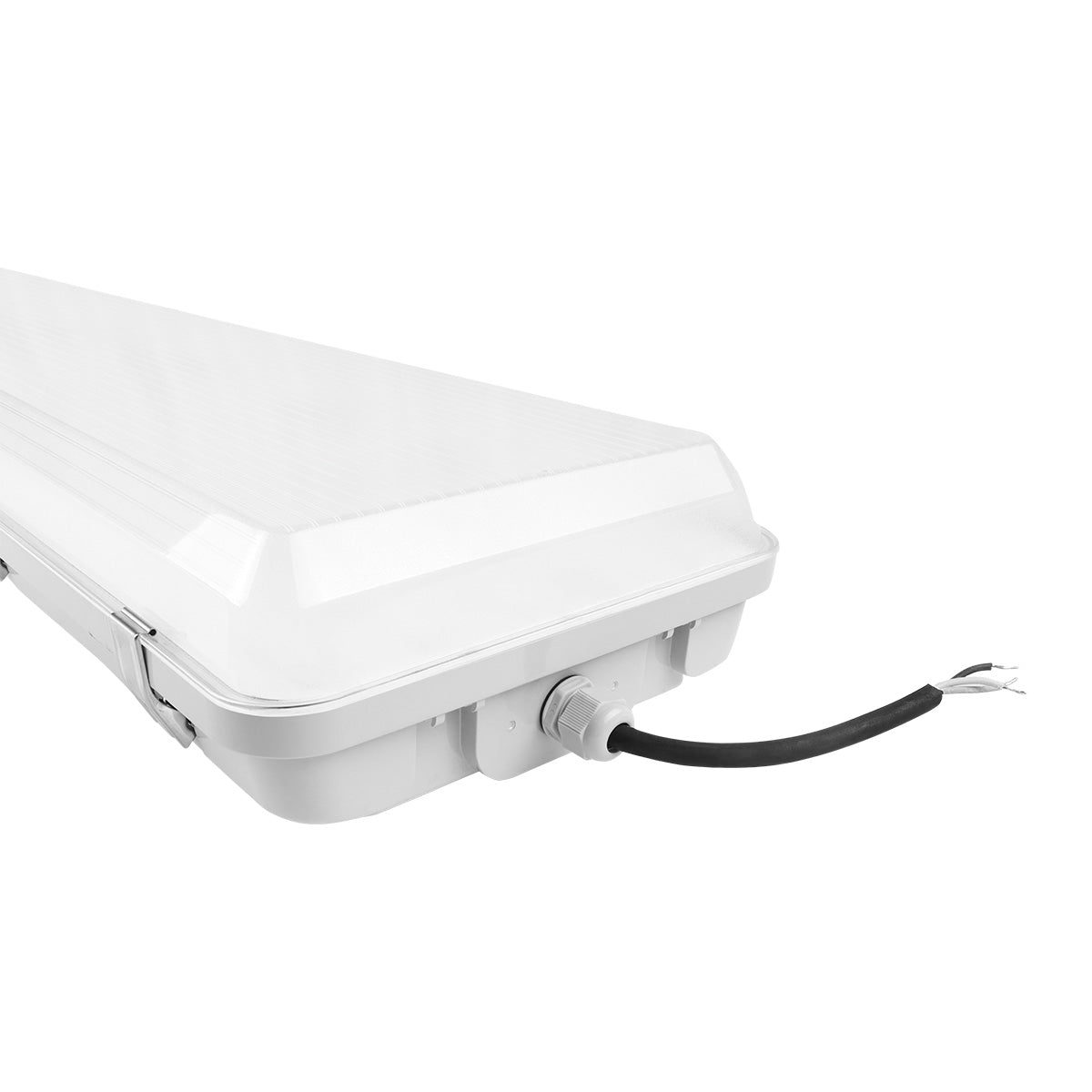

| Installation | Surface mount on ceiling or wall, or contact us for pendant mounting kit. A 3 ft (36") long power cord is provided for easier installation. The cord is stored inside the fixture for shipping. |
| Enclosure Rating | IP65 |
| LED Type | LED 2835 |
| Input Voltage | 120-277 VAC |
| Driver Type | Constant Current (CC) |
| Power Supply | SOSEN |
| Power Factor | ≥0.9 |
| Surge Protection | 6kV line-line, 6kV line-earth |
| Operating Temperature | -40°C to +45°C (-40°F to +113°F) |
| Housing Material | Polycarbonate housing with UV-stabilized, high-impact, frosted polycarbonate lens |
| Housing Color | Gray |
| Dimensions | 47.2" x 10.4" x 4.1" |
| Weight | 13.2 lbs |
| Certification | DLC Premium, UL, NSF |
| Warranty | 5 Years |
Data SheetDetails
High-Durability, Low-Energy-Cost Lighting
Reliably Long-Lasting: Average lifespan of 72,000 hours, backed by a 5-year warranty.
Goes Easy on Energy Costs: Impressively delivers up to 166 lm/W.
Meets Industrial Lighting Needs: Protected against dust and debris.
Dimmable: 0-10V dimming allows for adjusting brightness from 100% down to off.
NSF Certification: Compliant with stringent food safety standards.

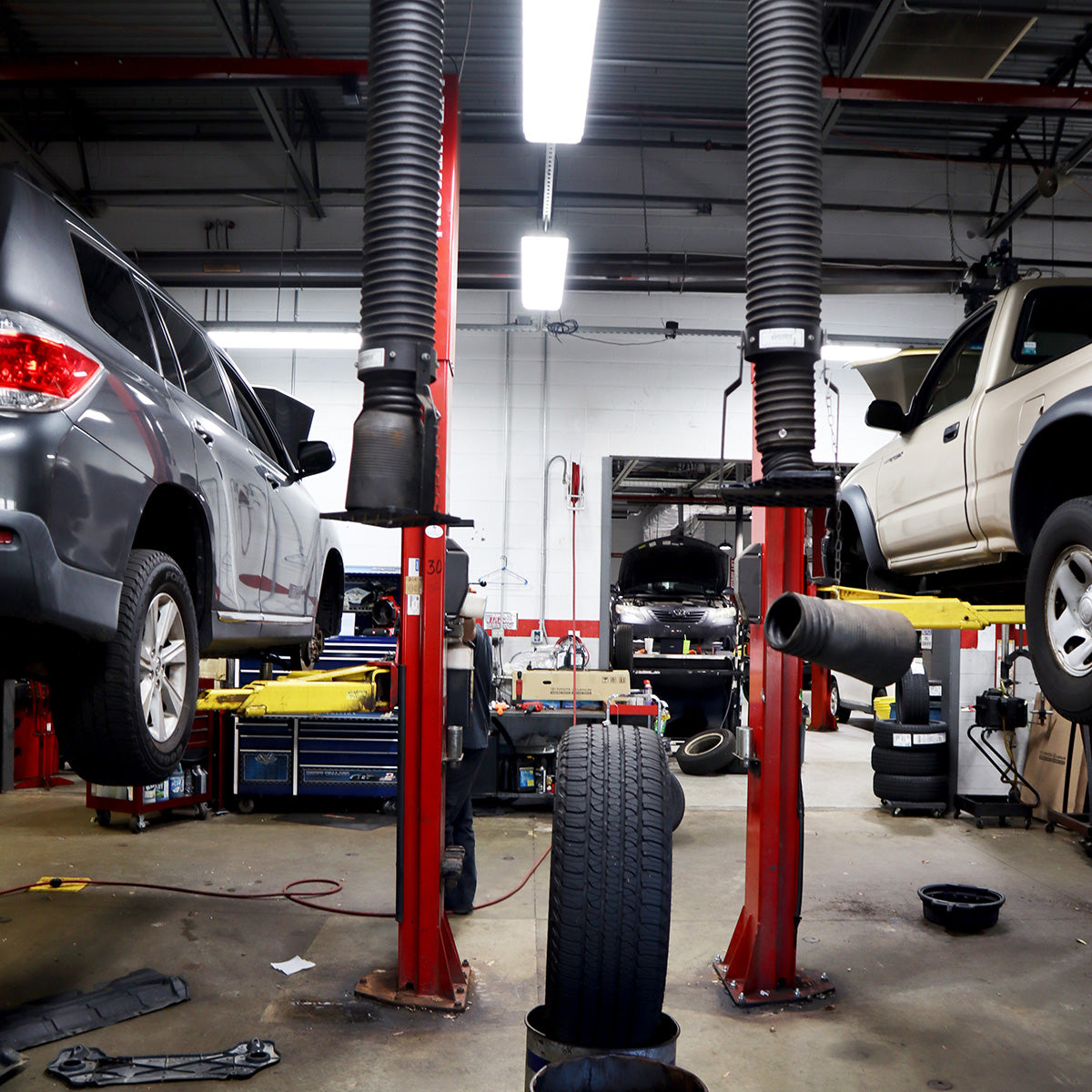

Ideal for food processing facilities, commercial kitchens, manufacturing facilities, workshops, warehouses, and distribution centers.
