4ft 200W Selectable LED Vapor Tight High Bay

Name: 4ft 200W Selectable LED Vapor Tight High Bay
Brand: ELEDLights
SKU: 4FTVTWHB200WSCS
Price: 283.95 USD
Availability: InStock

ELEDLights

0 Reviews

SKU: 4FTVTWHB200WSCS

$283.95

A high-output NSF vapor tight with stainless steel latches and IK10 impact resistance — 32,000lm.

Up to 32,000 lumens at 160 lm/W — IP66 waterproof and IK10 impact resistant, NSF Standard 2.
3 wattages (155/185/200W) and 3 CCTs — fixtures link via included water-resistant fittings.
DLC listed for rebates — 5-year warranty for food processing and cold storage facilities.

Need More? Text/call (858) 650-9400

A high-output NSF vapor tight with stainless steel latches and IK10 impact resistance — 32,000lm.

Up to 32,000 lumens at 160 lm/W — IP66 waterproof and IK10 impact resistant, NSF Standard 2.
3 wattages (155/185/200W) and 3 CCTs — fixtures link via included water-resistant fittings.
DLC listed for rebates — 5-year warranty for food processing and cold storage facilities.

Details

Customize During Install: Easy switch on the housing allows you to set the best power and color temperature for your unique application

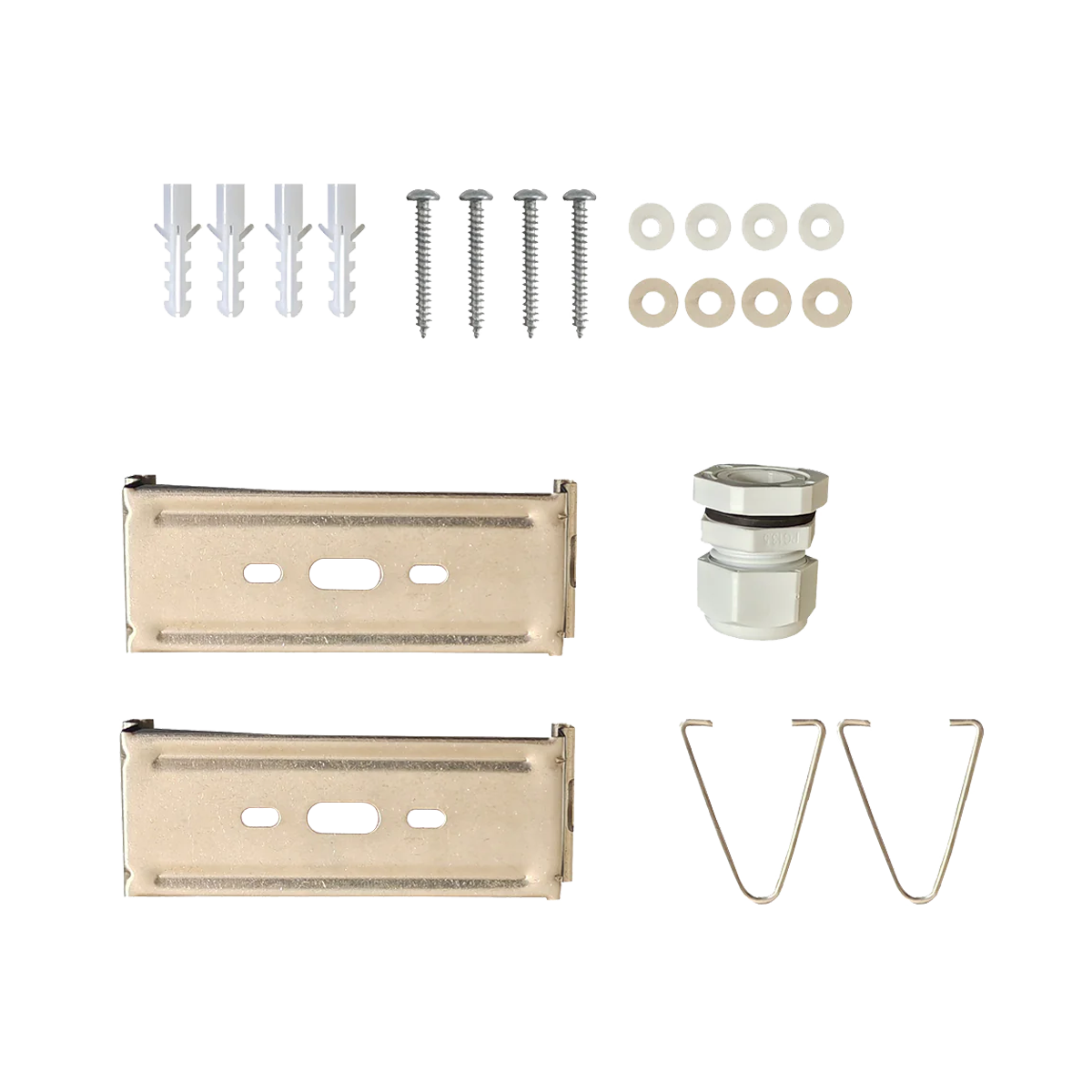

Easy Mounting: Brackets and v-hooks are included in the box, allowing you to surface or suspension mount the fixtures.
Built to Last: Durable ABS housing has a high ignition point for safety and is sealed with a gasket to keep dust and moisture out.

Great for car washes, parking structures, factories, and more.

Wattage(s)	155W/185W/200W
Replaces Wattage(s)	400W to 600W
Light Output	24,800/29,600/32,000 lumens
Luminous Efficacy (lm/W)	160 lm/W
Average Lamp Life	100,000 hours
Color Temperature(s)	3500K/4000K/5000K
CRI (Color Accuracy)	80
Dimming	0-10V
Beam Angle	115˚
Installation	Suspension mount with included v-hooks or surface mount with included stainless steel brackets
Enclosure Rating	IP66, IK10
Input Voltage	120-277VAC
Temperature Rating	-40˚F to 104˚F
Housing Material	ABS
Housing Color	Gray

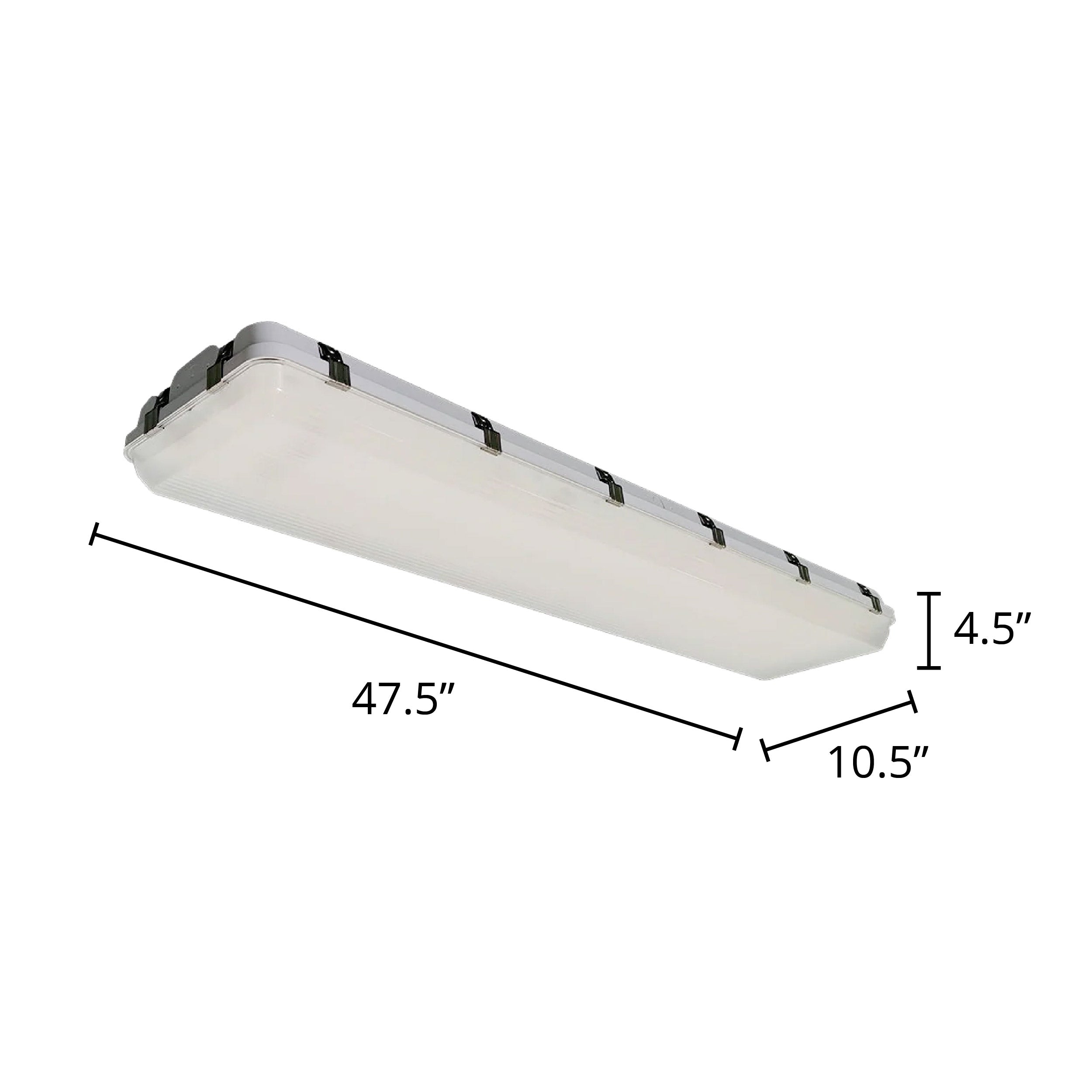

Dimensions	47.5" x 10.5" x 4.5"
Weight	16.5 lbs
Certification	UL, DLC
Warranty	5 Years

Data Sheet

	4ft 200W Selectable LED Vapor Tight High Bay	4ft 245W Selectable High Bay LED Vapor Tight - NSF	4ft 265W Selectable RAB High Bay LED Vapor Tight
Light Output	24,800/29,600/32,000 lumens	32,600/35,860/40,000 lumens	21,860/33,135/36,983 lumens @ 4000K
Replaces Wattage(s)	400W to 600W	600W to 750W	400W to 750W
Color Temperature (CCT)	3500K/4000K/5000K	3500K/4000K/5000K	3500K/4000K/5000K
Enclosure Rating	IP66, IK10	IP67, IK10	IP67, IK09
Temperature Rating	-40˚F to 104˚F	-40°F to 104°F	-40°F to 140°F
Warranty	5 Years	5 Years	5 Years
	$283.95	$269.70 View Details	$464.95 View Details
