4ft 14W Emergency LED Tube - Type B
4ft 14W Emergency LED Tube - Type B
4ft 14W Emergency LED Tube - Type B
4ft 14W Emergency LED Tube - Type B
Turn your existing 4ft fluorescent fixtures into code-compliant emergency lighting — easily.
- Bypass the ballast and drop in these 14W LED tubes — they switch to 90-min emergency backup.
- Replace 32W fluorescents and cut energy use by 56%+ — saving roughly $11 per tube annually.
- ETL-listed with push-button test function and storage switch — backed by a 5-year warranty.
Turn your existing 4ft fluorescent fixtures into code-compliant emergency lighting — easily.
- Bypass the ballast and drop in these 14W LED tubes — they switch to 90-min emergency backup.
- Replace 32W fluorescents and cut energy use by 56%+ — saving roughly $11 per tube annually.
- ETL-listed with push-button test function and storage switch — backed by a 5-year warranty.
Choose options
Specs
| Wattage(s) | 14W |
| Replaces Wattage(s) | 32W |
| Light Output | 1,800 lumens regular, 1,050/500 lumens emergency |
| Luminous Efficacy (lm/W) | 129 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 83 |
| Bulb Shape | T8 |
| Base Type | G13 (Medium Bi-Pin) |
| Lens Cover | Frosted |

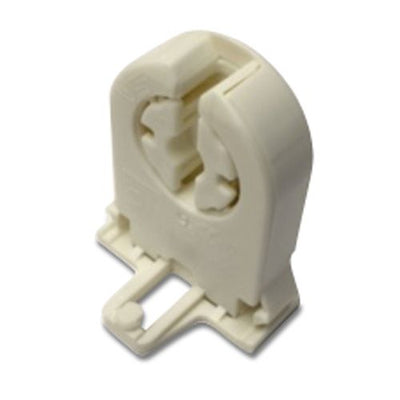

| Installation | Ballast bypass requiring non-shunted tombstones on both sides. Wall switch side is Type B single- end power while the emergency end of the tube requires constant power. |
| Working Environment | Indoor |
| Input Voltage | 120~277VAC |
| Temperature Rating | 68°F - 103°F |
| Housing Material | Aluminum with polycarbonate lens |
| Certification | ETL |
| Warranty | 5 Years |
| Additional Specifications | Emergency battery - 24 hour charge time, 90 minute operating time |
Data SheetDetails
Regular & Emergency Lighting All-in-One
Add backup lighting without adding new fixtures: Simply replace old tube lights in your existing fluorescent fixtures with these 4ft LED tubes that have emergency backup operation.
- Have ordinary lighting until a power outage occurs.
- Emergency mode provides 90 minutes of illumination.
- The battery backup charges while in ordinary operation.
Pay Lower Energy Costs, Enjoy Long Lamp-Life, and Stay Safe
- Get 56%+ in Savings: Replace 32W fluorescent tubes with this 14W alternative.
- Experience fewer lamp replacements: 50,000-hour average lifespan.
- Use in open or closed fixtures: Bypass the ballast in your fixture to install.
- Light when it is needed most: Ensure employees and customers can navigate to exits.

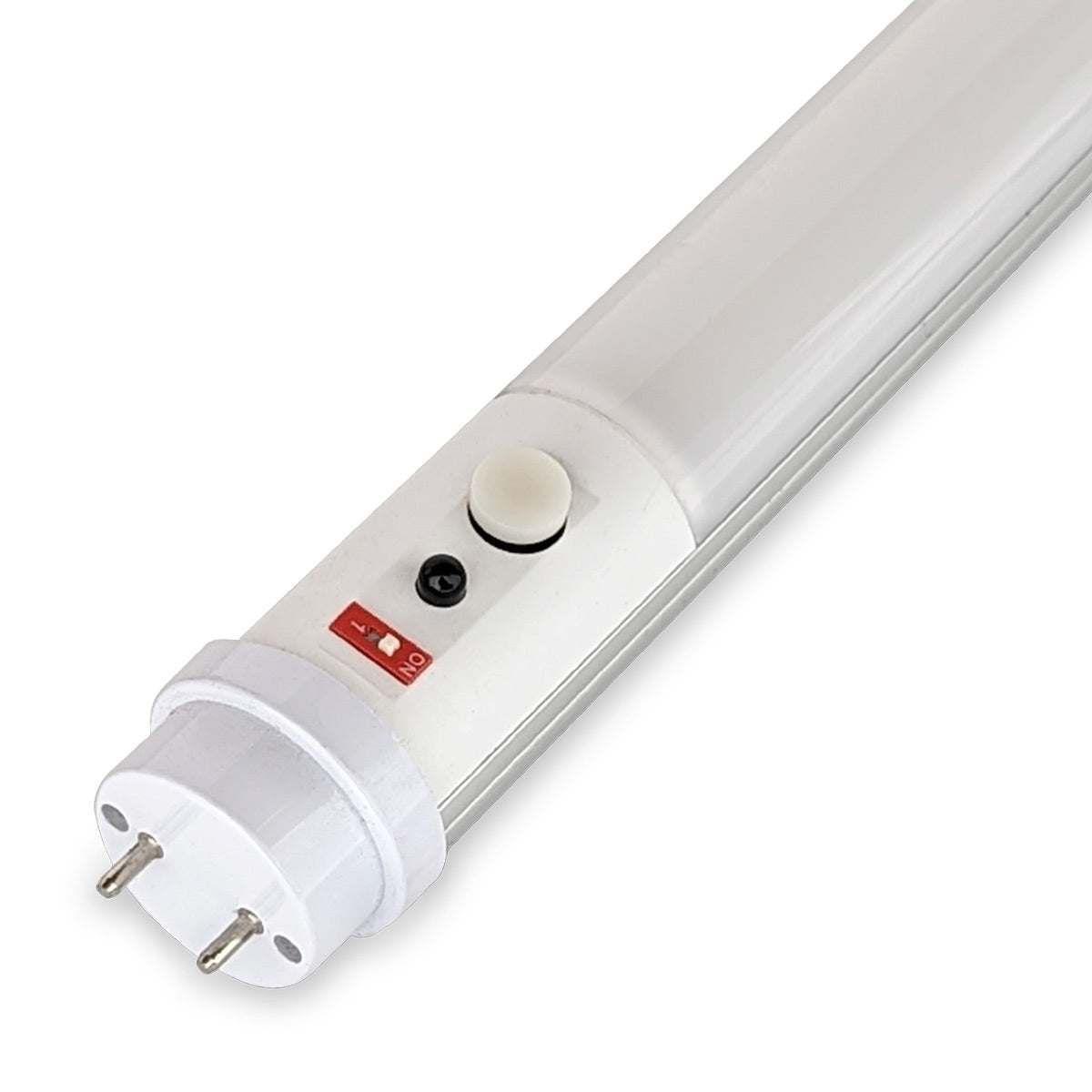

For periodic testing, there is a push-button. A switch allows the emergency function to be turned off, such as when the lamp is in transit or storage, to preserve battery life.
