410W Selectable UFO LED High Bay - High Power (480V)
Regular price
Ultra-bright high bay for the highest ceilings in the harshest environments — up to 72,000+ lumens.
- Up to 190 lm/W with 4 selectable wattages (164W/246W/328W/410W) for ceilings over 30ft.
- Hook and pendant (3/4" conduit) mounting included — reliable in wet, sub-freezing, extreme heat.
- 100,000-hour lifespan — 11+ years 24/7 — for aircraft hangars and cold-storage warehouses.
Need More? Text/call (858) 650-9400
Ultra-bright high bay for the highest ceilings in the harshest environments — up to 72,000+ lumens.
- Up to 190 lm/W with 4 selectable wattages (164W/246W/328W/410W) for ceilings over 30ft.
- Hook and pendant (3/4" conduit) mounting included — reliable in wet, sub-freezing, extreme heat.
- 100,000-hour lifespan — 11+ years 24/7 — for aircraft hangars and cold-storage warehouses.
Choose options
Details
High Power, High Voltage, Low Energy Cost High Bay Light
- Lots of Light without Lots of Overhead: Exceptional luminous efficacy (up to 190 lm/W).
- Reduce Electric Costs by 60% when replacing 100W metal halide lamps.
- No Sacrifice in Brightness with up to 72,000 lumens for the highest of clear heights
Easy-to-Install, Reliable, Dimmable High Bay Lighting
- Simple installation with both hook and pendant (3/4" conduit) mounting included.
- Reliable performance even in wet, sub-freezing, and hot environments.
- Fine-tunable lighting levels with 100% to 10% dimming capability.
- Compatible with 347-480V Power Need standard voltage (120-277V)? Purchase this model.
This light is ideal for properties with ceilings from 30 to 60 feet, especially properties with a mix of high and very high ceilings.
Specs
| Wattage(s) | 164W/246W/328W/410W |
| Replaces Wattage(s) | Up to 1000W |
| Light Output | 31,000 to 72,000 lumens |
| Luminous Efficacy (lm/W) | Up to 190 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 0-10V |
| Dimming Range | 100% to 10% |
| Occupancy Sensor | Plug-in sensor available as accessory |
| Beam Angle | 120° |
| Installation | Hook mount with included hook or pendant mount on 3/4" conduit |
| Working Environment | Indoor |
| Enclosure Rating | UL cUL Wet Location |
| Input Voltage | 120-277 VAC or 347-480 VAC |
| Temperature Rating |
-40°F to 131°F (at 328W and 410W setting) -40°F to 149°F (all other wattage settings) |
| Housing Material | Die-cast aluminum alloy |
| Housing Color | Bronze |

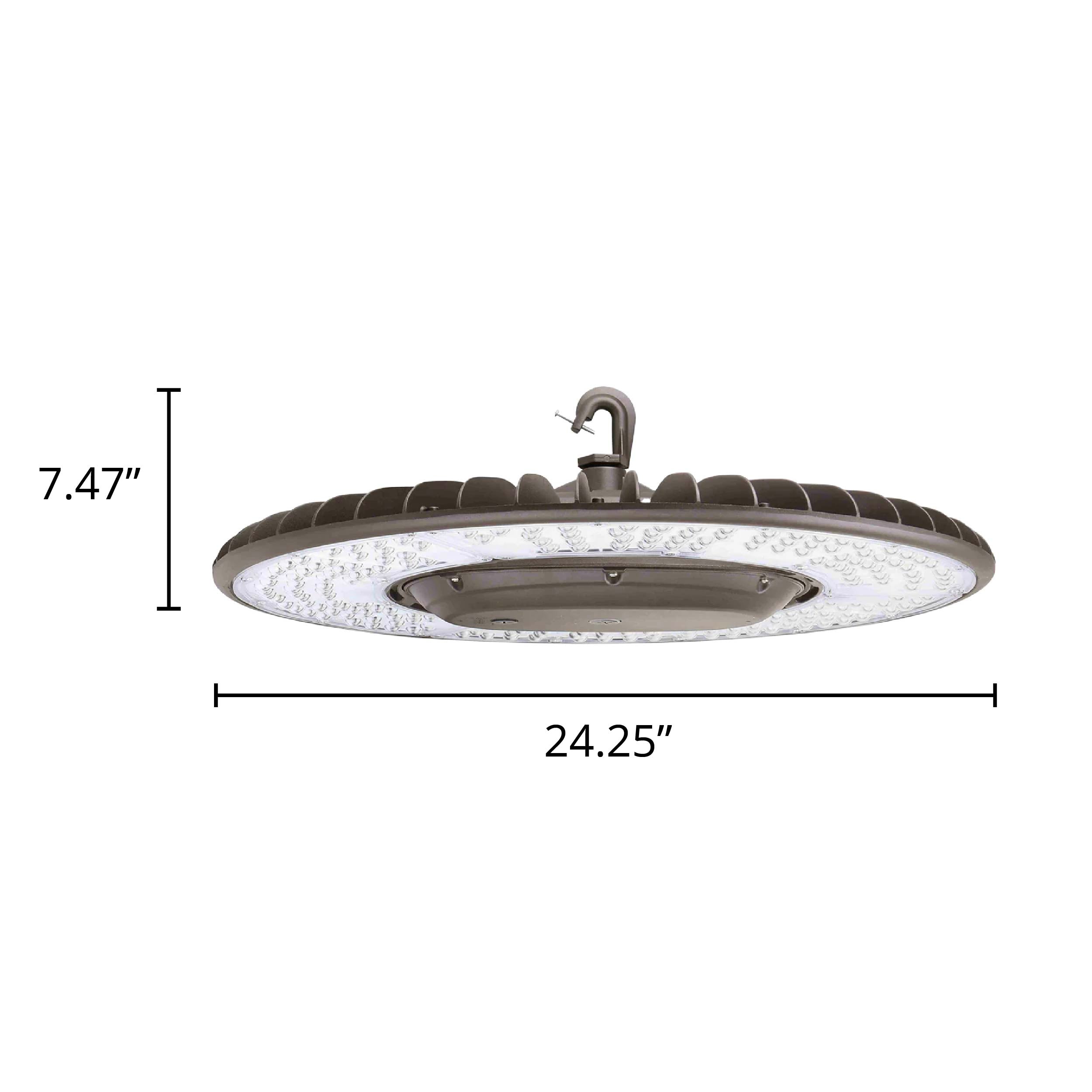

| Dimensions | φ24.25" x 7.47” high |
| Weight | 19.47 lbs |
| Certification | DLC 5.1, UL cUL Wet Location |
| Warranty | 5 Years |
