2x2 35W Selectable RAB SWISH AIR Air-Return Troffer
2x2 35W Selectable RAB SWISH AIR Air-Return Troffer
2x2 35W Selectable RAB SWISH AIR Air-Return Troffer
2x2 35W Selectable RAB SWISH AIR Air-Return Troffer
One troffer, two jobs: this troffer combines lighting and HVAC return air in one fixture, reducing the number of ceiling penetrations while keeping the same sensor-ready controls and No Compromise Warranty as RAB SWISH.
- Up to 146 lm/W for lower energy bills
- Rated for 100,000 hours (L70)
- Mixes seamlessly with standard SWISH troffers
One troffer, two jobs: this troffer combines lighting and HVAC return air in one fixture, reducing the number of ceiling penetrations while keeping the same sensor-ready controls and No Compromise Warranty as RAB SWISH.
- Up to 146 lm/W for lower energy bills
- Rated for 100,000 hours (L70)
- Mixes seamlessly with standard SWISH troffers
Choose options
Specs
| Wattage(s) | 18W/26W/35W (35W default) |
| Light Output |
At 3500K: 2,386 lm / 3,425 lm / 4,424 lm At 4000K: 2,476 lm / 3,620 lm / 4,703 lm At 5000K: 2,483 lm / 3,538 lm / 4,604 lm (Values in ascending wattage order: 18W/26W/35W) |
| Luminous Efficacy (lm/W) |
At 3500K: 138.9 lm/W / 135.3 lm/W / 128.5 lm/W At 4000K: 146.4 lm/W / 145.9 lm/W / 139.9 lm/W At 5000K: 144.0 lm/W / 138.9 lm/W / 132.8 lm/W (Values in ascending wattage order: 18W/26W/35W) |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K (4000K default) |
| CRI (Color Accuracy) | 82-84 |
| Dimming | Yes |
| Dimming Range | 10–100% (0-10V) |
| Lens Cover | Diffused Polystyrene lens |
| Installation | Recessed into T-grid ceiling |
| Light Type | LED |
| Input Voltage | 120–277V, 50/60 Hz |
| Driver Type | Class 2, Constant Current, 0-10V dimming |
| Power Factor | 99.6% @ 120V / 95.0% @ 277V |
| THD (Total Harmonic Distortion) | 7.03% @ 120V / 12.7% @ 277V |
| Surge Protection | 2kV L-L; 2kV L/N-G |
| Temperature Rating | -20°C to 40°C (-4°F to 104°F) |
| Housing Material | Cold Rolled Carbon Steel Sheets and Strip (SPCC) |
| Housing Color | White |

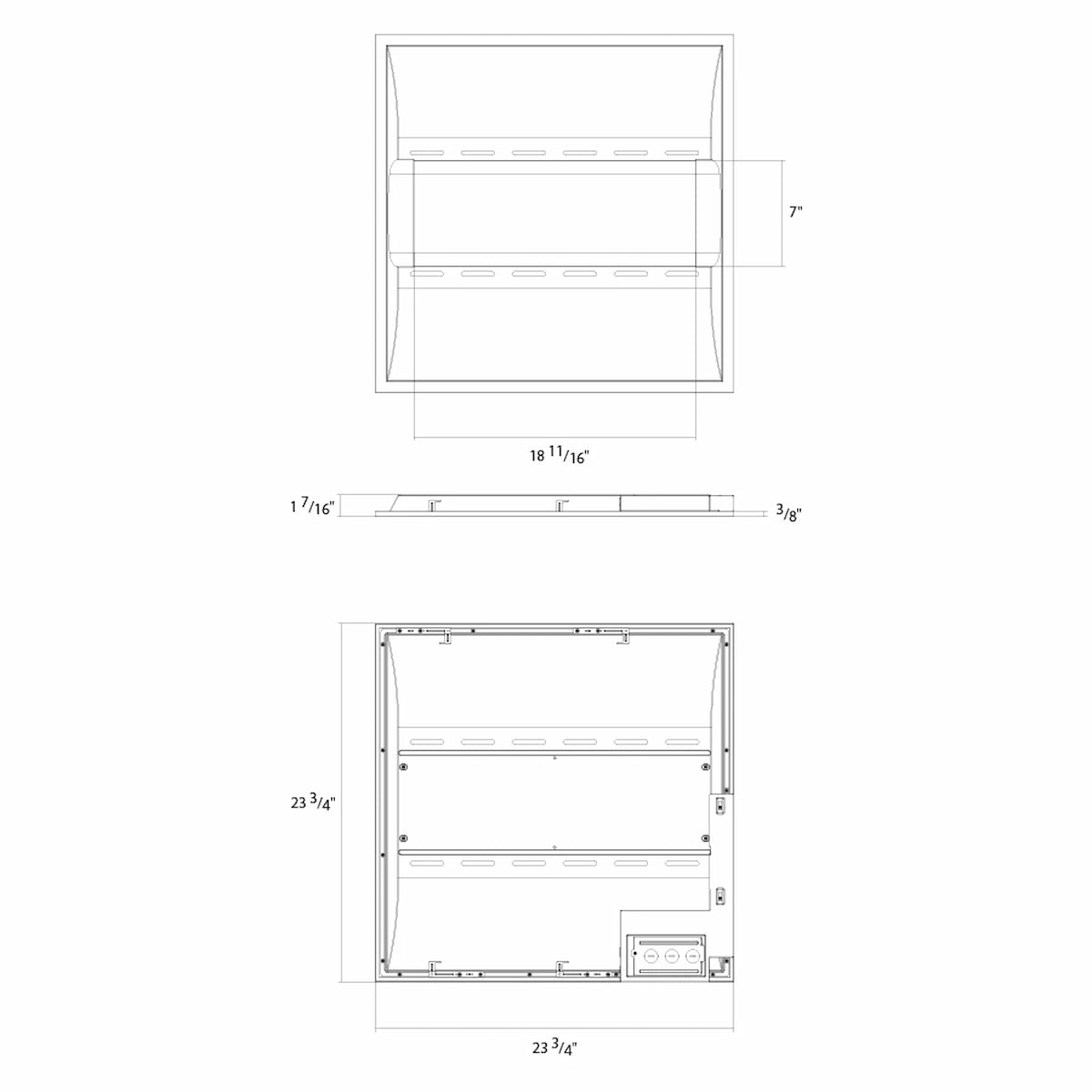

| Dimensions | 23 3/4" L × 23 3/4" W × 7" D |
| Weight | 4.8 lbs |
| Shipping Weight | 11.0 lbs |
| Certification | DLC Premium, UL Listed |
| DLC ID(s) | S-M443P3 |
| Warranty | 5-year limited (covers light output, color stability, driver performance, and fixture finish) |
Data Sheet
IES FileDetails
One Fixture, Two Jobs — Lighting and HVAC Return Air
Built-In Air Return — eliminates the need for a separate HVAC return grille.
No Compromise Warranty — 5 years of coverage on the product, plus lift and labor if a fixture needs service.
Two Jobs, One Fixture
- Built-In HVAC Return: Routes return air through the fixture body, eliminating a separate ceiling grille.
- Fewer Ceiling Penetrations: Simplifies coordination between electrical and mechanical trades.
- Matches Standard SWISH Troffers: Mix SWISH AIR where air return is needed with standard SWISH elsewhere for a uniform ceiling.
- Sensor-Ready: Compatible with optional RAB occupancy, daylight, or Bluetooth mesh controls.
The No Compromise Warranty
RAB's 5-year warranty on this fixture doesn't stop at the product. It also covers lift and labor costs if a covered fixture needs to come down for service — not just a replacement part shipped to your door.

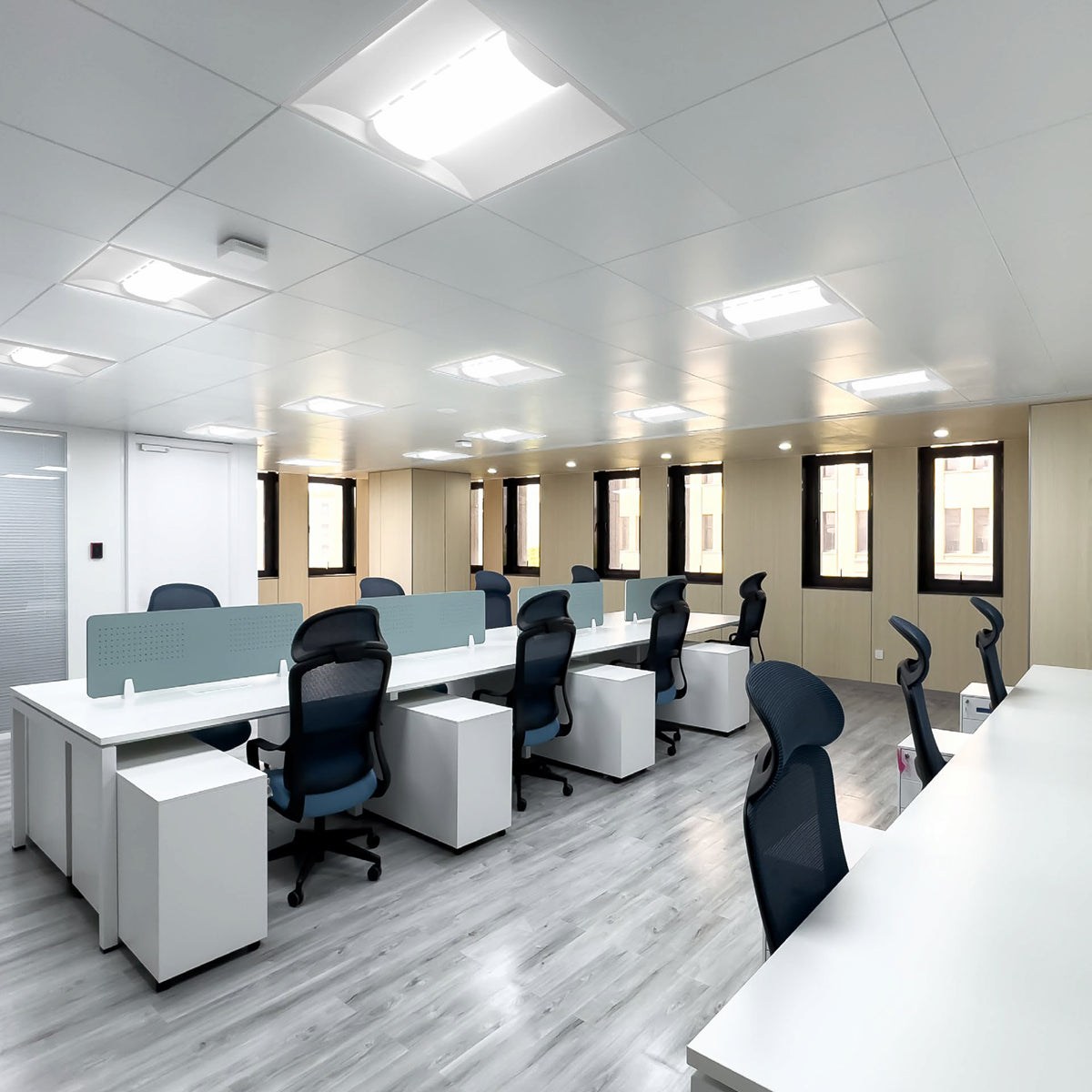

Ideal for open offices, classrooms, healthcare facilities, retail spaces, and any renovation or new-construction project needing both lighting and HVAC return air in one ceiling opening.
