One fixture does two jobs — the RAB SWISH AIR is a field-selectable drop-ceiling troffer for offices, healthcare facilities, schools, retail spaces, and anywhere a T-bar ceiling needs both light and HVAC return air without a separate grille.
- One fixture replaces two — reduce ceiling clutter, installers, & overall project cost
- Selectable wattage (18/26/35W) and color temp (3500/4000/5000K) to match any room
- Mixes seamlessly with standard RAB SWISH troffers for a uniform ceiling appearance
Need More? Text/call (858) 650-9400
One fixture does two jobs — the RAB SWISH AIR is a field-selectable drop-ceiling troffer for offices, healthcare facilities, schools, retail spaces, and anywhere a T-bar ceiling needs both light and HVAC return air without a separate grille.
- One fixture replaces two — reduce ceiling clutter, installers, & overall project cost
- Selectable wattage (18/26/35W) and color temp (3500/4000/5000K) to match any room
- Mixes seamlessly with standard RAB SWISH troffers for a uniform ceiling appearance
Choose options
Details

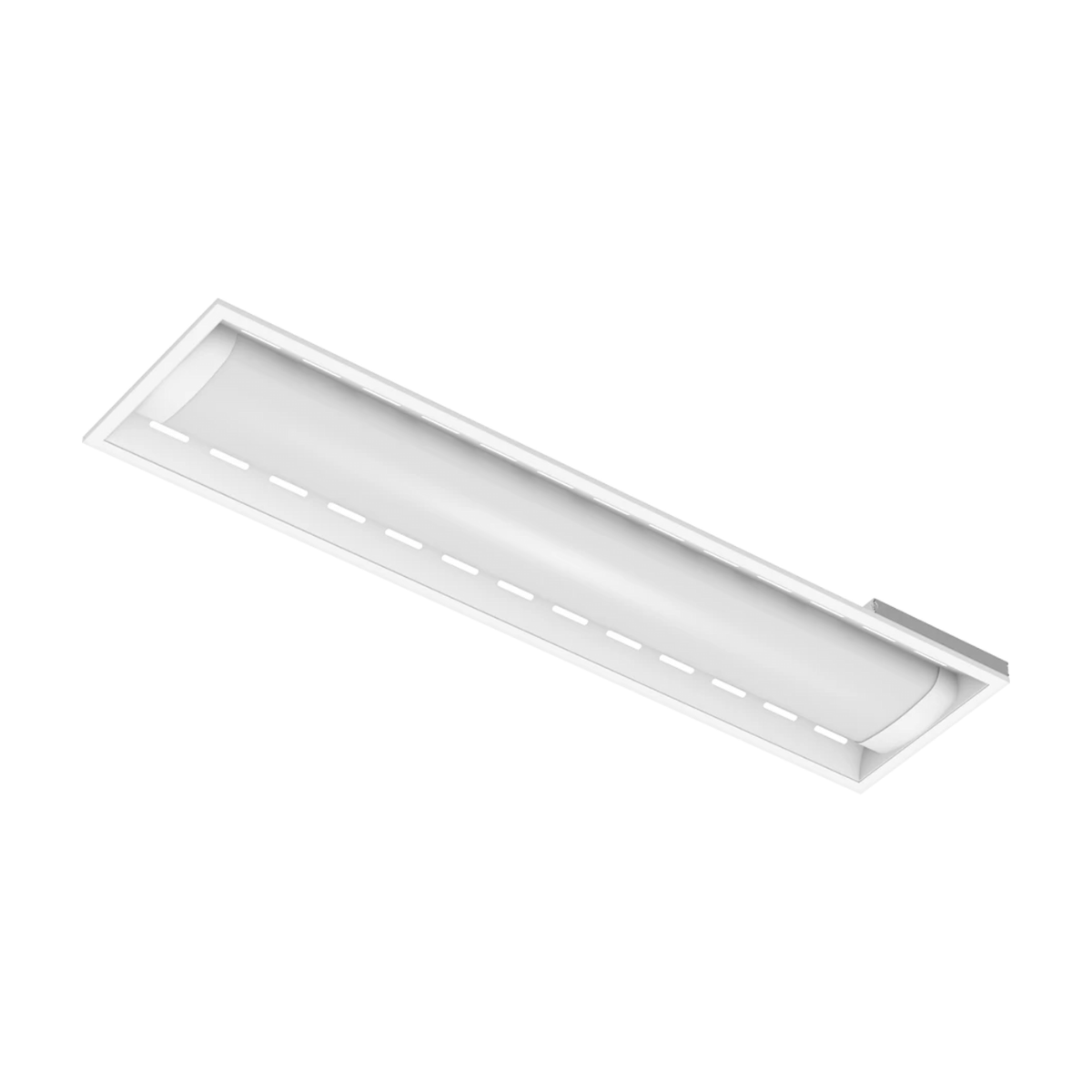

The RAB SWISH AIR 1×4 replaces both the standard LED troffer and the separate HVAC return air grille in drop-ceiling T-bar grids — cutting ceiling clutter, reducing installation coordination, and delivering a cleaner, more professional look in offices, healthcare facilities, schools, retail spaces, and anywhere ceiling appearance matters.
- One Fixture, Two Jobs: Built-in vents route HVAC return air directly through the fixture body, integrating with the ceiling plenum to eliminate the need for separate return air grilles in the ceiling grid.
- One SKU, Three Power Levels: Field-select 18W, 26W, or 35W on-site to match the room's requirements without ordering multiple SKUs.
- Three Selectable Color Temperatures: Dial in 3500K, 4000K, or 5000K before installation to suit office, healthcare, or retail environments.
- Uniform Ceiling with the SWISH Family: Shares the same center basket design as the RAB SWISH troffer line — mix SWISH AIR where air return is needed and standard SWISH troffers elsewhere, with no visible difference from below.
- 0-10V Dimmable: Dims smoothly from 100% down to 10% for energy savings and flexible light level control.
- DLC Premium Listed: Qualifies for the highest tier of utility rebates — use the rebate finder at eledlights.com to check your local incentives.
- 5-Year Warranty: RAB's coverage includes light output, color stability, driver performance, and fixture finish — purchased through ELEDLights as an authorized RAB dealer.
Specs
| Wattage(s) | 18W/26W/35W (35W default) |
| Light Output |
At 3500K: 2,455 lm / 3,589 lm / 4,715 lm At 4000K: 2,559 lm / 3,716 lm / 4,923 lm At 5000K: 2,584 lm / 3,719 lm / 4,887 lm (Values in ascending wattage order: 18W / 26W / 35W) |
| Luminous Efficacy (lm/W) |
At 3500K: 145.0 lm/W / 142.5 lm/W / 137.3 lm/W At 4000K: 153.0 lm/W / 150.7 lm/W / 146.9 lm/W At 5000K: 151.1 lm/W / 147.0 lm/W / 141.6 lm/W (Values in ascending wattage order: 18W / 26W / 35W) |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K (4000K default) |
| CRI (Color Accuracy) | 82-84 |
| Dimming | Yes |
| Dimming Range | 10–100% (0-10V) |
| Lens Cover | Diffused Polystyrene lens |
| Installation | Recessed into T-grid ceiling |
| Light Type | LED |
| Input Voltage | 120–277V, 50/60 Hz |
| Driver Type | Class 2, Constant Current, 0-10V dimming |
| Power Factor | 99.6% @ 120V / 95.1% @ 277V |
| THD (Total Harmonic Distortion) | 6.6% @ 120V / 12.5% @ 277V |
| Surge Protection | 2kV L-L; 2kV L/N-G |
| Temperature Rating | -20°C to 40°C (-4°F to 104°F) |
| Housing Material | Cold Rolled Carbon Steel Sheets and Strip (SPCC) |
| Housing Color | White |

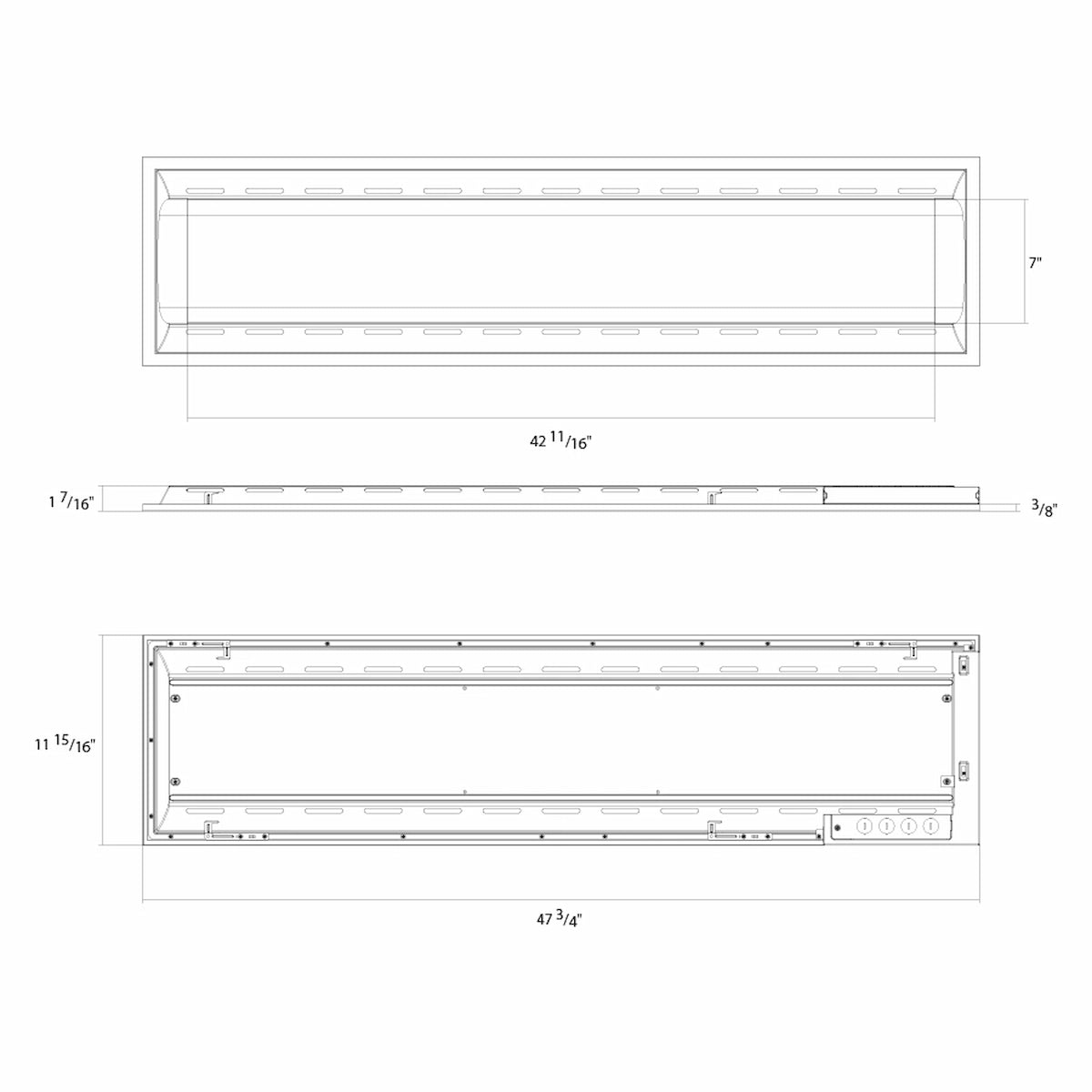

| Dimensions | 47 3/4" L × 11 15/16" W × 7" D |
| Weight | 4.8 lbs |
| Shipping Weight | 11.0 lbs |
| Certification | DLC Premium, UL Listed |
| DLC ID(s) | S-RV80FX |
| Warranty | 5 years |
