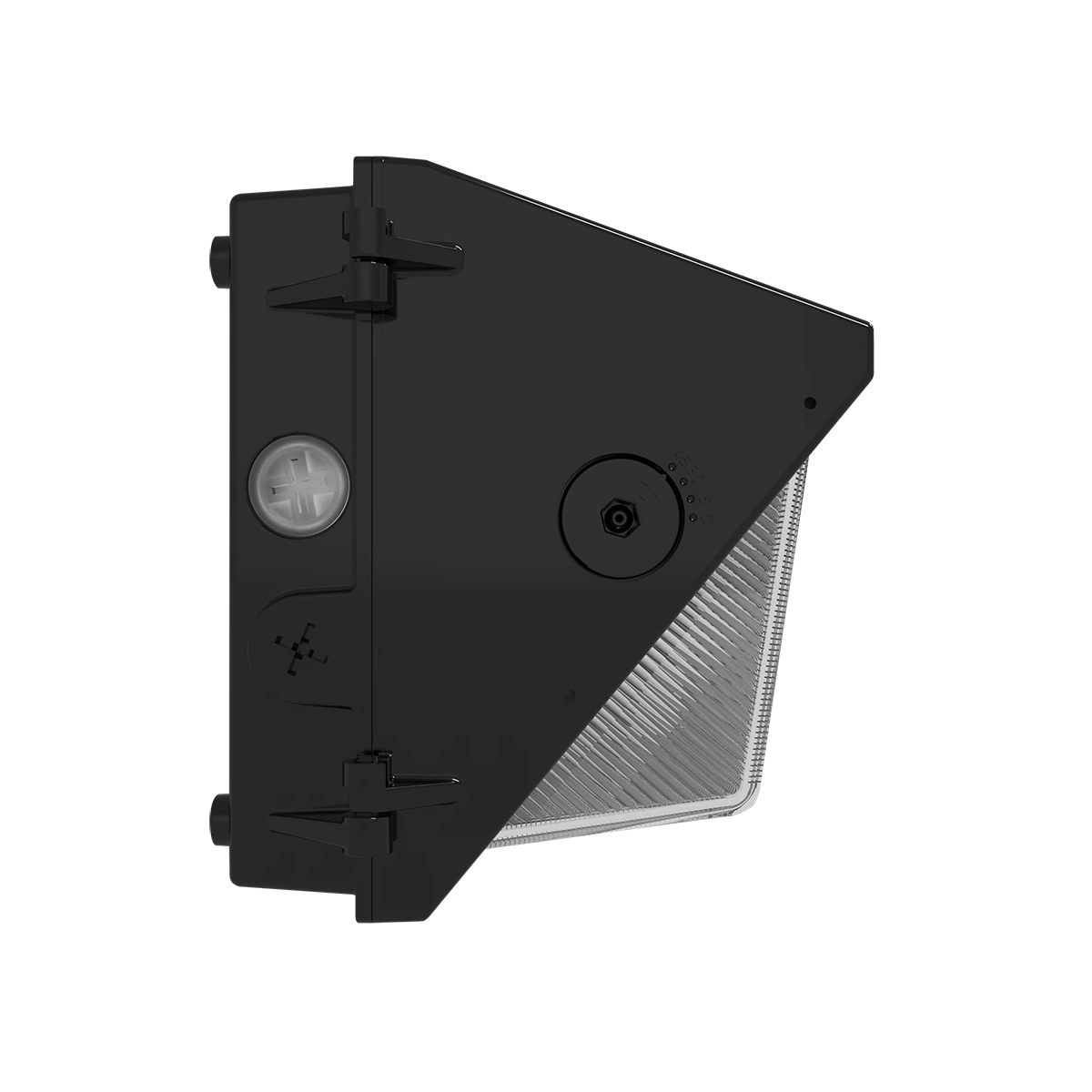

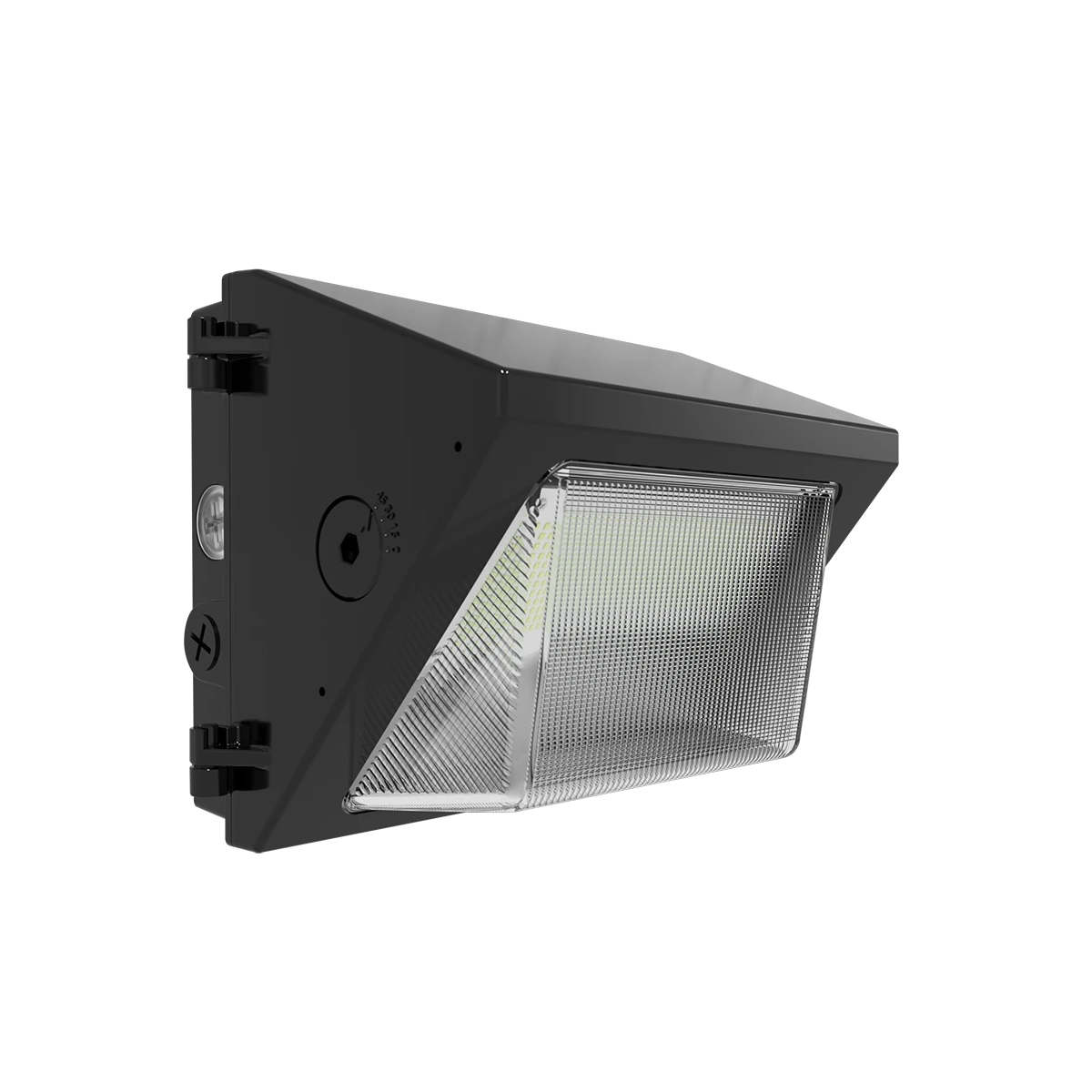

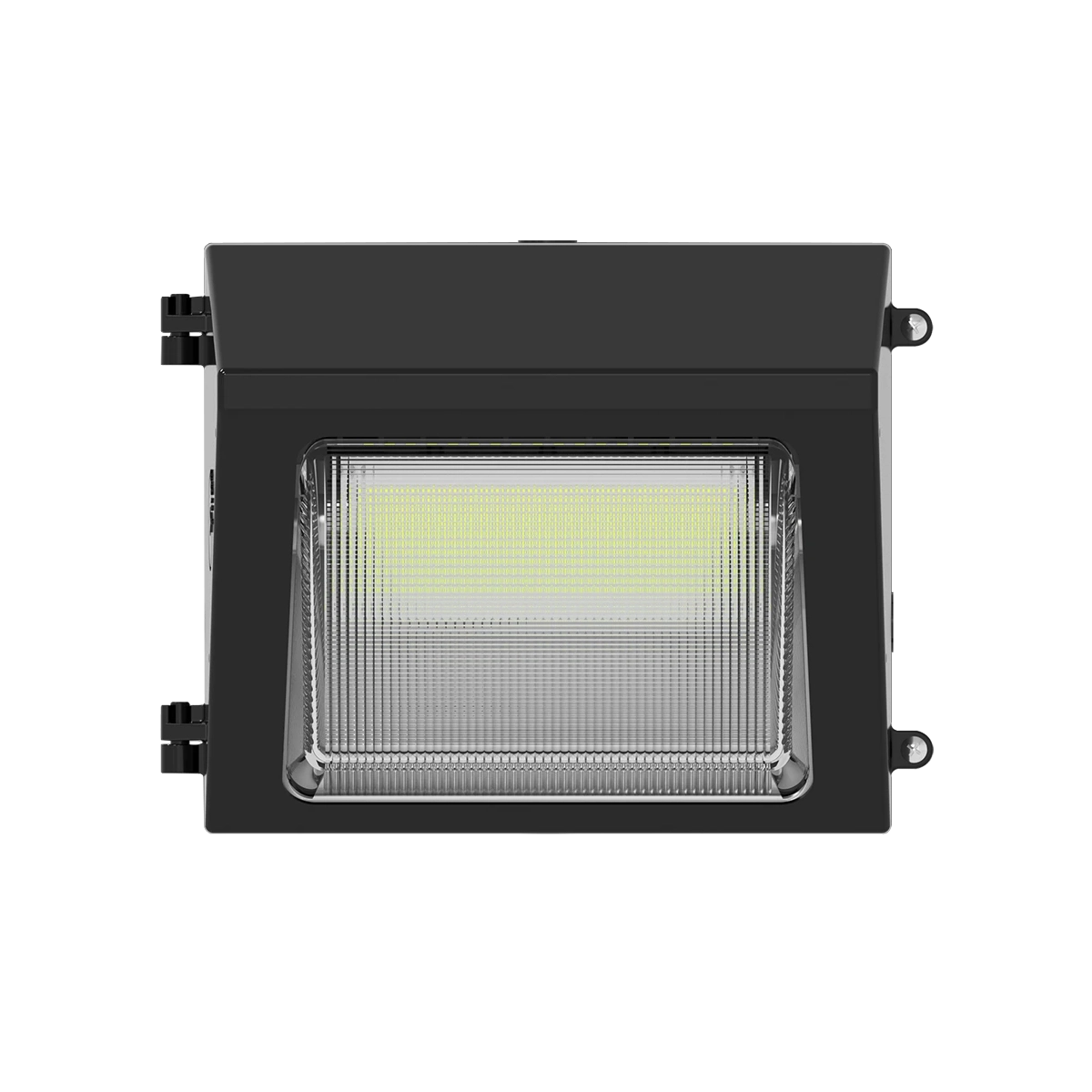

30W Selectable RAB W22 Semi Cutoff Adjustable Forward Throw LED Wall Pack
30W Selectable RAB W22 Semi Cutoff Adjustable Forward Throw LED Wall Pack
30W Selectable RAB W22 Semi Cutoff Adjustable Forward Throw LED Wall Pack
30W Selectable RAB W22 Semi Cutoff Adjustable Forward Throw LED Wall Pack
RAB's W22 wall packs give you unprecedented control over where your light lands and how it looks. The distinctive adjustable forward throw can be set to maximum projection (45°) for entryways or small storefronts, a tight 0° for full cutoff, or somewhere in between, ensuring you get the right light for your site without spilling light onto neighboring properties.
- Adjustable wattage, CCT, & throw allow you to keep a consistent look across your building while each wall gets exactly the light it needs
- Delivers up to 4,508 lumens and mounts anywhere from 10 to 20 ft high, a strong choice for entryways, small storefronts, and light commercial properties
- A built-in photocell enables automatic dusk-to-dawn operation, and a -40°F cold-start rating keeps it running through harsh winters
RAB's W22 wall packs give you unprecedented control over where your light lands and how it looks. The distinctive adjustable forward throw can be set to maximum projection (45°) for entryways or small storefronts, a tight 0° for full cutoff, or somewhere in between, ensuring you get the right light for your site without spilling light onto neighboring properties.
- Adjustable wattage, CCT, & throw allow you to keep a consistent look across your building while each wall gets exactly the light it needs
- Delivers up to 4,508 lumens and mounts anywhere from 10 to 20 ft high, a strong choice for entryways, small storefronts, and light commercial properties
- A built-in photocell enables automatic dusk-to-dawn operation, and a -40°F cold-start rating keeps it running through harsh winters
Choose options
Specs
| Wattage(s) | 15W/20W/25W/30W |
| Replaces Wattage(s) | 70W-125W |
| Light Output |
@3000K, default 45° cutoff angle: 2,235/3,064/3,756/4,354 lumens @4000K, default 45° cutoff angle: 2,299/3,152/3,864/4,479 lumens @5000K, default 45° cutoff angle: 2,314/3,172/3,889/4,508 lumens |
| Luminous Efficacy (lm/W) | Up to 151.5 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 83-85 |
| Dimming | 0-10V (10%-100%) |
| Lens Cover | Glass |
| Installation | Surface mount for recessed junction box; 3 conduit entry points |
| Recommended Installation Height | 10 to 20 ft |
| Enclosure Rating | IP65 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Driver Type | Constant Current, Class 1 |
| Surge Protection | DM 2 kV+ CM 4 kV |
| Operating Temperature | -40°C to +40°C (-40°F to +104°F) |
| Housing Material | Die-cast aluminum housing |
| Housing Color | Bronze (Call for white) |

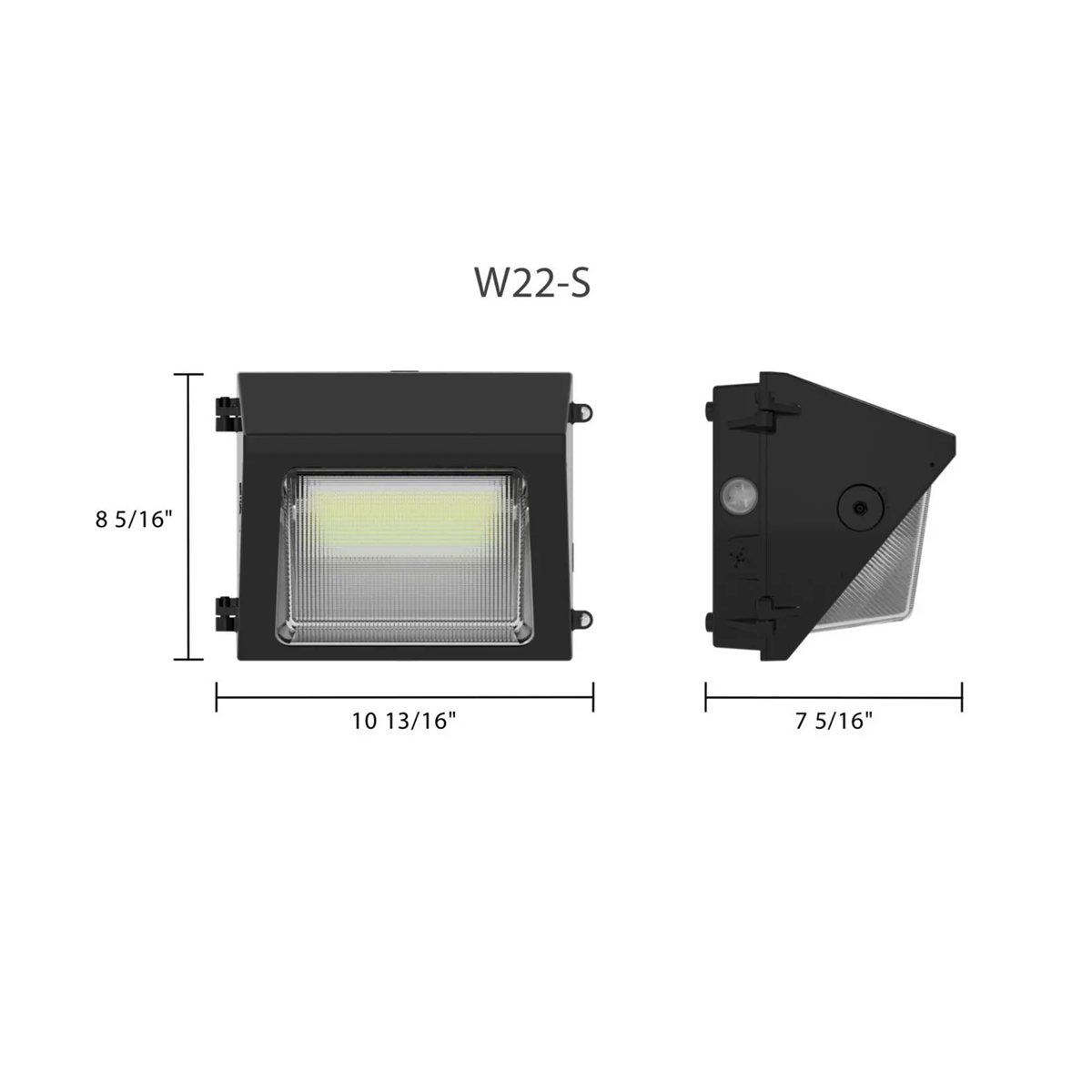

| Dimensions | 10.81” x 8.31” x 7.31” |
| Weight | 5.5 lbs |
| Certification | DLC Premium, UL Wet Location |
| DLC ID(s) | S-VZD6TF |
| Warranty | 5 years |
| Additional Specifications |
BUG Rating: 30W: B1 U3 G3 25W: B1 U3 G3 20W: B1 U3 G3 15W: B1 U3 G2 |
Data Sheet
IES FileDetails
A Wall Pack Built for Precision
The RAB W22 wall pack is an industry-leader in field-adjustability, sporting a distinctive 0°-45° adjustable forward throw that lets you put light exactly where you need it. From tight facade and sidewalk lighting to a larger forward throw on an entryway or small storefront, this wall pack does it all — and adjusts again later if the site's needs change.
- Order With Confidence, Dial In on Site: Adjustable wattage, CCT, and forward throw mean one SKU fits nearly any application, so you're not guessing at the right spec before the site is fully scoped, or stocking a different wall pack for every wall of a building.
- Strong Output, Flexible Mounting: Delivers up to 4,508 lumens at 148.3 lm/W to provide energy-efficient illumination from mounting heights of 10 to 20 ft. Cut energy bills without sacrificing performance.
- Photocell Built In: An integrated photocell can be switched on for automatic dusk-to-dawn operation, no separate accessory needed.
- Dimmable With a Separate Control Circuit: The driver includes 0-10V dimming control wiring with dimming down to 10% so you can dial in exactly the right output without wasting any electricity.
- Built Rugged for Extreme Conditions: A die-cast aluminum housing, glass lens, and aluminum reflector hold up outdoors year-round, with a -40°F cold-start rating to handle even the coldest winter nights.
- 5-Year Warranty: Full manufacturer coverage when purchased through ELEDLights as an authorized RAB dealer.
Forward Throw Adjustment
Adjust the throw angle on-site with the included Allen wrench to match the wall it's mounted on:
| Angle | Effect | Ideal For |
|---|---|---|
| 45° | Throws light furthest from building | Entryways, small storefronts, walkways & pedestrian approach zones |
| 30° | Highlights building perimeter | Facade accents, near perimeter security lighting |
| 15° | Reduces glare | Walkways, entries, pedestrian-facing areas in residential & hospitality zones |
| 0° | Eliminates light trespass | Property lines, residential-adjacent walls |
Ideal Applications
- Entryways & Small Storefronts: Set to 45° throw for maximum forward illumination at a scale suited to smaller commercial spaces.
- Small Storefront & Entryway Perimeters: Set to 30° to highlight a small facade or entryway while still delivering functional security lighting.
- Walkways & Entries: Set to 15° for reduced glare in pedestrian-facing areas.
- Sidewalks & Close-Set Neighboring Buildings: Set to 0° for full cutoff where light trespass onto an adjacent sidewalk or a closely spaced neighboring building needs to be avoided entirely.
- Small Commercial & Light Industrial Buildings: Mounts from 10 to 20 ft, sized for the wall heights common on small storefronts, entryways, and light commercial properties.
