20W Solar LED Living Tube Light








20W Solar LED Living Tube Light








20W Solar LED Living Tube Light
20W Solar LED Living Tube Light
Only 90 Remaining
This commercial-grade, split-design solar tube light provides off-grid illuminations for loading bays, warehouse canopies, covered walkways, transit shelters, park pavilions, and temporary or mobile locations — no wiring or trenching required.
- 16ft cord allows optimal placement of both panel & light
- Long-lasting LiFePO4 battery provides 2+ days runtime and 2000+ charge cycles
- MPPT controller charges faster and more efficiently than standard solar lights
This commercial-grade, split-design solar tube light provides off-grid illuminations for loading bays, warehouse canopies, covered walkways, transit shelters, park pavilions, and temporary or mobile locations — no wiring or trenching required.
- 16ft cord allows optimal placement of both panel & light
- Long-lasting LiFePO4 battery provides 2+ days runtime and 2000+ charge cycles
- MPPT controller charges faster and more efficiently than standard solar lights
Choose options
Only 90 Remaining
Only 90 Remaining
Details
The LED Living SCP02 is a highly flexible, split-design solar tube light built to commercial standards that lower-grade competitors can't match. Whether mounting on the wall above loading bay doors or replacing corded batten lights and extension-cord workarounds in off-grid covered spaces, it delivers up to 3,600 lumens of neutral 4000K light without the hassle or costs of trenching and utility bills.

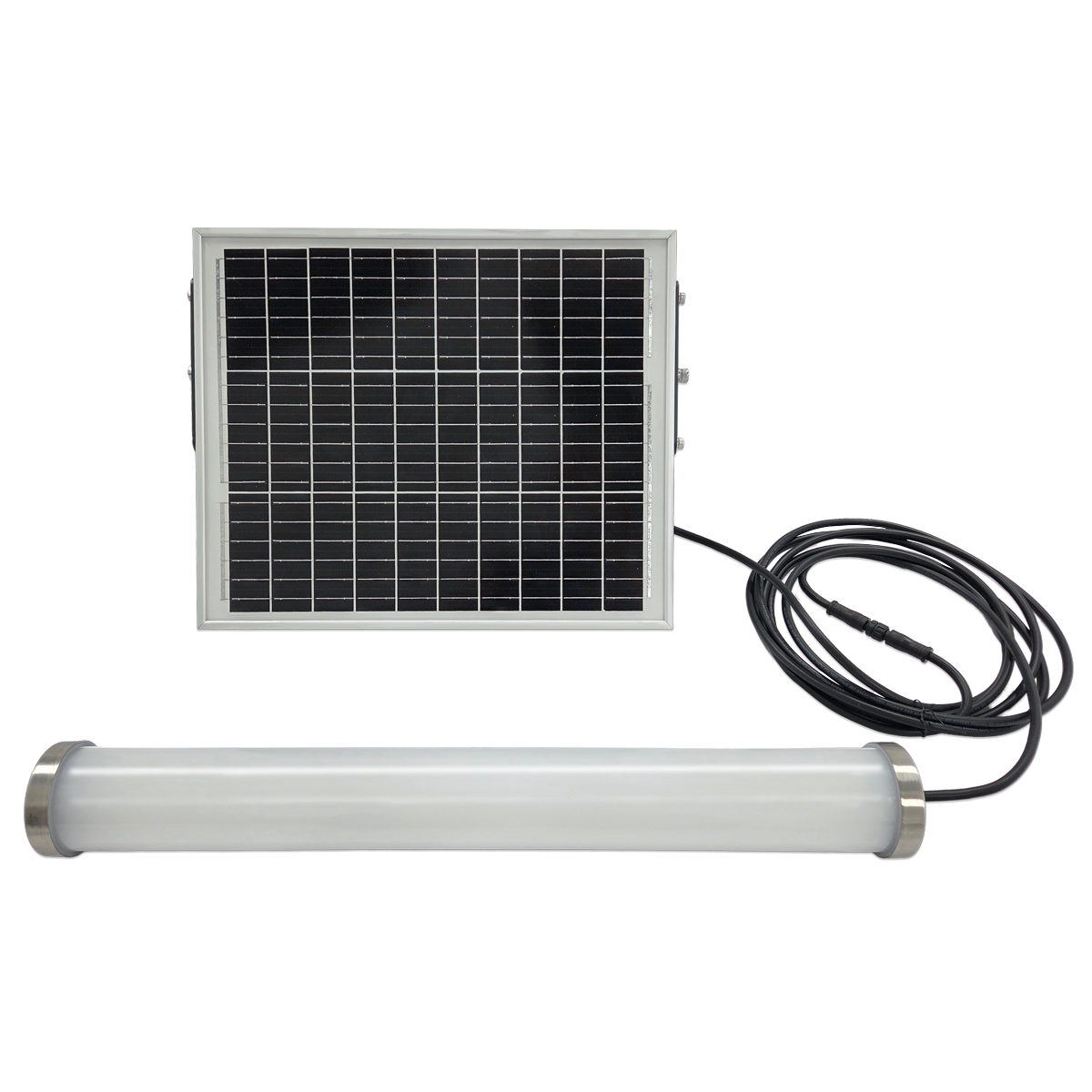

- Split-Panel Design: The fixture and solar panel connect via a 16ft quick-connect cord and mount independently — aim the panel toward peak sun even when the canopy faces the wrong direction, something integrated all-in-one fixture can't do.
- Go-Anywhere Profile: Delivers a peak 3,600 lumens at 180 lm/W in a 2-foot batten format that mounts easily to a wall or ceiling — the natural fit for loading bays, corridors, and covered areas that already use linear lighting rather than round or flood-style fixtures.
- Commercial-Grade LiFePO4 Battery: The 51.2Wh lithium iron phosphate battery delivers up to 2 days of runtime in timed-dimming mode and lasts 2,000+ charge cycles — far outlasting the standard Li-Ion batteries found in lower-cost solar lights.
- MPPT Charging Controller: Maximum Power Point Tracking harvests more energy from every hour of sunlight than standard PWM controllers — especially valuable on cloudy or partially overcast days when output matters most.
- Timed Dimming for Extended Runtime: Automatically steps brightness down through the night, maximizing battery life without manual controls or separate timers.
- Fully Self-Contained and Weather-Rated: IP66 rated for permanent outdoor installation — handles rain, snow, coastal air, and high-humidity environments without corrosion or failure.
What Makes It Commercial Grade
| Spec | Value | Why It Matters |
|---|---|---|
| Battery Chemistry | LiFePO4 | 2,000+ charge cycles is 4x standard li-ion batteries |
| Battery Capacity | 51.2Wh | Stores enough energy for 2-day runtime to outlast cloudy stretches |
| Charging Controller | MPPT | Harvests more energy per hour than PWM controllers and can charge in overcast days |
| Solar Panel Wattage | 25W | Panel charges battery in as little as two hours — works in locations with limited sun |
| Panel Cord | 16ft quick-connect | Panel & fixture mount separate — no compromise between sun exposure and light placement |
| Enclosure | IP66 | Full dust &water protection — suitable for outdoor and semi-outdoor commercial installation |
Ideal Applications
-

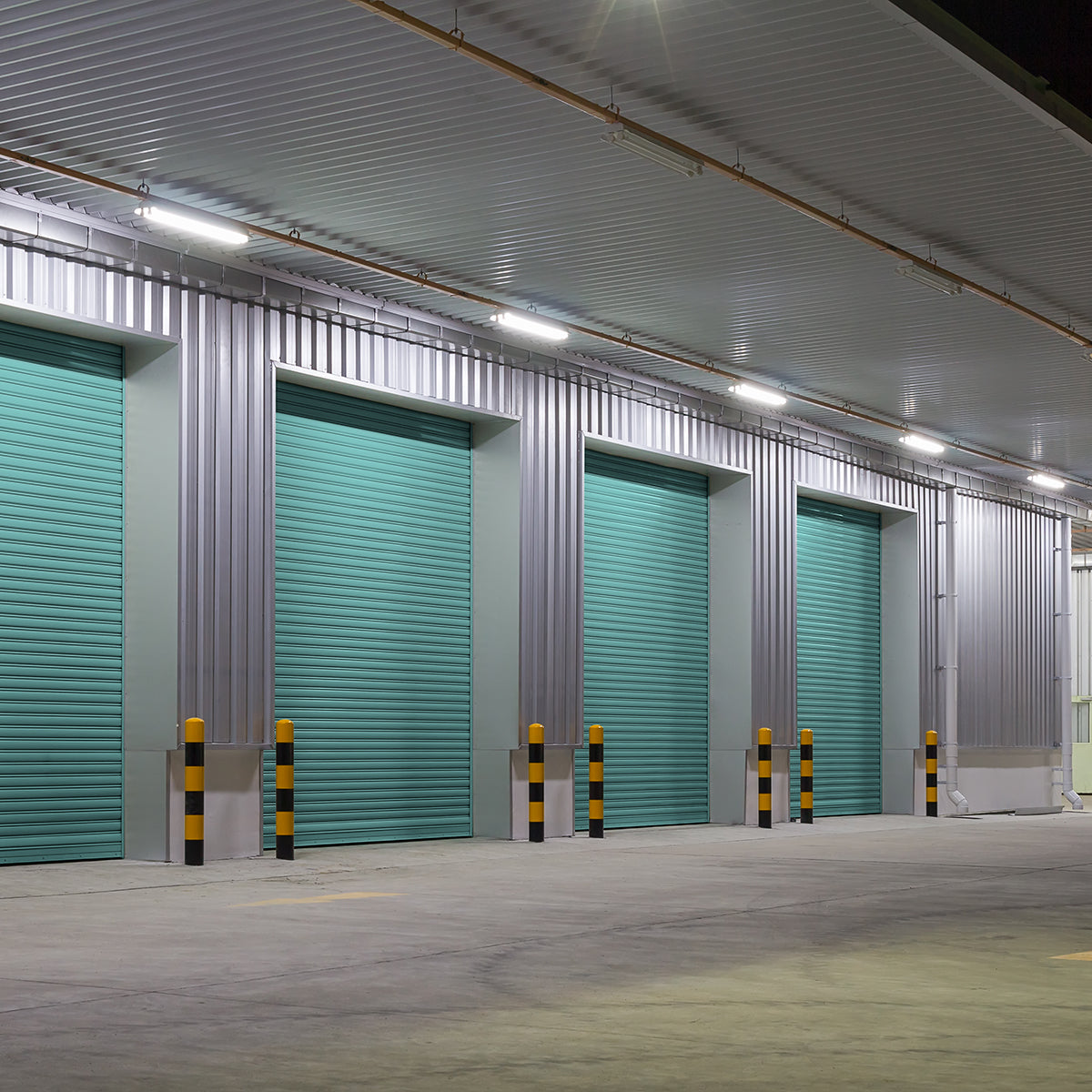

- Warehouse & Facility Canopies: Covers exterior receiving areas and canopy overhangs where grid power is unavailable or expensive to extend, with the linear profile matching the space's existing lighting aesthetic.
- Covered Walkways & Corridors: Linear batten format delivers even illumination along corridor ceilings, suited for transit shelters, pedestrian connectors, and covered paths.

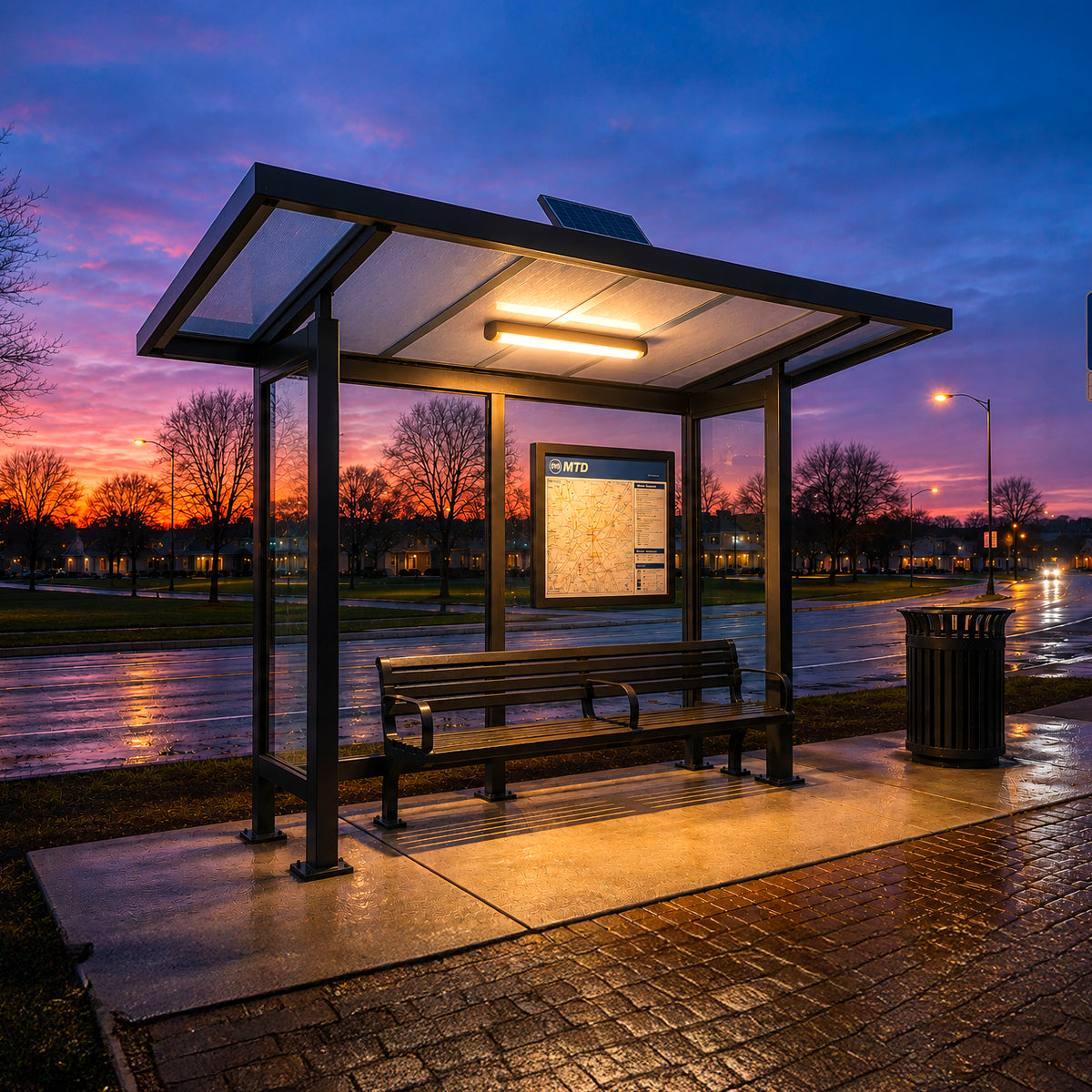

- Bus & Transit Shelters: Provides safe, reliable overnight lighting at remote shelters where grid power is impractical and consistent illumination is a safety requirement.
- Park Pavilions & Campground Shelters: Illuminates covered seating areas without electrical installation, delivering consistent light through multi-day cloudy periods on a single charge.
Why Buy Commercial Grade?
Consumer-grade solar tube and batten lights are everywhere on the mega-marketplaces — and at $40–$80, they look like a better deal. Here's how they compare under the hood.
| This Fixture | Consumer-Grade Solar Tube Light | |
|---|---|---|
| Battery Chemistry | LiFePO4 — 2,000+ cycles, stable in extreme temps | Li-Ion — ~500 cycles, degrades faster in heat and cold |
| Charging Controller | MPPT — maximizes charging in all conditions | PWM — less efficient, especially on cloudy days |
| Panel Cord Length | 16ft — genuine independent placement | Often 3–6ft — limits panel positioning flexibility |
| Enclosure Rating | IP66 — fully sealed against dust and water | Often IP65 or unrated |
| Runtime Management | Smart timed dimming — 2-day autonomy in dimmed mode | Fixed output — shorter runtime or dimmer light |
| Warranty | ELEDLights US-based team | Seller may be unreachable; no recourse |
Consumer-grade components look fine on a spec sheet. The difference shows up in year two, when a cheap battery starts losing capacity, cloudy-day performance drops off, and you're left having to buy & install something else.
ELEDLights Stands Behind It
-
-
US-based support Monday–Friday, 8am–8pm EST — call, text, or email a real person
-
In stock, ships fast straight from our U.S. warehouses
-
US-based support Monday–Friday, 8am–8pm EST — call, text, or email a real person
Specs
| Wattage(s) | 20W |
| Replaces Wattage(s) | 75W |
| Light Output | 3,600 lm |
| Luminous Efficacy (lm/W) | 180 lm/W |
| Battery | LiFePO4, 51.2Wh |
| Solar Panel Type | Mono-crystalline |
| Solar Panel Wattage | 25W (16.5V) |
| Solar Charge Controller | MPPT |
| Run Time | Intelligent mode (timed dimming): 2 days* |
| Operation Method |
Intelligent Control Mode (Timed Dimming): T1: 0.2h @ 100% T2: 0.5h @ 50% T3: 0.5h @ 15% T4: 2.5h @ 12% T5: 9.5h @ 5% |
| Average Lamp Life |
L90: 51,300 hours L80: 106,800 hours L70: 169,800 hours |
| Color Temperature(s) | 4000K |
| CRI (Color Accuracy) | 70 |
| Dimming | Yes (Timed Dimming Operating Mode) |
| Occupancy Sensor | No |
| Charge Time | >2.0 hours* |
| Beam Angle | 122° |
| Light Distribution Pattern |
Symmetrical
Learn More
×
Light Distribution OptionsType III Beam ![]() Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam ![]() Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam ![]() Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Lens Cover | PMMA Lamp Body |
| Installation |
Split design: solar panel & luminaire mount separately, connected by 16ft quick-connect cord Ceiling mount and surface mount supported; hardware included To activate the lamp, press the ON/OFF button or use the remote control |
| Recommended Installation Height | Up to 16ft |
| Working Environment | Outdoor |
| Enclosure Rating | IP66, IK08 |
| Light Type | LED |
| Temperature Rating | 32°F to 122°F (0°C to +50°C) |
| Housing Material | Aluminum housing with anodized finish; PMMA lamp body with 316 stainless steel end caps |
| Housing Color | Silver Gray with White Lens |
| Dimensions |
Luminaire: Ø3.16” x 23.70” Solar Panel: 13.78” x 18.06” x 3.10” |
| Weight |
Luminaire: 3.75 lbs Solar Panel: 7.05 lbs |
| Shipping Weight | 15.0 lbs |
| Package Dimensions | Luminaire carton: 35.83” x 12.2” x 8.66” (6 per carton); Solar panel carton: 19.29” x 16.54” x 5.51” |
| Certification | CE, RoHS |
| Warranty | 3 years |
| Additional Specifications | *Performance based on ideal conditions. Solar lights are heavily affected by sunlight levels, temperatures, snow, dirt, and other conditions |
