Powerful, Adjustable, and Built for Precision

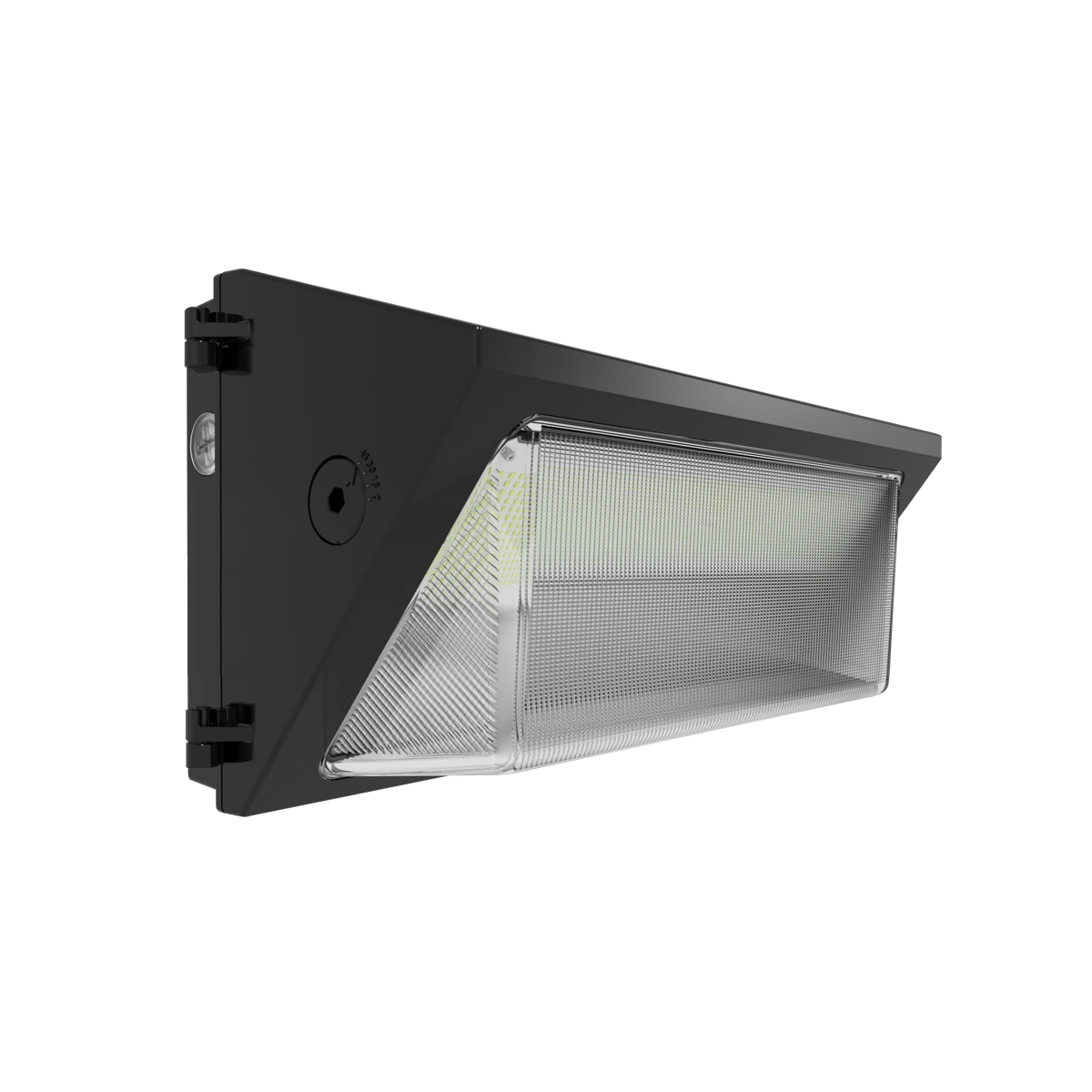

The RAB W22 wall pack is an industry-leader in field-adjustability, sporting a distinctive 0°-45° adjustable forward throw that lets you put light exactly where you need it. From tight facade and sidewalk lighting to a larger forward throw on a large parking lot or industrial facility, this wall pack does it all — and adjusts again later if the site's needs change.

• Order With Confidence, Dial In on Site: Adjustable wattage, CCT, and forward throw mean one SKU fits nearly any application, so you're not guessing at the right spec before the site is fully scoped, or stocking a different wall pack for every wall of a building.
• Our Most Powerful Wall Pack, Built for the Biggest Jobs: As the largest and highest-output model in the W22 family, it delivers up to 20,920 lumens at 148.5 lm/W from mounting heights of 20 to 45 ft, built for the biggest industrial yards, distribution centers, and large-scale commercial properties that need serious throw and coverage.
• Big Output, Big Savings: Replacing 750W metal halides at just 150W, it cuts lighting costs by up to 80%.
• Photocell Built In: An integrated photocell can be switched on for automatic dusk-to-dawn operation, no separate accessory needed.
• Dimmable With a Separate Control Circuit: The driver includes 0-10V dimming control wiring with dimming down to 10% so you can dial in exactly the right output without wasting any electricity.
• Built Rugged for Extreme Conditions: A die-cast aluminum housing, glass lens, and aluminum reflector hold up outdoors year-round, with a -40°F cold-start rating to handle even the coldest winter nights.
• 5-Year Warranty: Full manufacturer coverage when purchased through ELEDLights as an authorized RAB dealer.

Forward Throw Adjustment

Adjust the throw angle on-site with the included Allen wrench to match the wall it's mounted on:

Ideal Applications

1. Large Parking Lots, Loading Aprons & Industrial Yards: Set to 45° throw for maximum forward illumination across the wide, expansive paved areas common at large-scale facilities.

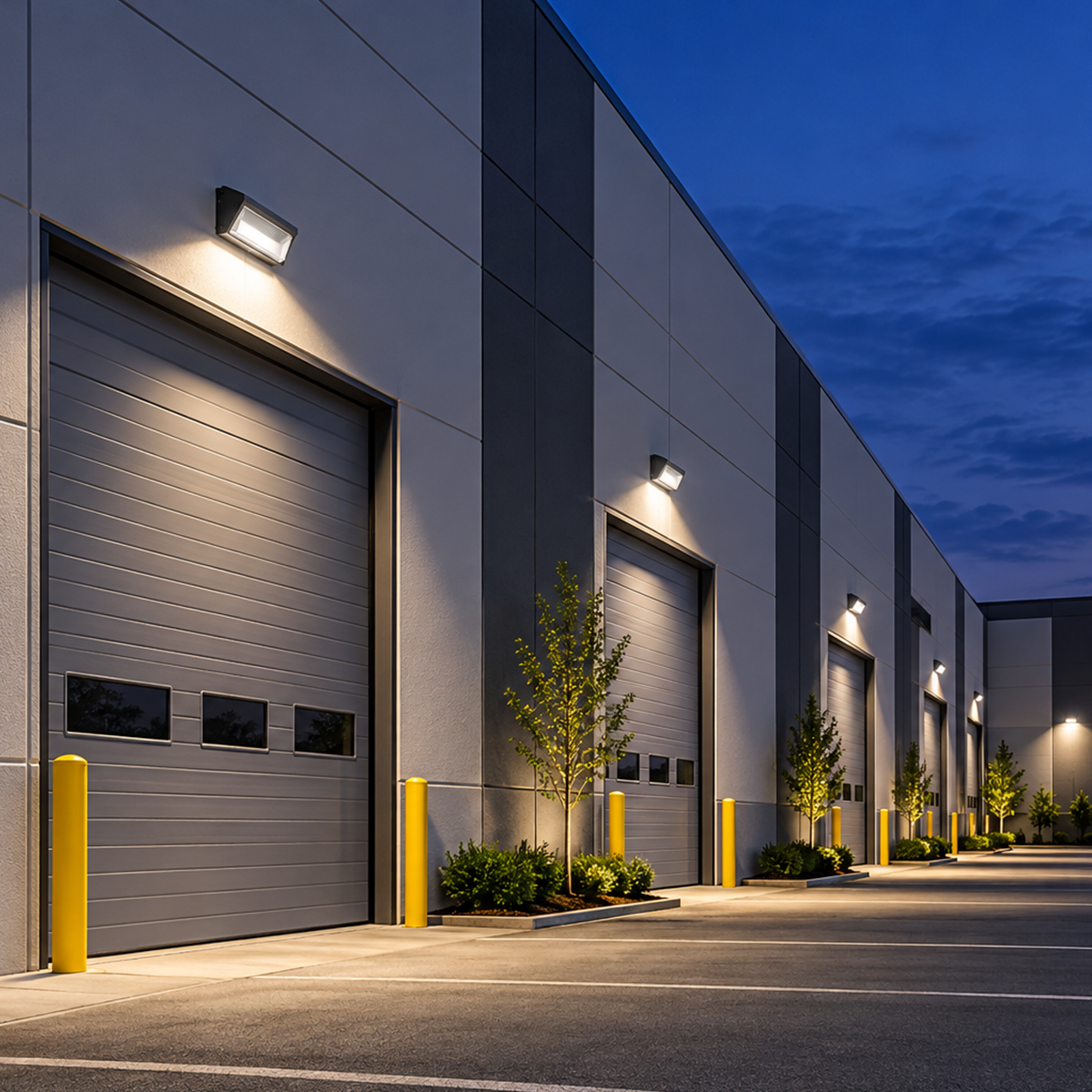

2. Distribution Centers & Manufacturing Plants: Set to 30° to highlight and secure the perimeter of large industrial buildings without over-lighting neighboring areas.
3. Loading Dock Door Approaches & Employee Walkways: Set to 15° for reduced glare where drivers and workers pass close to the building.
4. Property Lines at Large Industrial Sites: Set to 0° for full cutoff where a large facility borders residential or other sensitive property and light trespass must be avoided entirely.
5. The Largest Warehouses, Distribution Centers & Industrial Facilities: Mounts from 20 to 45 ft, the tallest range in the W22 family, sized for the biggest logistics and industrial buildings.
