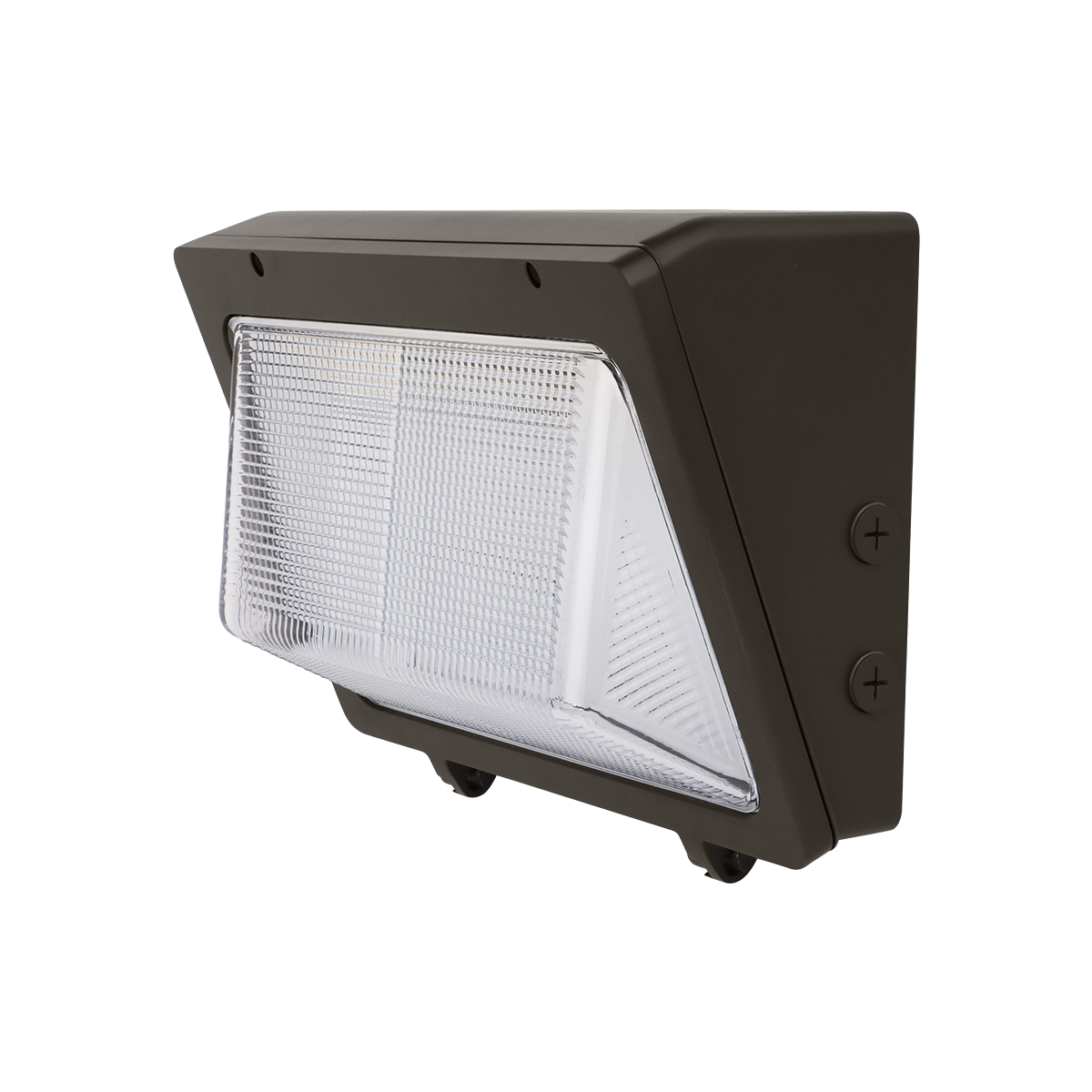

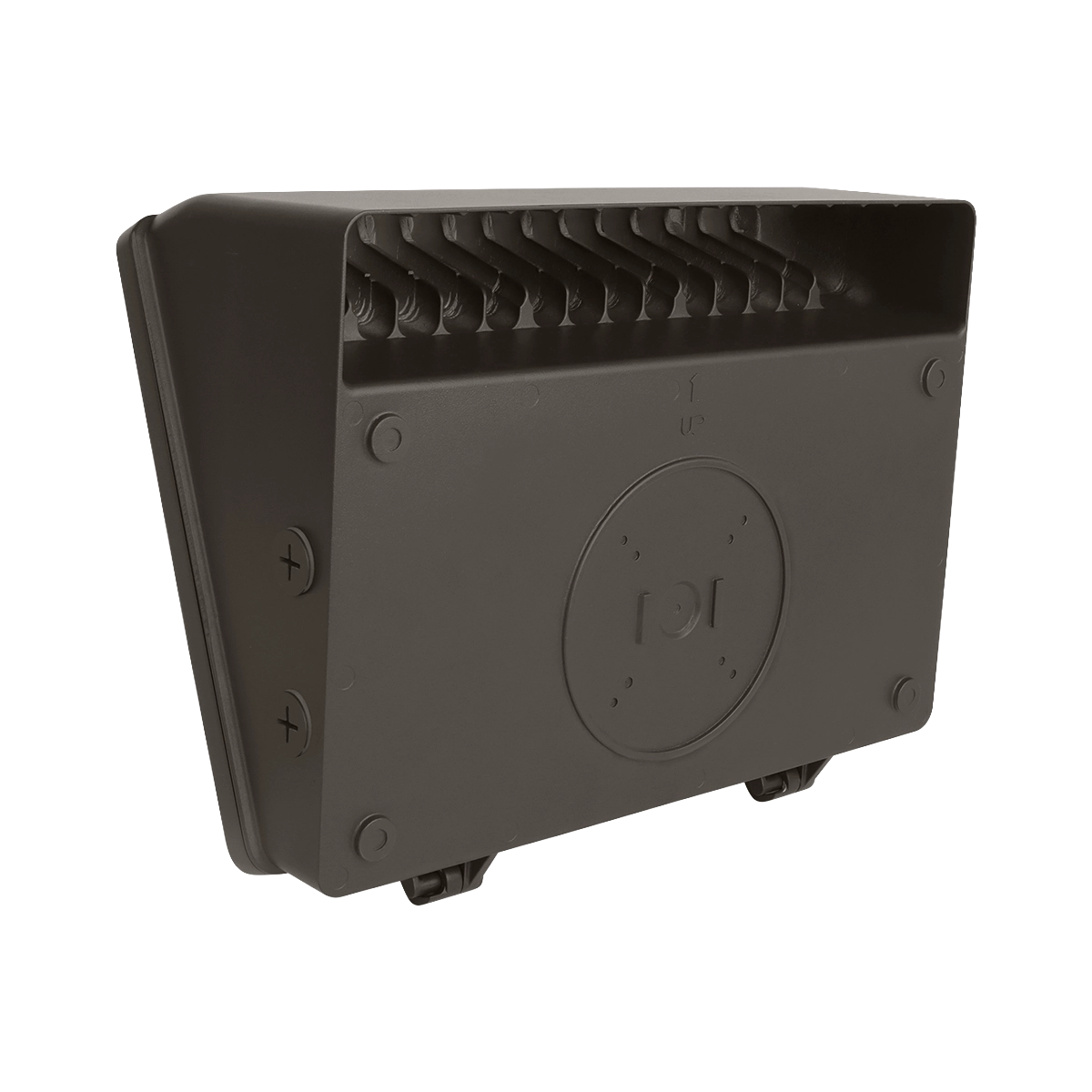

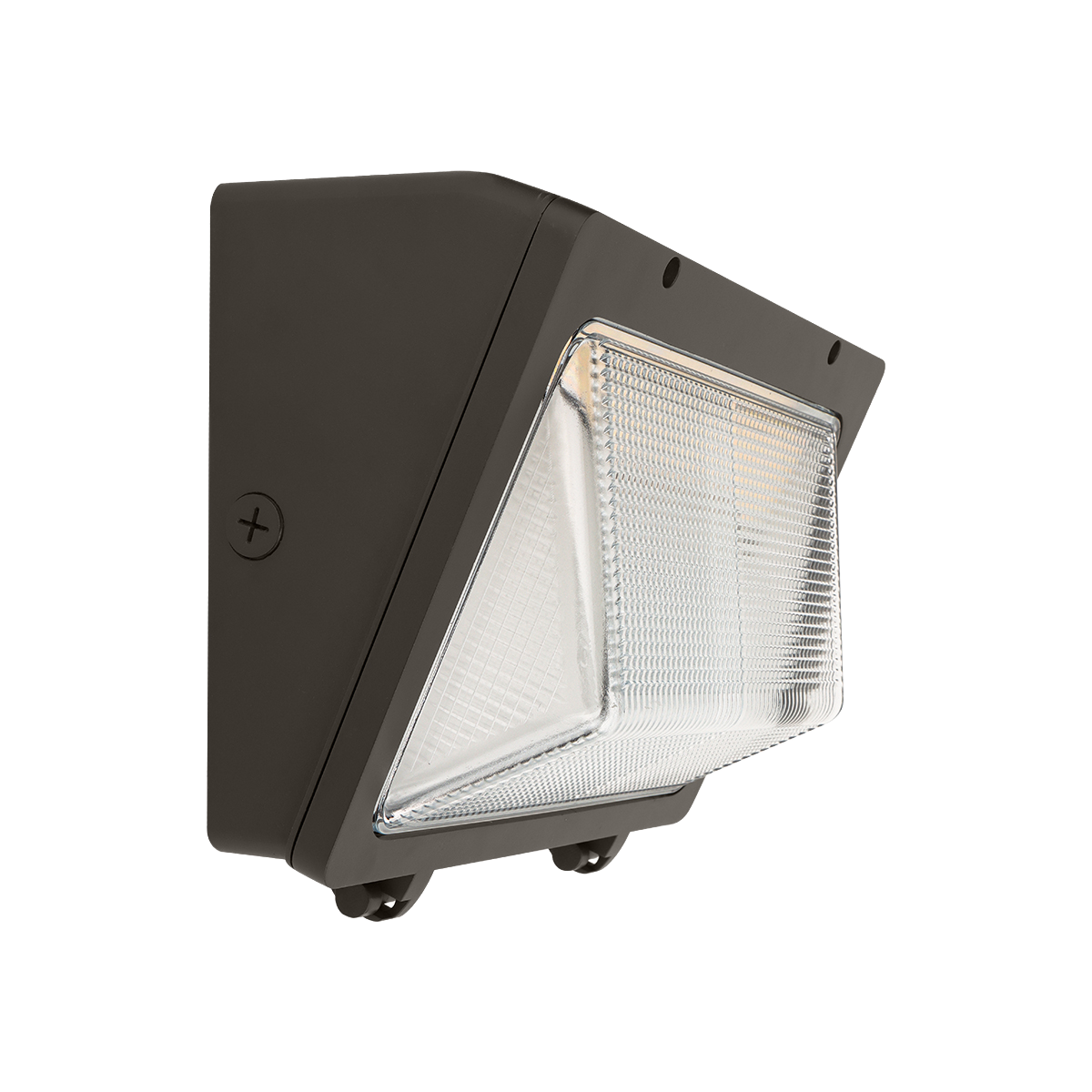

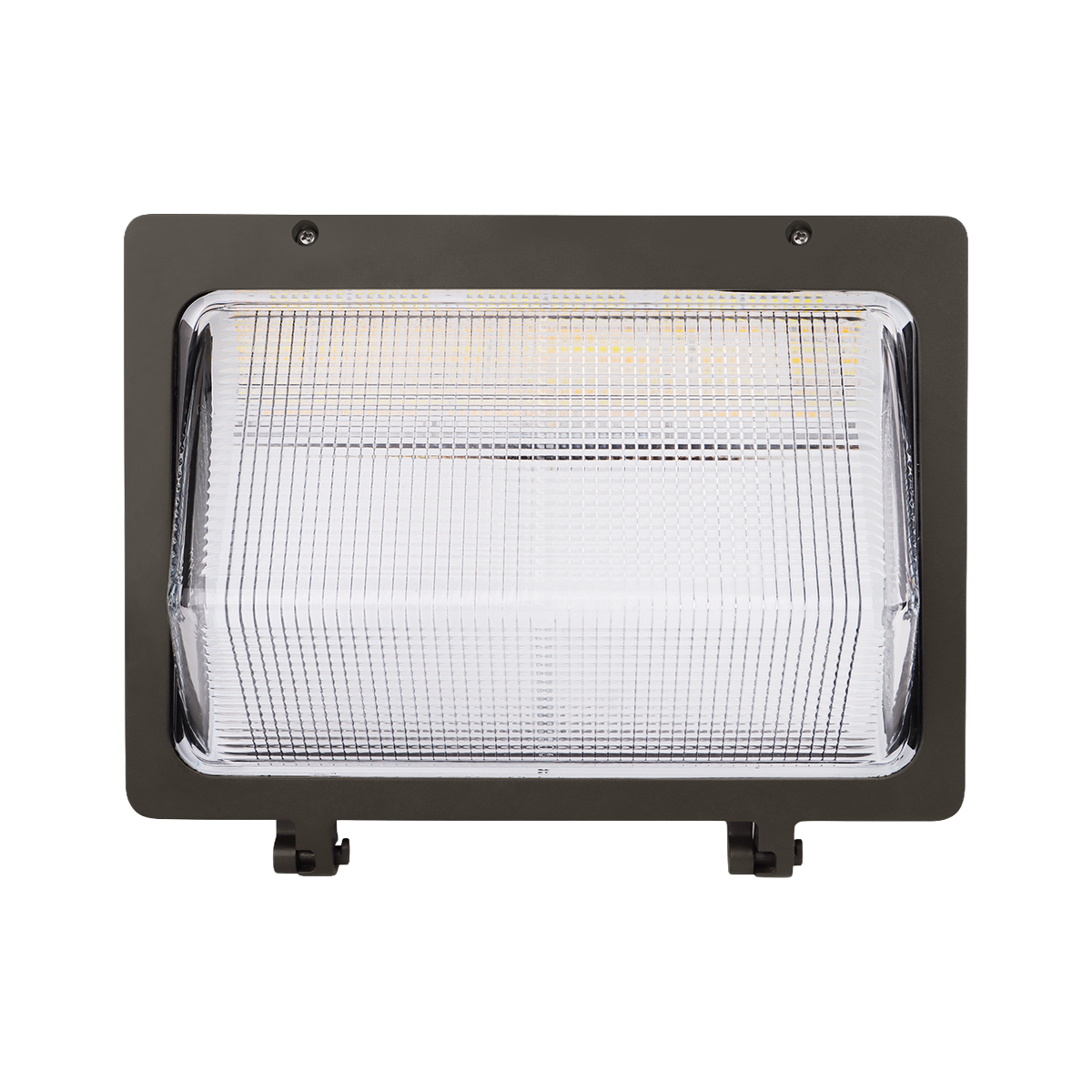

LED Wall Pack Light – 125W Selectable, Semi-Cutoff, DLC Premium
LED Wall Pack Light – 125W Selectable, Semi-Cutoff, DLC Premium
LED Wall Pack Light – 125W Selectable, Semi-Cutoff, DLC Premium
LED Wall Pack Light – 125W Selectable, Semi-Cutoff, DLC Premium
When the job demands serious output, the WPS03 125W delivers — up to 17,450 lumens of reliable perimeter lighting without the burnouts and maintenance costs of HID.
- Selectable 76/105/125W and 3000K/4000K/5000K via DIP switch gives you the flexibility to meet a wide range of high-demand exterior specs with a single fixture.
- DLC Premium certified and 0-10V dimmable — qualifies for utility rebates and integrates cleanly with existing control systems.
- IP65/IK10-rated die cast aluminum housing with a built-in dusk-to-dawn photocell means automatic operation, zero extra hardware, and built-in durability for tough outdoor environments.
Need More? Text/call (858) 650-9400
When the job demands serious output, the WPS03 125W delivers — up to 17,450 lumens of reliable perimeter lighting without the burnouts and maintenance costs of HID.
- Selectable 76/105/125W and 3000K/4000K/5000K via DIP switch gives you the flexibility to meet a wide range of high-demand exterior specs with a single fixture.
- DLC Premium certified and 0-10V dimmable — qualifies for utility rebates and integrates cleanly with existing control systems.
- IP65/IK10-rated die cast aluminum housing with a built-in dusk-to-dawn photocell means automatic operation, zero extra hardware, and built-in durability for tough outdoor environments.
Choose options
Details
The WPS03 125W is a high-output, semi-cutoff LED wall pack built for contractors and facility managers who need serious perimeter and facade illumination without the maintenance headaches of HID.
- Selectable wattage (76/105/125W) and CCT (3000K/4000K/5000K) via DIP switch — one SKU handles a wide range of high-demand exterior applications.
- DLC Premium certified and 0-10V dimmable, making it rebate-eligible and compatible with virtually any lighting control system.
- IP65-rated die cast aluminum housing with IK10 impact resistance delivers long-term durability in demanding outdoor environments.
- Integrated dusk-to-dawn photocell provides fully automatic operation — no separate sensor or additional wiring required.
Backed by a 5-year warranty and available for fast shipping — ELEDLights delivers the performance and reliability your project demands.
Specs
| Wattage(s) | 76W / 105W / 125W Selectable |
| Light Output | 9,880 to 17,450 lumens |
| Luminous Efficacy (lm/W) | 130 to 140 lm/W |
| Color Temperature(s) | 3000K / 4000K / 5000K Selectable |
| CRI (Color Accuracy) | 70 |
| Dimming | Yes |
| Dimming Range | 0-10V |
| Light Distribution Pattern |
Semi-Cutoff, 100° Beam Angle
Learn More
×
Light Distribution OptionsType III Beam  Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam  Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam  Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Lens Cover | Tempered Glass Lens |
| Enclosure Rating | IP65, IK10 |
| Light Type | LED |
| Input Voltage | 120–277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Temperature Rating | -40°C to +50°C (-40°F to +122°F) |
| Housing Material | Die Cast Aluminum Housing |
| Housing Color | Dark Bronze |

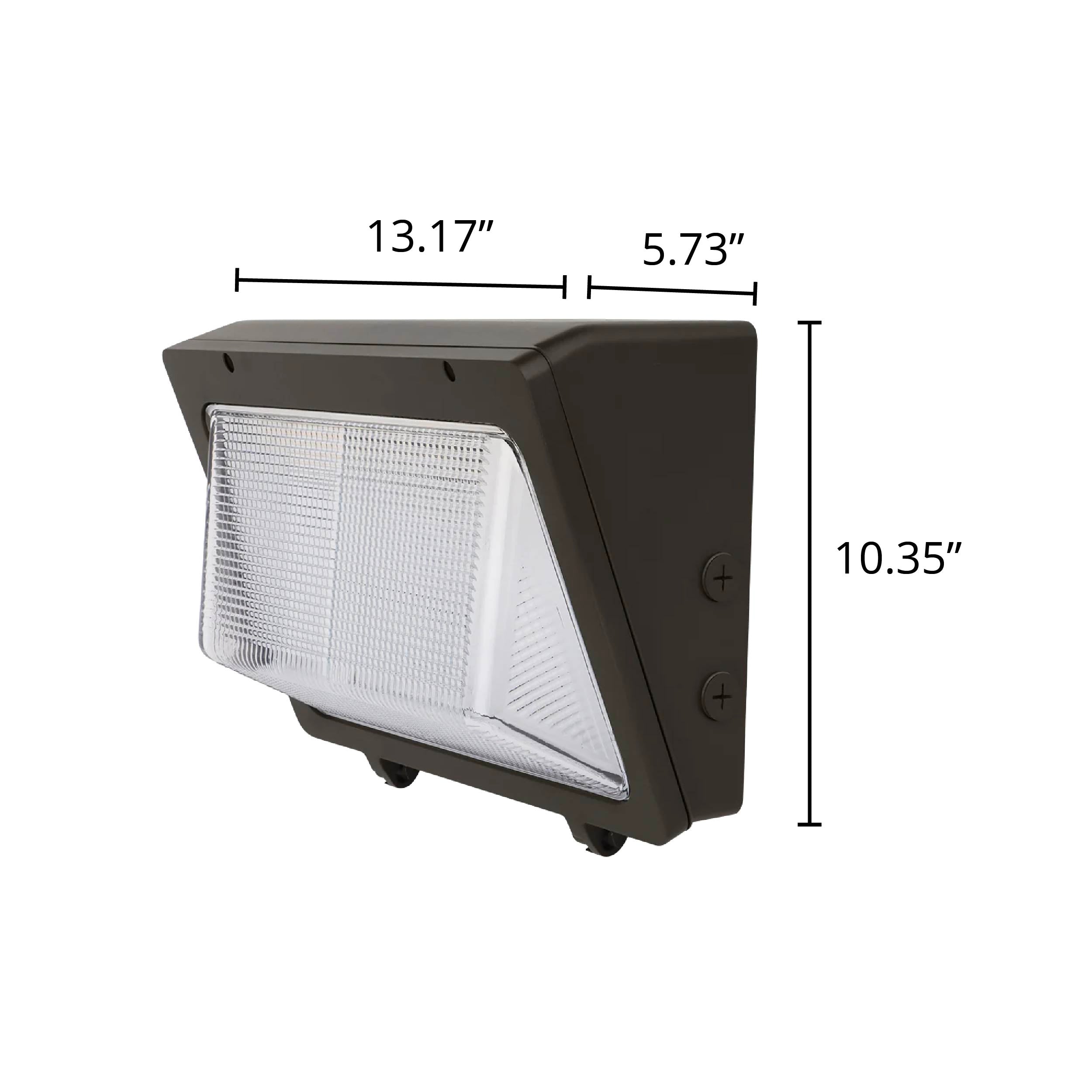

| Dimensions | 13.17" x 10.35" x 5.73" |
| Shipping Weight | 5 lb |
| Package Dimensions | 16.06" x 12.36" x 7.95" |
| Certification | DLC Premium, UL Listed |
| Warranty | 5 Years |
Data SheetCompare Key Features
