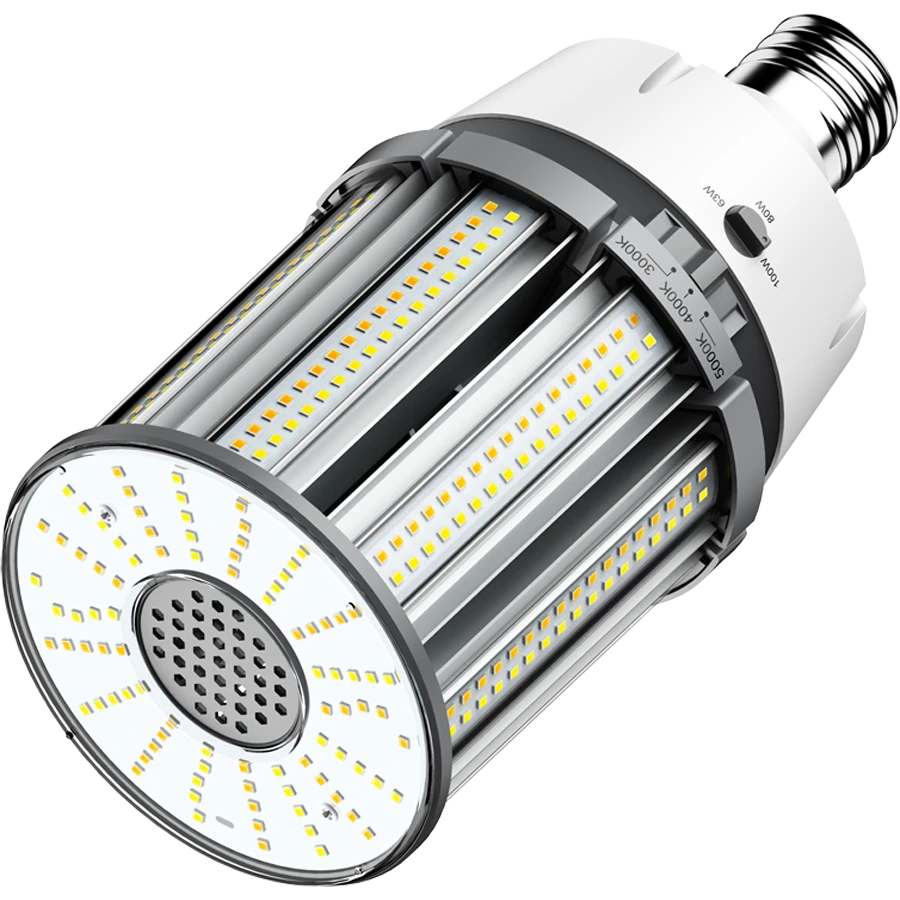

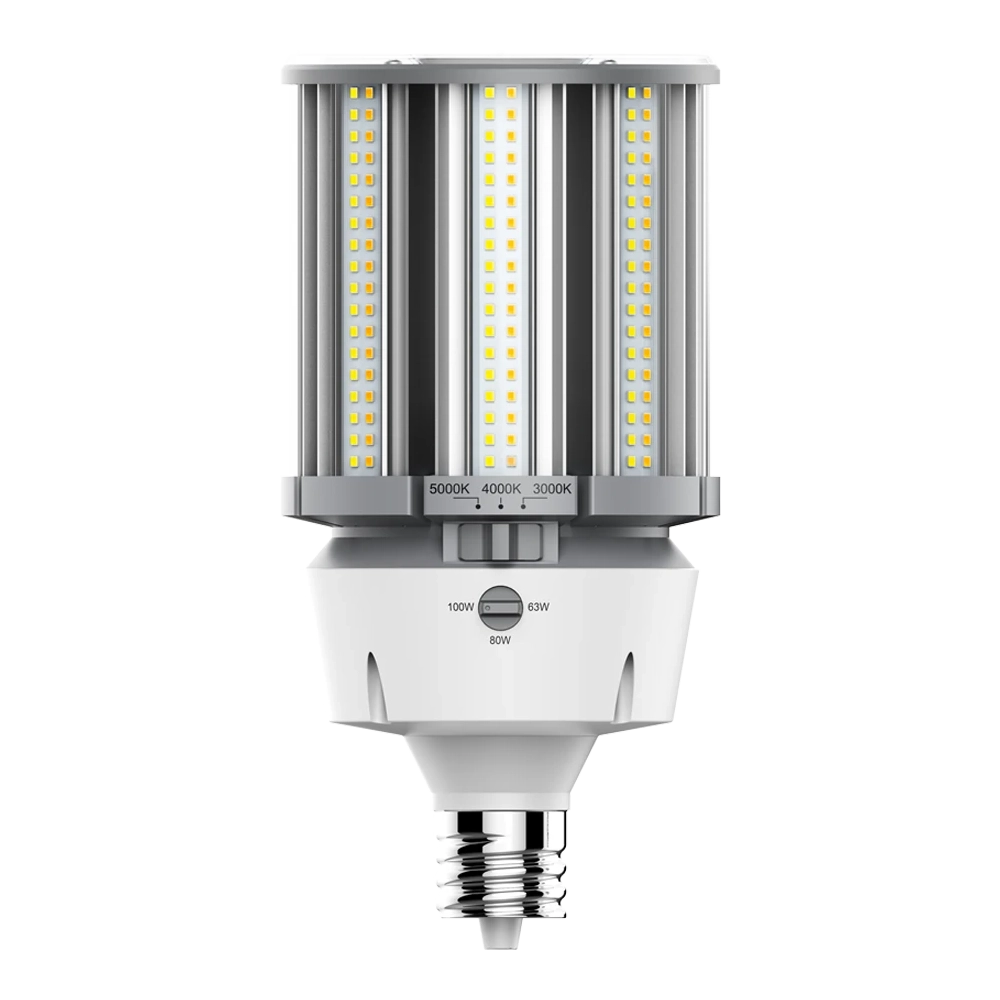

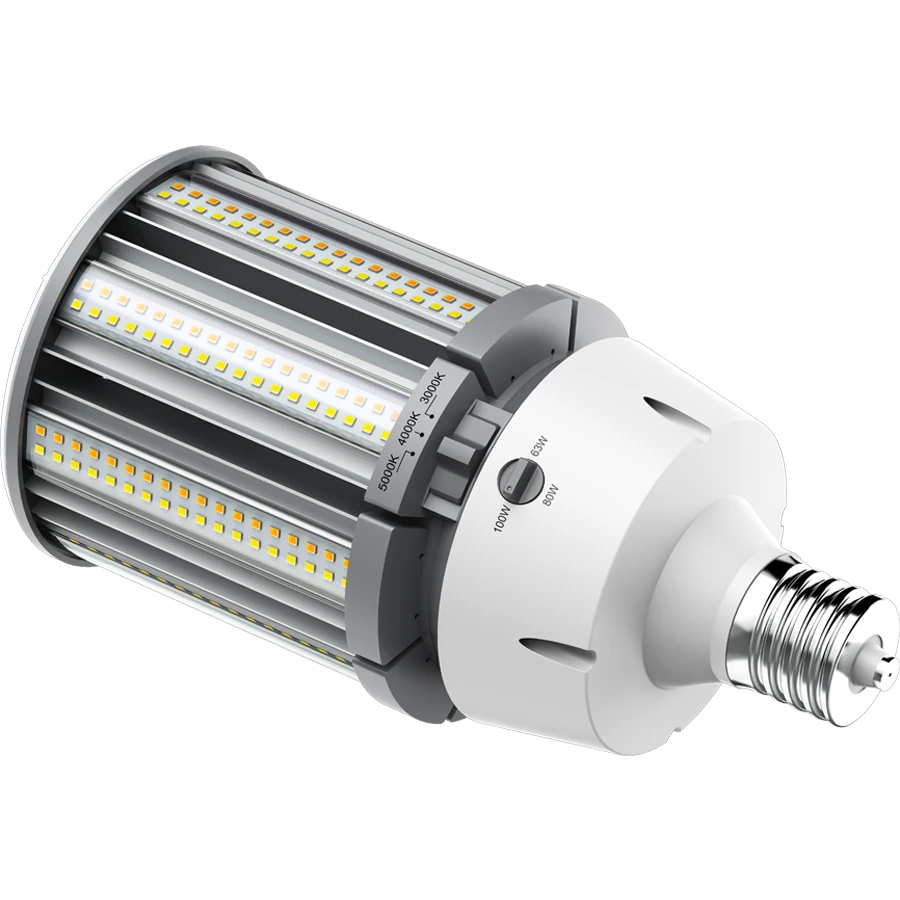

100W Selectable RAB LED HID Replacement Lamp - EX39
100W Selectable RAB LED HID Replacement Lamp - EX39
100W Selectable RAB LED HID Replacement Lamp - EX39
100W Selectable RAB LED HID Replacement Lamp - EX39
Replaces traditional metal halide or high pressure sodium HID lamp up to 500W with significant energy savings and longevity
- Adjustable wattage and CCT allows for in-field customization
- Rated for use in enclosed fixtures in dry or damp locations
- Universal 100-277V voltage for flexible installation
Replaces traditional metal halide or high pressure sodium HID lamp up to 500W with significant energy savings and longevity
- Adjustable wattage and CCT allows for in-field customization
- Rated for use in enclosed fixtures in dry or damp locations
- Universal 100-277V voltage for flexible installation
Choose options
Specs
| Wattage(s) | 63W/80W/100W |
| Replaces Wattage(s) | 250W/320W/400W Metal Halide or High Pressure Sodium |
| Light Output | 10,080/12,800/16,000 lumens |
| Luminous Efficacy (lm/W) | 160 lm/W |
| Average Lamp Life | 50,000 hours (L70) |
| Color Temperature(s) | 3000K/4000K/5000K (Field Adjustable via dip switch) |
| CRI (Color Accuracy) | 80 CRI |
| Dimming | Yes, by adjusting the wattage (light output) dipswitch located on the lamp. |
| Bulb Shape | Post Top (sensor) |
| Base Type | EX39 |
| Beam Angle | 360° |
| Ballast Compatibility | UL Type B, Ballast Bypass |
| Installation | Designed for vertical or install only (±20°) in open or enclosed fixtures in damp or dry locations |
| Enclosure Rating | IP64 |
| Input Voltage | 100-277V |
| Driver Type | Constant Current, Non-isolated power 100-277V 50/60 Hz; 120V: 859.11mA; 208V: 511.46mA; 240V: 457.88mA; 277V: 401.12mA |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Surge Protection | 4 kV |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Housing Material | Metal & polycarbonate |
| Housing Color | White + Gray |
| Certification | UL Listed, DLC Listed (S-R40V9S) |
| DLC ID(s) | S-R40V9S |
| Warranty | 5 Years |
Data SheetDetails
Replace 250W-500W HID Lamps at a 70% Energy Savings
- Delivers up to 16,000 lumens of light
- Five selectable power levels let you match output to your facility’s exact needs
- Selectable CCT: choose 3000K, 4000K, or 5000K for warm, neutral, or daylight white
- EX39 mogul base fits most existing HID fixtures for fast, low-cost upgrades
- Bypass ballast design for improved reliability and fewer failure points
- Rated for 50,000 hours—minimizing downtime and replacement costs
- 120–277V universal input for use across commercial and industrial applications
For facility managers and business owners, this retrofit lamp provides a cost-effective way to replace outdated HID lighting with long-lasting LED efficiency. From warehouses and production floors to parking lots and outdoor areas, it ensures reliable, high-output lighting while reducing operating expenses.
