This solar LED canopy light improves safety and visibility at bus stops, carports, pavilions, underpasses & more, without adding a cent to the electric bill. It runs entirely on stored sunlight, so covered structures stay lit and visible after dark year after year.
- A 9.8ft cord lets you mount the bifacial panel separately from the fixture, reaching sun exposure that a shaded roofline, overhang, or awkwardly angled structure would otherwise block
- A 307.2Wh LiFePO4 battery rated for 2,000+ charge cycles keeps performing for years — where consumer-grade batteries lose capacity and start failing within a season or two, this one is built to last
- Four selectable lighting modes plus selectable wattage (10/15W) and color temp (3000/4000K) — dial in the right CCT, brightness, and schedule on site so you get the right look and schedule without wasting energy
This solar LED canopy light improves safety and visibility at bus stops, carports, pavilions, underpasses & more, without adding a cent to the electric bill. It runs entirely on stored sunlight, so covered structures stay lit and visible after dark year after year.
- A 9.8ft cord lets you mount the bifacial panel separately from the fixture, reaching sun exposure that a shaded roofline, overhang, or awkwardly angled structure would otherwise block
- A 307.2Wh LiFePO4 battery rated for 2,000+ charge cycles keeps performing for years — where consumer-grade batteries lose capacity and start failing within a season or two, this one is built to last
- Four selectable lighting modes plus selectable wattage (10/15W) and color temp (3000/4000K) — dial in the right CCT, brightness, and schedule on site so you get the right look and schedule without wasting energy
Choose options
Specs
| Wattage(s) | 10/15W |
| Light Output | 2,000-3,000 lm |
| Luminous Efficacy (lm/W) | 200 lm/W |
| Battery | LiFePO4, 307.2Wh (12.8V/24Ah) |
| Solar Panel Type | Bi-Facial Mono-Crystalline Solar Panel |
| Solar Panel Wattage | 18V/50W |
| Solar Charge Controller | MPPT |
| Run Time | Time Control: 1-2 Days* |
| Operation Method |
12H Work Modes (Selectable): Mode 1. First Hour 100% Brightness, 2nd Hour 80%, 3rd to 4th Hour 60%, 5th Hour Till Dawn 20% Mode 2. First Hour to 5th Hour 100%, 6th Hour Till Dawn Off Mode 3. First Hour to 4th Hour 100%, 5th Hour Till Dawn 20% Mode 4. 100% Till Dawn 24H Work Mode (*Switch Accessory Required*) - On Demand Lighting |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 3000K/4000K |
| CRI (Color Accuracy) | 70 |
| Charge Time | 6-7 hours* |
| Beam Angle | 60°x85° |
| Installation | Surface mount |
| Enclosure Rating | IP65, IK08 |
| LED Type | LED 2835 |
| Temperature Rating |
Operating Temperature: -4°F to 140°F Charging Temperature: 32°F to 113°F |
| Housing Material | Aluminum Housing, Polycarbonate Optical Lens, LiFePO4 Battery, Mono-crystalline Solar Panel |
| Warranty | 5 Years |
| Additional Specifications | *Performance based on ideal conditions - solar lights are heavily affected by sunlight levels, temperatures, snow, dirt, and other conditions |
Details
Safer, Well-Lit Structures Wherever the Grid Can't Reach — At No Added Cost
This solar LED canopy light brings reliable, off-grid lighting to bus stops, transit shelters, sheds and outbuildings, shipping containers, portable offices, boats, docks, and remote job sites — anywhere a covered structure needs light but running grid power isn't practical. A bifacial panel, a long-lasting LiFePO4 battery, and four selectable lighting modes deliver dependable illumination through the night, all without adding a cent to the electric bill.

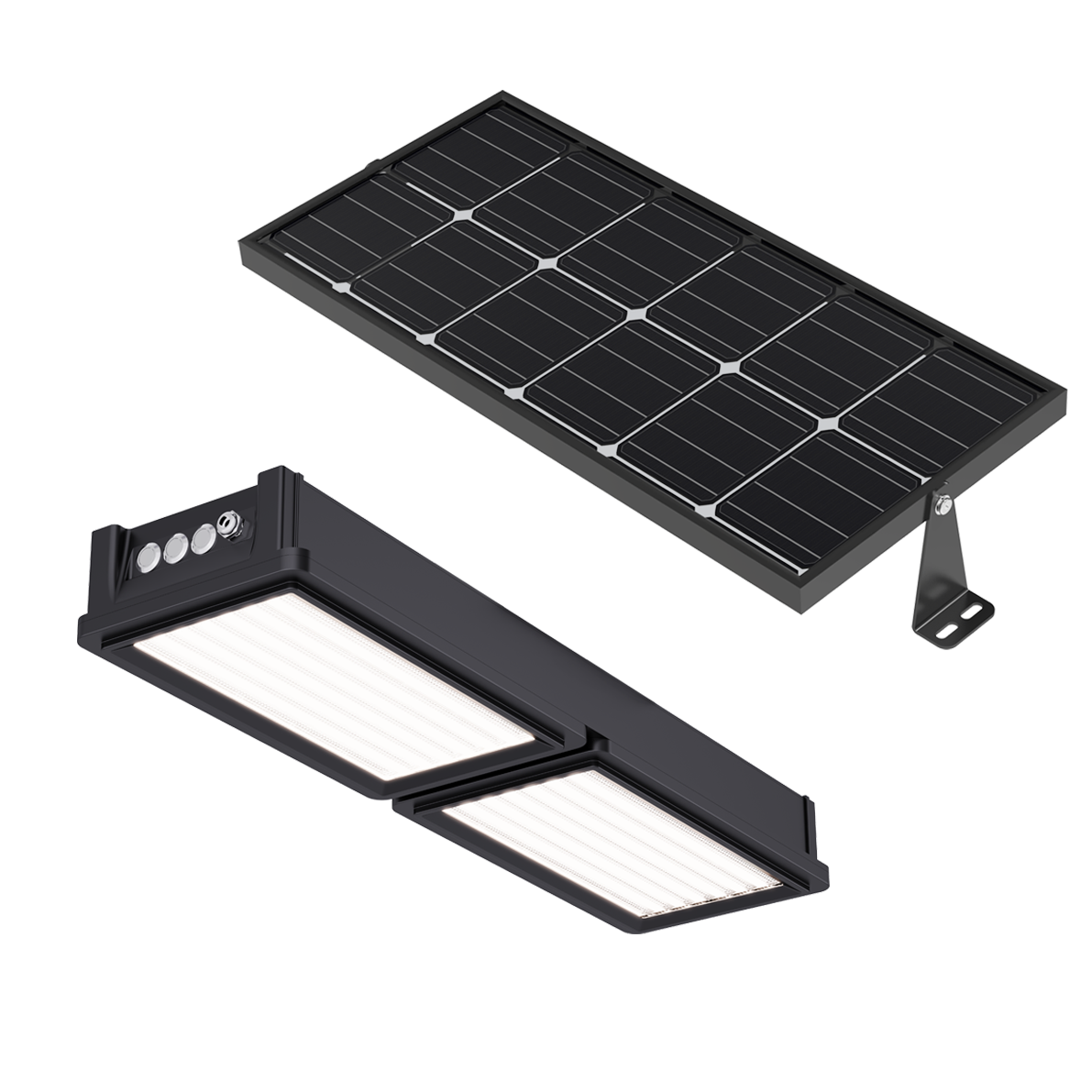

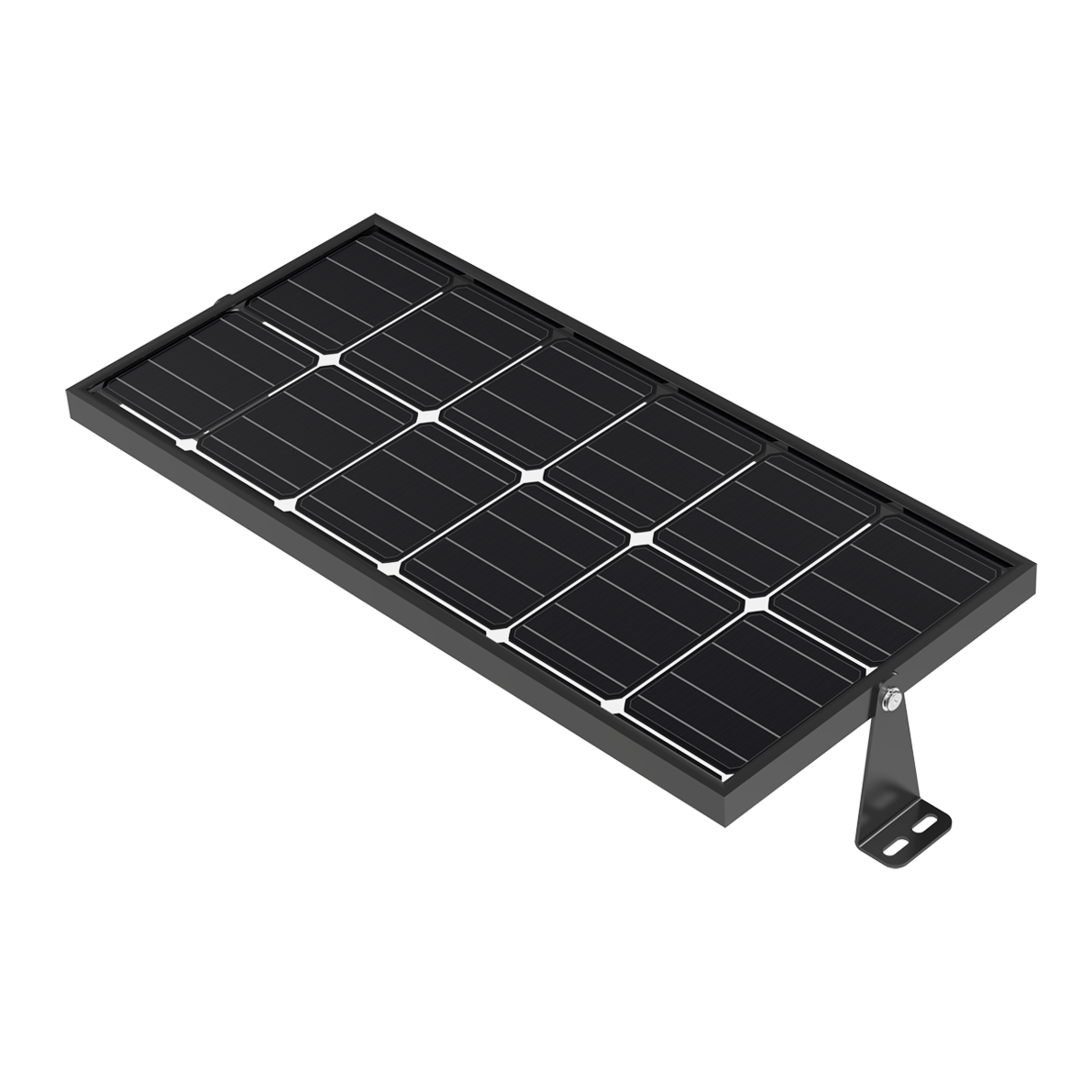

- Captures Energy From Both Sides: A bifacial panel pulls in direct and reflected light for 10–20% more daily energy than a single-face panel, and the 9.8ft cord lets you mount the panel separately from the fixture — ideal when the structure's roofline or orientation doesn't put the fixture itself in good sun.
- Outlasts the Battery in a Cheaper Canopy Light: At 307.2Wh, the LiFePO4 battery stores significantly more energy than most solar canopy lights — rated for 2,000+ charge cycles, stable in extreme temperatures, and built to last years longer than standard Li-Ion alternatives.
- Keeps Charging When the Sun Doesn't Cooperate: An MPPT charging controller optimizes energy harvest in all light conditions — recharges the battery in 6–7 hours and keeps pulling in usable power on overcast days when standard PWM controllers fall short.
- Four Lighting Modes, Selected With the Push of a Button: No app, no pairing — just press the Mode button on the fixture to cycle through four presets: a tapering schedule that steps down gradually through the night, a five-hour run that shuts off at late at night, a four-hour run that dims during overnight hours, or full brightness from dusk to dawn. Pick the one that matches how the space is actually used.
- Match the Light to the Space: Selectable 3000K warm white suits portable offices, boat interiors, and hospitality-adjacent applications; 4000K neutral white suits transit shelters, walkways, and security-focused job sites — set on-site without a separate order.
- Right-Sized Output for Your Application: Set to 10W where gentler light and longer runtime matter, or 15W where maximum brightness is the priority — and adjust seasonally as daylight hours change to keep the battery balanced year-round.
- On-Demand Light When You Need It: An optional 24-hour work mode switch accessory (sold separately) overrides the automatic schedule entirely, so the fixture can provide full, bill-free illumination on demand — useful for job sites, loading canopies, or shelters that need light outside a typical dusk-to-dawn window.
- Rugged, Weather- and Impact-Resistant Construction: Aluminum housing with a polycarbonate optical lens is rated IP65 and IK08, and the fixture operates from -4°F to 140°F — built for exposed, marine, and remote-site conditions where a typical canopy light wouldn't hold up.
- 5-Year Warranty: Fully warranty coverage backed directly by our US-based team.
Ideal Applications
- Bus Stops & Transit Shelters: Reliable overnight illumination for shelters and stops where grid power isn't available or cost-effective to extend, with a mode selectable to match ridership patterns throughout the night.
- Shipping Containers & Portable Offices: Surface-mounted lighting for converted containers and portable structures used as temporary offices, storage, or job site facilities.
- Detached Sheds & Outbuildings: Skip the cost and disruption of trenching your yard to run power to a shed or outbuilding — mount the panel and fixture, and the space is lit without ever touching a shovel.
- Boats & Docks: Marine-suited construction and IP65 protection stand up to salt air and exposure at docks, marinas, and aboard vessels themselves.
- Mining & Remote Job Sites: Off-grid operation delivers dependable lighting at remote sites where extending utility power is impractical or prohibitively expensive.
- Outdoor Walkways & Perimeter Zones: Surface-mounted canopy lighting along covered walkways and perimeter zones provides consistent visibility without a utility connection.
- Loading Canopies & Task-Lighting Applications: The optional 24-hour switch accessory makes this fixture a practical choice for loading canopies and job sites needing full, on-demand brightness outside standard dusk-to-dawn hours.
Which Mode Fits Your Site?
Press the Mode button on the fixture to cycle through four presets — the number of flashes confirms which mode is active.
| Mode | Behavior | Best For |
|---|---|---|
| Mode 1 (1 Flash) | 100% for the first hour, 80% the second hour, 60% through hours three and four, then 20% until dawn | Sites with brief but predictable evening activity — bus stops and walkways where early visibility matters most, with lower output overnight to conserve battery |
| Mode 2 (2 Flash) | 100% for the first five hours, then off until dawn | Sites with defined operating hours that don't need light overnight — portable offices, job sites, or shelters that wind down after a set time each night |
| Mode 3 (3 Flash) | 100% for the first four hours, then 20% until dawn | Sites that want a visible presence all night without full brightness the whole time — docks, remote job sites, and other locations where some light matters even in the quiet hours |
| Mode 4 (4 Flash) | 100% brightness from dusk straight through to dawn | High-security or high-traffic sites needing consistent maximum visibility all night, such as transit shelters with irregular late-night service or mining sites |
Why Buy Commercial Grade?
Cheap solar canopy lights are easy to find online. Here's what separates this fixture from a typical marketplace alternative.
| This Fixture | Typical Solar Canopy Light | |
|---|---|---|
| Battery Chemistry | LiFePO4 — 2,000+ cycles, 307.2Wh capacity published | Often unpublished or standard Li-Ion with a shorter cycle life |
| Panel Design | Bifacial with 9.8ft cord for independent placement | Often integrated, fixed-position panel — poor results when the structure doesn't face the sun |
| Charging Controller | MPPT — maximizes harvest in all conditions, including clouds | Often unspecified — harvest efficiency unknown |
| Lighting Modes | Four selectable presets via on-fixture button, no app required | Often a single fixed dusk-to-dawn setting |
| CCT Selectability | 3000K or 4000K selectable on-site | Often fixed at a single color temperature |
| Enclosure Rating | IP65 + IK08 — weatherproof and impact-resistant | Often IP65 only, with no impact rating published |
| Warranty | 5-year manufacturer warranty | Often 1–2 years, if any |
A canopy light installed at a remote job site or transit shelter isn't getting swapped out every year — it needs to keep working with minimal attention for as long as possible. This one is built to do exactly that, all while eliminating ongoing electricity costs.
ELEDLights Stands Behind It
- 5-Year Warranty: Full manufacturer coverage backed directly by ELEDLights.
- US-based support Monday–Friday, 8am–8pm EST — call, text, or email a real person
- In stock, ships fast straight from our U.S. warehouses
