Ultra Bright Semi Cutoff LED Wall Pack w/Photocell - 5000K, Wattage Selectable
Lumens:
Watts:
Color Temp:
5 Year Warranty
212 in stockSwitch from Older Security Lighting for Big Improvements + Savings
- A Simple, Convenient Swap: Fits in the same fixture footprint as older metal halide wall packs.
- 3 Wattage Options: Select during install to get the best balance between output and energy cost for your location.
- Boosted Energy Savings: Photocell included for automatic dusk-to-dawn operation.
- Rugged Build Protected Against: Corrosion, Water, Dust, Bugs, and 4-6K Surges.
- 5+ Years of Worry-Free Lighting: 50,000-hour avg. lifespan backed by a 5-year warranty.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Switch from Older Security Lighting for Big Improvements + Savings
- A Simple, Convenient Swap: Fits in the same fixture footprint as older metal halide wall packs.
- 3 Wattage Options: Select during install to get the best balance between output and energy cost for your location.
- Boosted Energy Savings: Photocell included for automatic dusk-to-dawn operation.
- Rugged Build Protected Against: Corrosion, Water, Dust, Bugs, and 4-6K Surges.
- 5+ Years of Worry-Free Lighting: 50,000-hour avg. lifespan backed by a 5-year warranty.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
212 in stock
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
212 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 108W/90W/63W selectable at install |
| Replaces Wattage(s) | 250W to 400W |
| Light Output | 14,040/11,700/8,190 lumens |
| Luminous Efficacy (lm/W) | 130 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 0-10V |
| Lens Cover | Clear glass lens |
| Working Environment | Outdoors |
| Enclosure Rating | cUL Wet Location |
| Input Voltage | 120-277VAC |
| Temperature Rating | -20°C TO 45°C / -4°F - 113°F |
| Housing Material | Sealed die cast housing + high quality polycarbonate lens |
| Housing Color | Bronze |

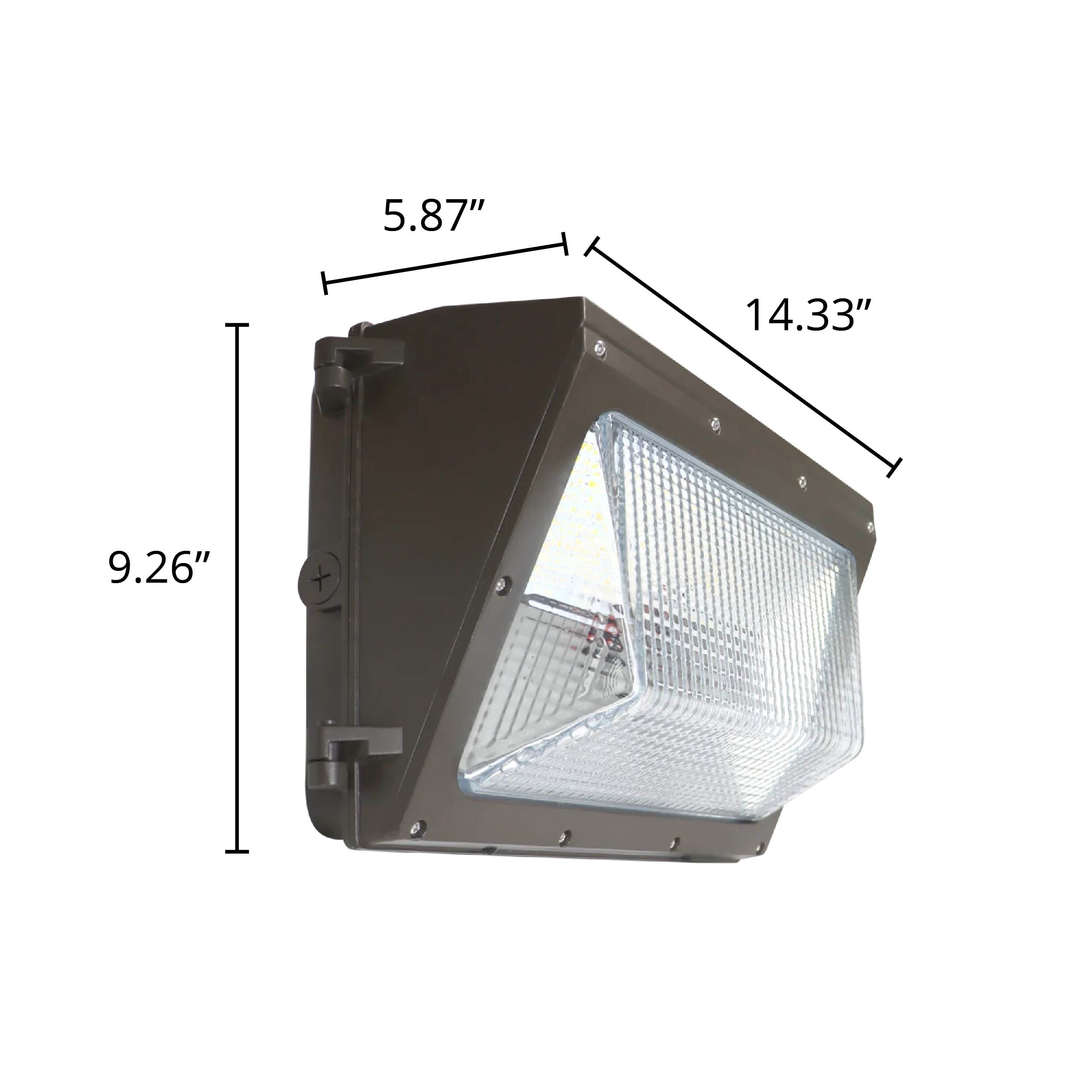

| Dimensions | 14.33" W x 9.26" H x 5.87" D |
| Certification | DLC 5.1, UL Wet Location |
| Warranty | 5 Years |
COMPARE KEY FEATURES
Semi Cutoff LED Wall Pack w/Photocell - 108W/90W/63W
|
RAB W34M Semi Cutoff LED Wall Pack - 3CCT - 40/60/80W
|
RAB W22 Adjustable Throw Wall Pack - 3 CCT - 50/70/85/100W
|
|
|---|---|---|---|
| Wattage | 108W/90W/63W selectable at install | 40W/60W/80W | 50W/70W/85W/100W |
| Equivalent to | 250W to 400W | 150W to 250W | 200W-310W |
| Light Output | 14,040/11,700/8,190 lumens | @3000K: 6,174/8,879/12,495 lumens @4000K: 6,552/9,625/12,495 lumens @5000K: 6,616/9,588/12,272 lumens |
@3000K, default 45° cutoff angle: 7,284/9,783/11,442/12,967 lumens @4000K, default 45° cutoff angle: 7,913/10,628/12,430/14,087 lumens @5000K, default 45° cutoff angle: 7,871/10,571/12,364/14,012 lumens |
| Color Temperature (CCT) | 5000K | 3000K/4000K/5000K | 3000K/4000K/5000K |
| Warranty | 5 Years | 5 years | 5 years |
|
$110.95
|
$186.00
View Details
|
$215.00
View Details
|
Key Features
Selectable Wattage & CCT
4-6K Surge Protection
Photocell Included
Switch from Older Security Lighting for Big Improvements + Savings
A Simple, Convenient Swap: Fits in the same fixture footprint as older metal halide wall packs.
3 Wattage & 3 CCT Options: Set during install to get the right tone and output for each location.
Boosted Energy Savings: Photocell included for automatic dusk-to-dawn operation.
Rugged Build Protected Against: Corrosion, Water, Dust, Bugs, and 4-6K Surges.
5+ Years of Worry-Free Lighting: 50,000-hour avg. lifespan backed by a 5-year warranty.
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
