Semi Cutoff LED Wall Pack - 3CCT - 65/52/39/26W
5 Year Warranty
Lumens:
Watts:
Color Temp:
Ensures Safe, Brightly Lit Entrances and Walkways
Go 5+ Years Without Changing a Bulb: Maintenance-free lifespan of 50,000+ hours.
Set the Power Output to Meet Needs: From an energy-saving 40% up to 100% brightness.
Choose the Light Tone to Match Aesthetics: From warm 3000K to cool 5000K white light.
Resists Corrosion, Insects, and Bugs: Fully sealed, die-cast aluminum enclosure.
Lasts through Tough Weather: UL/cUL Wet Location certification.

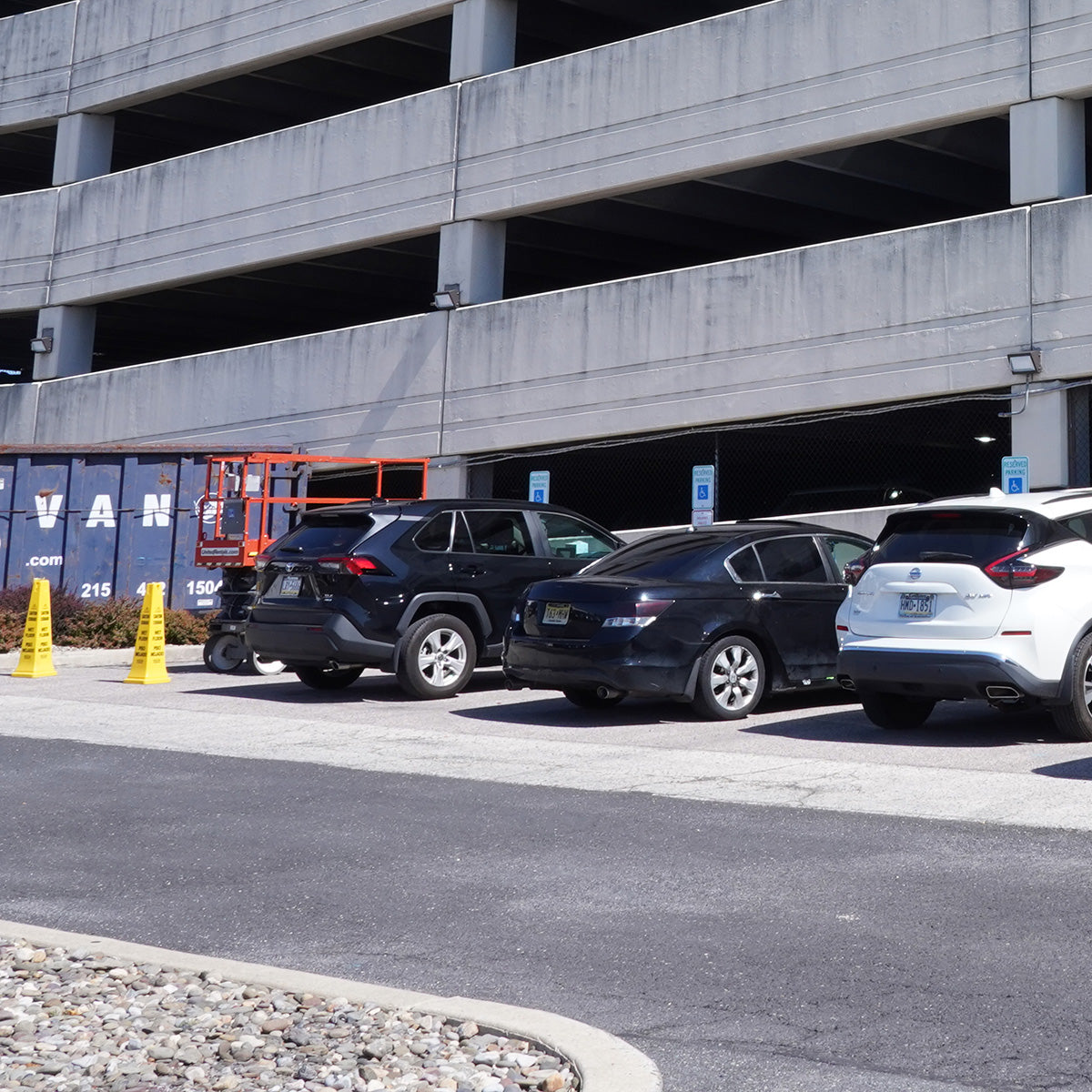

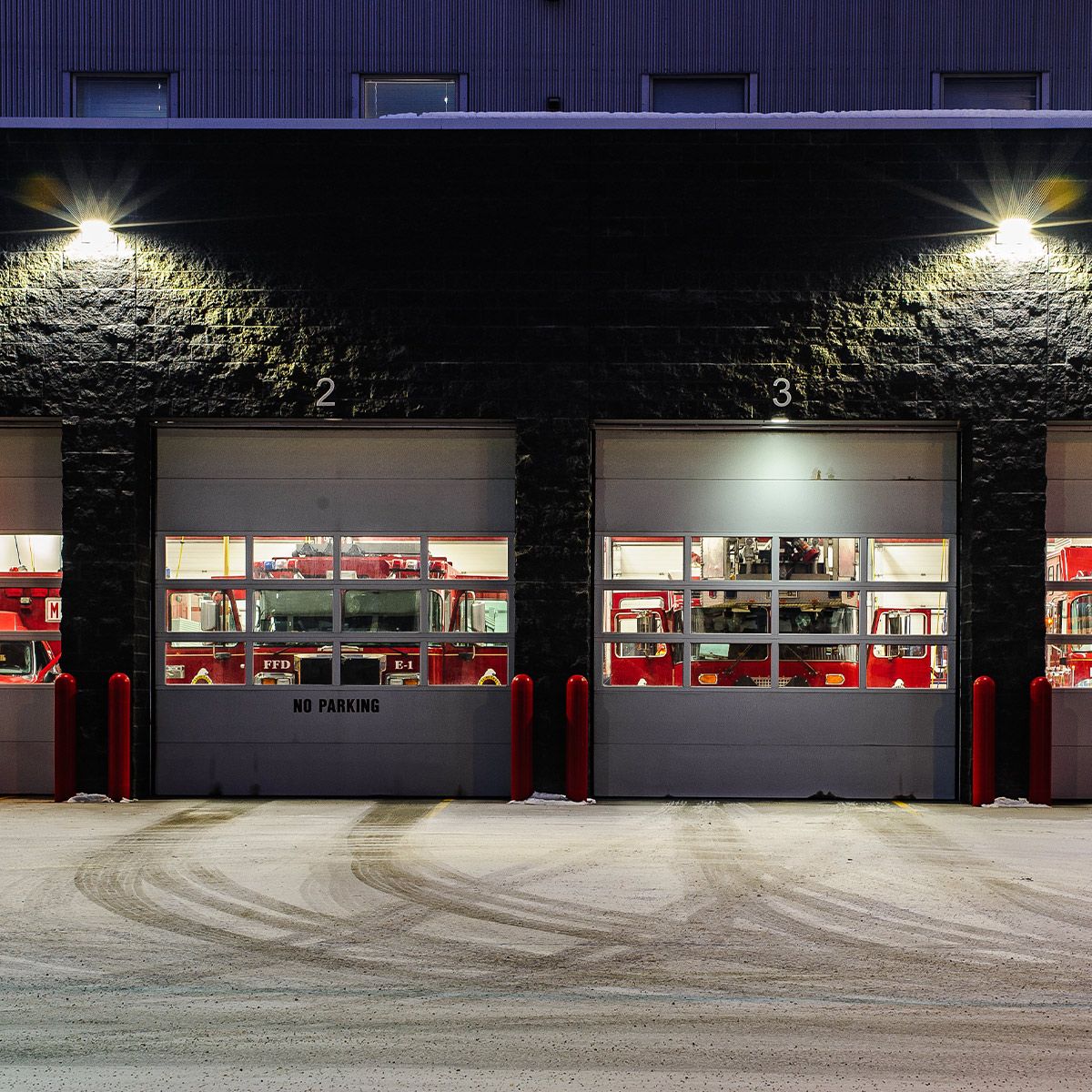

Brightens commercial building exteriors, parking garages, carports, loading docks, hospitals, and other general and security illumination applications.
Saves $/year in energy costs*
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
Ensures Safe, Brightly Lit Entrances and Walkways
Go 5+ Years Without Changing a Bulb: Maintenance-free lifespan of 50,000+ hours.
Set the Power Output to Meet Needs: From an energy-saving 40% up to 100% brightness.
Choose the Light Tone to Match Aesthetics: From warm 3000K to cool 5000K white light.
Resists Corrosion, Insects, and Bugs: Fully sealed, die-cast aluminum enclosure.
Lasts through Tough Weather: UL/cUL Wet Location certification.
Brightens commercial building exteriors, parking garages, carports, loading docks, hospitals, and other general and security illumination applications.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 65W power selectable (100%, 80%, 60%, 40%) at install |
| Replaces Wattage(s) | Up to 250W |
| Light Output |
At 3000K: 7,760/6,695/5,755/3,770 lumens At 4000K: 8,335/7,190/5,665/4,045 lumens At 5000K: 7,950/6,860/5,405/3,860 lumens |
| Luminous Efficacy (lm/W) | Up to 128 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K selectable at install |
| CRI | 70 |
| Dimming | 1-10V |
| Beam Angle | 110° |
| Lens Cover | Clear |
| Working Environment | Outdoor |
| Enclosure Rating | UL/cUL Wet Location |
| Light Type | Wired Fixture |
| Input Voltage | 120-277VAC |
| Temperature Rating | -20°C TO 45°C / -4°F - 113°F |
| Housing Material | Sealed die cast housing + PC cover |
| Housing Color | Bronze |
| Dimensions | 14.2” x 9.25” x 7.08” |
| Weight | 6.72 lbs. |
| Certification | DLC 5.1, UL/cUL Wet Location |
| Warranty | 5 Years |
