ELEDLights

90W Selectable Semi-Cutoff LED Wall Pack Light, DLC Premium

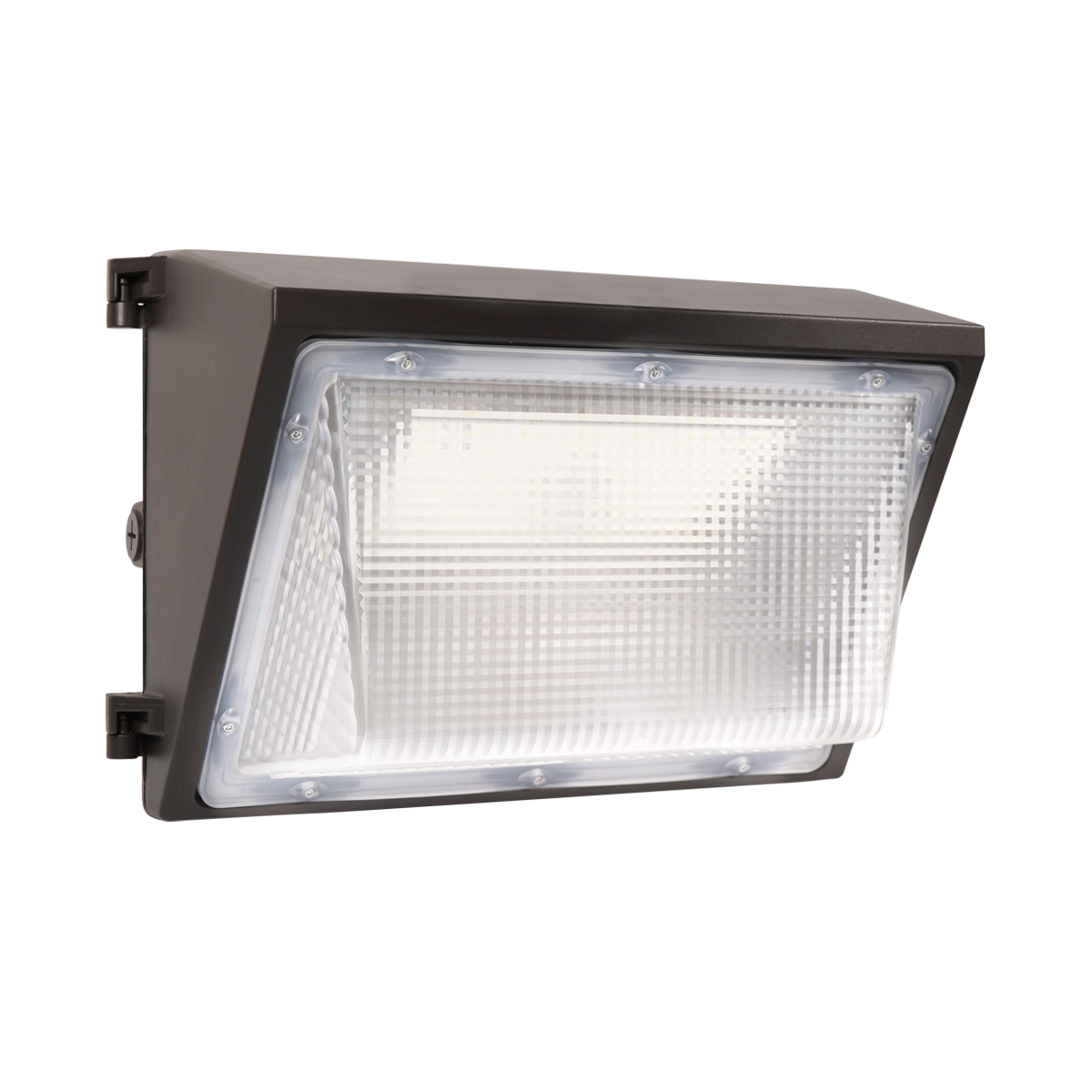

Black outdoor wall light fixture on a white background
Semi cutoff wall pack and security camera on a concrete parking garage
Semi cutoff LED wall pack dimensions: 13.17 in wide, 10.35 in tall, 5.73 in deep
Wall pack with integrated photocell turns off during the day and on at dusk, shown on a building by day and night
Wall pack built for all weather: IP65, IK10 impact rated, operates from -40°F to 122°F
Semi cutoff wall packs lighting a building walkway at 3000K, 4000K and 5000K
90W wall pack at 5000K with selectable 45W, 76W or 90W: 5,985, 10,110 and 11,950 lumens
Customer photo of a semi cutoff LED wall pack on a stucco building above a parking lot
Customer photo of a semi cutoff LED wall pack mounted high on a textured block wall
40W Semi-Cutoff LED Wall Pack illuminating an outdoor parking area with bright cold white light.
Semi cutoff LED wall pack in bronze, front view of the prismatic lens
Back of the semi cutoff LED wall pack showing the cooling fins and mounting plate
Semi cutoff LED wall pack in bronze, angled view from the left
ELEDLights

90W Selectable Semi-Cutoff LED Wall Pack Light, DLC Premium

SKU: WPSXE090WCS-PC
Sale price$99.95
Regular price

Step up to this wall pack when the job calls for broader coverage — the same field-proven platform, built for larger perimeters and higher-output applications.

  • Selectable 45/76/90W and 3000K/4000K/5000K via DIP switch means one SKU adapts to the spec instead of the other way around.
  • DLC Premium certified and 0-10V dimmable — rebate-eligible and ready to integrate with virtually any control system.
  • IP65/IK10-rated die cast aluminum housing with a built-in dusk-to-dawn photocell delivers automatic operation and long-term durability with no extra hardware required.
Ships in 2-3 business days
Free Shipping Over $500

Step up to this wall pack when the job calls for broader coverage — the same field-proven platform, built for larger perimeters and higher-output applications.

  • Selectable 45/76/90W and 3000K/4000K/5000K via DIP switch means one SKU adapts to the spec instead of the other way around.
  • DLC Premium certified and 0-10V dimmable — rebate-eligible and ready to integrate with virtually any control system.
  • IP65/IK10-rated die cast aluminum housing with a built-in dusk-to-dawn photocell delivers automatic operation and long-term durability with no extra hardware required.

Specs

Wattage(s) 45W / 76W / 90W Selectable
Replaces Wattage(s) 300
Light Output 5,850 to 12,850 lumens
Luminous Efficacy (lm/W) 130 to 143 lm/W
Color Temperature(s) 3000K / 4000K / 5000K Selectable
CRI (Color Accuracy) 70
Dimming Yes
Dimming Range 0-10V
Beam Angle 100°
Light Distribution Pattern Semi-Cutoff, 100° Beam Angle Learn More
×

Light Distribution Options

Type III Beam

Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles.

Type IV Beam

Provides forward directed light with minimal backlighting - great for perimeter installations.

Type V Beam

Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.

Lens Cover Tempered Glass Lens
Installation Wall Mount; Junction Box Mount; 1/2" NPS Conduit Mount
Recommended Installation Height 15 to 22 ft
Working Environment Outdoor
Enclosure Rating IP65, IK10
Light Type LED
LED Type LED 2835
Input Voltage 120–277VAC, 50/60Hz
Driver Type Constant Current (CC)
Power Factor 0.9
Surge Protection 4kV line-line, 6kV line-earth
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Housing Material Die Cast Aluminum Housing
Housing Color Dark Bronze
Dimensions 13.17" x 10.35" x 5.73"
Shipping Weight 5 lb
Package Dimensions 16.06" x 12.36" x 7.95"
Certification DLC Premium, UL Listed
Warranty 5 Years
Additional Specifications Finish: Powder Coating Power Supply: Ankom Mounting Options: Wall Mount, Junction Box Mount, 1/2" NPS Conduit Mount Quantity per Carton: 1
Other Specifications CCT and wattage selectable via DIP switch. Default wattage: 90W. Default CCT: 5000K.

Details

This heavy-duty, semi-cutoff LED wall pack is engineered for contractors and facility managers who need dependable exterior lighting across larger perimeter areas.

  • Selectable wattage (45/76/90W) and CCT (3000K/4000K/5000K) via DIP switch — dial in exactly what the job requires without stocking multiple fixtures.
  • DLC Premium certified and 0-10V dimmable, qualifying for utility rebates and integrating cleanly with existing control systems.
  • IP65-rated die cast aluminum housing with IK10 impact resistance stands up to harsh outdoor environments and physical abuse.
  • Integrated dusk-to-dawn photocell handles automatic on/off without any additional sensor hardware or wiring.

Backed by a 5-year warranty and ready to ship — ELEDLights has the specs, stock, and support to keep your project on schedule.
