10W Solar Sign, Billboard & Area Light





10W Solar Sign, Billboard & Area Light





10W Solar Sign, Billboard & Area Light
10W Solar Sign, Billboard & Area Light

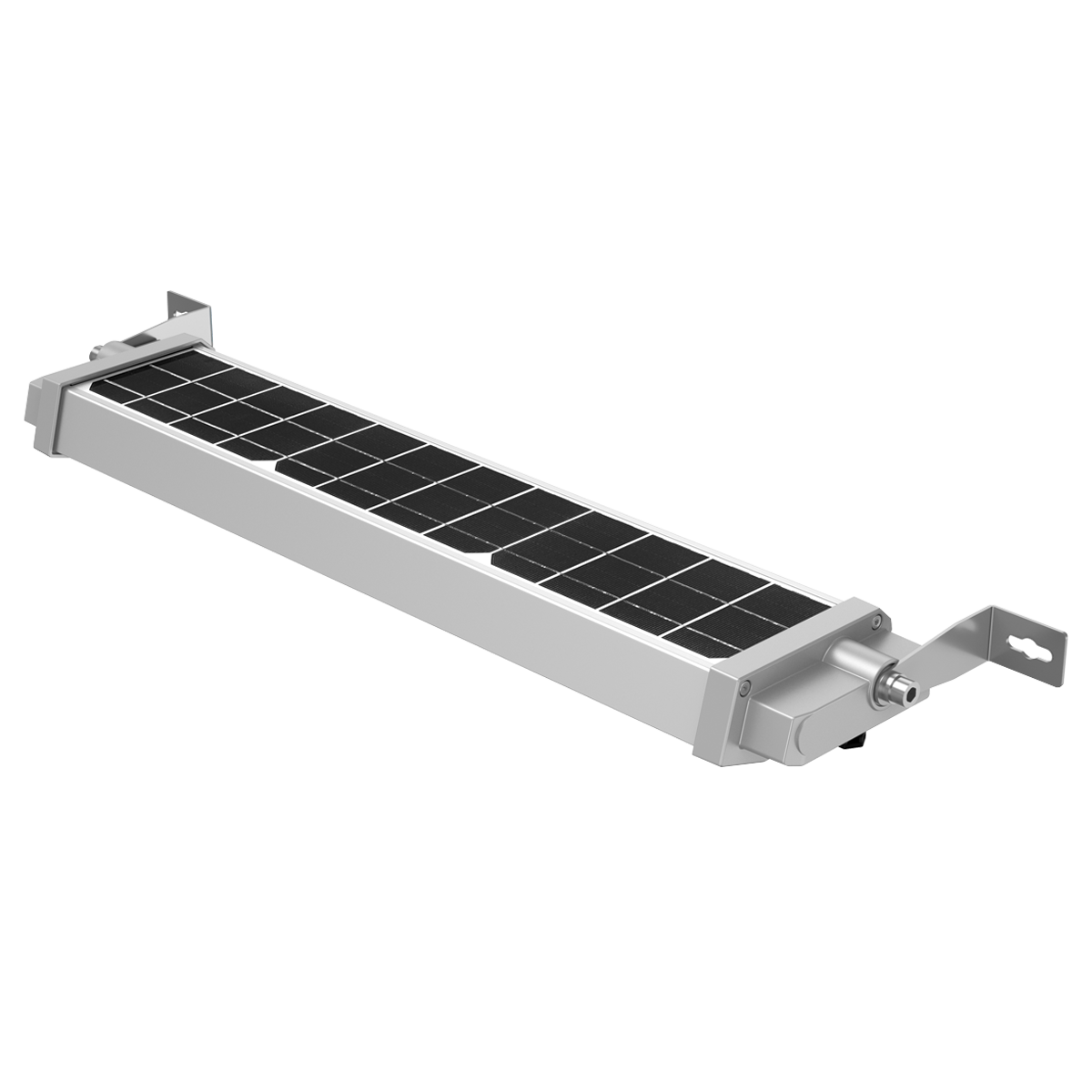

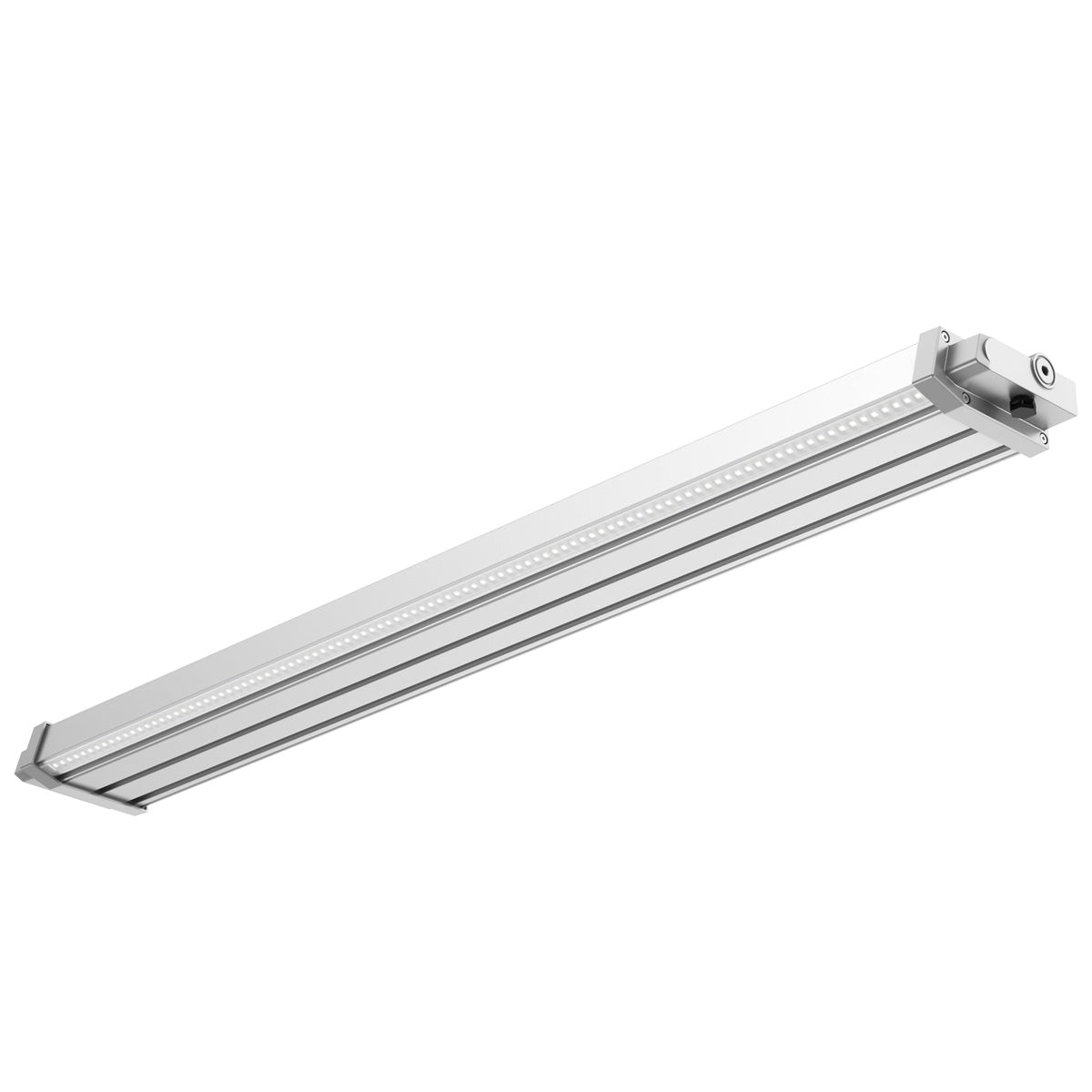

This slim, linear solar sign light with angle-adjustable design fits into tight mounting spaces and lets you dial in exactly where the light lands — an excellent, affordable choice for utility-free facade, sign, and area lighting wherever a bulkier fixture won't fit.
- Fits almost anywhere without drilling for wire passthroughs, junction boxes, or trenching — mount it, angle it, and enjoy the light without any of the bills
- Built around an industry-preferred LiFePO4 battery rated for 2,000+ charge cycles, this is a long-lasting solution that keeps performing well after standard lithium-ion batteries fail — fewer replacements, lower long-term costs than other fixtures in this price range
- Rated IP66 for full washdown protection, standing up to landscapers, pressure washers, rain, and other harsh conditions wherever it's mounted
This slim, linear solar sign light with angle-adjustable design fits into tight mounting spaces and lets you dial in exactly where the light lands — an excellent, affordable choice for utility-free facade, sign, and area lighting wherever a bulkier fixture won't fit.
- Fits almost anywhere without drilling for wire passthroughs, junction boxes, or trenching — mount it, angle it, and enjoy the light without any of the bills
- Built around an industry-preferred LiFePO4 battery rated for 2,000+ charge cycles, this is a long-lasting solution that keeps performing well after standard lithium-ion batteries fail — fewer replacements, lower long-term costs than other fixtures in this price range
- Rated IP66 for full washdown protection, standing up to landscapers, pressure washers, rain, and other harsh conditions wherever it's mounted
Choose options
Specs
| Wattage(s) | 10W |
| Light Output | Up to 1,700 lm |
| Luminous Efficacy (lm/W) | Up to 170 lm/W |
| Battery | LiFePO4, 51.84 Wh |
| Solar Panel Type | Mono-Crystalline Solar Panel |
| Solar Panel Wattage | 15W |
| Solar Charge Controller | PWM |
| Solar Panel Tilt Range | -30° to +30° |
| Run Time | Intelligent mode: 1 day* |
| Operation Method |
Intelligent mode: First Hour 100% Brightness 2nd to 4th Hour 70% 5th to 6th Hour 50% 7th Hour to Dawn 20% or until light turns off Fixture can be programmed for half-brightness working mode (all outputs halved) with optional remote controller. |
| Average Lamp Life |
L90: 80,000 hours L80: 170,000 hours L70: 270,000 hours |
| Color Temperature(s) | 4000K |
| CRI (Color Accuracy) | 70 |
| Dimming | Timer Dimming |
| Charge Time | >6 hours* |
| Beam Angle | 100° |
| EPA (Effective Projected Area) | 0.13m2/1.39ft2 |
| Working Environment | Outdoor |
| Enclosure Rating | IP66 |
| LED Type | LED 2835 |
| Temperature Rating | 32°F to 122°F |
| Housing Material | Aluminum Alloy with Polycarbonate Optical Lens |
| Housing Color | Silver |

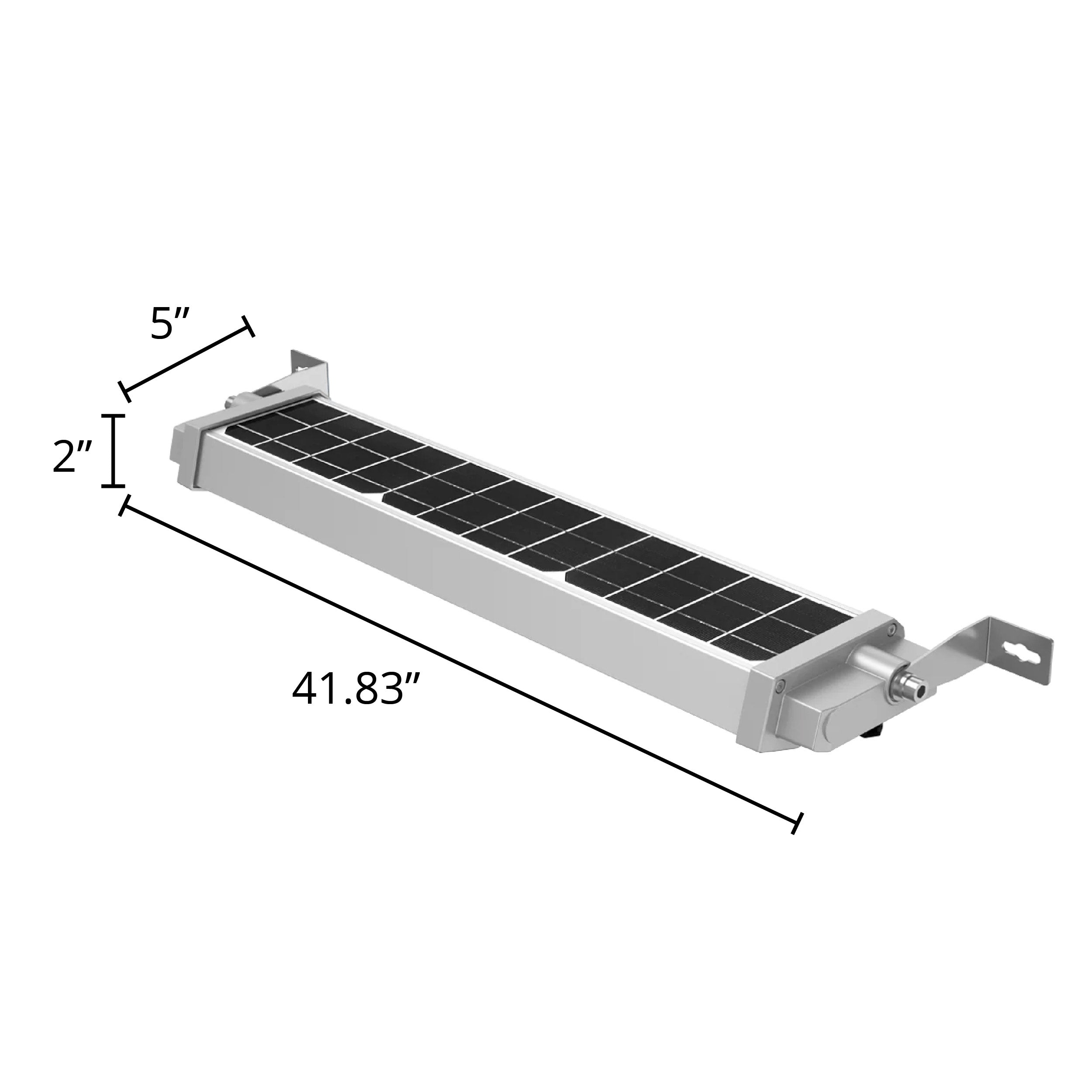

| Dimensions | 41.83” x 5” x 2" |
| Weight | 7.5 lbs |
| Warranty | 3 Years |
| Additional Specifications | *Performance based on ideal conditions - solar lights are heavily affected by sunlight levels, temperatures, snow, dirt, and other conditions |
Details
A Solar Sign Light That's Not Just for Signs
This rotatable solar sign & area light brings off-grid, zero-maintenance illumination to the vertical surfaces that need it most — storefront signs, billboards, park signs, bay doors, bus stop shelters, and building exteriors — in a slim linear form that mounts almost anywhere a standard fixture can't.
- No Utility Bill, No Trenching, No Electrician: The built-in solar panel and battery eliminate the cost and hassle of running power to a sign, bay door, or exterior wall — mount it, let it charge, and it runs itself indefinitely at zero ongoing energy cost.
- Bright When It Counts: Intelligent mode delivers full brightness during the first hour after dusk, when visibility and safety matter most, whether that's a sign getting noticed, a bus stop staying visible to drivers, or a bay door staying lit for anyone approaching after dark. Output then steps down through the evening to stretch a single day's charge through to dawn.

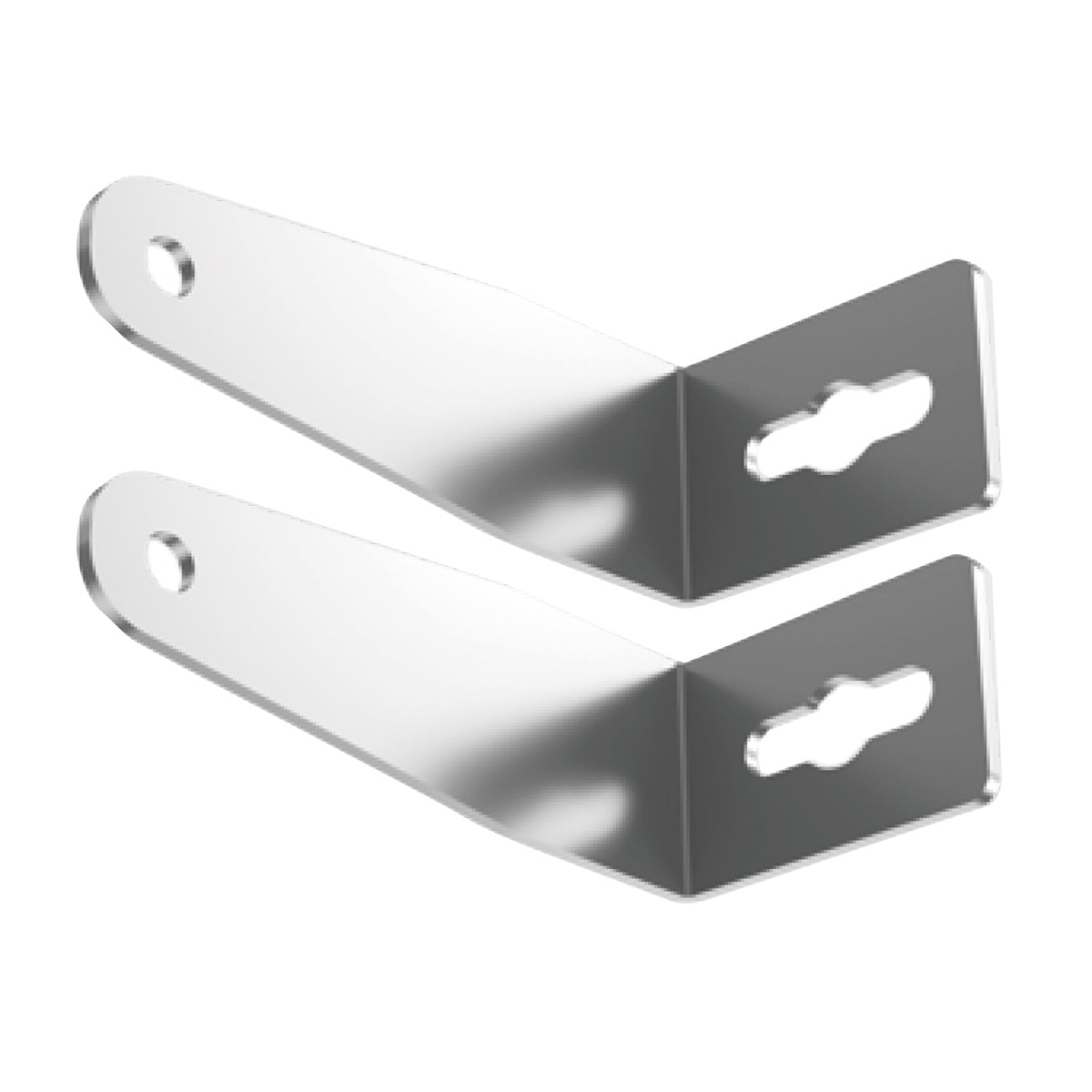

- Fits Where Bulkier Fixtures Can't: At just 2" tall and 5" deep, this slim linear light mounts on rotatable brackets above signs, doorways, and building faces without the bulk of a standard area light — a practical fit for tight architectural spaces and low-clearance mounting locations.
- Aim It Exactly Where It's Needed: Independent panel tilt from -30° to +30° lets you optimize solar exposure regardless of mounting angle, while the fixture itself adjusts separately to direct light precisely onto the sign, doorway, or wall surface being illuminated. Mount it at the edge of a covered shelter, canopy, or overhang with the panel angled out to catch open sky while the fixture aims inward to light the space beneath — a placement a fixed-angle fixture couldn't pull off.
- Bright Enough to Get Noticed, Efficient Enough to Last: Delivers up to 1,700 lumens at up to 170 lm/W — enough output for signs, billboards, and building-mounted applications, without excessive battery drain or panel size requirements.
- Set It and Forget It: An L70 rating of 270,000 hours means the LEDs themselves will keep delivering usable light long after most commercial fixtures need replacing, and a LiFePO4 battery rated for 2,000+ charge cycles holds up to years of daily charging far better than standard lithium-ion. Together, they make this a fixture you mount once and stop thinking about.
- Full Washdown Protection, Built to Stay Clear: IP66 sealing stands up to direct hose-downs, driving rain, and harsh weather, while built-in anti-condensation vents keep the lens from fogging internally over years of temperature swings.

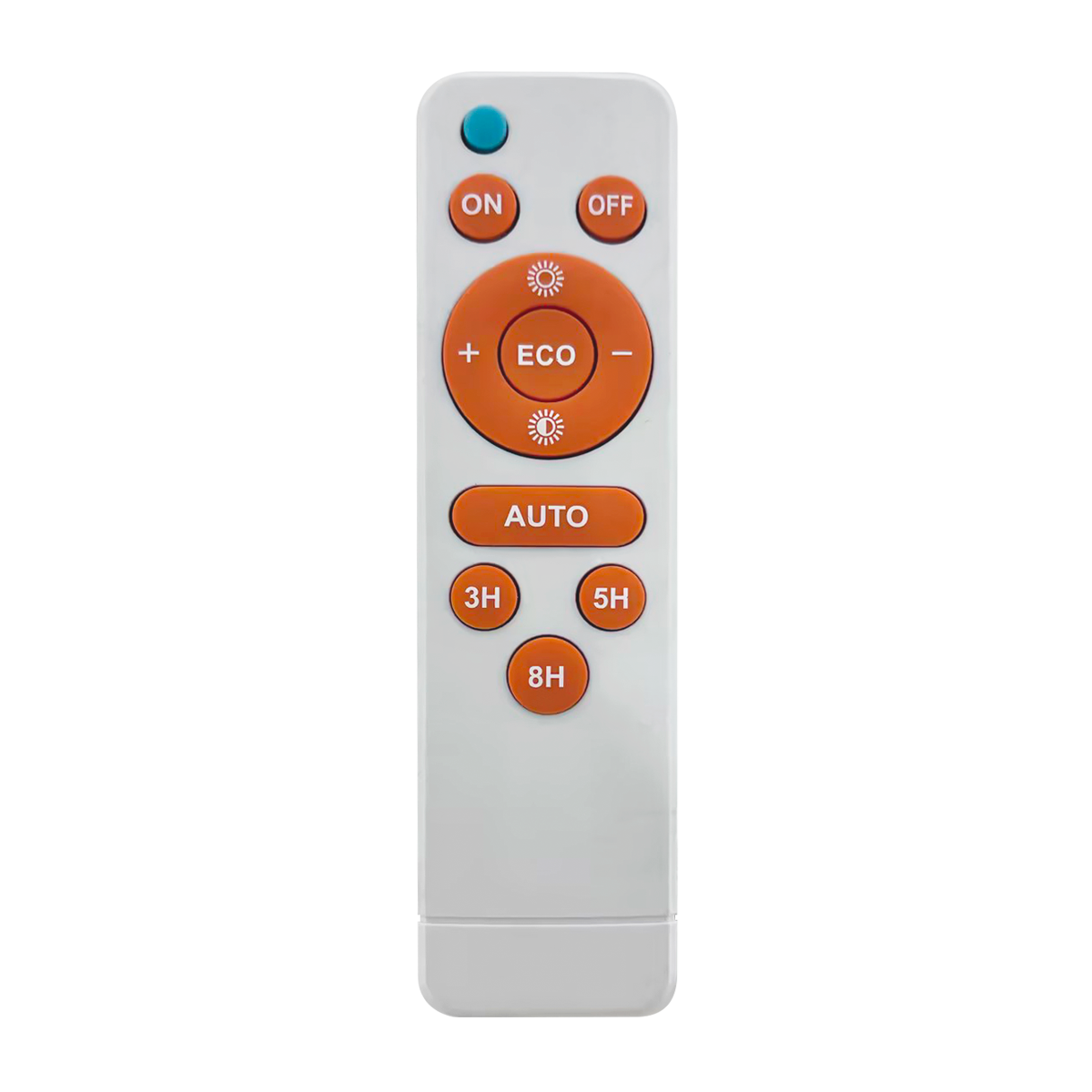

- Extend Runtime When You Need To: An optional remote control (sold separately) enables a programmable half-brightness working mode, stretching battery life further for installations with less consistent daily sun exposure.
- A Backup Option If the Sun Doesn't Cooperate: In addition to solar charging, the battery can be topped off via USB — a practical backup for mounting locations with limited direct sun exposure, or during extended stretches of overcast weather.
-
3-Year Warranty: Full coverage backed directly by our US-based team.
Ideal Applications
- Storefront & Business Signs: Slim profile mounts cleanly above or beside sign faces, delivering focused illumination without a bulky fixture competing for visual attention.
- Billboards Up to 8ft in Height: Independent panel and fixture aiming direct light precisely onto the sign face. For billboards taller than 8ft or highway-adjacent installations, check out our higher-output SOLARSBD series.
- Park Signs & Bulletin Boards: Off-grid operation and a slim, unobtrusive profile suit park entrance signs, trail markers, and community bulletin boards without running power through park grounds.

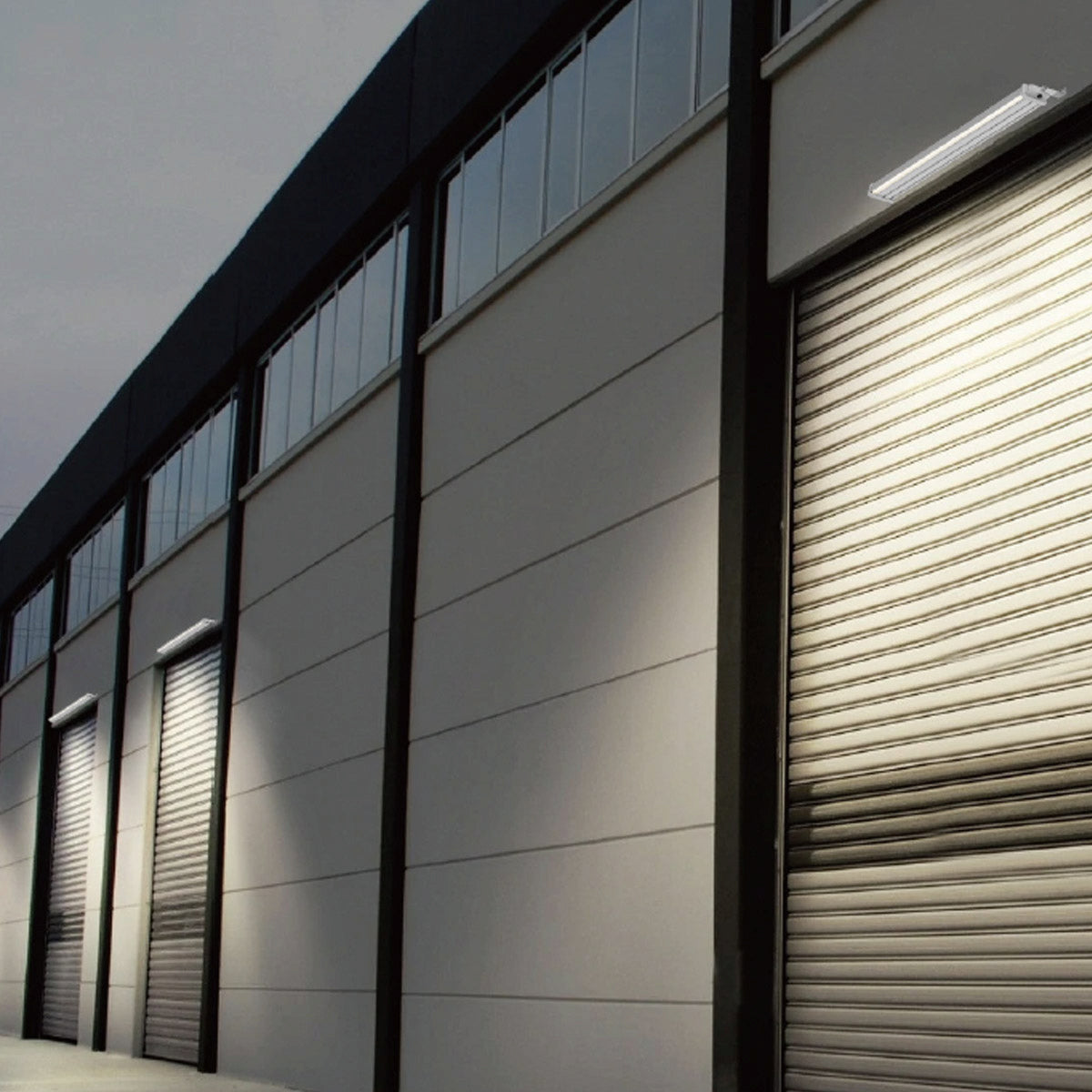

- Bay Doors & Loading Areas: Reliable nightly illumination above bay doors and loading entrances without running conduit across a working facility.
- Bus Stop Shelters & Transit Infrastructure: Off-grid operation suits transit shelters and public infrastructure where extending grid power to every stop isn't practical.
- Perimeter Walkways & Exterior Walls: General-purpose wall-mounted illumination for building exteriors, entryways, and perimeter walkways without a utility connection.
Note: if the application involves continuous façade wash or wall-wash lighting where maximum color accuracy matters for logos and graphics, our SOLARSBA may be a better fit. For pedestrian-facing or roadway-adjacent installations where glare control and a warmer color temperature are priorities, consider the SOLARSBC Series instead.
Sizing Guide: How Many Fixtures Does Your Sign Need?
This 42" fixture covers a standard span of sign width per unit. Use the table below as a starting point, then add one additional fixture per extra 66" of width beyond 96".
| Sign Width | Fixtures Needed |
|---|---|
| 48" | 1 |
| 96" | 2 |
| Over 96" | Add 1 fixture per additional 66" of width |
Dark sign backgrounds or high-ambient-light environments may require additional fixture density beyond these guidelines. Contact our team for a custom layout recommendation.
Why Buy Commercial Grade?
Cheap solar utility lights are easy to find online. Here's what separates this commercial-grade fixture from the typical marketplace alternative.
| This Fixture | Typical Marketplace Import | |
|---|---|---|
| Battery Chemistry | LiFePO4 — 2,000+ charge cycles, stable in extreme temps | Often standard lithium-ion — shorter cycle life, more frequent replacement |
| Lamp Life | L70: 270,000 hours | Often unspecified or under 50,000 hours |
| Enclosure Rating | IP66 — full washdown protection with anti-condensation venting | Often IP65 or unrated — not built for direct hose-down or heavy weather |
| Charging Options | Solar with USB backup for low-sun locations | Solar only — no backup charging option |
| Mounting Flexibility | Rotatable brackets, -30° to +30° independent panel tilt | Often fixed-angle mounting — limited adaptability to the installation surface |
| Warranty | 3-year manufacturer warranty | Often 30–90 days, if any |
A fixture mounted above a bay door or bus shelter isn't getting swapped out every year — it needs to keep working with minimal attention for as long as possible. This one is built to do exactly that, all while eliminating ongoing electricity costs.
