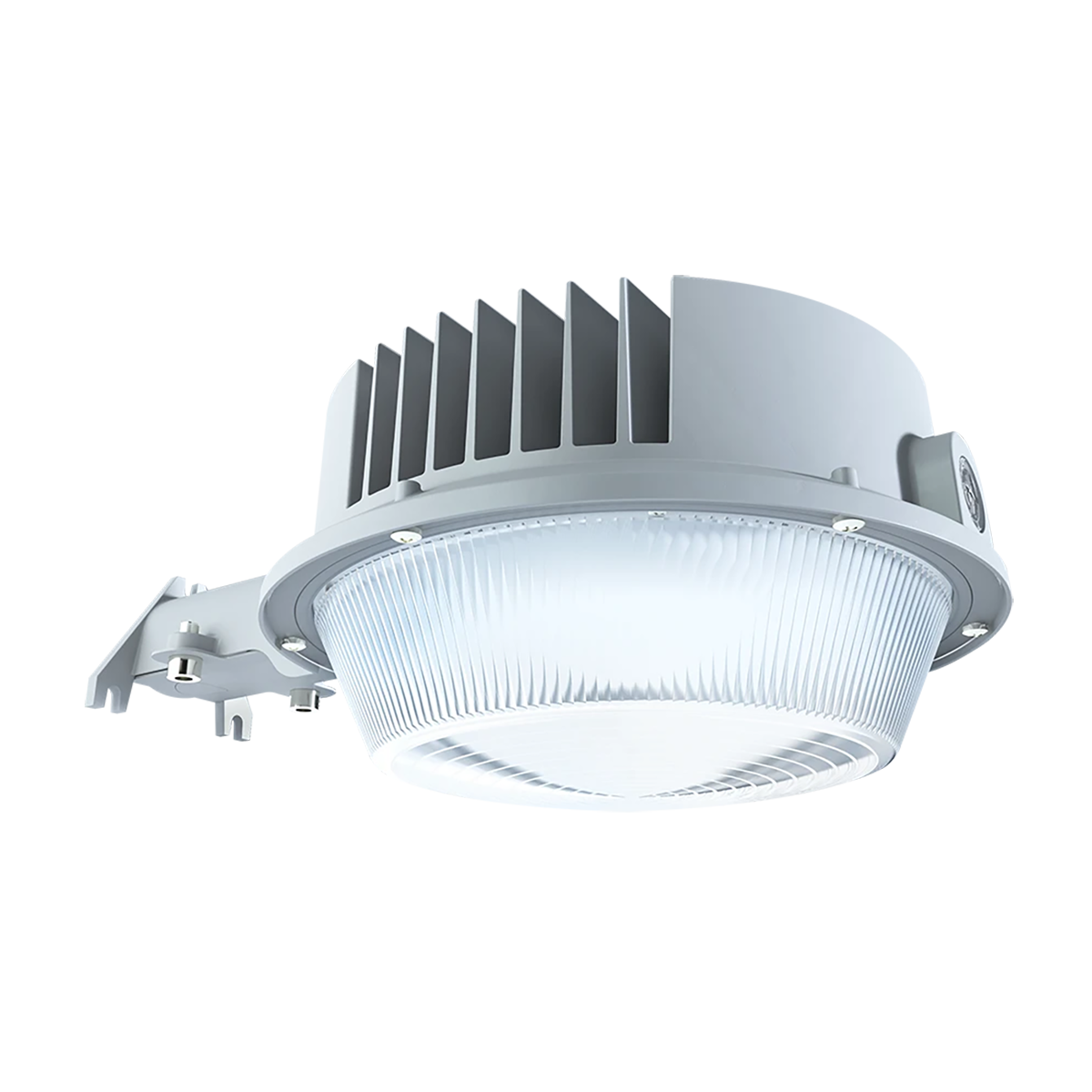

120W Selectable RAB YBLEDH LED Barn Light
Lumens:
Watts:
Color Temp:
5 Year Warranty
The RAB YBLEDH is a heavy-duty, field-adjustable LED barn light designed for contractors and facility managers who need serious output — up to 120W and 17,328 lumens — without stocking multiple fixtures.
- Field-selectable wattage (80/100/120W) and color temperature (3000K/4000K/5000K) let you configure the right light on-site, no special orders required.
- Delivers up to 17,328 lumens at up to 163.1 lm/W — DLC Premium listed for maximum utility rebate eligibility.
- Integrated dusk-to-dawn photocell and standard 0-10V dimming are built in, so you're not adding hardware or cost.
- IP65-rated, wet location listed, and cold-start rated to -40°F — engineered for demanding outdoor environments.
- Precision die-cast aluminum housing mounts directly to a wall or existing YARM24 arm for a clean, straightforward install.
Backed by RAB's 5-year limited warranty and in stock now at ELEDLights — competitive pricing, fast shipping, no guesswork.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price & free shipping:
The RAB YBLEDH is a heavy-duty, field-adjustable LED barn light designed for contractors and facility managers who need serious output — up to 120W and 17,328 lumens — without stocking multiple fixtures.
- Field-selectable wattage (80/100/120W) and color temperature (3000K/4000K/5000K) let you configure the right light on-site, no special orders required.
- Delivers up to 17,328 lumens at up to 163.1 lm/W — DLC Premium listed for maximum utility rebate eligibility.
- Integrated dusk-to-dawn photocell and standard 0-10V dimming are built in, so you're not adding hardware or cost.
- IP65-rated, wet location listed, and cold-start rated to -40°F — engineered for demanding outdoor environments.
- Precision die-cast aluminum housing mounts directly to a wall or existing YARM24 arm for a clean, straightforward install.
Backed by RAB's 5-year limited warranty and in stock now at ELEDLights — competitive pricing, fast shipping, no guesswork.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 80/100/120W (field selectable) |
| Replaces Wattage(s) | Up to 400W Metal Halide / 310W HPS (at 120W and 100W settings); up to 350W Metal Halide / 250W HPS (at 80W setting) |
| Light Output | 11,422–17,328 lm |
| Luminous Efficacy (lm/W) | 132.5–163.1 lm/W |
| Average Lamp Life | 100,000 Hours (L70, per IES LM-80 / TM-21) |
| Color Temperature(s) | 3000K / 4000K / 5000K selectable (factory default 4000K) |
| CRI (Color Accuracy) | 82–85 |
| Dimming | 0-10V |
| Dimming Range | 10–100% (0-10V) |
| Lens Cover | Polycarbonate lens; Polyethylene Terephthalate (PET) reflector |

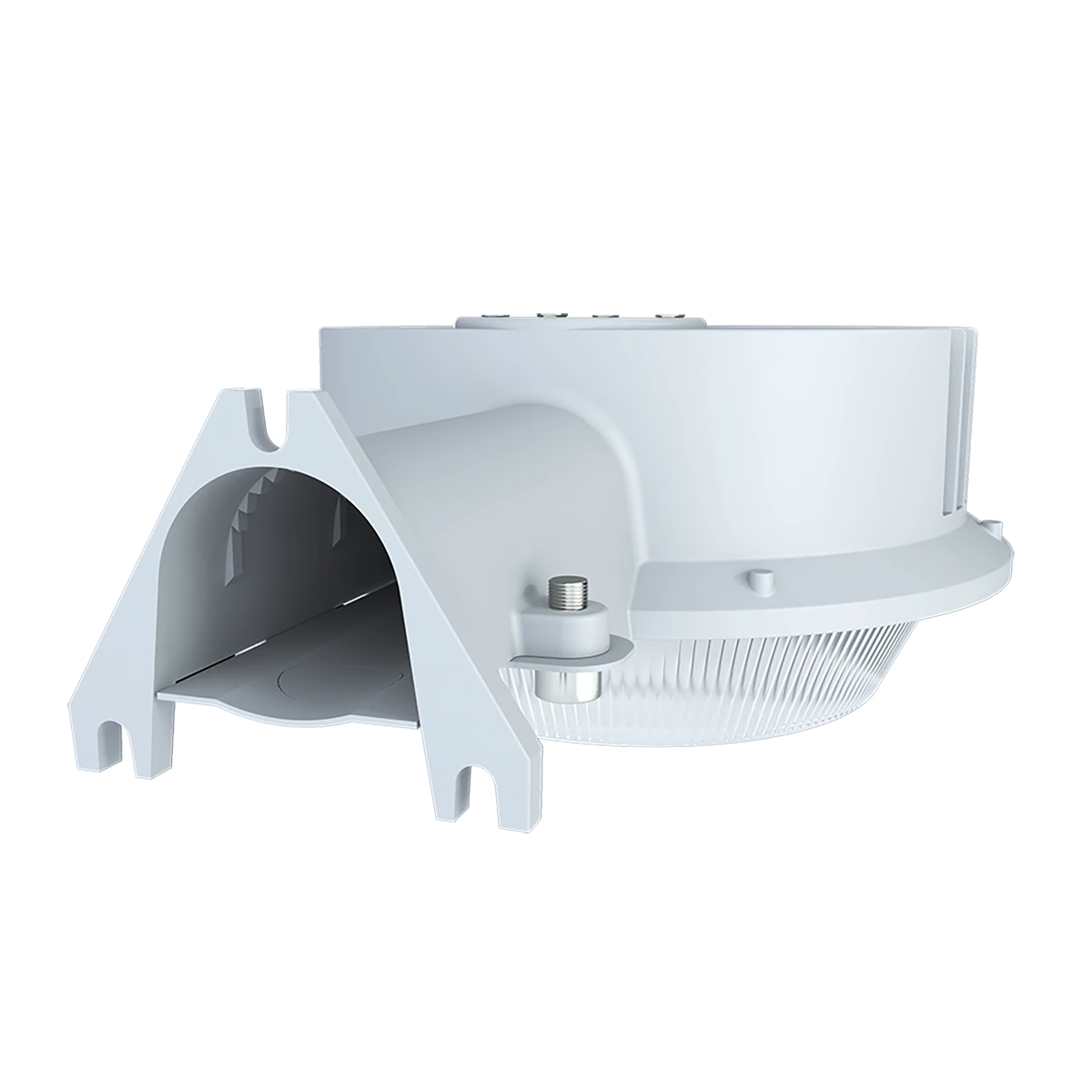

| Installation | Mounts on wall or existing arm/pole YARM24 (1 5/8" diameter pipe) |
| Working Environment | Outdoor; Wet Location |
| Enclosure Rating | IP65 |
| Light Type | LED |
| LED Type | Long-life, high-efficiency surface-mount LEDs |
| Input Voltage | 120–277V AC, 50/60Hz |
| Driver Type | Constant Current, Class 1 |
| Power Factor | 99.8% at 120V / 96.3% at 277V (120W); 99.7% at 120V / 96.3% at 277V (100W); 99.6% at 120V / 96.3% at 277V (80W) |
| THD (Total Harmonic Distortion) | 5.25% at 120V / 11.05% at 277V (all wattages) |
| Surge Protection | 6 kV |
| Input Power Rating | 78.5–119.4W |
| Input Current | 120W: 120V–1.00A, 208V–0.58A, 240V–0.50A, 277V–0.42A; 100W: 120V–0.85A, 208V–0.48A, 240V–0.42A, 277V–0.37A; 80W: 120V–0.68A, 208V–0.39A, 240V–0.33A, 277V–0.29A |
| Temperature Rating | -40°F (-40°C) min. starting; 104°F (40°C) max. ambient |
| Housing Material | Precision die-cast aluminum housing and arm |
| Housing Color | Gray |

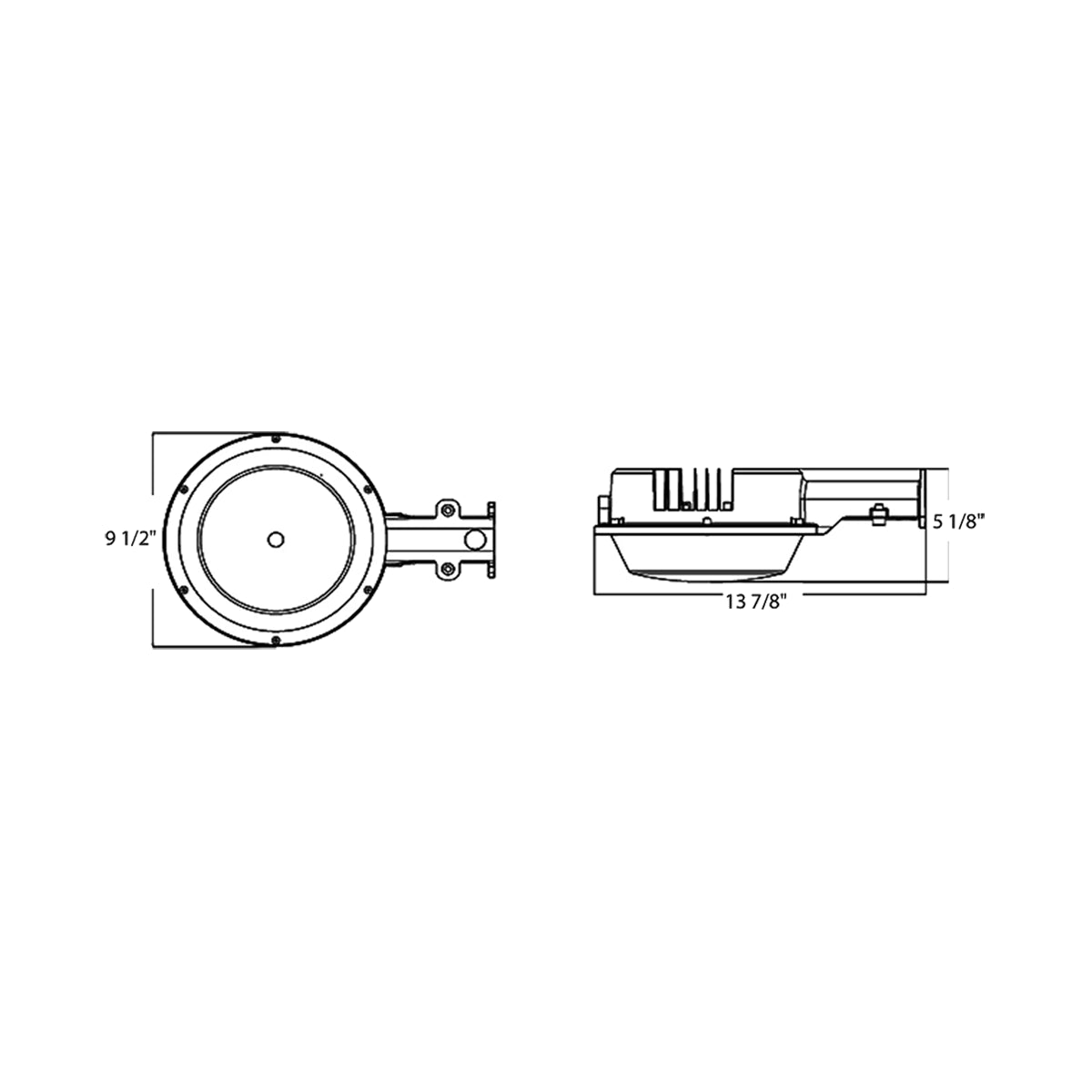

| Dimensions | 9 1/2" diameter; 13 7/8" depth; 5 1/8" height |
| Shipping Weight | 4.7 lbs |
| Certification | DLC Premium, UL Listed |
| Warranty | 5-Year Limited |
| Additional Specifications | BUG Rating — 120W: B3 U3 G2; 100W: B3 U3 G2; 80W: B3 U3 G1. Color uniformity per ANSI C78.377-2017. Mercury and UV free; RoHS-compliant components. Trade Agreements Act compliant (product of Cambodia). Integrated 120–277V dusk-to-dawn photocell included. |
| Other Specifications | Factory default wattage: 120W. Factory default color temperature: 4000K. Tested per IESNA LM-79 and LM-80 by an independent laboratory. |
