60W Selectable RAB YBLED LED Barn Light
Lumens:
Watts:
Color Temp:
5 Year Warranty
The RAB YBLED is a field-adjustable LED barn light built for contractors and facility managers who need a versatile, high-performance outdoor fixture without the hassle of stocking multiple SKUs.
- Field-selectable wattage (40/50/60W) and color temperature (3000K/4000K/5000K) let you dial in the right output on the job — no separate orders needed.
- Delivers up to 8,728 lumens at up to 161.2 lm/W, making it one of the most efficient fixtures in its class — and DLC Premium listed for maximum rebate eligibility.
- Integrated dusk-to-dawn photocell and standard 0-10V dimming give you built-in control without extra hardware.
- IP65-rated, wet location listed, and cold-weather rated to -40°F — built to handle harsh outdoor environments long-term.
- Precision die-cast aluminum housing mounts to any wall or existing YARM24 arm for a straightforward install.
Backed by RAB's 5-year limited warranty and available now from ELEDLights — your dependable source for commercial-grade outdoor lighting.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price & free shipping:
The RAB YBLED is a field-adjustable LED barn light built for contractors and facility managers who need a versatile, high-performance outdoor fixture without the hassle of stocking multiple SKUs.
- Field-selectable wattage (40/50/60W) and color temperature (3000K/4000K/5000K) let you dial in the right output on the job — no separate orders needed.
- Delivers up to 8,728 lumens at up to 161.2 lm/W, making it one of the most efficient fixtures in its class — and DLC Premium listed for maximum rebate eligibility.
- Integrated dusk-to-dawn photocell and standard 0-10V dimming give you built-in control without extra hardware.
- IP65-rated, wet location listed, and cold-weather rated to -40°F — built to handle harsh outdoor environments long-term.
- Precision die-cast aluminum housing mounts to any wall or existing YARM24 arm for a straightforward install.
Backed by RAB's 5-year limited warranty and available now from ELEDLights — your dependable source for commercial-grade outdoor lighting.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 40/50/60W (field selectable) |
| Replaces Wattage(s) | Up to 250W Metal Halide / 200W HPS (at 60W setting) |
| Light Output | 5,502–8,728 lm |
| Luminous Efficacy (lm/W) | 132.4–161.2 lm/W |
| Average Lamp Life | 100,000 Hours (L70, per IES LM-80 / TM-21) |
| Color Temperature(s) | 3000K / 4000K / 5000K selectable (factory default 4000K) |
| CRI (Color Accuracy) | 82–85 |
| Dimming | 0-10V |
| Dimming Range | 10–100% (0-10V) |
| Lens Cover | Polycarbonate lens; Polyethylene Terephthalate (PET) reflector |
| Installation | Mounts on wall or existing arm/pole YARM24 (1 5/8" diameter pipe) |
| Working Environment | Outdoor; Wet Location |
| Enclosure Rating | IP65 |
| Light Type | LED |
| LED Type | Long-life, high-efficiency surface-mount LEDs |
| Input Voltage | 120–277V AC, 50/60Hz |
| Driver Type | Constant Current, Class P |
| Power Factor | 99.6% at 120V / 94% at 277V (60W); 99.5% at 120V / 94% at 277V (50W); 99.3% at 120V / 94% at 277V (40W) |
| THD (Total Harmonic Distortion) | 5.25% at 120V / 11.05% at 277V (all wattages) |
| Surge Protection | L-N: 4 kV; L/N-PE: 6 kV |
| Input Power Rating | 38.6–60.9W |
| Input Current | 60W: 120V–0.50A, 208V–0.29A, 240V–0.25A, 277V–0.22A; 50W: 120V–0.42A, 208V–0.24A, 240V–0.21A, 277V–0.18A; 40W: 120V–0.33A, 208V–0.19A, 240V–0.17A, 277V–0.14A |
| Temperature Rating | -40°F (-40°C) min. starting; 104°F (40°C) max. ambient |
| Housing Material | Precision die-cast aluminum housing and arm |
| Housing Color | Gray |

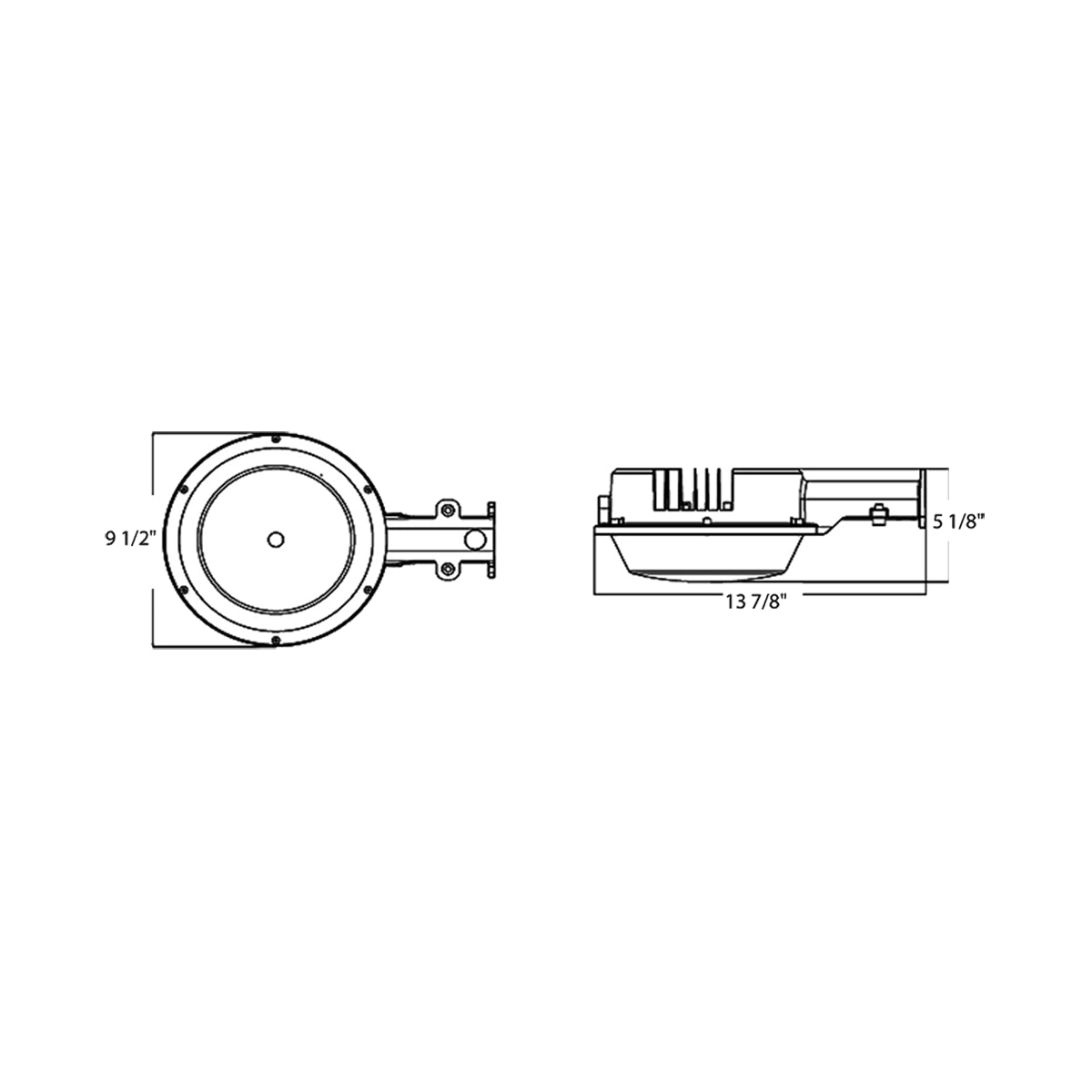

| Dimensions | 9 1/2" diameter; 13 7/8" depth; 5 1/8" height |
| Shipping Weight | 3.8 lbs |
| Certification | DLC Premium, UL Listed |
| Warranty | 5-Year Limited |
| Additional Specifications | BUG Rating — 60W: B3 U3 G1; 50W: B3 U2 G1; 40W: B2 U2 G1. Color uniformity per ANSI C78.377-2017. Mercury and UV free; RoHS-compliant components. Trade Agreements Act compliant (product of Cambodia). Integrated 120–277V dusk-to-dawn photocell included. Wattage equivalency: 50W/40W replaces up to 200W MH or 150W HPS. |
| Other Specifications | Factory default wattage: 60W. Factory default color temperature: 4000K. Tested per IESNA LM-79 and LM-80 by an independent laboratory. |
