450W Selectable RAB X17 LED Flood Light, Trunnion, Heights 25 to 40 ft
450W Selectable RAB X17 LED Flood Light, Trunnion, Heights 25 to 40 ft
450W Selectable RAB X17 LED Flood Light, Trunnion, Heights 25 to 40 ft
450W Selectable RAB X17 LED Flood Light, Trunnion, Heights 25 to 40 ft
Ideal for sports fields, large parking lots, and industrial sites at 25–40 ft mounting heights, this field-selectable 250–450W flood light delivers up to 66,638 lumens with an included twistlock photocell.
- Up to 66,638 lumens at 164 lm/W
- Field-selectable wattage
- Photocell included for automated on/off
Ideal for sports fields, large parking lots, and industrial sites at 25–40 ft mounting heights, this field-selectable 250–450W flood light delivers up to 66,638 lumens with an included twistlock photocell.
- Up to 66,638 lumens at 164 lm/W
- Field-selectable wattage
- Photocell included for automated on/off
Choose options
Details

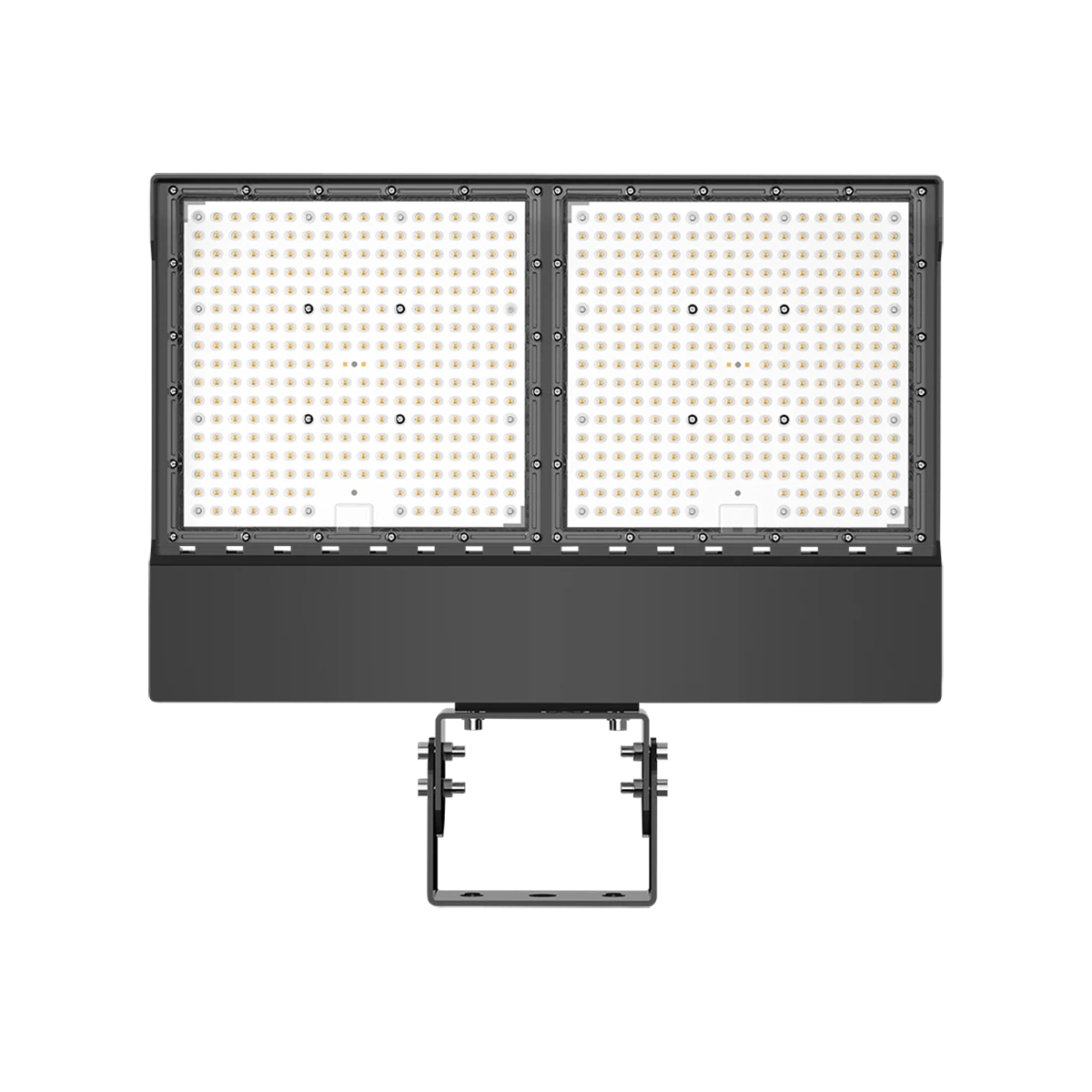

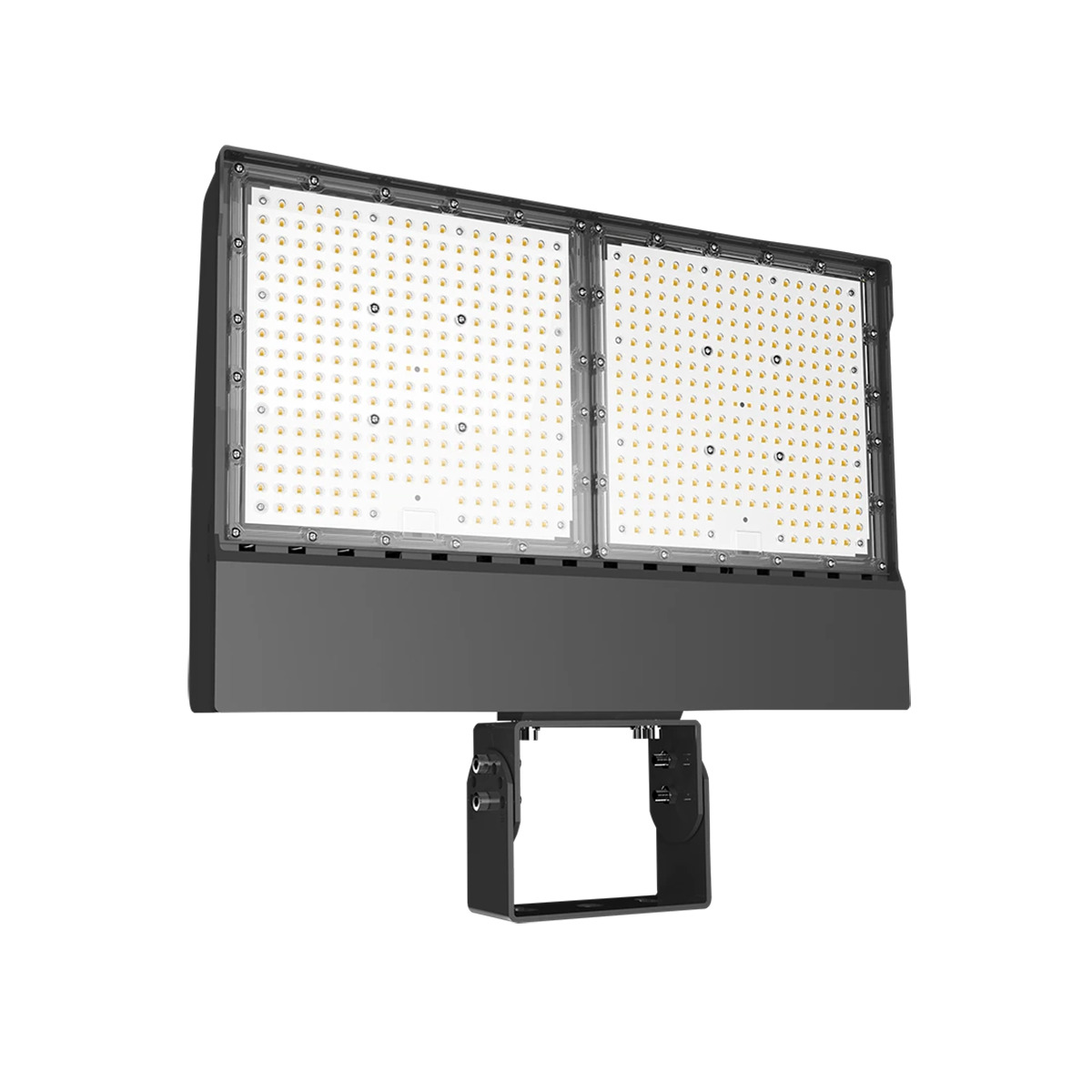

The RAB X17PA450T/PCT is a high-output, field-adjustable LED flood light built for contractors and facility managers who need serious area lighting — sports fields, large parking lots, and industrial sites — with the flexibility to dial back wattage on the job.
- Field-selectable power output (250/350/450W) delivers up to 66,638 lumens at up to 163.7 lm/W, replacing up to 1,500W Metal Halide at a fraction of the operating cost.
- Included 120–277V twistlock photocell and shorting cap give you built-in dusk-to-dawn control right out of the box.
- Standard 0-10V dimming (dims to 10%), 10 kV CM surge protection, and IP65-rated precision die-cast aluminum housing are built for long-term outdoor duty.
- Trunnion mount with 30-degree tilt increments and tempered glass lens deliver precise aiming and durable optics in a single package.
Backed by RAB’s 5-year limited warranty and available now from ELEDLights — the dependable source for high-output commercial flood lighting.
Specs
| Wattage(s) | 250/350/450W (field selectable; factory default 450W) |
| Replaces Wattage(s) | Equivalent to 1,500W Metal Halide |
| Light Output | 41,700 / 53,853 / 66,638 lm (at 250W / 350W / 450W) |
| Luminous Efficacy (lm/W) | 146.5 / 152.7 / 163.7 lm/W (at 450W / 350W / 250W) |
| Average Lamp Life | 100,000 Hours (L70, per IES LM-80 / TM-21) |
| Color Temperature(s) | 5000K (Cool) |
| CRI (Color Accuracy) | 83/81/82 (at 450W/350W/250W) |
| Dimming | 0-10V |
| Dimming Range | 10–100% (0-10V) |
| Light Distribution Pattern |
NEMA 7H x 6V
Learn More
×
Light Distribution OptionsType III Beam  Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam  Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam  Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Lens Cover | Tempered glass lens; polycarbonate reflector |

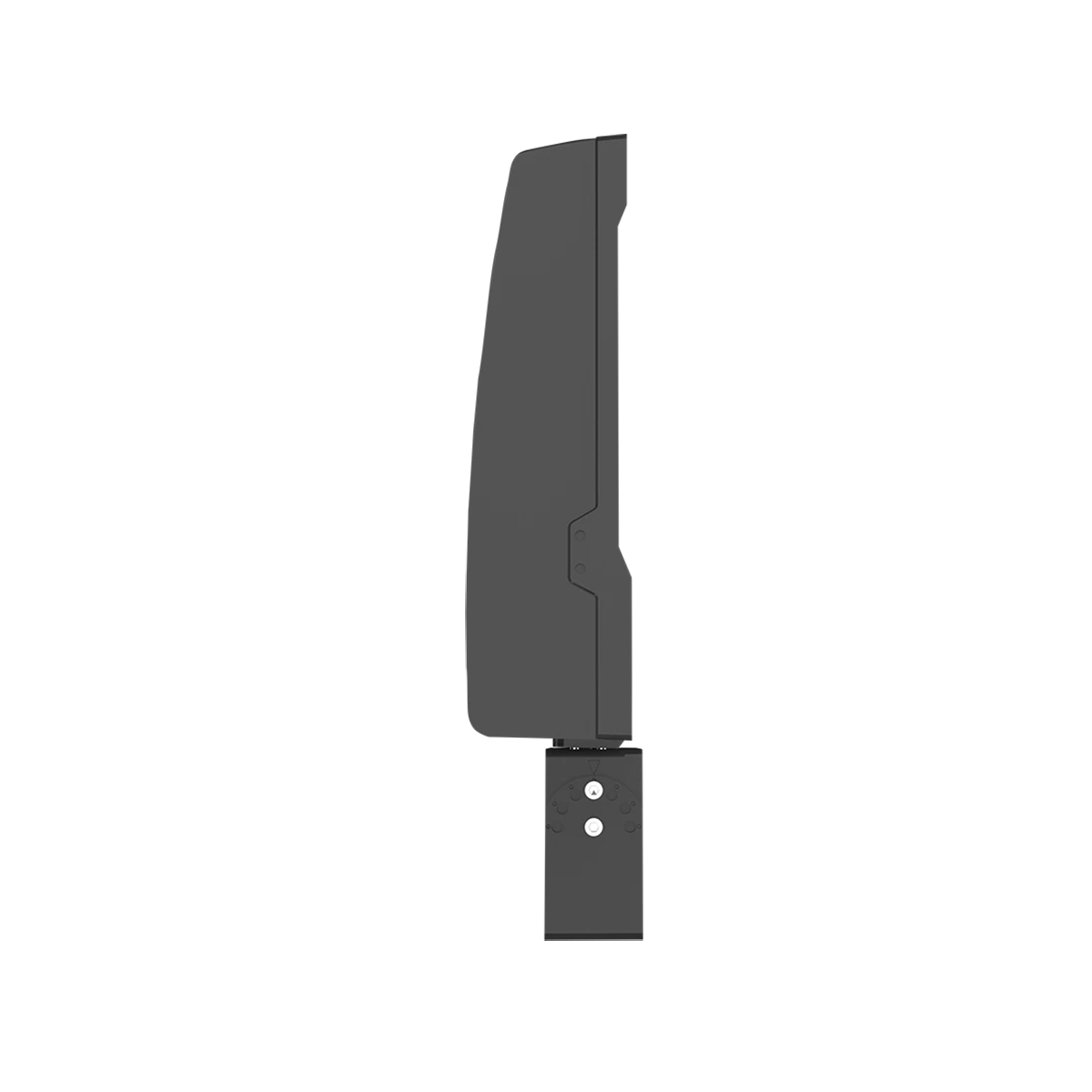

| Installation | Trunnion mount; rotates in 30-degree tilt increments |
| Working Environment | Outdoor; Wet Location |
| Enclosure Rating | IP65 |
| Light Type | LED |
| LED Type | Long-life, high-efficacy surface-mount LEDs |
| Input Voltage | 120–277V AC, 50/60Hz |
| Driver Type | Constant Current, Class 1 |
| Power Factor | 99.9% at 120V; 96.5% at 277V |
| THD (Total Harmonic Distortion) | 3.42% at 120V; 10.25% at 277V |
| Surge Protection | CM: 10 kV; DM: 6 kV |
| Input Power Rating | 454.87 / 352.74 / 254.69W (at 450W / 350W / 250W settings) |
| Input Current | 450W: 120V–3.79A, 208V–2.19A, 240V–1.90A, 277V–1.64A; 350W: 120V–2.94A, 208V–1.70A, 240V–1.47A, 277V–1.27A; 250W: 120V–2.12A, 208V–1.22A, 240V–1.06A, 277V–0.92A |
| Temperature Rating | -40°F (-40°C) min. starting; 104°F (40°C) max. ambient |
| Housing Material | Precision die-cast aluminum |
| Housing Color | Bronze |
| Dimensions | 22" W x 18 5/8" H x 14 5/8" D; 22 3/4" overall width with mount; 3 7/8" depth at arm |
| Shipping Weight | 28.1 lbs |
| Certification | UL Listed |
| Warranty | 5-Year Limited |
| Additional Specifications | Twistlock photocell (120–277V) included. Shorting cap for twistlock receptacle included. Color uniformity per ANSI C78.377-2017. Mercury and UV free; RoHS-compliant components. Optional 480V driver (/480 suffix). Optional slipfitter mounting (SF suffix). Optional 4000K neutral color temp (N suffix). |
| Other Specifications | Tested per IESNA LM-79 and LM-80 by an independent laboratory. |
