RAB W34S Semi Cutoff LED Wall Pack - 3CCT - 17/25/35W
RAB W34S Low-Profile, Semi Cutoff Wall Pack with Selectable CCT and Wattage, Max 35W
Regular price
Lumens:
2,728-5,574
Watts:
17W-35W
Color Temp:
3000K/4000K/5000K
Site-tunable output and CCT in a slim, semi-cutoff body that mounts at 8-12 ft heights to put comfortable light on entries, exterior corridors, stairwells, and short perimeter walks. Ideal where you want glare-controlled, neighbor-friendly light rather than long throw. Integrated photocell for automated on/off and built to last with 100,000 hr lamp life, 5 year warranty, and operating temps down to -40°F.
5 Year Warranty
The Classic Glass-Front Wall Pack—Refined for Modern Efficiency
- Adjustable performance in one fixture: The RAB W34S offers 3-way field adjustability with selectable wattages (35W, 25W, 17W) and color temperatures (3000K, 4000K, 5000K), giving contractors 18 configurations in a single product.
- Sleek, sustainable design: Up to 60% reduction in depth compared to traditional wall packs means less material, lower weight, and a modern aesthetic without sacrificing performance.
- Smart installation and reliability: Features include an integrated on/off photocell, tethered lens for easier installation, gasket-sealing clamps for secure closure, and weep holes that prevent moisture buildup and fogging.
Use cases
Ideal for building perimeters, loading docks, and commercial exteriors where efficiency, adaptability, and durability matter. The W34S’s die-cast aluminum housing, glass lens, 0–10V dimming, and 100,000-hour LED lifespan make it a dependable, energy-saving replacement for up to 175W metal halide or 150W HPS fixtures.
Saves $/year in energy costs*
Regular price
$12 flat rate shipping / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
The Classic Glass-Front Wall Pack—Refined for Modern Efficiency
- Adjustable performance in one fixture: The RAB W34S offers 3-way field adjustability with selectable wattages (35W, 25W, 17W) and color temperatures (3000K, 4000K, 5000K), giving contractors 18 configurations in a single product.
- Sleek, sustainable design: Up to 60% reduction in depth compared to traditional wall packs means less material, lower weight, and a modern aesthetic without sacrificing performance.
- Smart installation and reliability: Features include an integrated on/off photocell, tethered lens for easier installation, gasket-sealing clamps for secure closure, and weep holes that prevent moisture buildup and fogging.
Use cases
Ideal for building perimeters, loading docks, and commercial exteriors where efficiency, adaptability, and durability matter. The W34S’s die-cast aluminum housing, glass lens, 0–10V dimming, and 100,000-hour LED lifespan make it a dependable, energy-saving replacement for up to 175W metal halide or 150W HPS fixtures.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Regular price
Lumens:
2,728-5,574
Watts:
17W-35W
Color Temp:
3000K/4000K/5000K
Site-tunable output and CCT in a slim, semi-cutoff body that mounts at 8-12 ft heights to put comfortable light on entries, exterior corridors, stairwells, and short perimeter walks. Ideal where you want glare-controlled, neighbor-friendly light rather than long throw. Integrated photocell for automated on/off and built to last with 100,000 hr lamp life, 5 year warranty, and operating temps down to -40°F.
5 Year Warranty
Regular price
$12 flat rate shipping / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Regular price
Lumens:
2,728-5,574
Watts:
17W-35W
Color Temp:
3000K/4000K/5000K
Site-tunable output and CCT in a slim, semi-cutoff body that mounts at 8-12 ft heights to put comfortable light on entries, exterior corridors, stairwells, and short perimeter walks. Ideal where you want glare-controlled, neighbor-friendly light rather than long throw. Integrated photocell for automated on/off and built to last with 100,000 hr lamp life, 5 year warranty, and operating temps down to -40°F.
5 Year Warranty
Regular price
$12 flat rate shipping / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
SPECIFICATIONS
| Wattage(s) | 17W/25W/35W |
| Replaces Wattage(s) | 75W to 150W |
| Light Output |
@3000K: 2,728/4,020/5,133 lumens @4000K: 2,861/4,312/5,574 lumens @5000K: 2,881/4,274/5,453 lumens |
| Luminous Efficacy (lm/W) | 153 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 75 |
| Dimming | 0-10V |
| Lens Cover | Glass |
| Input Voltage | 120-277VAC, 50/60Hz |
| Driver Type | Constant Current, Class 2 |
| Power Factor | 99.5% at 120V, 92% at 277V |
| THD (Total Harmonic Distortion) | 2.85% at 120V, 6.55% at 277V |
| Temperature Rating | -40°C to +40°C (-40°F to +104°F) |
| Housing Material | Die-cast aluminum |

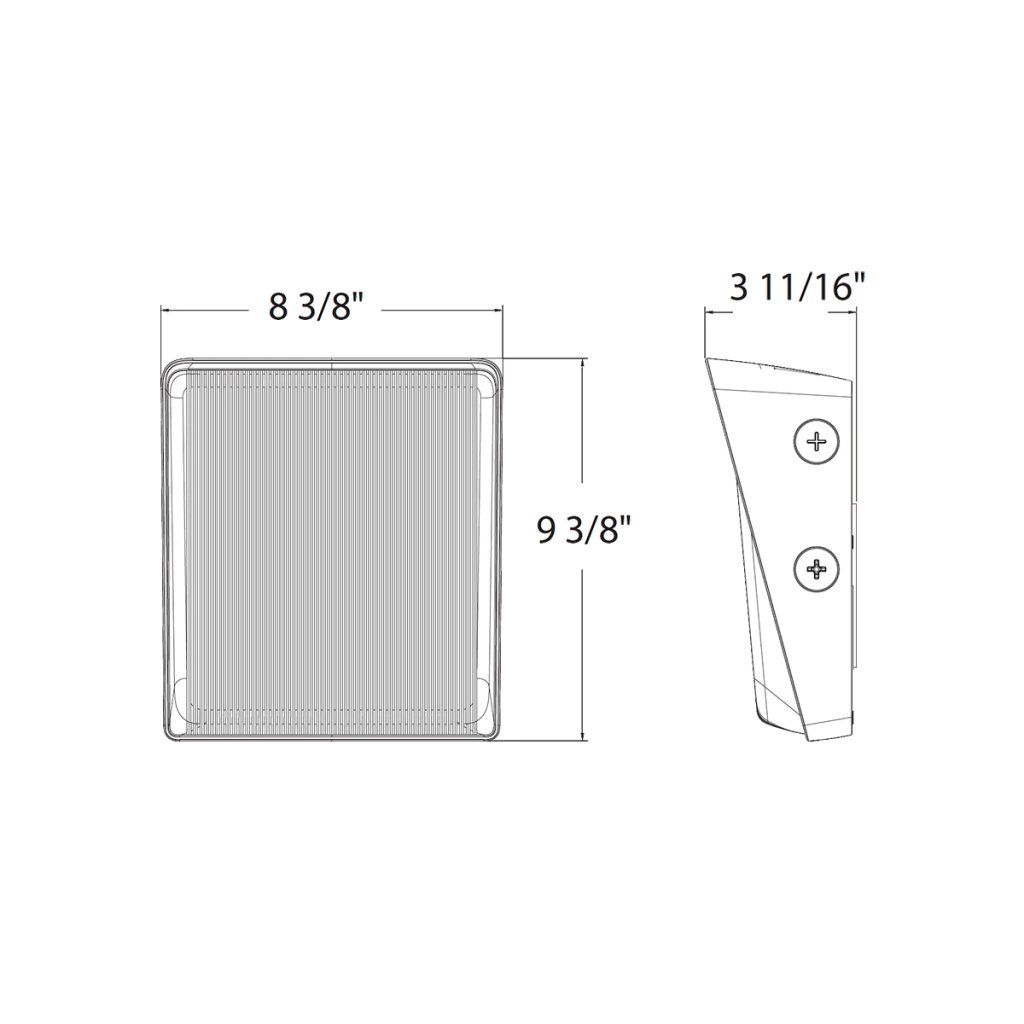

| Dimensions | 8.38” x 9.38” x 3.69” |
| Weight | 6.6 lbs |
| Certification | DLC Premium, UL Wet Location |
| DLC ID(s) | S-4S68AI |
| Warranty | 5 years |
COMPARE KEY FEATURES
RAB W34S Semi Cutoff LED Wall Pack - 3CCT - 17/25/35W
|
RAB W34M Semi Cutoff LED Wall Pack - 3CCT - 40/60/80W
|
RAB W22 Adjustable Throw Wall Pack - 3 CCT - 50/70/85/100W
|
|
|---|---|---|---|
| Wattage | 17W/25W/35W | 40W/60W/80W | 50W/70W/85W/100W |
| Equivalent to | 75W to 150W | 150W to 250W | 200W-310W |
| Light Output | @3000K: 2,728/4,020/5,133 lumens @4000K: 2,861/4,312/5,574 lumens @5000K: 2,881/4,274/5,453 lumens |
@3000K: 6,174/8,879/12,495 lumens @4000K: 6,552/9,625/12,495 lumens @5000K: 6,616/9,588/12,272 lumens |
@3000K, default 45° cutoff angle: 7,284/9,783/11,442/12,967 lumens @4000K, default 45° cutoff angle: 7,913/10,628/12,430/14,087 lumens @5000K, default 45° cutoff angle: 7,871/10,571/12,364/14,012 lumens |
| Color Temperature (CCT) | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K |
| Warranty | 5 years | 5 years | 5 years |
|
