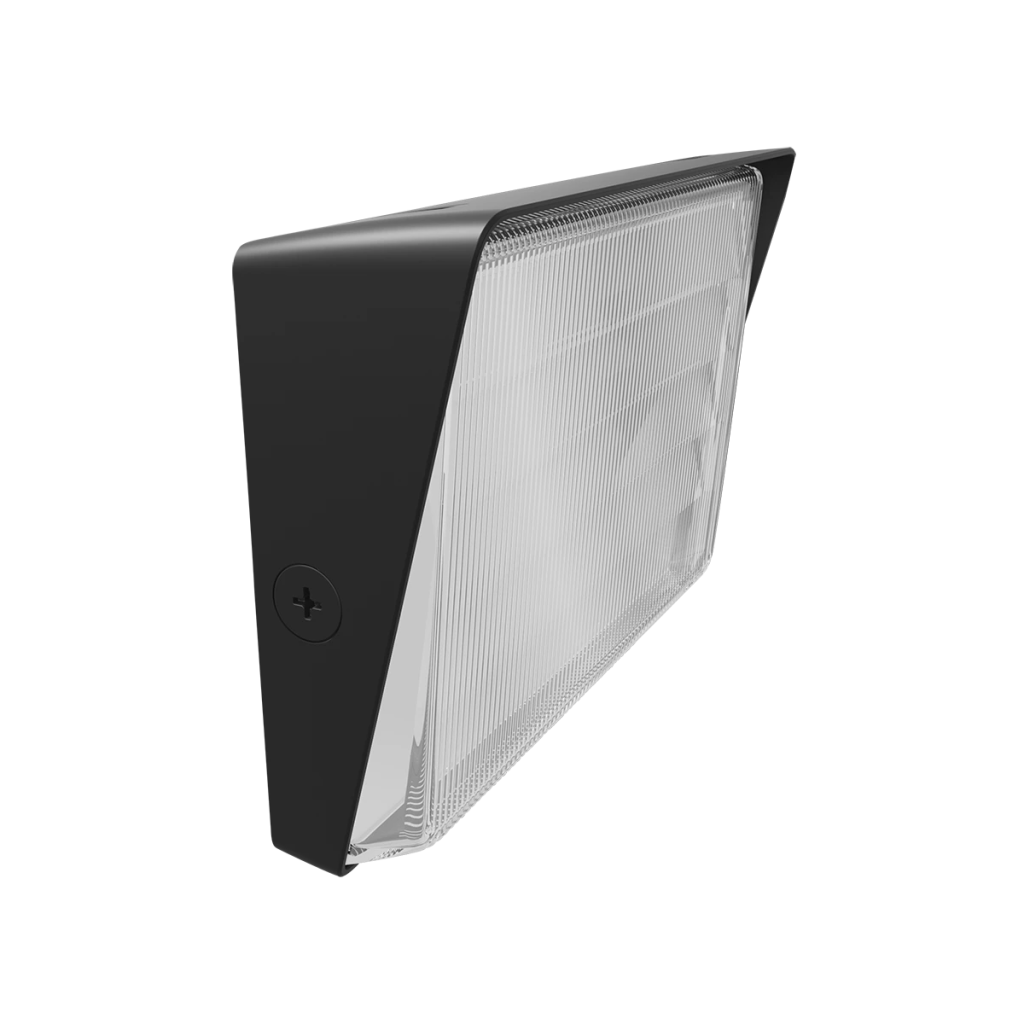

RAB W34M Low-Profile, Semi Cutoff Wall Pack with Selectable CCT and Wattage, Max 80W
Lumens:
Watts:
Color Temp:
5 Year Warranty
The Classic Wall Pack—Redesigned for Power and Precision
- Three-way field adjustability: The RAB W34M delivers ultimate flexibility with selectable wattages (80W, 60W, 40W) and color temperatures (3000K, 4000K, 5000K), offering 18 configurations in one fixture for simplified stocking and installation.
- High performance, low profile: Produces up to 12,495 lumens at an impressive 157 lm/W efficacy, matching the look of traditional glass-front wall packs while cutting energy use and depth by up to 60%.
- Smart, durable design: Features include an integrated on/off photocell, 0–10V dimming, die-cast aluminum housing, a specular aluminum reflector, and a tethered glass lens for easier installation.
Use cases
Perfect for large exterior walls, loading docks, and commercial building perimeters. The W34M replaces up to 400W metal halide or 250W HPS fixtures while delivering a 100,000-hour LED lifespan, DLC Premium efficiency, and a 5-year limited warranty. Designed for wet locations and built to perform in temperatures from -40°F to 104°F, this wall pack combines performance, sustainability, and long-term reliability.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price & free shipping:
The Classic Wall Pack—Redesigned for Power and Precision
- Three-way field adjustability: The RAB W34M delivers ultimate flexibility with selectable wattages (80W, 60W, 40W) and color temperatures (3000K, 4000K, 5000K), offering 18 configurations in one fixture for simplified stocking and installation.
- High performance, low profile: Produces up to 12,495 lumens at an impressive 157 lm/W efficacy, matching the look of traditional glass-front wall packs while cutting energy use and depth by up to 60%.
- Smart, durable design: Features include an integrated on/off photocell, 0–10V dimming, die-cast aluminum housing, a specular aluminum reflector, and a tethered glass lens for easier installation.
Use cases
Perfect for large exterior walls, loading docks, and commercial building perimeters. The W34M replaces up to 400W metal halide or 250W HPS fixtures while delivering a 100,000-hour LED lifespan, DLC Premium efficiency, and a 5-year limited warranty. Designed for wet locations and built to perform in temperatures from -40°F to 104°F, this wall pack combines performance, sustainability, and long-term reliability.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 40W/60W/80W |
| Replaces Wattage(s) | 150W to 250W |
| Light Output |
@3000K: 6,174/8,879/12,495 lumens @4000K: 6,552/9,625/12,495 lumens @5000K: 6,616/9,588/12,272 lumens |
| Luminous Efficacy (lm/W) | 157 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 77 |
| Dimming | 0-10V |

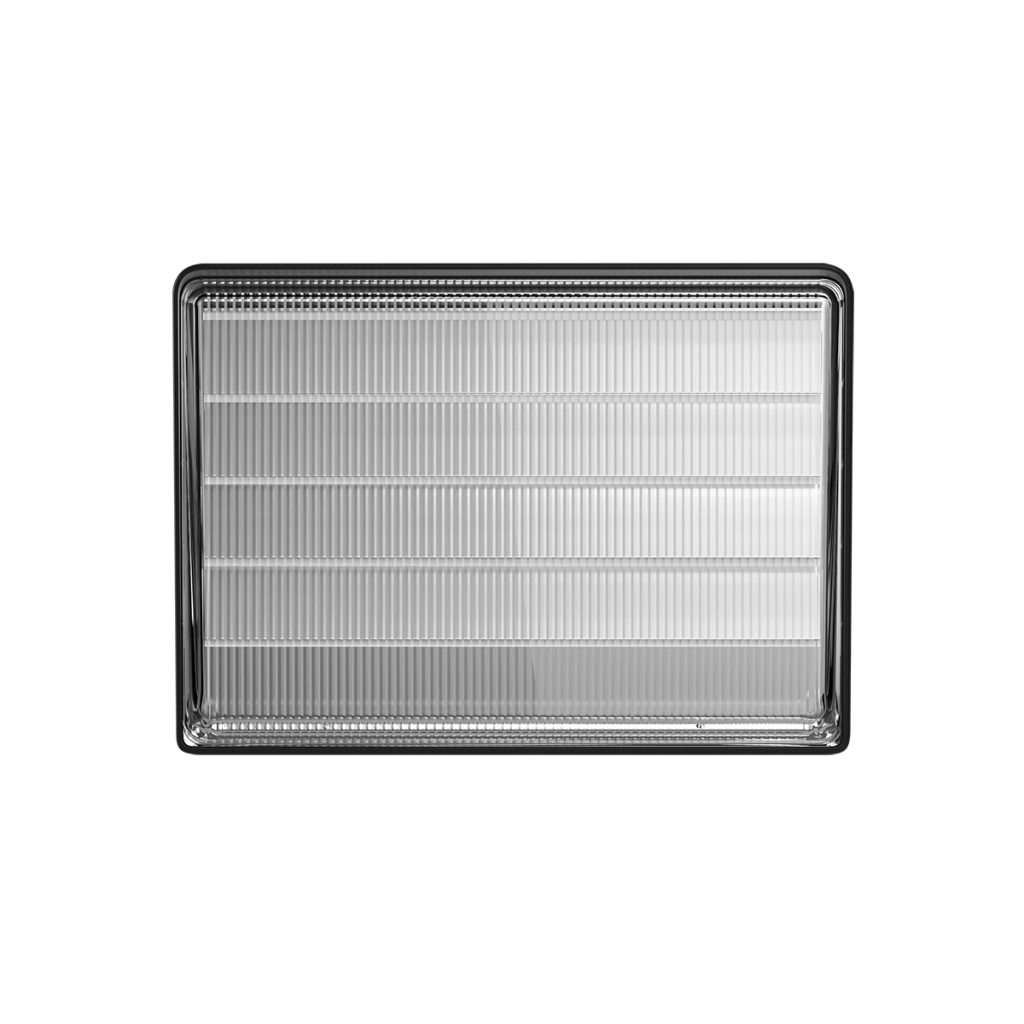

| Lens Cover | Glass |
| Input Voltage | 120-277VAC, 50/60Hz |
| Driver Type | Constant Current, Class 2 |
| Power Factor | 99.6% at 120V, 94.8% at 277V |
| THD (Total Harmonic Distortion) | 2.97% at 120V, 5.18% at 277V |
| Temperature Rating | -40°C to +40°C (-40°F to +104°F) |
| Housing Material | Die-cast aluminum housing |

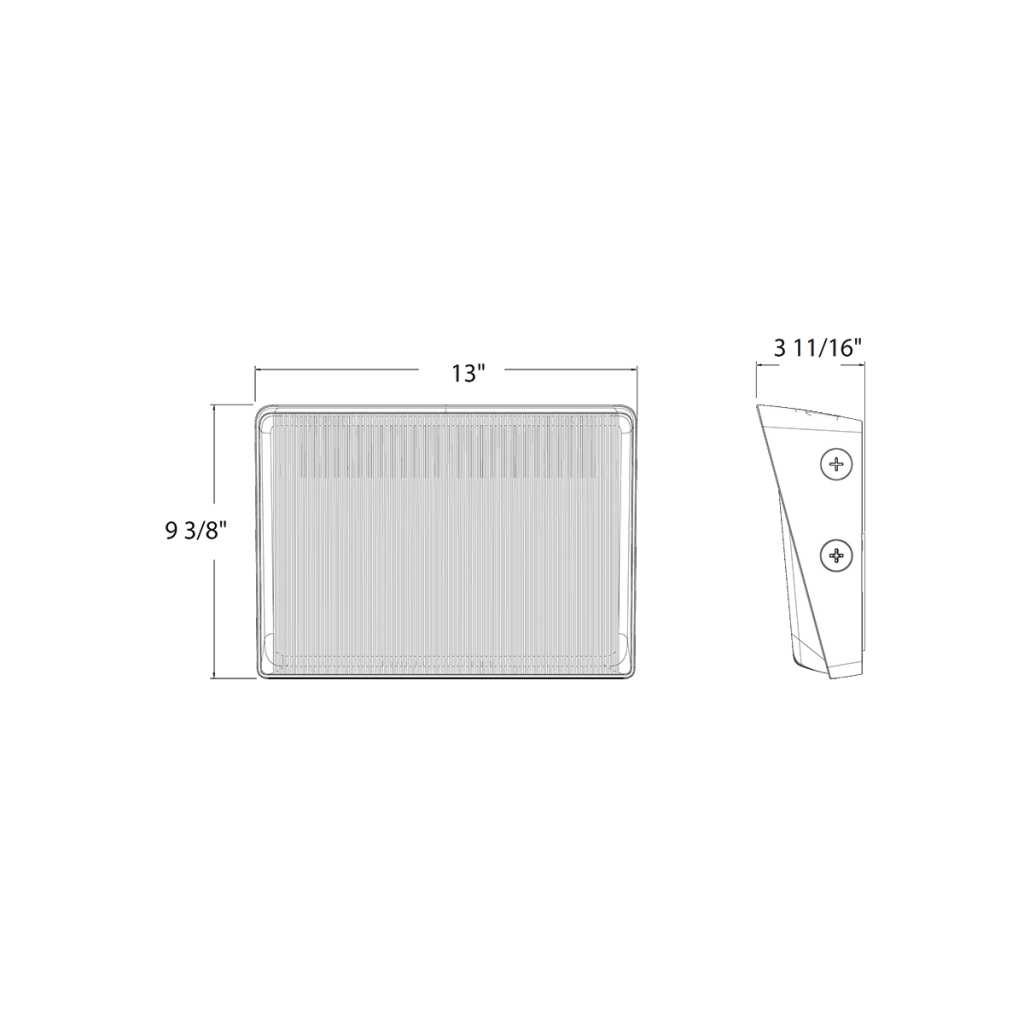

| Dimensions | 13.0” x 9.38” x 3.69” |
| Weight | 10.0 lbs |
| Certification | DLC Premium, UL Wet Location |
| DLC ID(s) | S-F9NLOH |
| Warranty | 5 years |
COMPARE KEY FEATURES
RAB W34M Semi Cutoff LED Wall Pack - 3CCT - 40/60/80W
|
RAB W22 Adjustable Throw Wall Pack - 3 CCT - 50/70/85/100W
|
RAB W34L Semi Cutoff LED Wall Pack - 3CCT - 75/100/150W
|
|
|---|---|---|---|
| Wattage | 40W/60W/80W | 50W/70W/85W/100W | 75W/100W/150W |
| Equivalent to | 150W to 250W | 200W-310W | 250W to 400W |
| Light Output | @3000K: 6,174/8,879/12,495 lumens @4000K: 6,552/9,625/12,495 lumens @5000K: 6,616/9,588/12,272 lumens |
@3000K, default 45° cutoff angle: 7,284/9,783/11,442/12,967 lumens @4000K, default 45° cutoff angle: 7,913/10,628/12,430/14,087 lumens @5000K, default 45° cutoff angle: 7,871/10,571/12,364/14,012 lumens |
@3000K: 11,892/16,472/21,123 lumens @4000K: 11,905/16,696/21,852 lumens @5000K: 11,480/15,866/20,563 lumens |
| Color Temperature (CCT) | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K |
| Warranty | 5 years | 5 years | 5 years |
|
