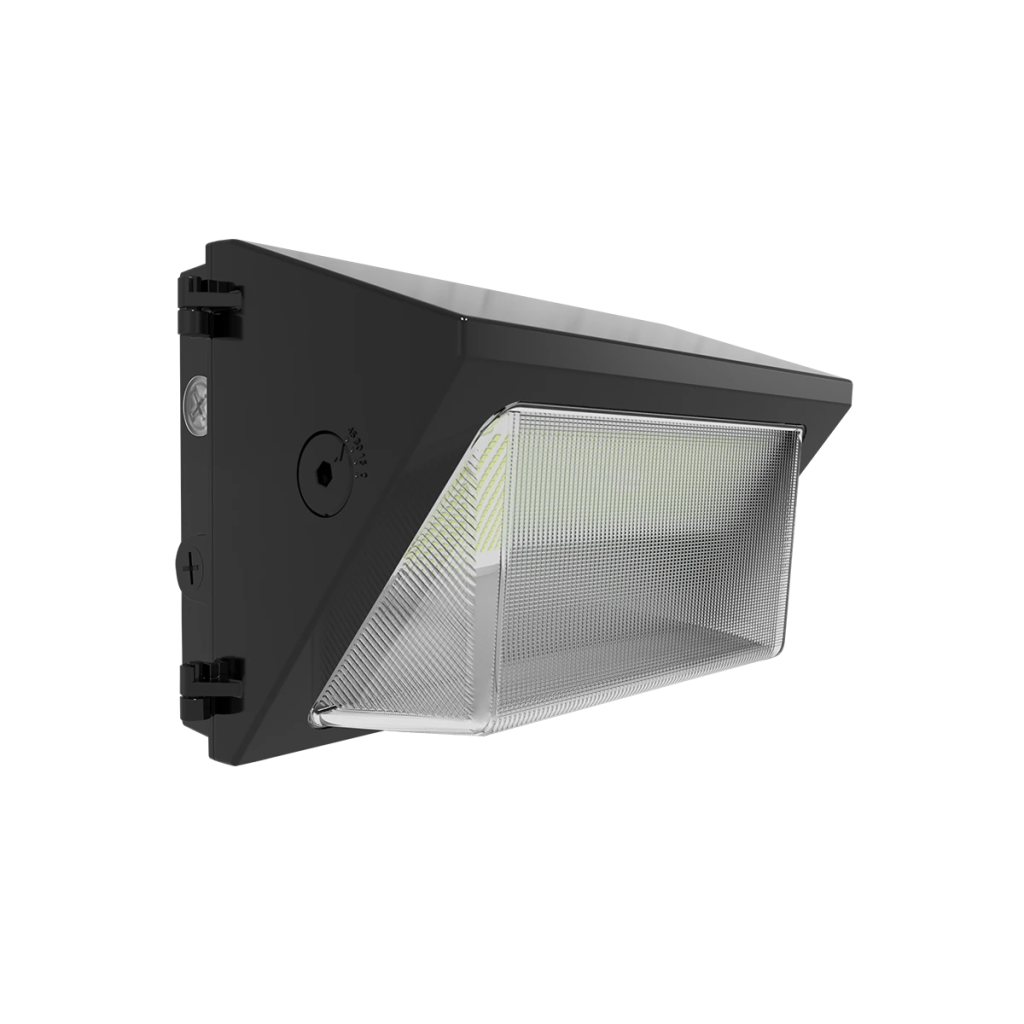

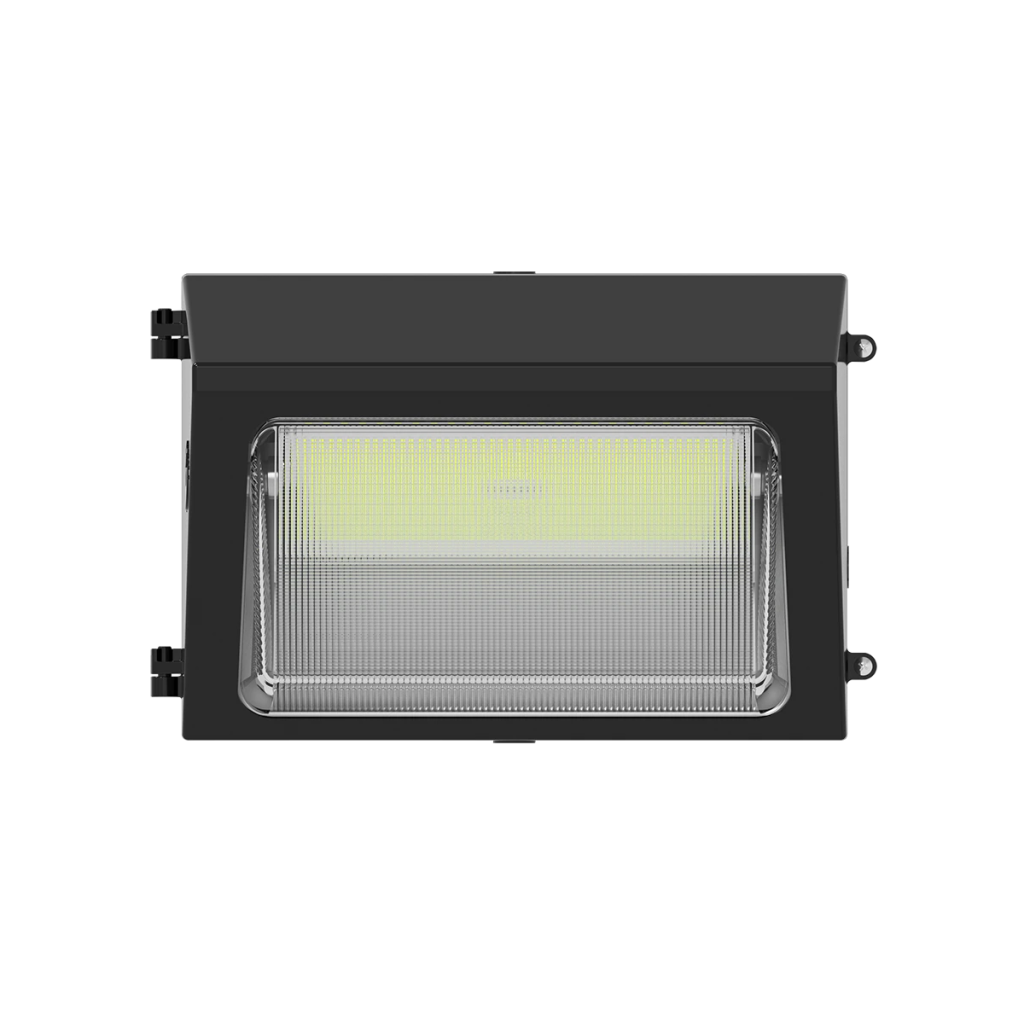

100W Selectable RAB W22 Semi Cutoff Adjustable Forward Throw LED Wall Pack
100W Selectable RAB W22 Semi Cutoff Adjustable Forward Throw LED Wall Pack
100W Selectable RAB W22 Semi Cutoff Adjustable Forward Throw LED Wall Pack
100W Selectable RAB W22 Semi Cutoff Adjustable Forward Throw LED Wall Pack
RAB's W22 wall packs give you unprecedented control over where your light lands and how it looks. The distinctive adjustable forward throw can be set to maximum projection (45°) for loading aprons or parking lots, a tight 0° for full cutoff, or somewhere in between, ensuring you get the right light for your site without spilling light onto neighboring properties.
- Adjustable wattage, CCT, & throw allow you to keep a consistent look across your building while each wall gets exactly the light it needs
- Delivers up to 14,087 lumens and mounts anywhere from 20 to 40 ft high, a strong choice for loading docks, warehouses, and distribution centers
- A built-in photocell enables automatic dusk-to-dawn operation, and a -40°F cold-start rating keeps it running through harsh winters
RAB's W22 wall packs give you unprecedented control over where your light lands and how it looks. The distinctive adjustable forward throw can be set to maximum projection (45°) for loading aprons or parking lots, a tight 0° for full cutoff, or somewhere in between, ensuring you get the right light for your site without spilling light onto neighboring properties.
- Adjustable wattage, CCT, & throw allow you to keep a consistent look across your building while each wall gets exactly the light it needs
- Delivers up to 14,087 lumens and mounts anywhere from 20 to 40 ft high, a strong choice for loading docks, warehouses, and distribution centers
- A built-in photocell enables automatic dusk-to-dawn operation, and a -40°F cold-start rating keeps it running through harsh winters
Choose options
Specs
| Wattage(s) | 50W/70W/85W/100W |
| Replaces Wattage(s) | 250W-400W |
| Light Output |
@3000K, default 45° cutoff angle: 7,284/9,783/11,442/12,967 lumens @4000K, default 45° cutoff angle: 7,913/10,628/12,430/14,087 lumens @5000K, default 45° cutoff angle: 7,871/10,571/12,364/14,012 lumens |
| Luminous Efficacy (lm/W) | Up to 159.2 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 82-85 |
| Dimming | 0-10V (10%-100%) |
| Lens Cover | Glass |
| Installation | Surface mount for recessed junction box; 3 conduit entry points |
| Recommended Installation Height | 20 to 40 ft |
| Enclosure Rating | IP65 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Driver Type | Constant Current, Class 1 |
| Surge Protection | L-N /L&N-PE:4+6KV |
| Operating Temperature | -40°C to +40°C (-40°F to +104°F) |
| Housing Material | Die-cast aluminum housing |
| Housing Color | Bronze (Call for white) |

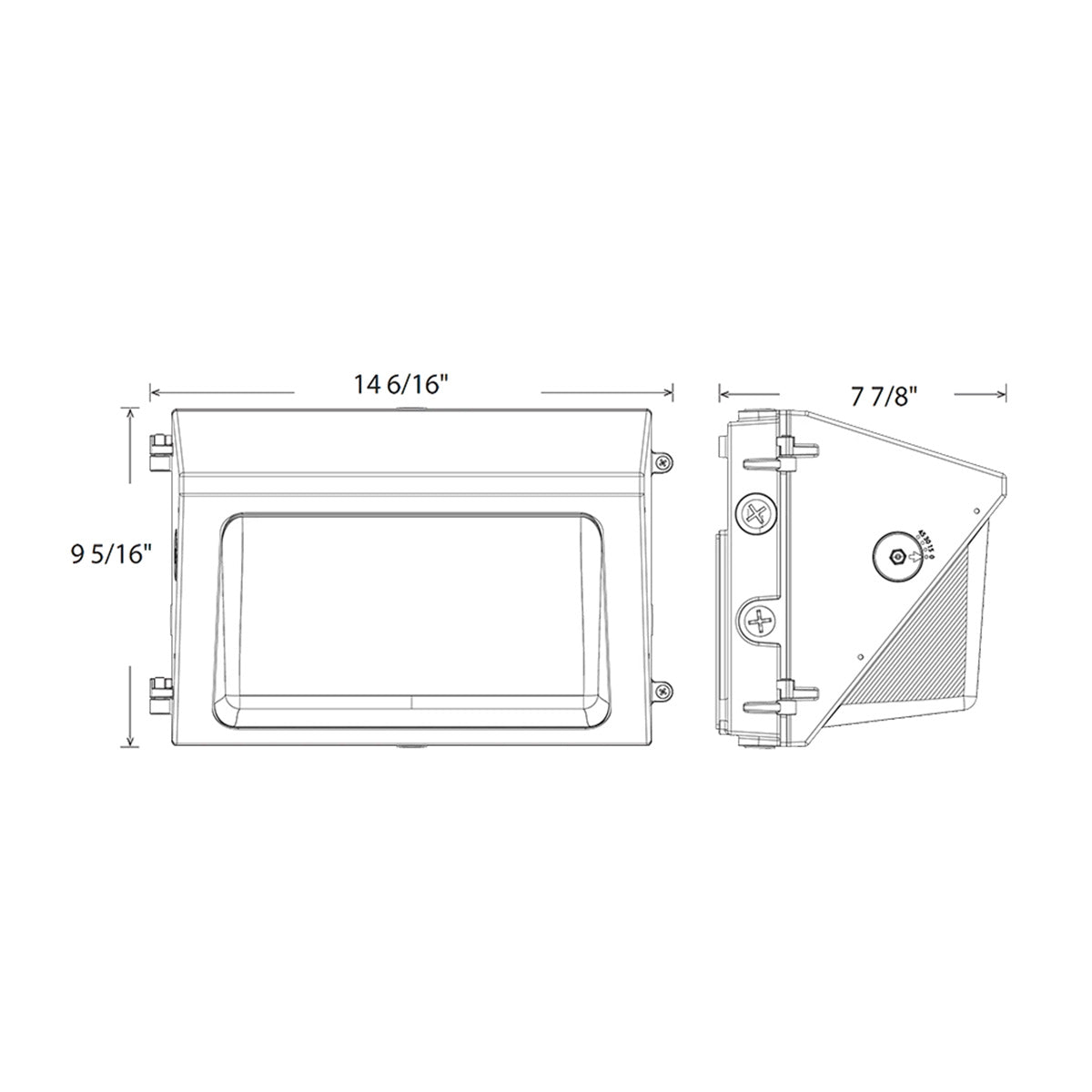

| Dimensions | 14.38” x 9.31” x 7.88” |
| Weight | 9.5 lbs |
| Certification | DLC Premium, UL Wet Location |
| DLC ID(s) | S-LMFD7M |
| Warranty | 5 years |
Data Sheet
IES FileDetails
Powerful, Adjustable, and Built for Precision
The RAB W22 wall pack is an industry-leader in field-adjustability, sporting a distinctive 0°-45° adjustable forward throw that lets you put light exactly where you need it. From tight facade and sidewalk lighting to a larger forward throw on a loading apron or parking lot, this wall pack does it all — and adjusts again later if the site's needs change.
- Order With Confidence, Dial In on Site: Adjustable wattage, CCT, and forward throw mean one SKU fits nearly any application, so you're not guessing at the right spec before the site is fully scoped, or stocking a different wall pack for every wall of a building.
- Strong Output, Flexible Mounting: Delivers up to 14,087 lumens at 150.7 lm/W to provide energy-efficient illumination from mounting heights of 20 to 40 ft. Cut energy bills without sacrificing performance.
- Photocell Built In: An integrated photocell can be switched on for automatic dusk-to-dawn operation, no separate accessory needed.
- Dimmable With a Separate Control Circuit: The driver includes 0-10V dimming control wiring with dimming down to 10% so you can dial in exactly the right output without wasting any electricity.
- Built Rugged for Extreme Conditions: A die-cast aluminum housing, glass lens, and aluminum reflector hold up outdoors year-round, with a -40°F cold-start rating to handle even the coldest winter nights.
- 5-Year Warranty: Full manufacturer coverage when purchased through ELEDLights as an authorized RAB dealer.

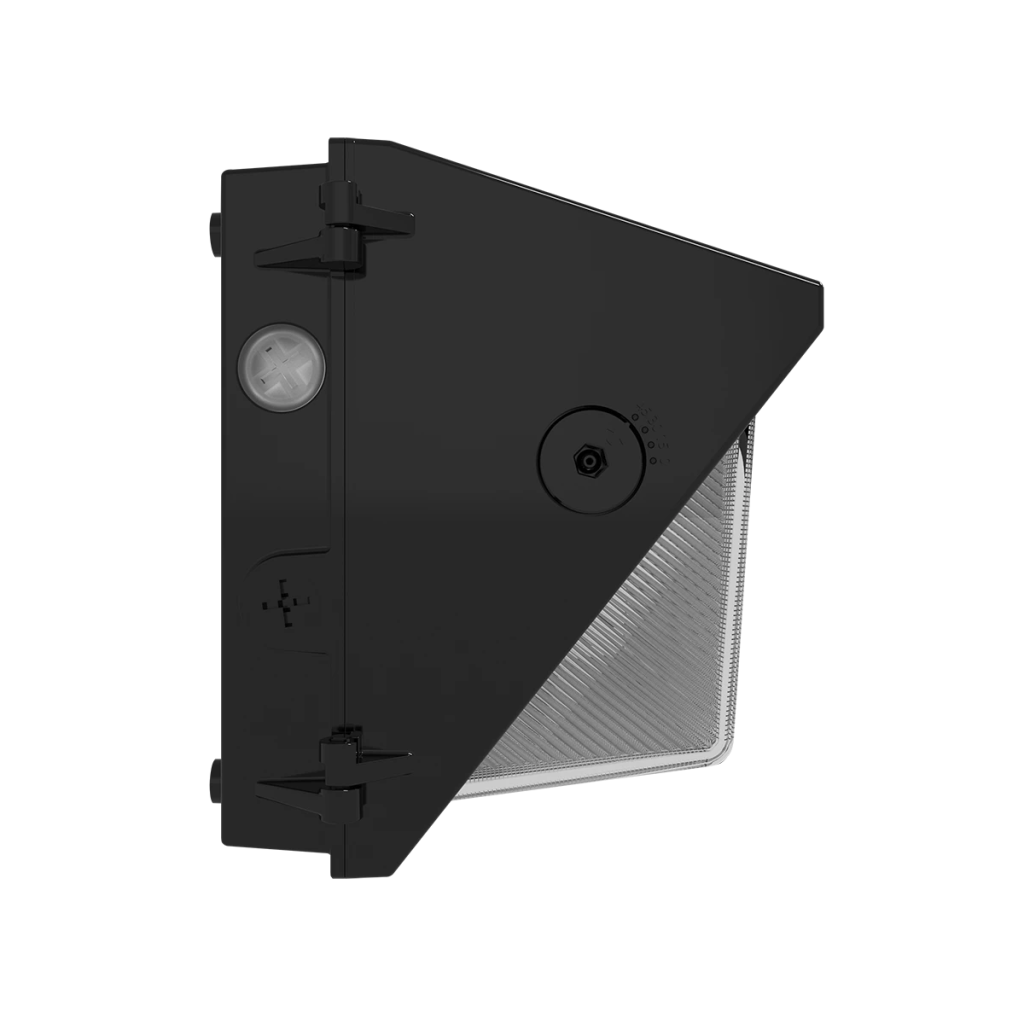

Forward Throw Adjustment
Adjust the throw angle on-site with the included Allen wrench to match the wall it's mounted on:
| Angle | Effect | Ideal For |
|---|---|---|
| 45° | Throws light furthest from building | Loading docks, multi-row parking lots, distribution & logistics yards |
| 30° | Highlights building perimeter | Facade accents, perimeter security lighting for industrial & commercial sites |
| 15° | Reduces glare | Walkways, entries, pedestrian-facing areas near industrial facilities |
| 0° | Eliminates light trespass | Property lines, residential-adjacent walls near industrial sites |
Ideal Applications
- Loading Docks & Parking Lots: Set to 45° throw for maximum forward illumination across open paved areas.
- Building Perimeters: Set to 30° to highlight the facade while still delivering functional security lighting.
- Walkways & Entries: Set to 15° for reduced glare in pedestrian-facing areas.
- Property Lines & Residential-Adjacent Walls: Set to 0° for full cutoff where light trespass onto a neighboring property needs to be avoided entirely.
- Warehouses, Loading Docks & Distribution Centers: Mounts from 20 to 40 ft high, sized for the wall heights common on industrial and logistics buildings.
The ELEDLights Advantage on RAB
- Authorized RAB Dealer: 5,000+ units sold, all with full RAB warranty coverage. That's a guarantee you won't get through gray market sellers, regardless of their listing claims.
- Competitive Pricing: You won't find a lower price at any authorized RAB distributor — and if you do, we'll match it. If you are planning a large order, contact us for volume pricing.
- Full RAB Catalog Access: Don't see a RAB product on our site? We can get it fast. Source your entire RAB project through one supplier — no juggling multiple vendors, invoices, or delivery schedules.
- Rebate Assistance: Our team will help you take advantage of available utility rebates so you don't leave money on the table.
