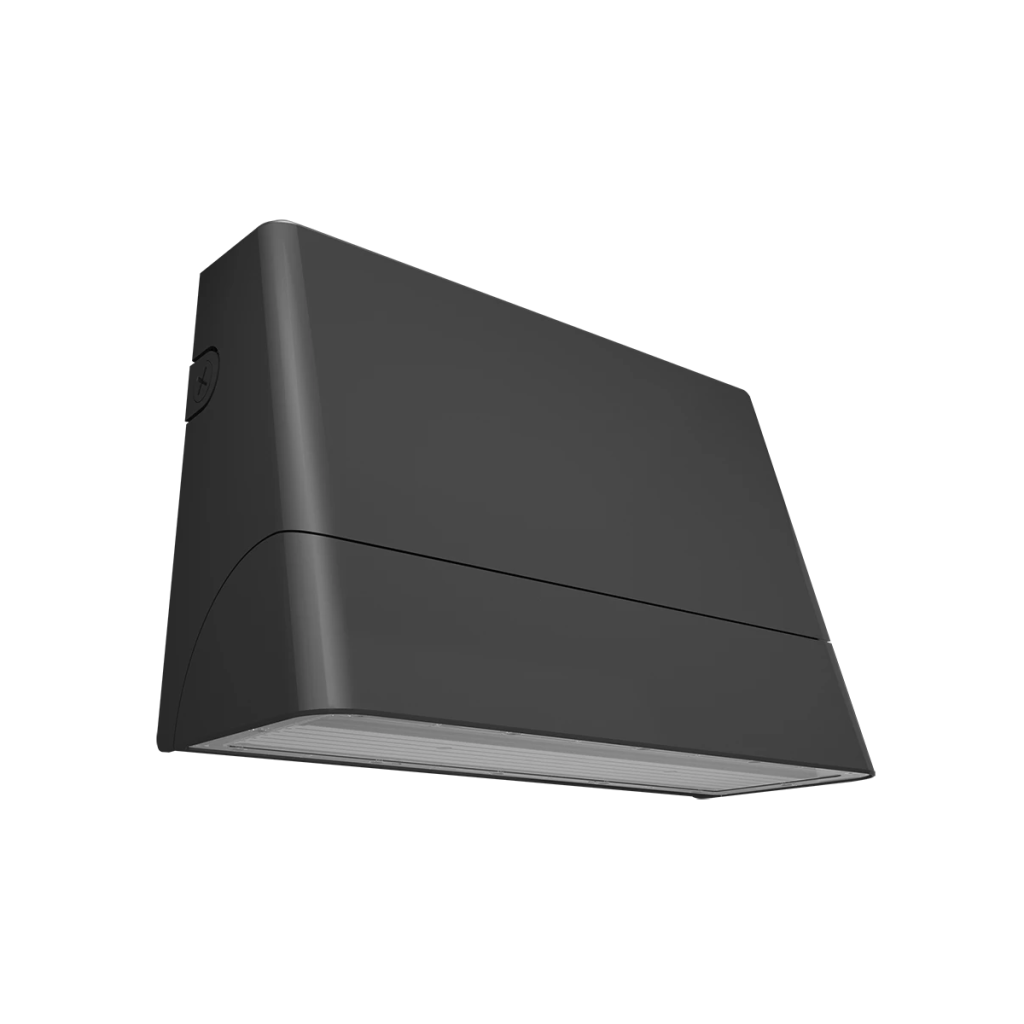

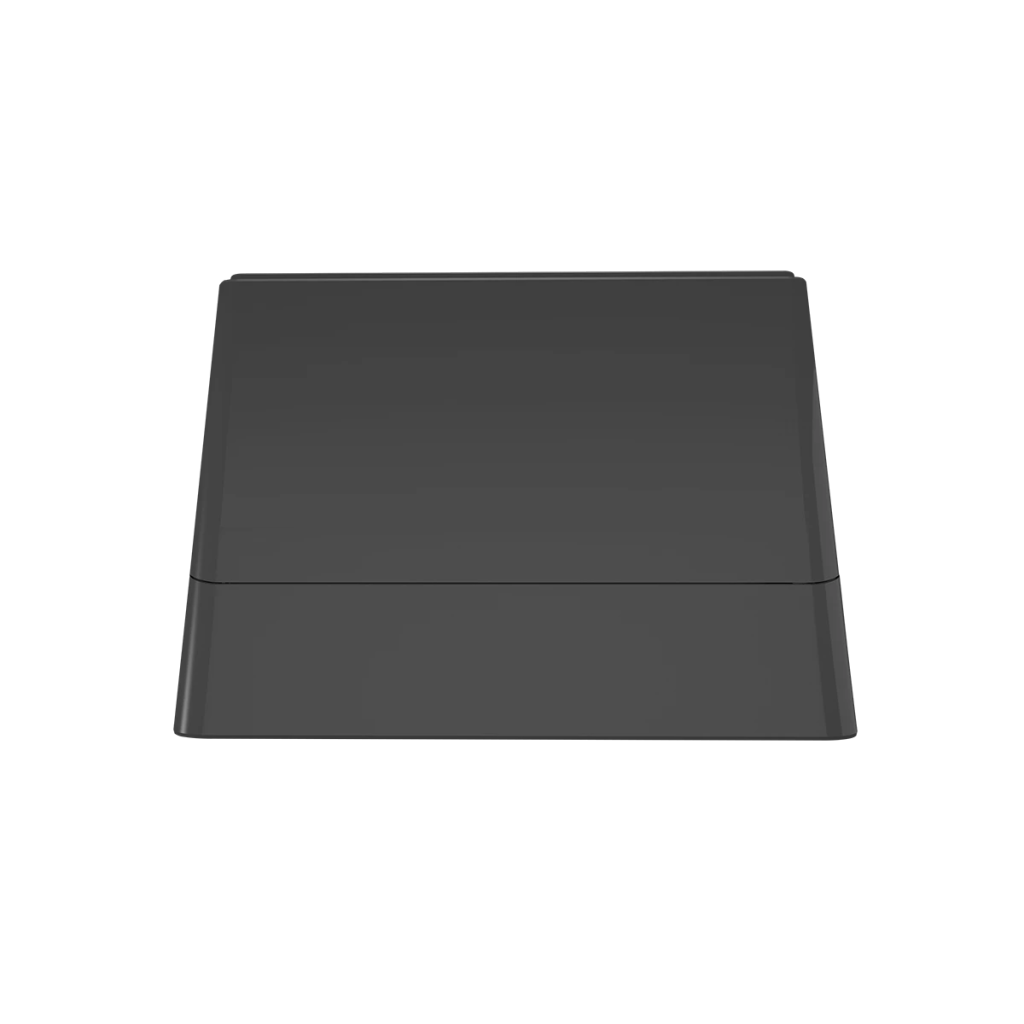

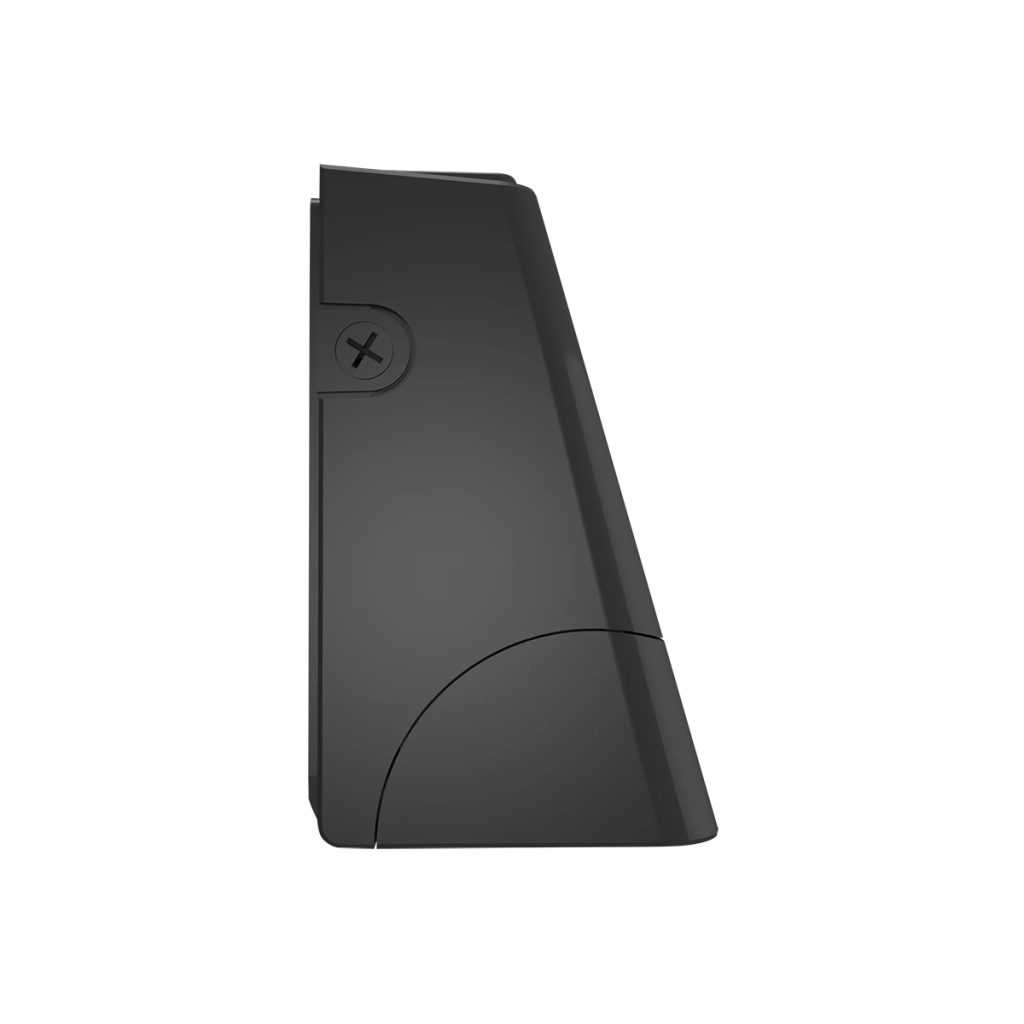

RAB SLIM22 Full Cutoff Adjustable Throw Wall Pack - 3 CCT - 75/100/125/150W
5 Year Warranty
Lumens:
Watts:
Color Temp:
High-Output Wall Pack with Precision and Power
- Field-adjustable performance: The RAB SLIM22-L-150 offers 4-way adjustable wattage (150W, 125W, 100W, 75W) and 3-way selectable color temperatures (3000K, 4000K, 5000K), delivering up to 21,727 lumens in a single fixture for versatile lighting design.
- Maximum efficiency and control: With a full-cutoff, adjustable forward throw (0°, 15°, 30°, 45°), the SLIM22-L-150 delivers targeted illumination where it’s needed most—reducing glare, light trespass, and energy costs while achieving up to 169 lm/W efficacy.
- Durable and built to last: Constructed from die-cast aluminum with a high-impact polycarbonate lens, this IP65-rated wall pack is made for harsh environments. It features a selectable on/off photocell, 0–10V dimming, and a 100,000-hour LED lifespan backed by a 5-year limited warranty.
Use cases
Perfect for warehouses, large commercial exteriors, and security lighting where high lumen output and adaptability are essential. The SLIM22-L-150 combines power, precision, and flexibility in one energy-efficient, DLC Premium-rated fixture.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
High-Output Wall Pack with Precision and Power
- Field-adjustable performance: The RAB SLIM22-L-150 offers 4-way adjustable wattage (150W, 125W, 100W, 75W) and 3-way selectable color temperatures (3000K, 4000K, 5000K), delivering up to 21,727 lumens in a single fixture for versatile lighting design.
- Maximum efficiency and control: With a full-cutoff, adjustable forward throw (0°, 15°, 30°, 45°), the SLIM22-L-150 delivers targeted illumination where it’s needed most—reducing glare, light trespass, and energy costs while achieving up to 169 lm/W efficacy.
- Durable and built to last: Constructed from die-cast aluminum with a high-impact polycarbonate lens, this IP65-rated wall pack is made for harsh environments. It features a selectable on/off photocell, 0–10V dimming, and a 100,000-hour LED lifespan backed by a 5-year limited warranty.
Use cases
Perfect for warehouses, large commercial exteriors, and security lighting where high lumen output and adaptability are essential. The SLIM22-L-150 combines power, precision, and flexibility in one energy-efficient, DLC Premium-rated fixture.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 75W/100W/125W/150W |
| Replaces Wattage(s) | 200W-310W |
| Light Output |
@3000K: 11,462/16,208/17,113/21,7287 lumens @4000K: 12,771/16,091/19,067/21,547 lumens @5000K: 12,369/15,585/18,467/20,869 lumens |
| Luminous Efficacy (lm/W) | 169 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 86 |
| Dimming | 0-10V |
| Beam Angle | 0°/15°/30°/45° (factory default 0°) |
| Lens Cover | Polycarbonate |
| Enclosure Rating | IP65 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Driver Type | Constant Current, Class 2 |
| Power Factor |
@150W: 99.8% at 120V, 96.4% at 277V @125W: 99.8% at 120V, 95.6% at 277V @100W: 99.7% at 120V, 93.8% at 277V @75W: 99.5% at 120V, 89.9% at 277V |
| THD (Total Harmonic Distortion) |
@150W: 4.31% at 120V, 6.45% at 277V @125W: 4.30% at 120V, 6.76% at 277V @100W: 4.17% at 120V, 7.78% at 277V @75W: 4.40% at 120V, 9.89% at 277V |
| Surge Protection | DM(L/N): 6 kV, CM(L/N-PE): 6 kV |
| Temperature Rating | -40°C to +40°C (-40°F to +104°F) |
| Housing Material | Die-cast aluminum housing |

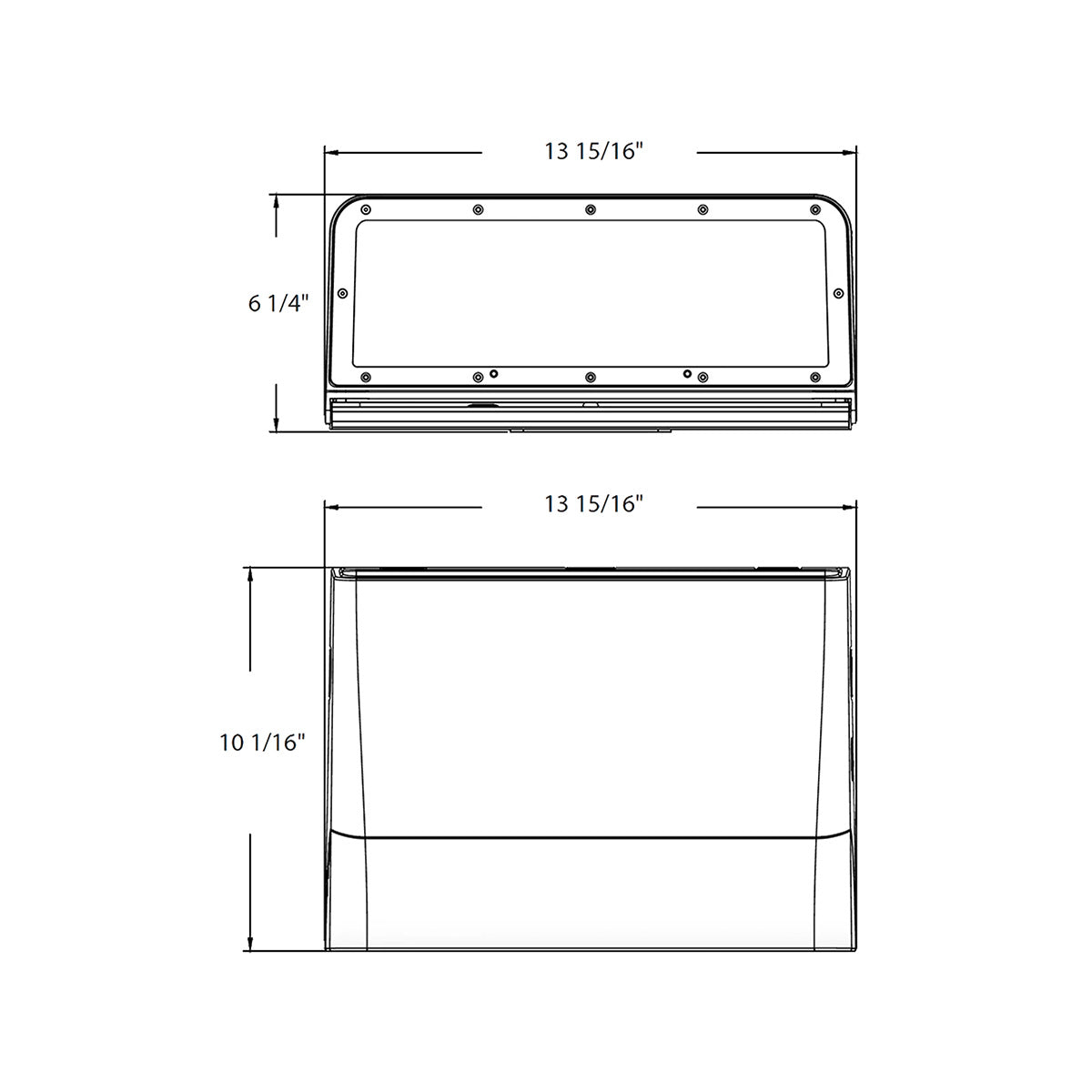

| Dimensions | 13.94” x 10.06” x 6.25” |
| Weight | 11.7 lbs |
| Certification | DLC Premium, UL Wet Location |
| DLC ID(s) | S-V296F6 |
| Warranty | 5 years |
