RAB SLIM22 Full Cutoff LED Wall Pack with Field-Adjustable CCT, Wattage, and Cutoff Angle, Max 60W

$179.00
RAB Lighting

Lumens:

4,418-8,862

Watts:

30W-60W

Color Temp:

3000K/4000K/5000K
The all-around choice for longer runs and busier edges. Select 30W-60W and 3000K/4000K/5000K, then set the forward throw 0°/15°/30°/45° to light perimeter walks, side yards, small lot edges, and dock doors at 10-16 ft mounting heights. High-efficiency (167 lm/W), medium output (up to 8,862 lm) with full-cutoff control for uniform ground illumination without uplight or glare.

5 Year Warranty

SKU: SLIM22-S-60

Precision Lighting That Adapts to Every Exterior

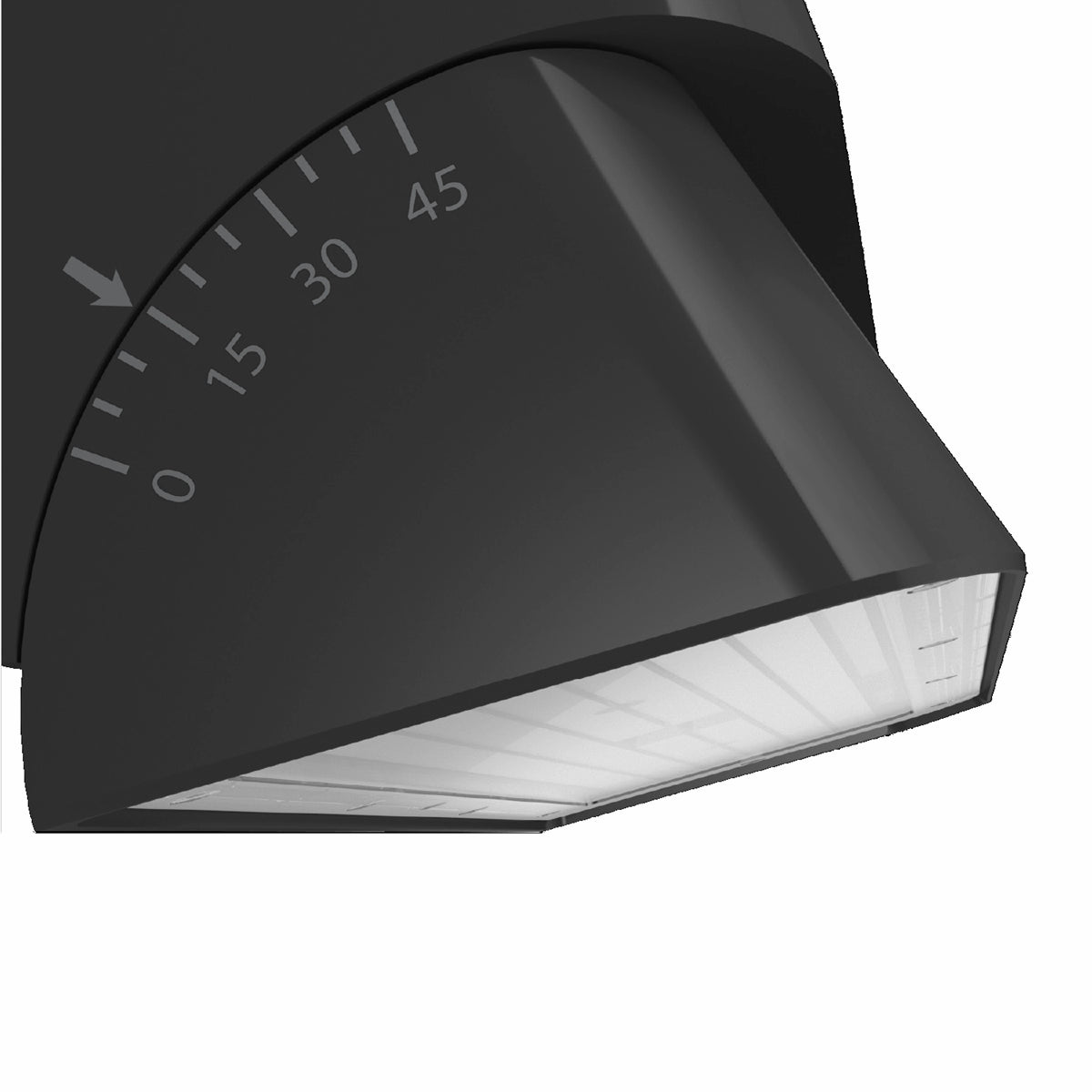

  1. Field-adjustable performance: The RAB SLIM22-S-60 offers selectable wattages (60W, 50W, 40W, 30W), adjustable color temperatures (3000K, 4000K, 5000K), and four forward-throw settings (0°, 15°, 30°, 45°). One fixture delivers versatile illumination for a wide range of exterior needs.
  2. High-output efficiency: Producing up to 8,862 lumens at an impressive 167 lm/W, this full-cutoff wall pack ensures uniform light with minimal glare and energy use. DLC Premium listing means top-tier efficiency and rebate eligibility.
  3. Built to last: Engineered with a die-cast aluminum housing, polycarbonate lens, and IP65 rating for wet locations, the SLIM22-S-60 withstands demanding environments. A 100,000-hour LED lifespan and 5-year limited warranty provide lasting reliability and low maintenance.

Use cases

Perfect for building perimeters, loading areas, and pathways that require adaptable, energy-efficient lighting. The SLIM22-S-60 combines flexible optical control, superior performance, and modern styling in one powerful, compact package.

Saves $/year in energy costs*

$179.00
$12 flat rate shipping / FREE over $500

Buying 12 or more?
Get a better price & free shipping:

or Request Bulk Quote

Precision Lighting That Adapts to Every Exterior

  1. Field-adjustable performance: The RAB SLIM22-S-60 offers selectable wattages (60W, 50W, 40W, 30W), adjustable color temperatures (3000K, 4000K, 5000K), and four forward-throw settings (0°, 15°, 30°, 45°). One fixture delivers versatile illumination for a wide range of exterior needs.
  2. High-output efficiency: Producing up to 8,862 lumens at an impressive 167 lm/W, this full-cutoff wall pack ensures uniform light with minimal glare and energy use. DLC Premium listing means top-tier efficiency and rebate eligibility.
  3. Built to last: Engineered with a die-cast aluminum housing, polycarbonate lens, and IP65 rating for wet locations, the SLIM22-S-60 withstands demanding environments. A 100,000-hour LED lifespan and 5-year limited warranty provide lasting reliability and low maintenance.

Use cases

Perfect for building perimeters, loading areas, and pathways that require adaptable, energy-efficient lighting. The SLIM22-S-60 combines flexible optical control, superior performance, and modern styling in one powerful, compact package.

Saves $/year in energy costs*

See how much you would save in energy
costs by allowing access to your location.

SPECIFICATIONS

Custom Savings Calculator
Wattage(s) 30W/40W/50W/60W
Replaces Wattage(s) 150W-200W
Light Output @3000K: 4,418/5,917/6,921/7,942 lumens
@4000K: 4,898/6,559/7,672/8,804 lumens
@5000K: 4,762/6,377/7,460/8,560 lumens
Luminous Efficacy (lm/W) 167 lm/W
Average Lamp Life L70: 100,000 hours
Color Temperature(s) 3000K/4000K/5000K
CRI (Color Accuracy) 86
Dimming 0-10V
Lens Cover Polycarbonate
Enclosure Rating IP65
Input Voltage 120-277VAC, 50/60Hz
Driver Type Constant Current, Class 2
Power Factor @60W: 99.7% at 120V, 94.6% at 277V
@50W: 99.6% at 120V, 93.5% at 277V
@40W: 99.4% at 120V, 91.4% at 277V
@30W: 99.0% at 120V, 87.0% at 277V
THD (Total Harmonic Distortion) @60W: 4.53% at 120V, 10.60% at 277V
@50W: 4.93% at 120V, 11.91% at 277V
@40W: 5.74% at 120V, 14.66% at 277V
@30W: 7.54% at 120V, 19.61% at 277V
Surge Protection DM(L/N): 6 kV, CM(L/N-PE): 6 kV
Temperature Rating -40°C to +40°C (-40°F to +104°F)

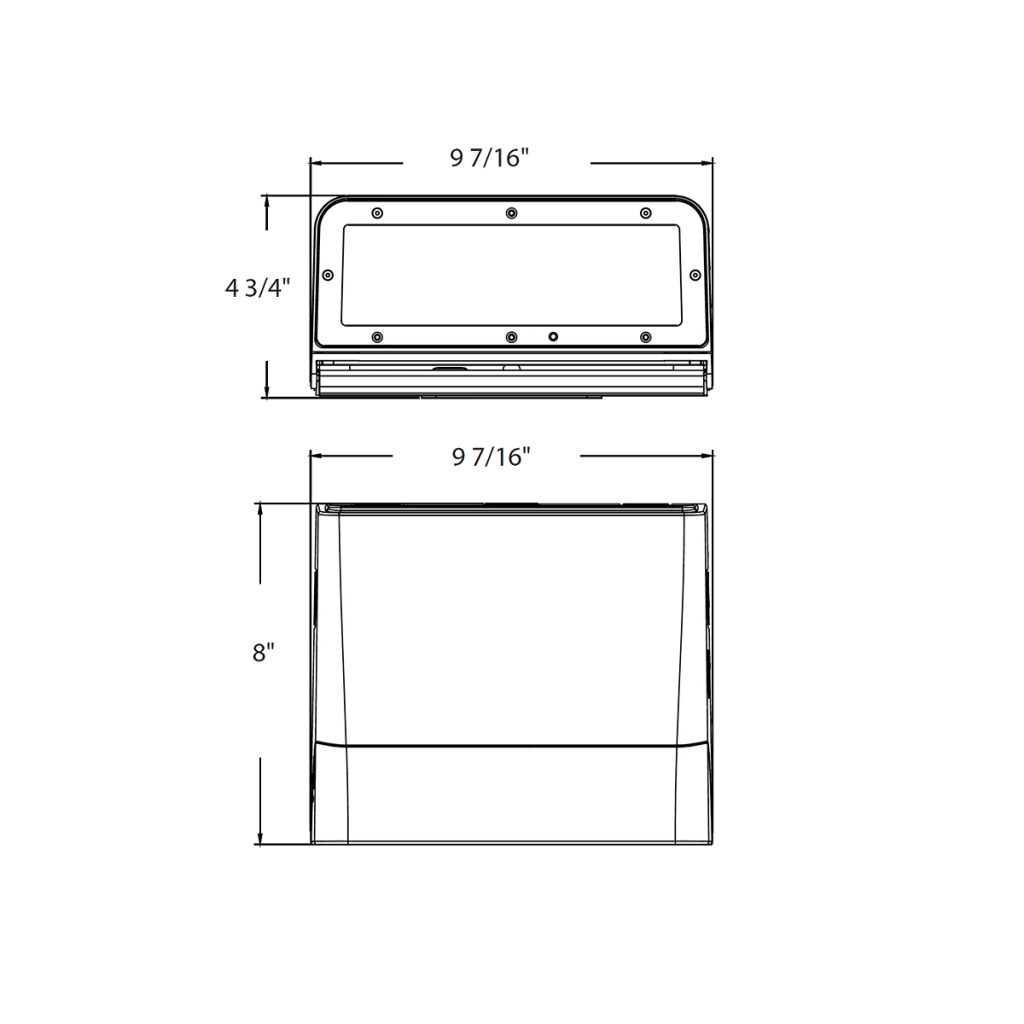

Dimensions 9.44” x 8.00” x 4.75”
Weight 7.1 lbs
Certification DLC Premium, UL Wet Location
DLC ID(s) S-8ZT8TM
Warranty 5 Years

COMPARE KEY FEATURES

RAB SLIM22 Full Cutoff Adjustable Throw Wall Pack - 3 CCT - 30/40/50/60W
RAB W22 Adjustable Throw Wall Pack - 3 CCT - 50/70/85/100W
RAB SLIM22 Full Cutoff Adjustable Throw Wall Pack - 3 CCT - 75/100/125/150W
Wattage 30W/40W/50W/60W 50W/70W/85W/100W 75W/100W/125W/150W
Equivalent to 150W-200W 200W-310W 200W-310W
Light Output @3000K: 4,418/5,917/6,921/7,942 lumens
@4000K: 4,898/6,559/7,672/8,804 lumens
@5000K: 4,762/6,377/7,460/8,560 lumens		 @3000K, default 45° cutoff angle:
7,284/9,783/11,442/12,967 lumens
@4000K, default 45° cutoff angle:
7,913/10,628/12,430/14,087 lumens
@5000K, default 45° cutoff angle:
7,871/10,571/12,364/14,012 lumens		 @3000K: 11,462/14,442/17,113/19,339 lumens
@4000K: 12,771/16,091/19,067/21,547 lumens
@5000K: 12,369/15,585/18,467/20,869 lumens
Color Temperature (CCT) 3000K/4000K/5000K 3000K/4000K/5000K 3000K/4000K/5000K
Warranty 5 Years 5 years 5 years
$179.00

$215.00
View Details
$287.00
View Details
