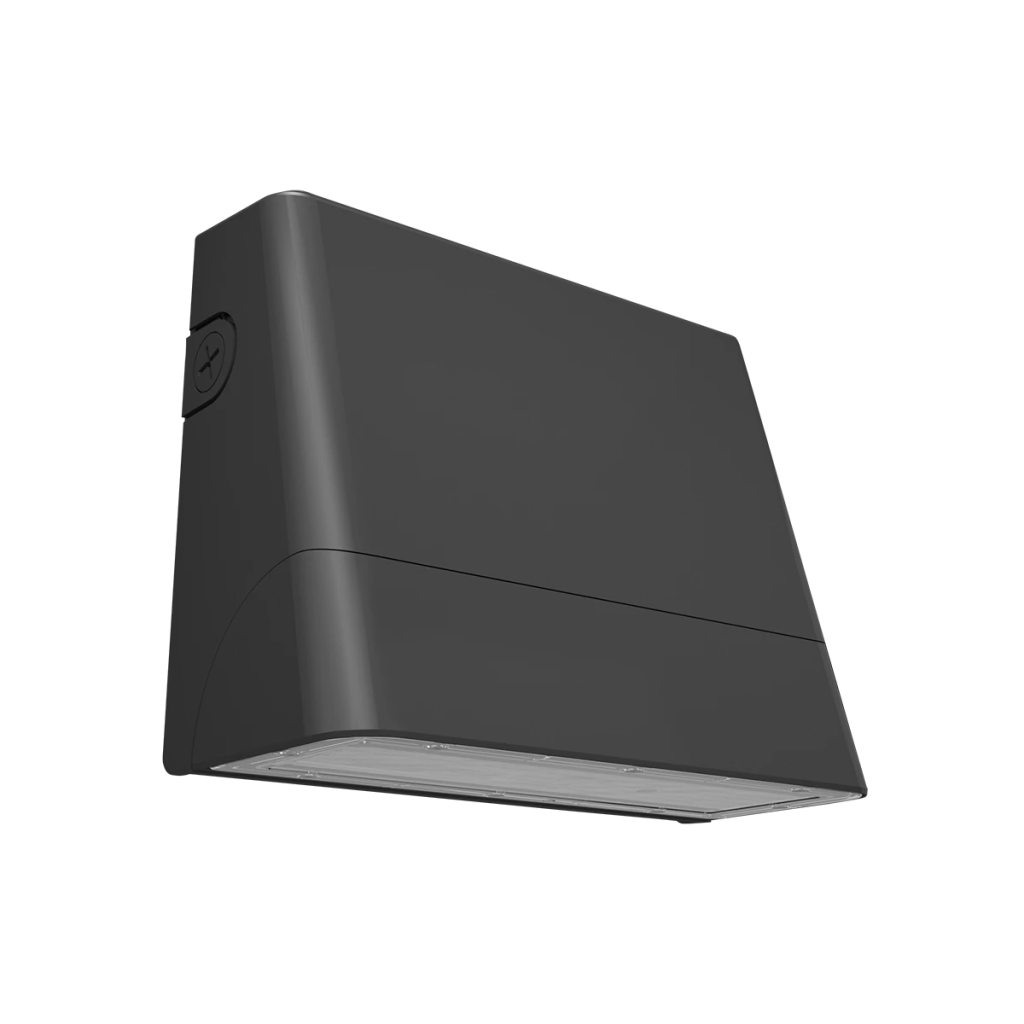

RAB SLIM22 Full Cutoff Adjustable-Throw Wall Pack - 3 CCT - 15/20/25/30W
5 Year Warranty
Lumens:
Watts:
Color Temp:
Power Meets Precision in a Compact Design
- Fully adjustable performance: The RAB SLIM22-S-30 offers 4-way field adjustability with selectable wattages (30W, 25W, 20W, 15W), color temperatures (3000K, 4000K, 5000K), and adjustable forward throw angles (0°, 15°, 30°, 45°) — giving you unmatched flexibility on-site.
- High efficiency, low profile: Delivering up to 4,833 lumens at 158 lm/W, this full-cutoff wall pack ensures precise light distribution and superior energy savings while maintaining a sleek, architectural look.
- Engineered for lasting reliability: Built with a die-cast aluminum housing, polycarbonate lens, and IP65-rated protection, the SLIM22-S-30 withstands harsh outdoor environments. Standard features include a selectable on/off photocell, 0–10V dimming, and a 100,000-hour LED lifespan.
Use cases
Ideal for commercial building exteriors, pathways, and perimeter lighting where control, performance, and visual comfort are key. The SLIM22-S-30’s adjustable forward throw anlges and multiple configurations make it the go-to choice for energy-efficient, professional-grade illumination.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Power Meets Precision in a Compact Design
- Fully adjustable performance: The RAB SLIM22-S-30 offers 4-way field adjustability with selectable wattages (30W, 25W, 20W, 15W), color temperatures (3000K, 4000K, 5000K), and adjustable forward throw angles (0°, 15°, 30°, 45°) — giving you unmatched flexibility on-site.
- High efficiency, low profile: Delivering up to 4,833 lumens at 158 lm/W, this full-cutoff wall pack ensures precise light distribution and superior energy savings while maintaining a sleek, architectural look.
- Engineered for lasting reliability: Built with a die-cast aluminum housing, polycarbonate lens, and IP65-rated protection, the SLIM22-S-30 withstands harsh outdoor environments. Standard features include a selectable on/off photocell, 0–10V dimming, and a 100,000-hour LED lifespan.
Use cases
Ideal for commercial building exteriors, pathways, and perimeter lighting where control, performance, and visual comfort are key. The SLIM22-S-30’s adjustable forward throw anlges and multiple configurations make it the go-to choice for energy-efficient, professional-grade illumination.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 15W/20W/25W/30W |
| Replaces Wattage(s) | 70W-150W |
| Light Output |
@3000K: 2,199/3,024/3,790/4,445 lumens @4000K: 2,385/3,280/4,111/4,821 lumens @5000K: 2,384/3,278/4,109/4,819 lumens |
| Luminous Efficacy (lm/W) | 158 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 84 |
| Dimming | 0-10V |
| Beam Angle | 0°/15°/30°/45° (factory default 0°) |
| Lens Cover | Polycarbonate |
| Enclosure Rating | IP65 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Driver Type | Constant Current, Class 2 |
| Power Factor |
@30W: 99.5% at 120V, 94.8% at 277V @25W: 99.5% at 120V, 93.6% at 277V @20W: 99.2% at 120V, 90.7% at 277V @15W: 98.6% at 120V, 84.1% at 277V |
| THD (Total Harmonic Distortion) |
@30W: 6.63% at 120V, 12.67% at 277V @25W: 7.49% at 120V, 14.45% at 277V @20W: 9.13% at 120V, 16.84% at 277V @15W: 11.81% at 120V, 20.66% at 277V |
| Surge Protection | DM(L/N): 6 kV, CM(L/N-PE): 6 kV |
| Temperature Rating | -40°C to +40°C (-40°F to +104°F) |
| Housing Material | Die-cast aluminum housing |

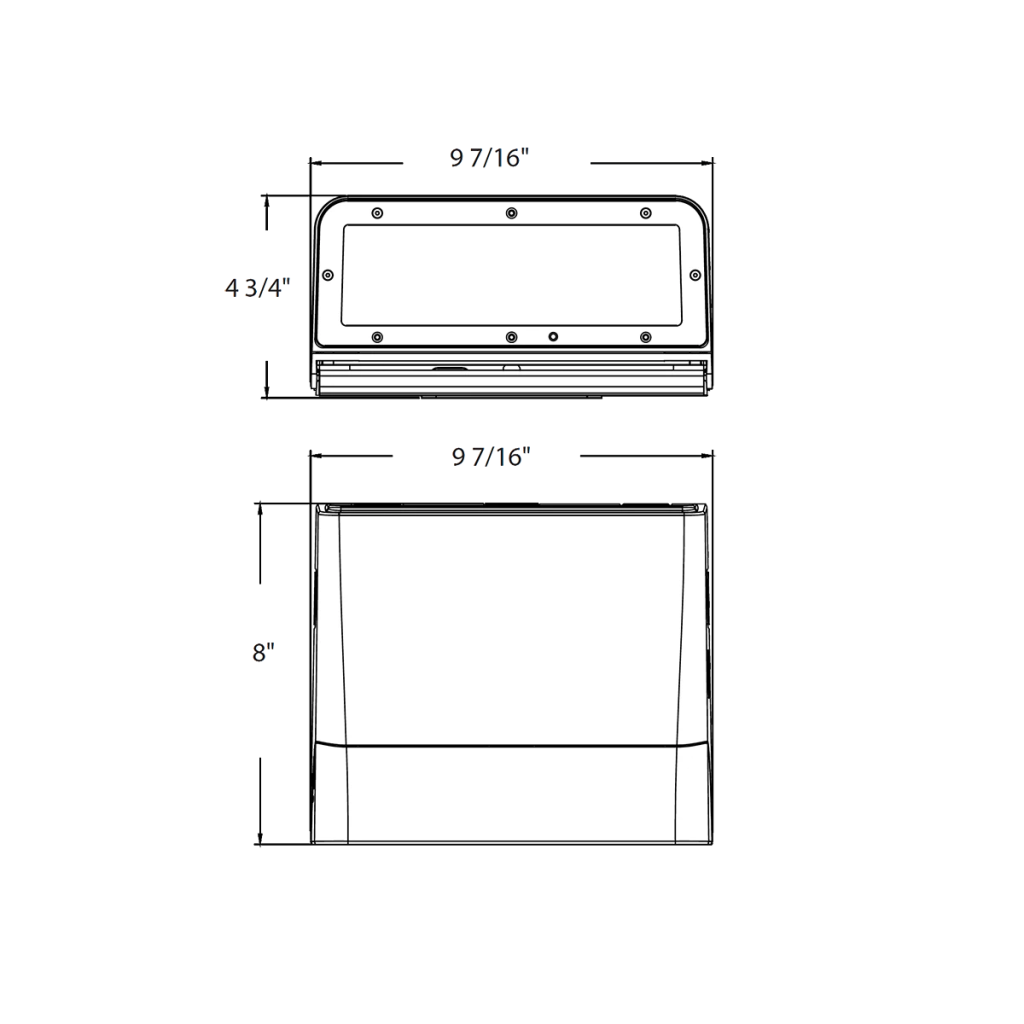

| Dimensions | 9.44” x 8.00” x 4.75” |
| Weight | 7.1 lbs |
| Certification | DLC Premium, UL Wet Location |
| DLC ID(s) | S-RGJHKZ |
| Warranty | 5 Years |
COMPARE KEY FEATURES
RAB SLIM22 Full Cutoff Adjustable-Throw Wall Pack - 3 CCT - 15/20/25/30W
|
RAB SLIM22 Full Cutoff Adjustable Throw Wall Pack - 3 CCT - 30/40/50/60W
|
RAB W22 Adjustable Throw Wall Pack - 3 CCT - 50/70/85/100W
|
|
|---|---|---|---|
| Wattage | 15W/20W/25W/30W | 30W/40W/50W/60W | 50W/70W/85W/100W |
| Equivalent to | 70W-150W | 150W-200W | 200W-310W |
| Light Output | @3000K: 2,199/3,024/3,790/4,445 lumens @4000K: 2,385/3,280/4,111/4,821 lumens @5000K: 2,384/3,278/4,109/4,819 lumens |
@3000K: 4,418/5,917/6,921/7,942 lumens @4000K: 4,898/6,559/7,672/8,804 lumens @5000K: 4,762/6,377/7,460/8,560 lumens |
@3000K: 7,284/9,783/11,442/12,967 lumens @4000K: 7,913/10,628/12,430/14,087 lumens @5000K: 7,871/10,571/12,364/14,012 lumens |
| Color Temperature (CCT) | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K |
| Warranty | 5 Years | 5 Years | 5 years |
|
