RAB SLIM15 Full Cutoff Wall Pack - 13/25/34W
RAB SLIM15 Full Cutoff LED Wall Pack with Selectable Power, Max 34W
Regular price
Lumens:
1,398-3,907
Watts:
13W-34W
Color Temp:
4000K or 5000K
Full-cutoff design forces light downward for low-glare, dark-sky-friendly lighting of entryways, walkways, and perimeters. Field-selectable output up to 3,907lm allows mounting at various heights. Light, compact housing (~2lbs, 2.5” deep) provides a clean look and installs easy at a j-box or wall-mounted with conduit side entry. Built for temps down to -40°F.
5 Year Warranty
Affordable, Modern, and Night-Sky Friendly
- Selectable performance in one fixture: The RAB SLIM15 cutoff wall pack offers three field-selectable wattages—34W, 25W, and 13W—and two color temperatures (4000K and 5000K), giving you flexibility for any project without stocking multiple models.
- Environmentally conscious design: Built from Post-Consumer Resin (PCR) with a raw aluminum back that eliminates chemical coatings, the SLIM15 is both sustainable and durable.
- Reliable construction for everyday use: Featuring a precision die-cast aluminum housing, IP65 wet-location rating, and 50,000-hour LED lifespan, the SLIM15 is made for dependable exterior lighting at an economical price.
Use cases
Ideal for entryways, walkways, perimeter lighting, and smaller commercial exteriors that demand efficient, eco-friendly illumination. The SLIM15 provides full-cutoff performance to minimize glare and light trespass—perfect for environmentally sensitive installations.
Saves $/year in energy costs*
Color Temperature:
Regular price
$12 flat rate shipping / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Affordable, Modern, and Night-Sky Friendly
- Selectable performance in one fixture: The RAB SLIM15 cutoff wall pack offers three field-selectable wattages—34W, 25W, and 13W—and two color temperatures (4000K and 5000K), giving you flexibility for any project without stocking multiple models.
- Environmentally conscious design: Built from Post-Consumer Resin (PCR) with a raw aluminum back that eliminates chemical coatings, the SLIM15 is both sustainable and durable.
- Reliable construction for everyday use: Featuring a precision die-cast aluminum housing, IP65 wet-location rating, and 50,000-hour LED lifespan, the SLIM15 is made for dependable exterior lighting at an economical price.
Use cases
Ideal for entryways, walkways, perimeter lighting, and smaller commercial exteriors that demand efficient, eco-friendly illumination. The SLIM15 provides full-cutoff performance to minimize glare and light trespass—perfect for environmentally sensitive installations.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Regular price
Lumens:
1,398-3,907
Watts:
13W-34W
Color Temp:
4000K or 5000K
Full-cutoff design forces light downward for low-glare, dark-sky-friendly lighting of entryways, walkways, and perimeters. Field-selectable output up to 3,907lm allows mounting at various heights. Light, compact housing (~2lbs, 2.5” deep) provides a clean look and installs easy at a j-box or wall-mounted with conduit side entry. Built for temps down to -40°F.
5 Year Warranty
Color Temperature:
Regular price
$12 flat rate shipping / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Regular price
Lumens:
1,398-3,907
Watts:
13W-34W
Color Temp:
4000K or 5000K
Full-cutoff design forces light downward for low-glare, dark-sky-friendly lighting of entryways, walkways, and perimeters. Field-selectable output up to 3,907lm allows mounting at various heights. Light, compact housing (~2lbs, 2.5” deep) provides a clean look and installs easy at a j-box or wall-mounted with conduit side entry. Built for temps down to -40°F.
5 Year Warranty
Color Temperature:
Regular price
$12 flat rate shipping / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
SPECIFICATIONS
| Wattage(s) | 13W/25W/34W |
| Replaces Wattage(s) | 70W to 150W |
| Light Output |
@4000K: 1,398/2,711/3,695 lumens @5000K: 1,493/2,827/3,907 lumens |
| Luminous Efficacy (lm/W) | 118 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 4000K or 5000K |
| CRI (Color Accuracy) | 86 |
| Lens Cover | Polycarbonate |
| Enclosure Rating | IP65 |
| Input Voltage | 120VAC 50/60Hz |
| Driver Type | Integrated Driver |
| Power Factor |
@13W: 99.2% @25W: 99.2% @34W: 99.1% |
| THD (Total Harmonic Distortion) |
@13W: 12.1% @25W: 12.3% @34W: 12.6% |
| Surge Protection | 4kV |
| Temperature Rating | -40°C to +40°C (-40°F to +104°F) |
| Housing Material | Die-cast aluminum housing |

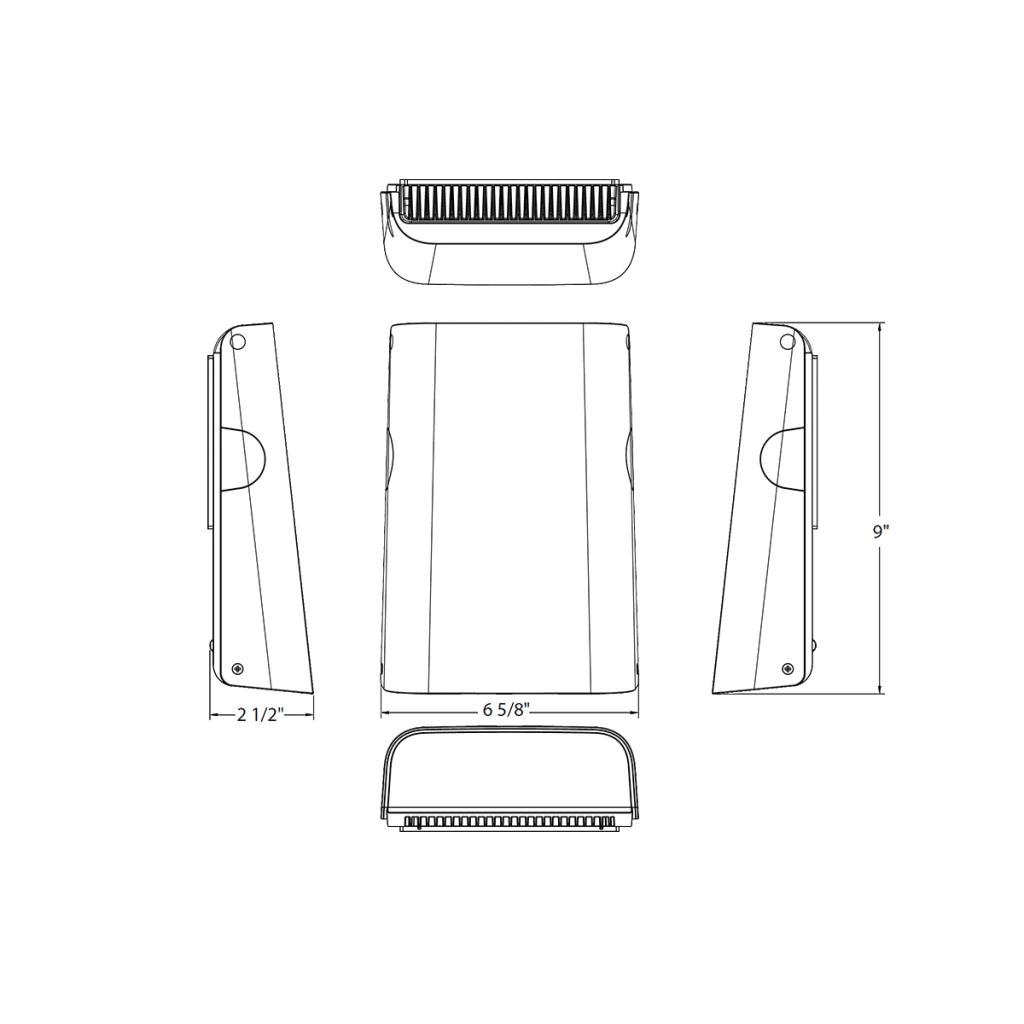

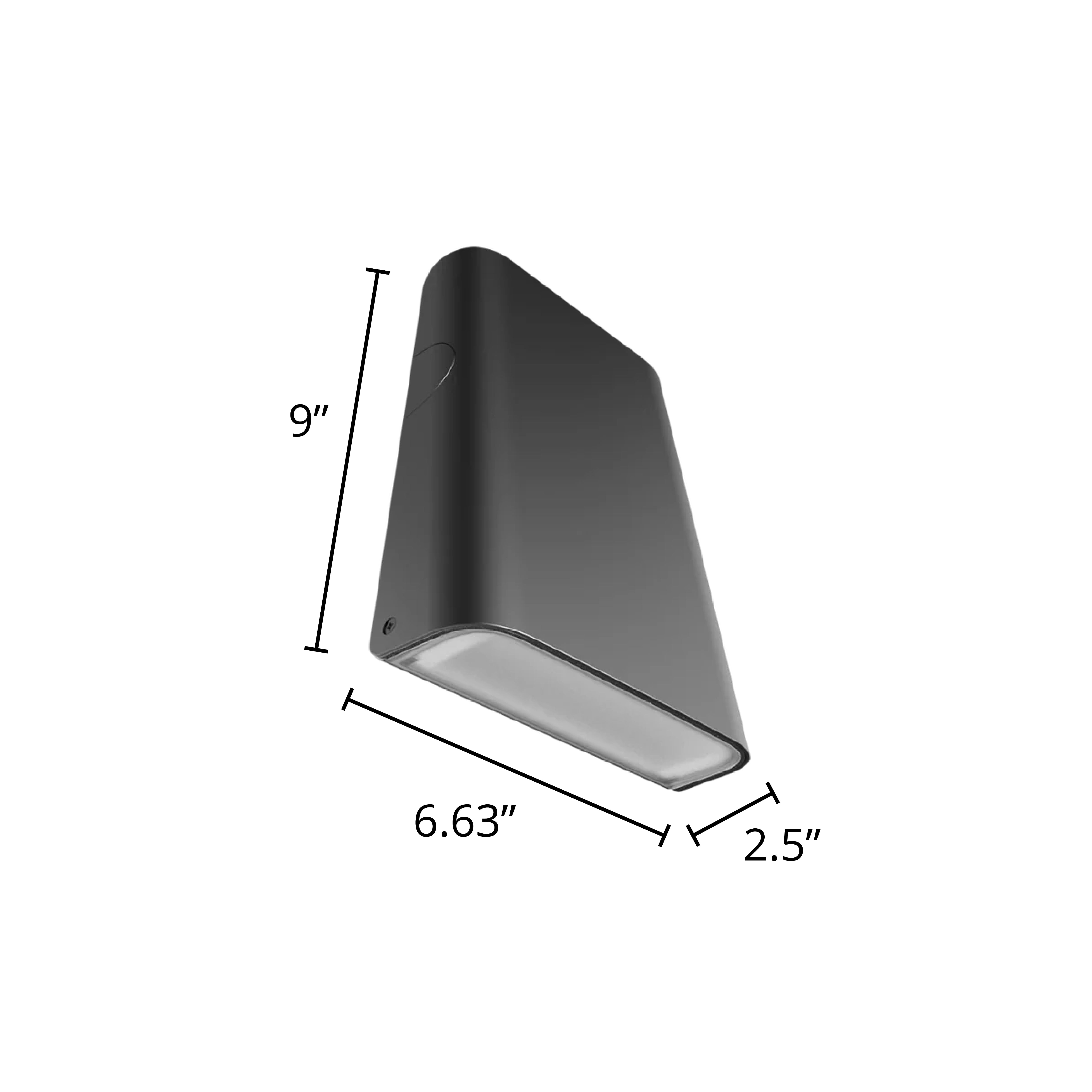

| Dimensions | 6.63" x 9.00" x 2.50" |
| Weight | 2.0 lbs |
| Certification | DLC, UL Wet Location |
| DLC ID(s) | S-6H8310, S-IFESPR |
| Warranty | 5 Years |
COMPARE KEY FEATURES
RAB SLIM15 Full Cutoff Wall Pack - 13/25/34W
|
Full Cutoff Angle Adjustable LED Wall Pack - 67W
|
Full Cutoff LED Wall Pack - 3 CCT - 100/80/60/40W
|
|
|---|---|---|---|
| Wattage | 13W/25W/34W | 67W | 100W power selectable (100%, 80%, 60%, or 40%) at install |
| Equivalent to | 70W to 150W | 175W | 320W |
| Light Output | @4000K: 1,398/2,711/3,695 lumens @5000K: 1,493/2,827/3,907 lumens |
8,800 lumens | 15,500/13,050/9,595/6,335 lumens @ 4000K |
| Color Temperature (CCT) | 4000K or 5000K | 5000K | 3000K/4000K/5000K selectable at install |
| Warranty | 5 Years | 5 Years | 5 Years |
|
