70W Selectable RAB PARK34 LED Canopy Light
70W Selectable RAB PARK34 LED Canopy Light
70W Selectable RAB PARK34 LED Canopy Light
70W Selectable RAB PARK34 LED Canopy Light
Designed for parking garages and shorter canopies, this 50–70W LED canopy light delivers up to 9,088 lumens with field-selectable wattage & CCT and surface or pendant mounting options.
- Up to 9,088 lumens at 151 lm/W
- Field-selectable wattage and color temperature
- Die-cast aluminum, water-sealed housing
Designed for parking garages and shorter canopies, this 50–70W LED canopy light delivers up to 9,088 lumens with field-selectable wattage & CCT and surface or pendant mounting options.
- Up to 9,088 lumens at 151 lm/W
- Field-selectable wattage and color temperature
- Die-cast aluminum, water-sealed housing
Choose options
Details

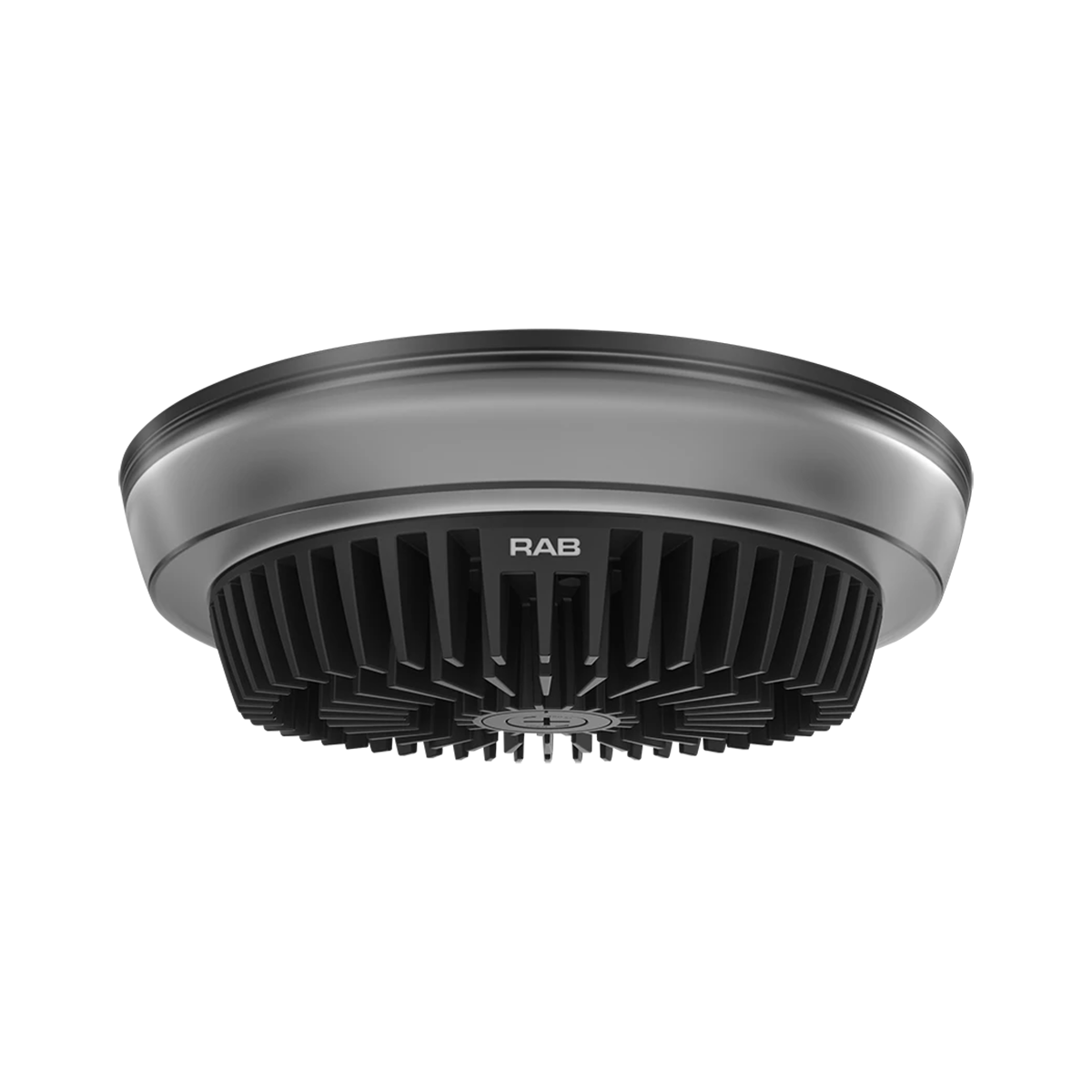

The RAB PARK34-70 is a heavy-duty, field-adjustable LED canopy and parking structure light built for electricians and facility managers who need higher output — up to 70W and 9,088 lumens — in a compact, low-profile housing.
- Field-selectable wattage (50/60/70W) and color temperature (3000K/4000K/5000K) let you configure the right light on the job without stocking multiple SKUs.
- Delivers up to 9,088 lumens at up to 151.1 lm/W and is DLC Premium listed, qualifying for the highest tier of utility rebates.
- IP65-rated die-cast aluminum housing with silicone gaskets handles dust, moisture, and cold-weather starts down to -40°F without issue.
- Standard 0-10V dimming with dim-to-off capability and an auxiliary power supply output provide flexible control without added hardware.
- Surface mounts directly or converts to 1/2" or 3/4" NPT pendant mounting via a removable adapter — clean install, no special hardware required.
Backed by RAB's 5-year limited warranty and available now from ELEDLights — competitive pricing and fast shipping on every order.
Specs
| Wattage(s) | 50/60/70W (field selectable) |
| Replaces Wattage(s) | Up to 250W Metal Halide (at 70W and 60W settings) |
| Light Output | 6,783–9,088 lm |
| Luminous Efficacy (lm/W) | 121–151.1 lm/W |
| Average Lamp Life | 100,000 Hours (L70, per IES LM-80 / TM-21) |
| Color Temperature(s) | 3000K / 4000K / 5000K selectable |
| CRI (Color Accuracy) | 80–84 |
| Dimming | 0-10V |
| Dimming Range | 10–100% (0-10V); dim-to-off capable |
| Lens Cover | Polycarbonate lens; polycarbonate reflector |
| Installation | Surface mount or pendant mount via removable adapter for 1/2" or 3/4" NPT (pendant hardware by others) |
| Working Environment | Outdoor; Wet Location |
| Enclosure Rating | IP65 |
| Light Type | LED |
| LED Type | Long-life, high-efficacy surface-mount LEDs |
| Input Voltage | 120V or 277V, 50/60Hz |
| Driver Type | Constant Current, Class 1 |
| Power Factor | 99.5% at 120V; 96.3% at 277V |
| Surge Protection | 4 kV |
| Input Power Rating | 48.8–68.7W |
| Input Current | 70W: 120V–0.58A, 277V–0.25A; 60W: 120V–0.50A, 277V–0.23A; 50W: 120V–0.41A, 277V–0.19A |
| Temperature Rating | -40°F (-40°C) min. starting; 104°F (40°C) max. ambient |
| Housing Material | Die-cast aluminum housing; silicone rubber gaskets |
| Housing Color | Bronze |

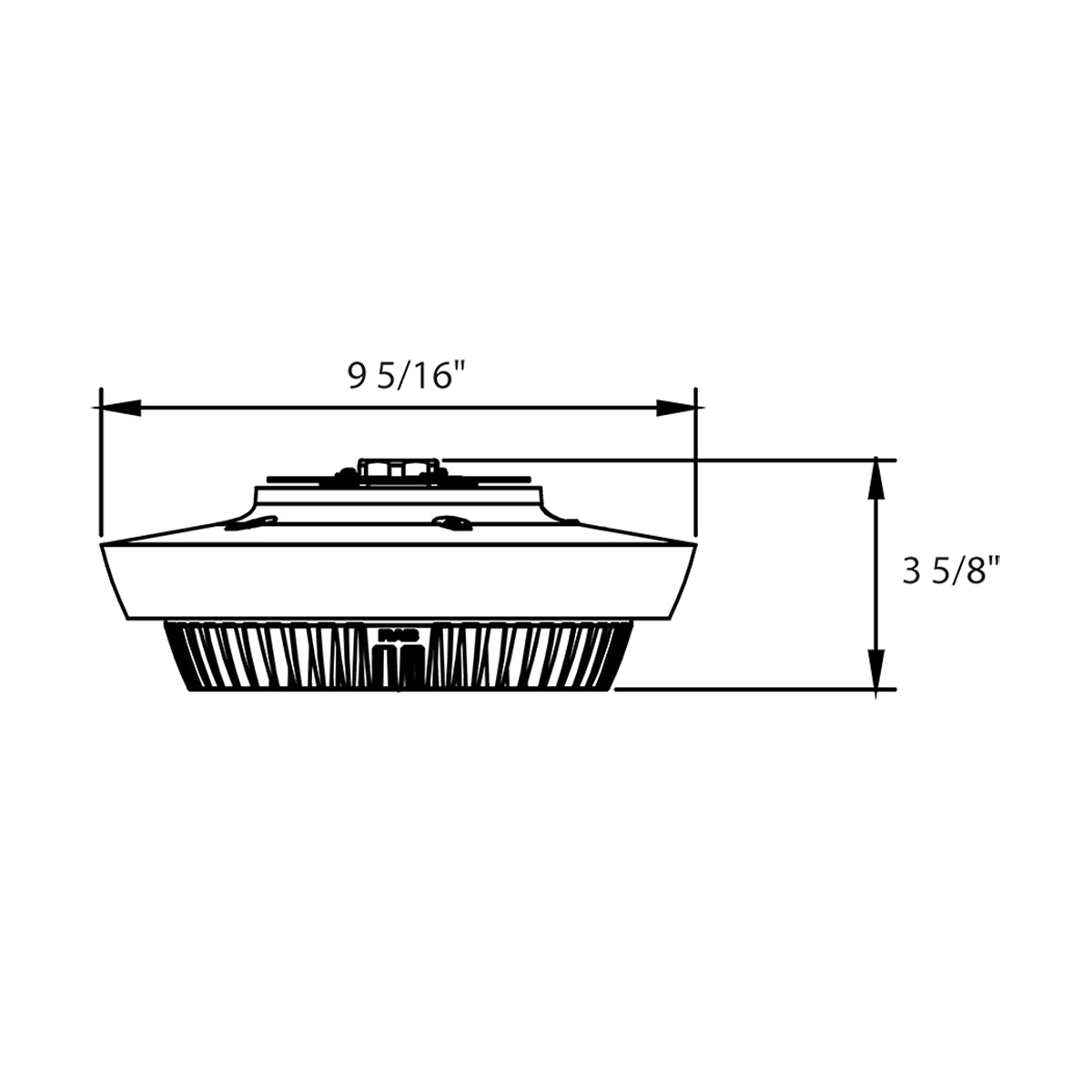

| Dimensions | 9 5/16" diameter; 3 5/8" height |
| Shipping Weight | 5.8 lbs |
| Certification | DLC Premium, UL Listed |
| Warranty | 5-Year Limited |
| Additional Specifications | Color stability: warranted to shift no more than 200K over 5 years. Color consistency: 7-step MacAdam Ellipse binning. Color uniformity per ANSI C78.377-2017. Auxiliary power supply output included. Mercury and UV free; RoHS-compliant components. Trade Agreements Act compliant (product of Cambodia). Optional battery backup available (/E suffix). Optional finish: White (W suffix). |
| Other Specifications | Wattage equivalency: 50W replaces up to 200W MH. Tested per IESNA LM-79 and LM-80 by an independent laboratory. |
