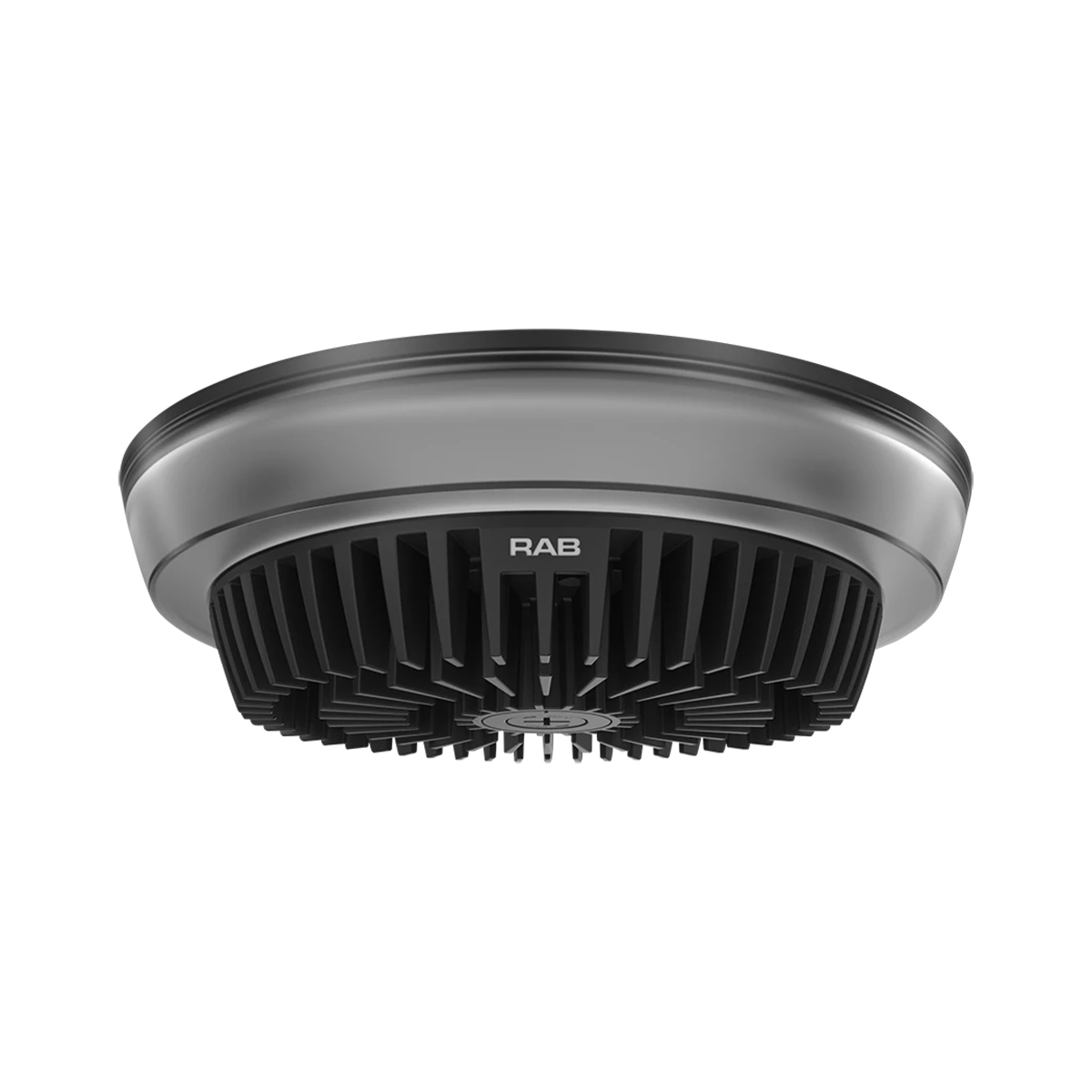

RAB PARK34-40 Field-Adjustable LED Canopy Light – 20/30/40W, 3000K/4000K/5000K, DLC Premium, IP65
Lumens:
Watts:
Color Temp:
5 Year Warranty
The RAB PARK34-40 is a compact, field-adjustable LED canopy and parking structure light built for electricians and facility managers who need reliable, rebate-eligible performance in tight overhead spaces.
- Field-selectable wattage (20/30/40W) and color temperature (3000K/4000K/5000K) let you dial in the right output on the job — one fixture covers multiple applications.
- Delivers up to 5,899 lumens at up to 156.1 lm/W and is DLC Premium listed, qualifying for the highest tier of utility rebates.
- IP65-rated die-cast aluminum housing with silicone gaskets stands up to dust, moisture, and cold weather starts down to -40°F.
- Standard 0-10V dimming with dim-to-off capability and an auxiliary power supply output give you flexible control without extra hardware.
- Surface mounts directly or converts to 1/2" or 3/4" NPT pendant mounting via a removable adapter — no special hardware needed.
Backed by RAB's 5-year limited warranty and available now from ELEDLights — fast shipping and competitive pricing on every order.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price & free shipping:
The RAB PARK34-40 is a compact, field-adjustable LED canopy and parking structure light built for electricians and facility managers who need reliable, rebate-eligible performance in tight overhead spaces.
- Field-selectable wattage (20/30/40W) and color temperature (3000K/4000K/5000K) let you dial in the right output on the job — one fixture covers multiple applications.
- Delivers up to 5,899 lumens at up to 156.1 lm/W and is DLC Premium listed, qualifying for the highest tier of utility rebates.
- IP65-rated die-cast aluminum housing with silicone gaskets stands up to dust, moisture, and cold weather starts down to -40°F.
- Standard 0-10V dimming with dim-to-off capability and an auxiliary power supply output give you flexible control without extra hardware.
- Surface mounts directly or converts to 1/2" or 3/4" NPT pendant mounting via a removable adapter — no special hardware needed.
Backed by RAB's 5-year limited warranty and available now from ELEDLights — fast shipping and competitive pricing on every order.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 20/30/40W (field selectable) |
| Replaces Wattage(s) | Up to 175W Metal Halide (at 40W setting) |
| Light Output | 3,160–5,899 lm |
| Luminous Efficacy (lm/W) | 130.9–156.1 lm/W |
| Average Lamp Life | 100,000 Hours (L70, per IES LM-80 / TM-21) |
| Color Temperature(s) | 3000K / 4000K / 5000K selectable |
| CRI (Color Accuracy) | 82–86 |
| Dimming | 0-10V |
| Dimming Range | 10–100% (0-10V); dim-to-off capable |
| Lens Cover | Polycarbonate lens; polycarbonate reflector |
| Installation | Surface mount or pendant mount via removable adapter for 1/2" or 3/4" NPT (pendant hardware by others) |
| Working Environment | Outdoor; Wet Location |
| Enclosure Rating | IP65 |
| Light Type | LED |
| LED Type | Long-life, high-efficacy surface-mount LEDs |
| Input Voltage | 120V or 277V, 50/60Hz |
| Driver Type | Constant Current, Class 1 |
| Power Factor | 99.3% at 120V; 97.5% at 277V |
| Surge Protection | 4 kV |
| Input Power Rating | 21.5–40.5W |
| Input Current | 40W: 120V–0.34A, 277V–0.15A; 30W: 120V–0.25A, 277V–0.11A; 20W: 120V–0.17A, 277V–0.09A |
| Temperature Rating | -40°F (-40°C) min. starting; 104°F (40°C) max. ambient |
| Housing Material | Die-cast aluminum housing; silicone rubber gaskets |
| Housing Color | Bronze |

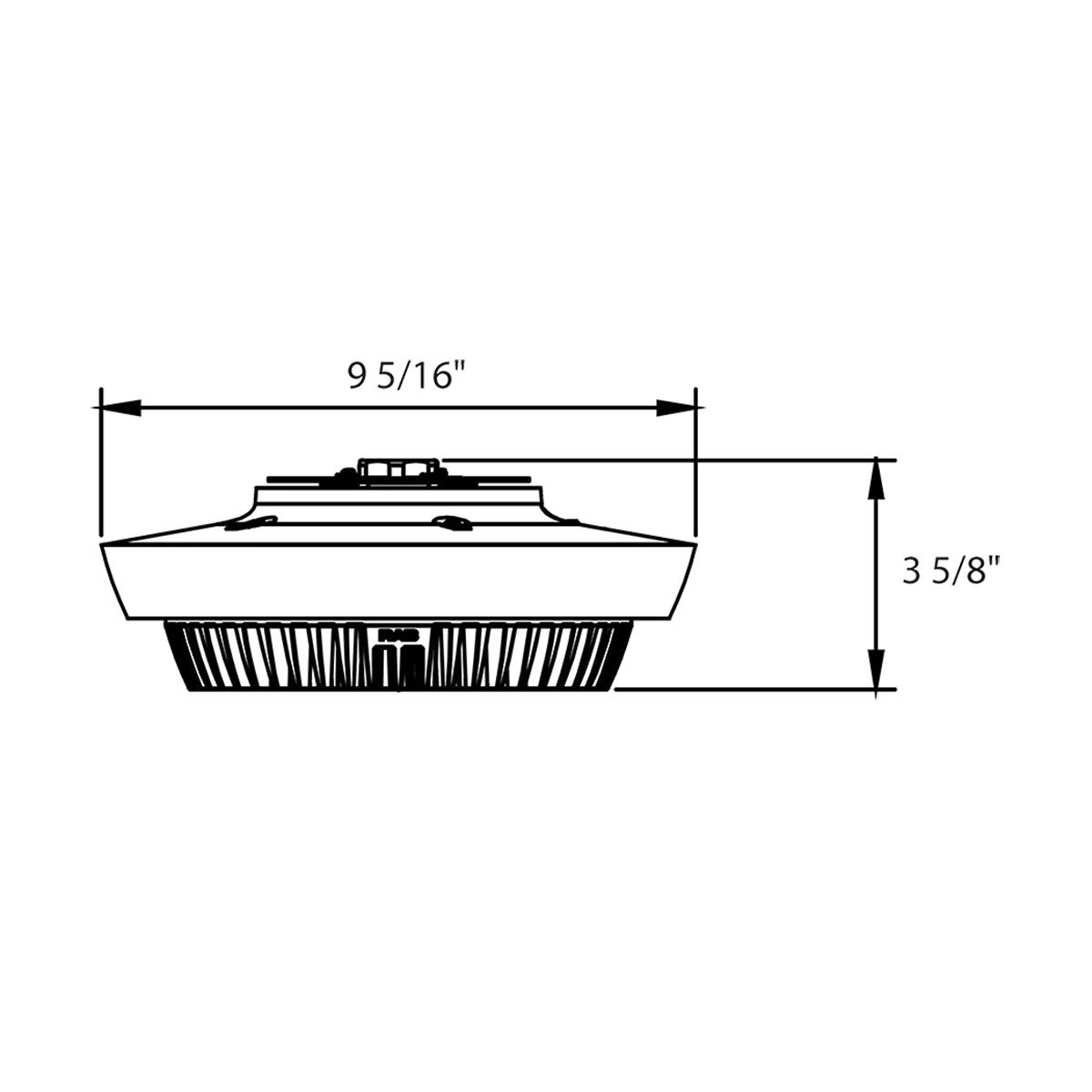

| Dimensions | 9 5/16" diameter; 3 5/8" height |
| Shipping Weight | 2.9 lbs |
| Certification | DLC Premium, UL Listed |
| Warranty | 5-Year Limited |
| Additional Specifications | Color stability: warranted to shift no more than 200K over 5 years. Color consistency: 7-step MacAdam Ellipse binning. Color uniformity per ANSI C78.377-2017. Auxiliary power supply output included. Mercury and UV free; RoHS-compliant components. Trade Agreements Act compliant (product of Cambodia). Optional battery backup available (/E suffix). Optional finish: White (W suffix). |
| Other Specifications | Wattage equivalency: 30W replaces up to 150W MH; 20W replaces up to 100W MH. Tested per IESNA LM-79 and LM-80 by an independent laboratory. |
