Ideal for high fuel pump canopies and demanding commercial sites, this premium 150–200W LED canopy light delivers up to 31,640 lumens with field-tunability, semi-recessed mounting, and a 100,000-hour lifespan.
- Up to 31,640 lumens at up to 167 lm/W efficacy
- Field-selectable wattage and color temperature
- Rugged die-cast aluminum and tempered glass construction
Need More? Text/call (858) 650-9400
Ideal for high fuel pump canopies and demanding commercial sites, this premium 150–200W LED canopy light delivers up to 31,640 lumens with field-tunability, semi-recessed mounting, and a 100,000-hour lifespan.
- Up to 31,640 lumens at up to 167 lm/W efficacy
- Field-selectable wattage and color temperature
- Rugged die-cast aluminum and tempered glass construction
Choose options
Details

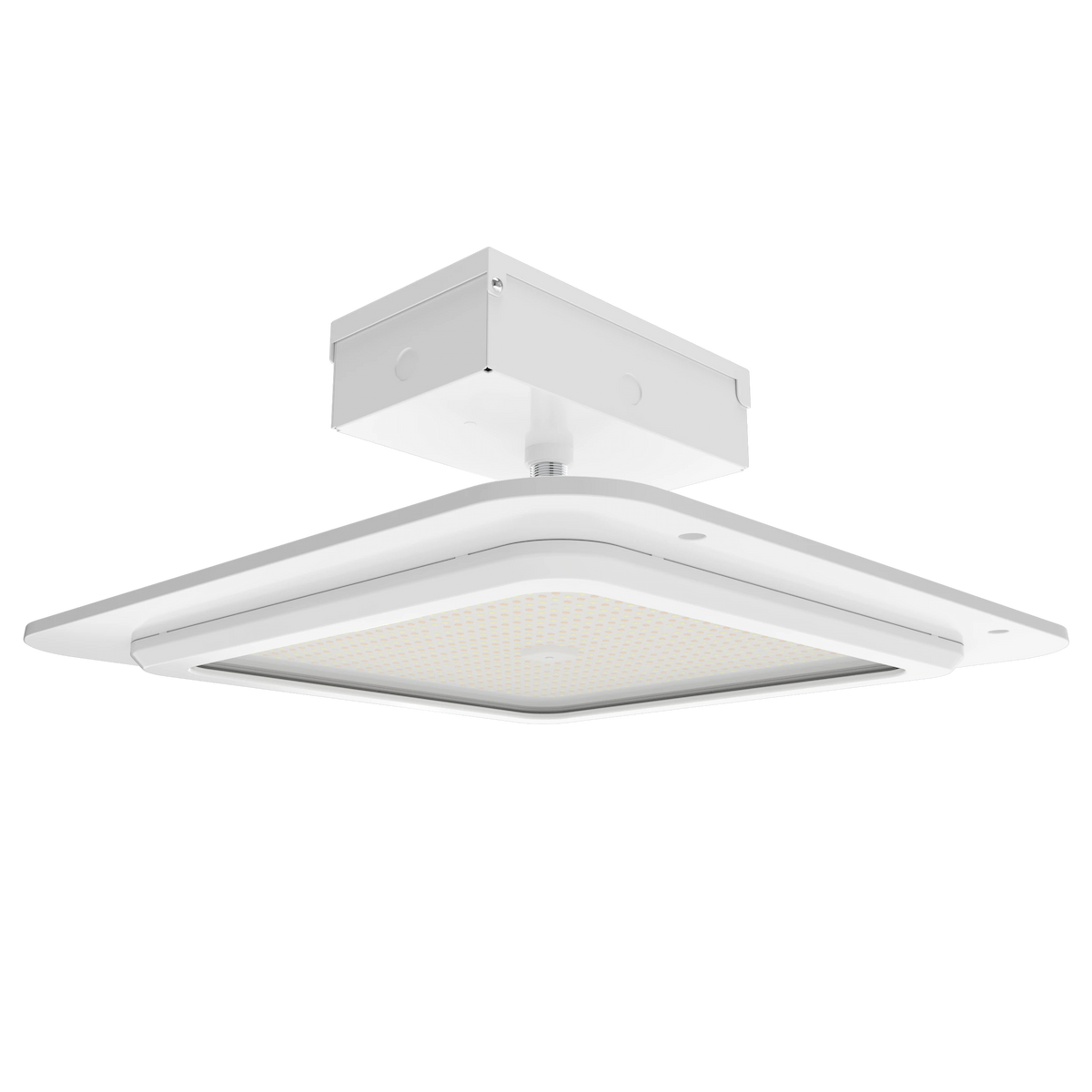

The RAB MASI20 is a premium field-adjustable LED canopy light engineered for high fuel pump canopies and other applications that require high output and long-term reliability.
- Delivers up to 31,640 lumens at standard voltage with efficacy up to 167 lm/W.
- Wattage (150/180/200W) and CCT (3000K/4000K/5000K) are both field-selectable — one product covers canopies of different heights.
- Die-cast aluminum housing with IP65 seal to withstand the elements.
- 100,000-hour LED lifespan for long service life.
- Need high voltage (480V)? Call 215-355-7200.
Backed by RAB's 5-year no-compromise warranty and available through ELEDLights with competitive pricing on every order.
Specs
| Wattage(s) | 150W/180W/200W (200W default) |
| Replaces Wattage(s) | 600W |
| Light Output |
MASI20: 23,260-31,640 lumens MASI20/480: 23,341-32,522 lumens MASI20 @4000K: 150W: 24,821 lumens 180W: 28,995 lumens 200W: 31,640 lumens MASI20/480 @4000K: 150W: 24,850 lumens 180W: 29,336 lumens 200W: 32,522 lumens |
| Luminous Efficacy (lm/W) |
MASI20: 144-167lm/W MASI20/480: 149-171lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K (4000K default) |
| CRI (Color Accuracy) | 81-84 |
| Dimming | 0-10V dimming |

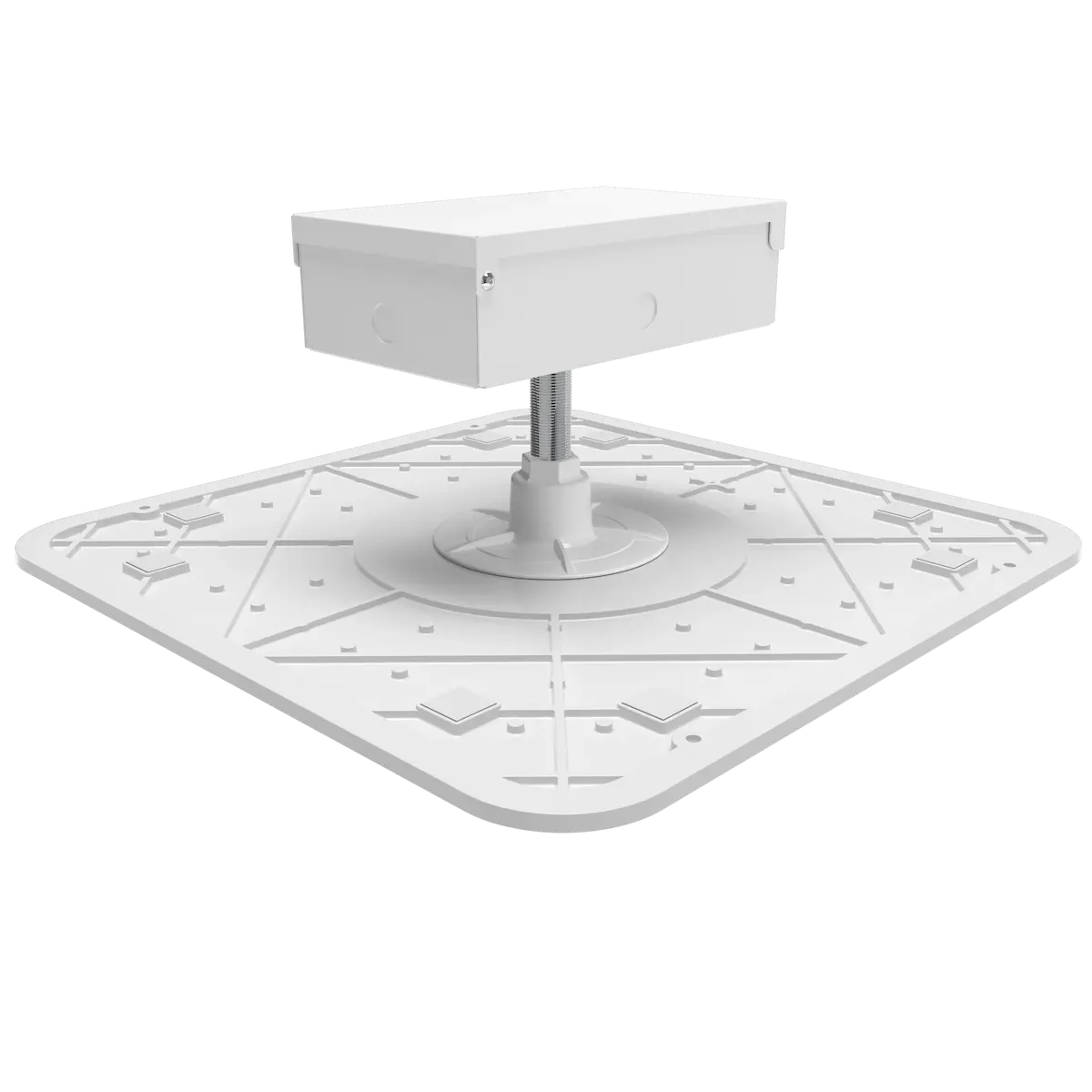

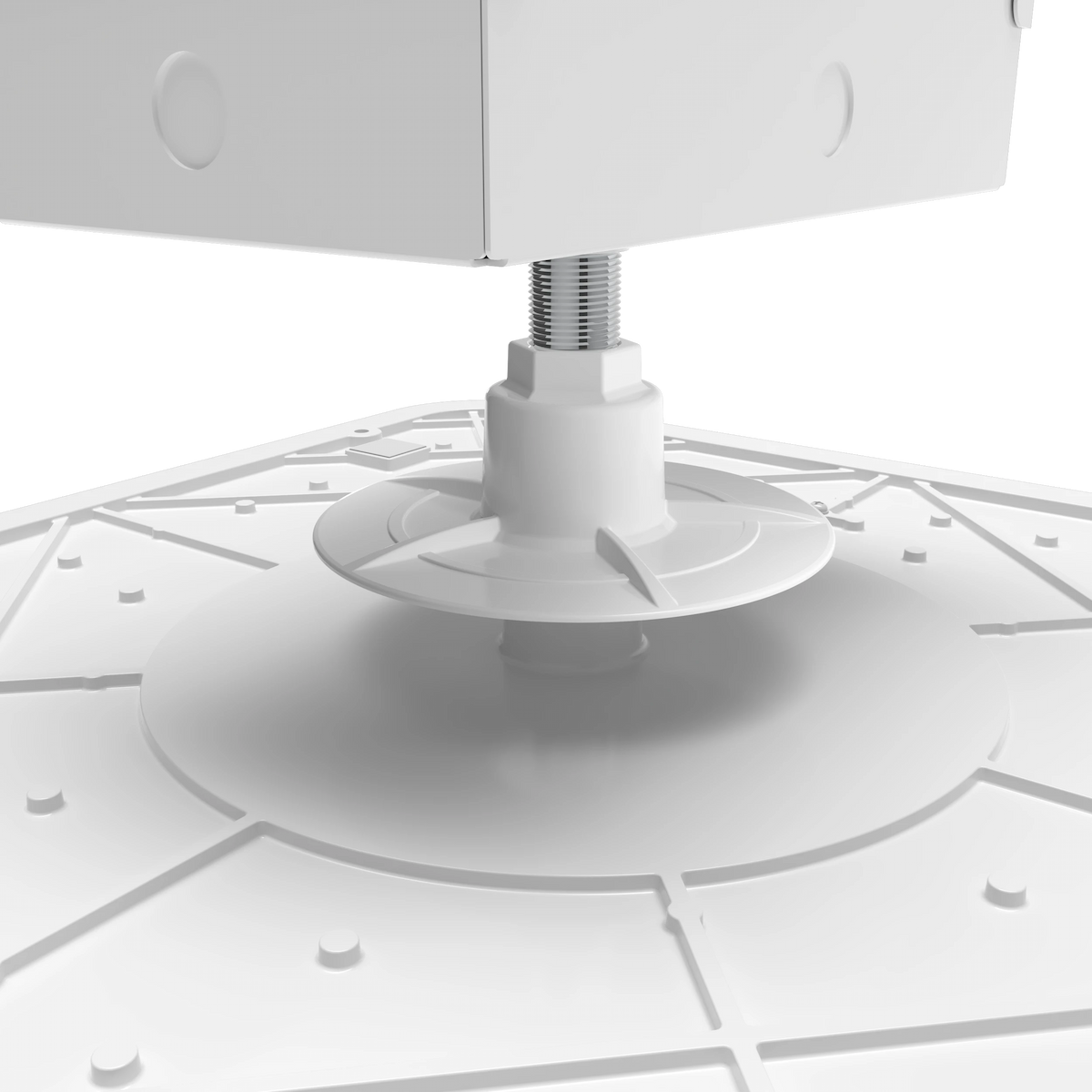

| Installation | Surface Mount (Semi-Recessed) |
| Enclosure Rating | IP65 (fixture only, driver excluded) |
| Input Voltage | 120-277VAC / 480VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Factor | 96.0% at 120VAC, 96.0% at 277VAC, 95.5% at 480VAC |
| THD (Total Harmonic Distortion) | 5.0% at 120VAC, 9.5% at 277VAC, 4.6% at 480VAC |
| Surge Protection | L-N: 6kV; L/N-PE: 6kV |
| Temperature Rating | -40°C to +40°C (-40°F to +104°F) |
| Housing Material | Die-cast aluminum |
| Housing Color | White |

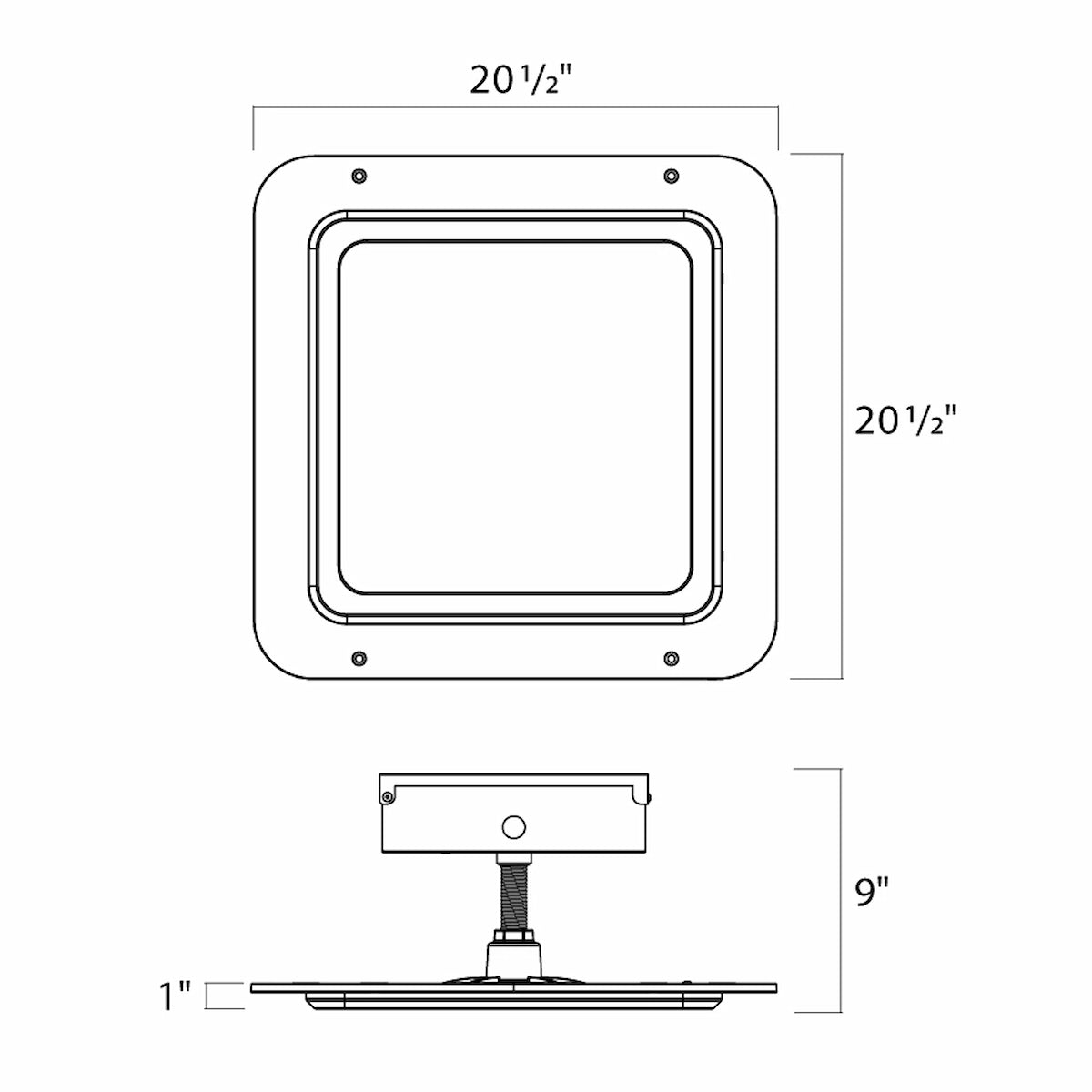

| Dimensions | 20.5" x 20.5" x 9" |
| Weight | 20.9 lbs |
| Certification | DLC, UL Wet Location |
| DLC ID(s) |
MASI20: S-P320C2 MASI120/480: S-S2GCYV |
| Warranty | 5 Years |
